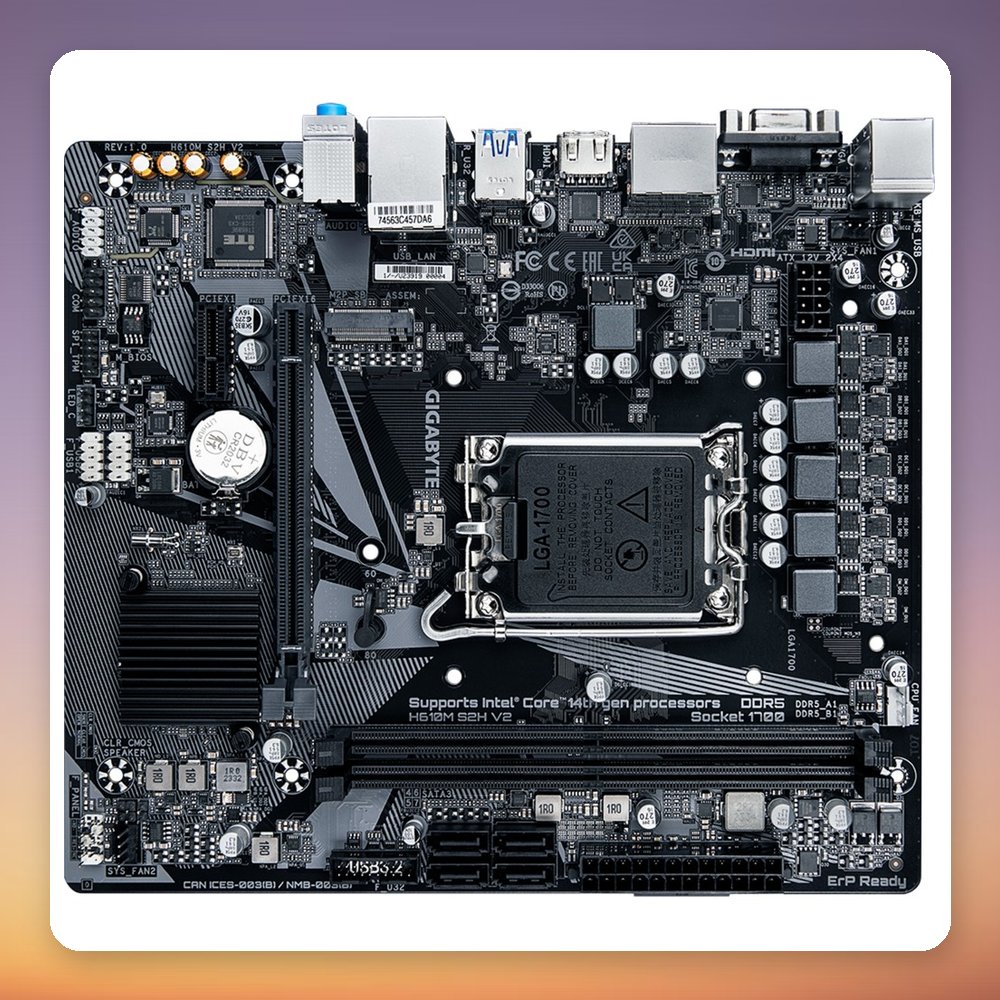

GigaByte H610M S2H V2 Intel H610 LGA 1700 Micro ATX Motherboard, DDR5
€83.50
Delivery: 7-12 business days
GigaByte H610M S2H V2 Intel H610 LGA 1700 Micro ATX Motherboard, DDR5
- LGA 1700 with Intel H610 chipset
- 2x DDR5 slots, up to 96 GB at 5600 MHz
- PCIe 4.0 x16 slot plus one M.2 PCIe slot
- HDMI, DisplayPort, DVI-D and VGA video outputs
More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.
In stock
✅
Product Overview
The GigaByte H610M S2H V2 is a Micro ATX motherboard with an Intel H610 chipset and an LGA 1700 socket, built around two DDR5 DIMM slots in dual-channel for up to 96 GB of memory. Icecat lists support for Intel Celeron, Pentium Gold and Core i3 to i9 processors, with DDR5 speeds up to 5600 MHz. It has one PCIe 4.0 x16 slot, a single M.2 (M key) slot for PCIe SSDs and four SATA ports.
With a Realtek ALC897 7.1-channel audio codec, Gigabit LAN and a good spread of rear and internal connections, this board suits a straightforward home, office or entry-level gaming PC. Video outputs include HDMI, DisplayPort, DVI-D and VGA, used with a CPU that has integrated graphics. A BIOS update may be needed to support the newest processors. Wi-Fi is not included.
Specification
- Manufacturer: GigaByte
- Model: H610M S2H V2
- MPN: H610M S2H V2
- EAN: 4719331859817
- CPU socket: LGA 1700
- Chipset: Intel H610
- Form factor: Micro ATX
- Memory: 2x DDR5 DIMM, dual-channel, up to 96 GB
- Memory speed: Up to 5600 MHz (5600/5200/4800/4400 MHz)
- Expansion slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
- M.2 storage: 1x M.2 (M key), PCIe, 60-80 mm
- SATA ports: 4x SATA III
- Rear USB: 2x USB 3.2 Gen 1 Type-A, 4x USB 2.0
- Video outputs: HDMI, DisplayPort, DVI-D, VGA
- Network: Realtek Gigabit Ethernet (RJ-45)
- Audio: Realtek ALC897, 7.1 channels
- Fan headers: 3x 4-pin PWM, 1x RGB LED header
- Power connectors: 24-pin ATX + 8-pin ATX12V
- Dimensions (W x H): 197 x 188 mm
delivery time 7-12 business days
| Weight | 1.2 kg |
|---|
