Product Overview

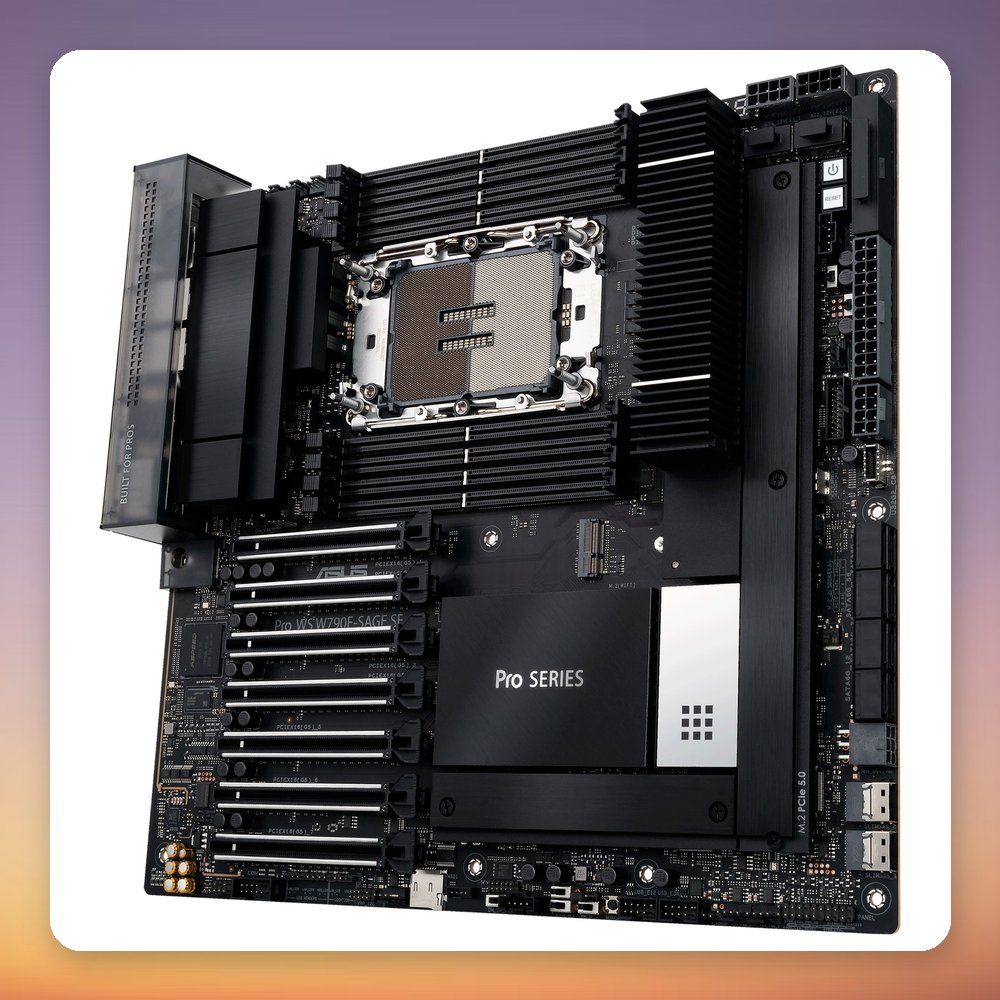

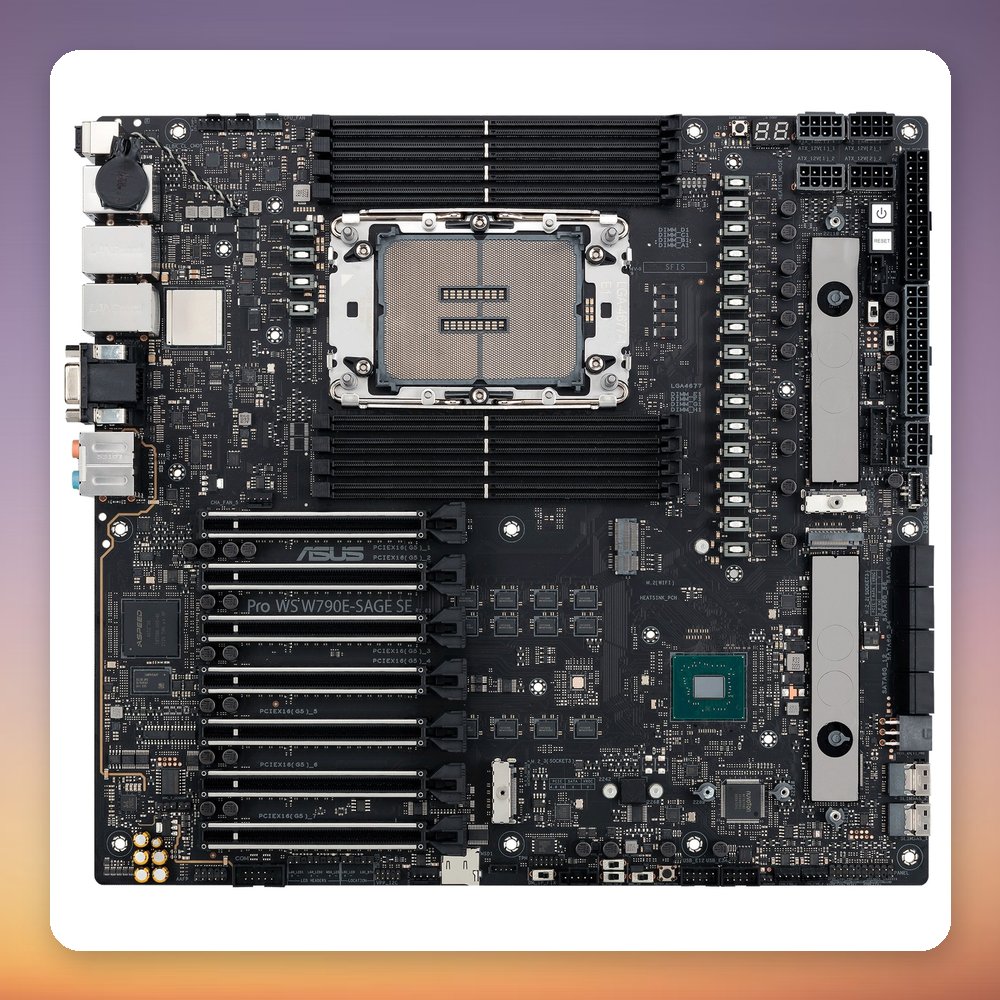

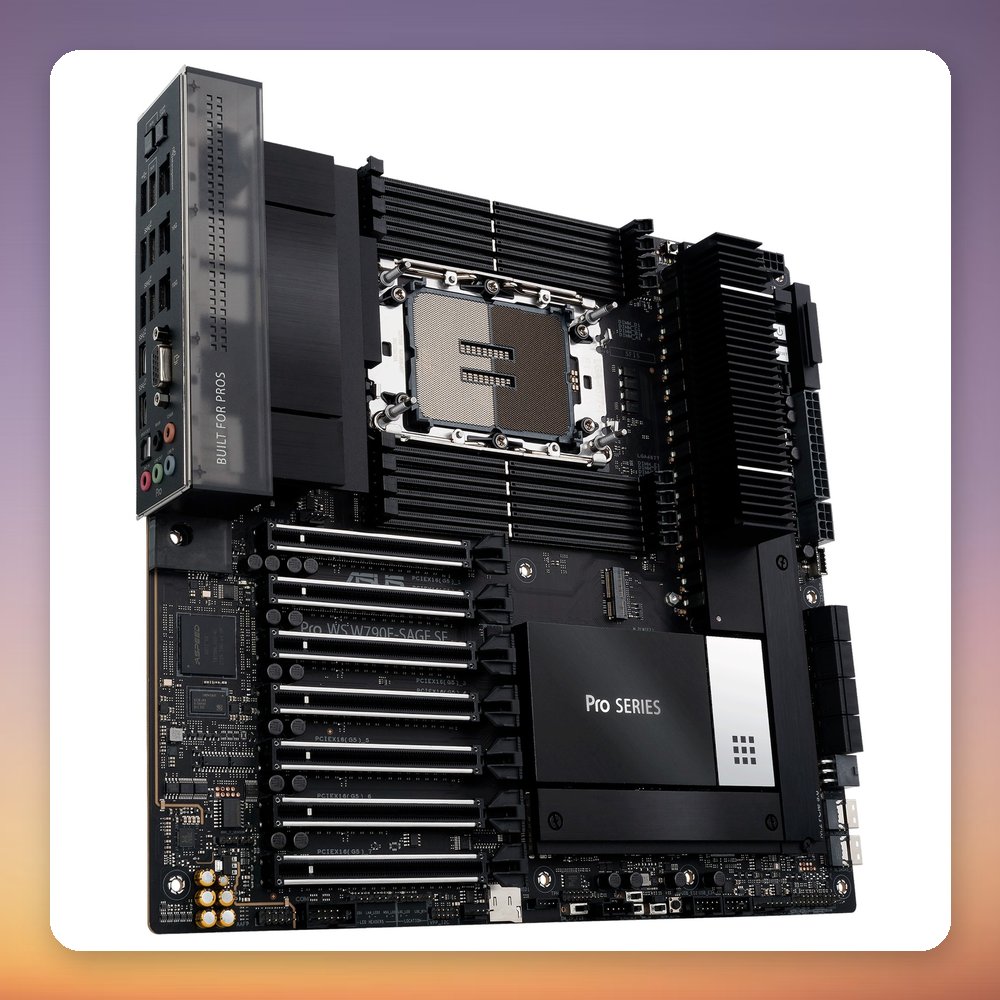

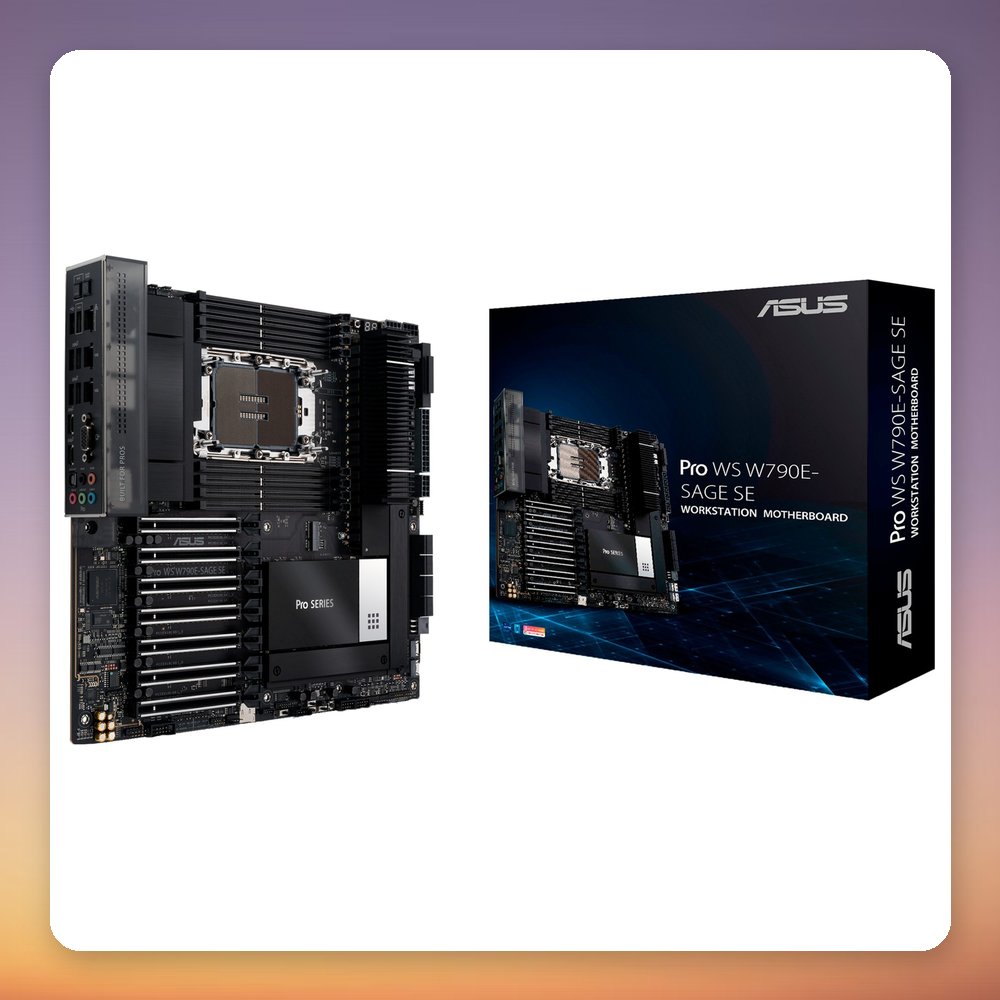

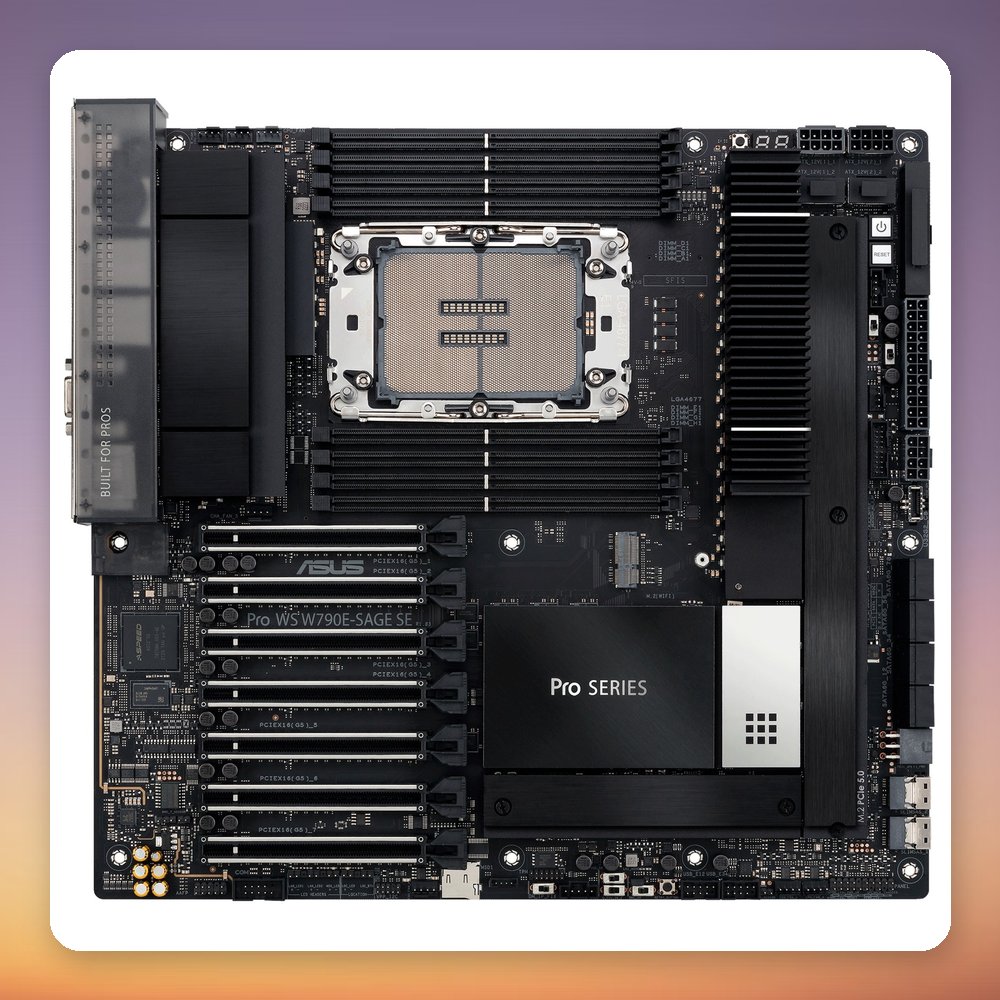

The Asus PRO WS W790E-SAGE SE is an EEB workstation motherboard built on the Intel W790 chipset for LGA 4677 (Socket E) Intel Xeon W processors. It stands out with seven PCIe 5.0 x16 slots, eight DDR5 DIMM slots running 8-channel ECC memory up to 2 TB, and dual 10 Gigabit Ethernet alongside a 1 Gigabit port. Memory speeds up to DDR5-6800 (OC) are listed.

This board suits multi-GPU rendering, content creation, simulation and development workstations that need lots of PCIe lanes and memory capacity. Storage options include three M.2 slots, eight SATA III ports and two SlimSAS connectors, with RAID 0, 1, 5 and 10 support. Server-grade features such as IPMI remote management are mentioned by the manufacturer. There is no onboard Wi-Fi, and the VGA output only works with a CPU that has integrated graphics. At 305 x 330 mm it needs a case that supports EEB boards.

Specification

• Manufacturer: Asus
• Model: PRO WS W790E-SAGE SE
• MPN: 90MB1C20-M0EAY0
• EAN: 4711387123515
• CPU socket: LGA 4677 (Socket E)
• Compatible processors: Intel Xeon W (W-2400, W-3400 series)
• Chipset: Intel W790
• Form factor: EEB (SSI-EEB)
• Memory: 8x DDR5 DIMM, 8-channel, ECC supported
• Maximum memory: 2 TB
• Memory speeds: DDR5-4800 up to DDR5-6800 (OC)
• PCIe slots: 7x PCIe 5.0 x16 (6x x16, 1x x8)
• M.2 slots: 3x M.2 (2x PCIe 5.0, 1x PCIe 4.0)
• SATA / SlimSAS: 8x SATA III, 2x SlimSAS
• RAID: 0, 1, 5, 10
• Networking: Intel dual 10 Gigabit Ethernet, Realtek 1 Gigabit Ethernet (3x RJ-45)

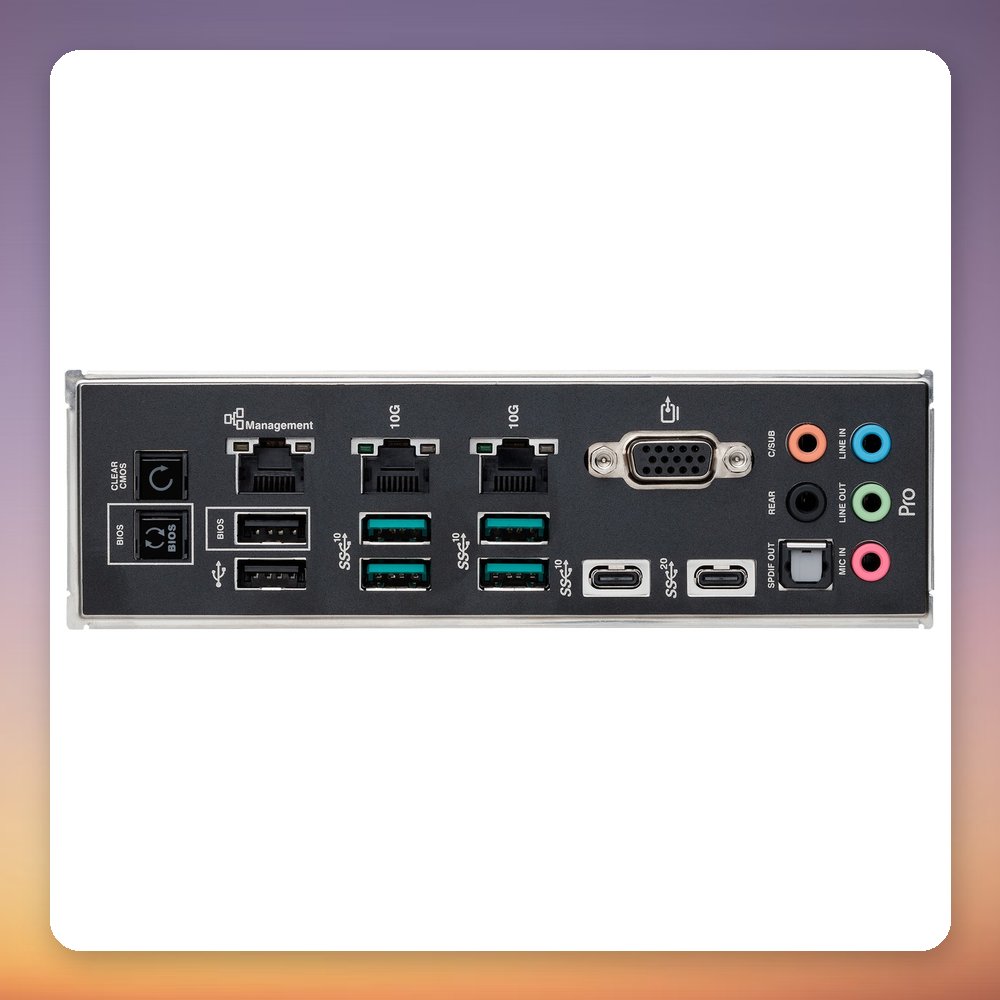

• Rear USB: 1x USB-C 3.2 Gen 2, 4x USB-A 3.2 Gen 2, 2x USB-A 2.0
• Audio: Realtek S1220A, 7.1 channel
• Dimensions (W x D): 305 x 330 mm
