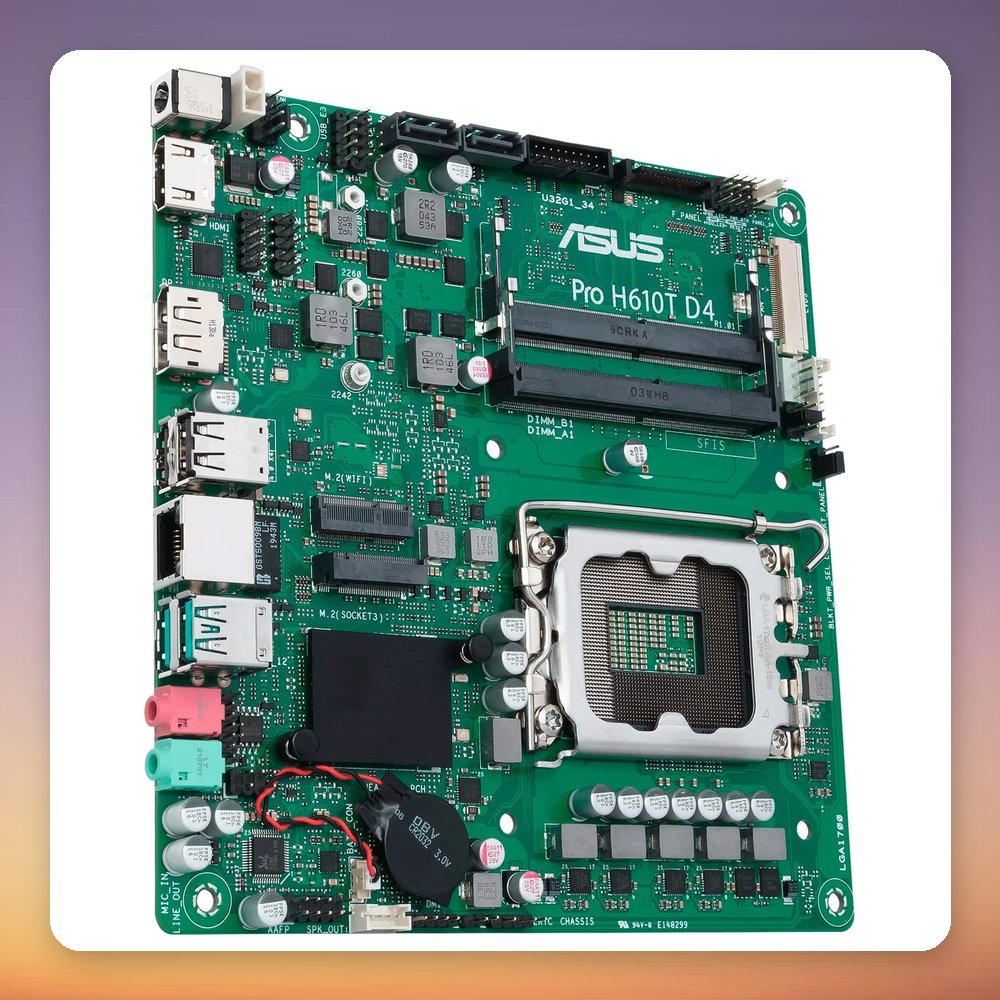

Name: Asus PRO H610T D4-CSM Intel H610 LGA 1700 Thin Mini-ITX Motherboard, DDR4 SO-DIMM
Brand: Asus
SKU: 100019998
Price: 149.11 EUR
Availability: InStock

Asus PRO H610T D4-CSM Intel H610 LGA 1700 Thin Mini-ITX Motherboard, DDR4 SO-DIMM

€149.11

Delivery: 7-12 business days
Asus PRO H610T D4-CSM Intel H610 LGA 1700 Thin Mini-ITX Motherboard, DDR4 SO-DIMM

Compact 170 x 170 mm Thin Mini-ITX board
2x DDR4 SO-DIMM, up to 64 GB at 3200 MHz
10 Gbit/s USB 3.2 Gen 2 ports plus HDMI and DisplayPort
ASUS CSM business features: TPM, self-recovering BIOS, anti-moisture coating

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100019998 Category: Intel Motherboards Tags: 12th, Asus,, DDR4, Gen,, INTEL, motherboard, Brand: Asus

Description
Additional information

✅

Product Overview

The Asus PRO H610T D4-CSM Thin Mini-ITX motherboard is built on the Intel H610 chipset for LGA 1700 processors. What sets it apart is its compact 170 x 170 mm Thin Mini-ITX board and an external power supply design, combined with two DDR4 SO-DIMM slots supporting up to 64 GB at speeds up to 3200 MHz in dual-channel mode.

This board suits compact, low-profile and business-style PC builds where space is limited. It is part of the ASUS Corporate Stable Model (CSM) programme and includes business-oriented features such as a self-recovering BIOS, TPM support and an anti-moisture coating for harsher environments. Storage comes from one M.2 slot plus two SATA III ports, and video output is via HDMI and DisplayPort when paired with a CPU that has integrated graphics.

Specification

Manufacturer: Asus
Model: PRO H610T D4-CSM
MPN: 90MB1AM0-M0EAYC
EAN: 4711081679851
Socket: LGA 1700
Chipset: Intel H610
Form factor: Thin Mini-ITX
Memory: 2x DDR4 SO-DIMM, up to 64 GB, dual-channel, non-ECC
Memory speeds: DDR4 2133 / 2400 / 2666 / 2800 / 2933 / 3200 MHz
Storage: 1x M.2 (M key, SATA/PCIe, 60–80 mm), 2x SATA III
Video outputs: 1x HDMI 2.1, 1x DisplayPort 1.4 (requires CPU with integrated graphics)
Rear USB: 2x USB-A 3.2 Gen 2 (10 Gbit/s), 2x USB-A 2.0
LAN: Realtek Gigabit Ethernet (1x RJ-45)
Audio: Realtek 7.1-channel HD Audio codec
Power: External power supply (2-pin + 19 V connector)
Security: TPM header, self-recovering UEFI AMI BIOS (128 Mbit)
Wi-Fi: None (M.2 WLAN slot available)
Dimensions (W x D): 170 x 170 mm
Weight: 382 g

return to the shop
see our fanpage

delivery time 7-12 business days

Weight	1.5 kg

Sergio Miranda Tsunematsu

Excellent seller and a great price for the Ryzen 7 9800X3D. Since the product is shipped from Poland, delivery takes a little longer compared to local stores, but my order arrived within the estimated timeframe. Everything was as expected. Highly recommended!

victor de castro

All the process of building the config designed for my needs was handled very smoothly and rapidly by Jola. The desktop came with one day of delay due to DHL issues, not their fault. The computer came very well packed however, the cooler fan was loose inside the case. I managed to fix watching some youtube videos, not a big deal. In general, I am very happy with the purchase and all the customer service.

Paul Byrne

Ordered a pc, came with no issue set up was super easy, very smooth transaction would recommend

Eugene Slabbert

Very happy with my order. PC is working great and arrived in time and well packed. Definitely worth the purchase. Nowadays it's difficult for most people to spend a lot of money on one item, so I was pleased when I noticed they offered purchase options through Humm.

Mike Halpin

Great product, very helpful and friendly service.

vinicius tanganelli

Great service !

Brian “Bri” O'Donnell

Found Jola very helpful and gave good advice. Went out of his way to help choose the right PC for my needs. Xcellent PC have good products and very good quality prices, went out of their way. Good straight talking which is rear these days. plus could pay through humm . would highly recommend and would buy from again.

Nei Fidelis

Irish online stores in general have a common practice of selling something they don't have - claiming they do - and then ordering from their source, leading to long shipping times and frustated customers. That was not the case here! I've asked them to let me know when they had the graphics card I wanted back in stock as it was out of stock. On the next day I had a positive from them and in about a week the card was installed on my pc ! On top of that they work with Humm so I could split the payments. Great customer service, they will be my guys for all my pc things!

Ovidiu Cimpoeru

Brilliant! No issues, the GPU arrived in about a weeks time

Verified by Trustindex

Trustindex verified badge is the Universal Symbol of Trust. Only the greatest companies can get the verified badge who has a review score above 4.5, based on customer reviews over the past 12 months. Read more

Asus PRO H610T D4-CSM Intel H610 LGA 1700 Thin Mini-ITX Motherboard, DDR4 SO-DIMM

✅

Product Overview

Specification

delivery time 7-12 business days

Related products

Intel Core i9-14900F 24-Core LGA1700 Desktop CPU, No Integrated Graphics, Boxed

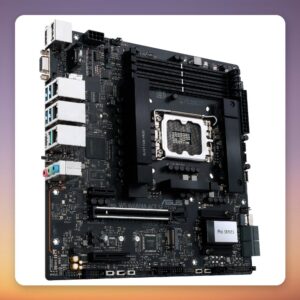

Asus PRO WS W680M-ACE SE Intel W680 LGA 1700 Micro-ATX Workstation Motherboard
