Product Overview

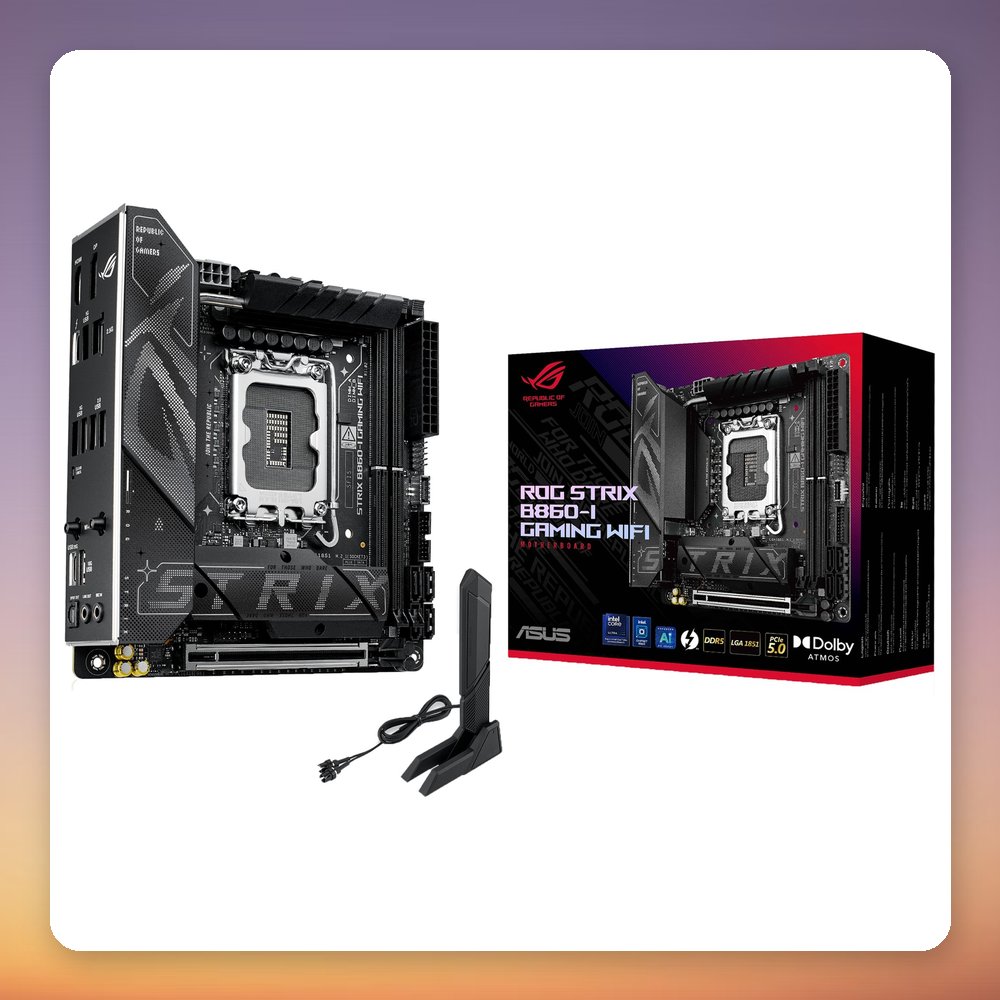

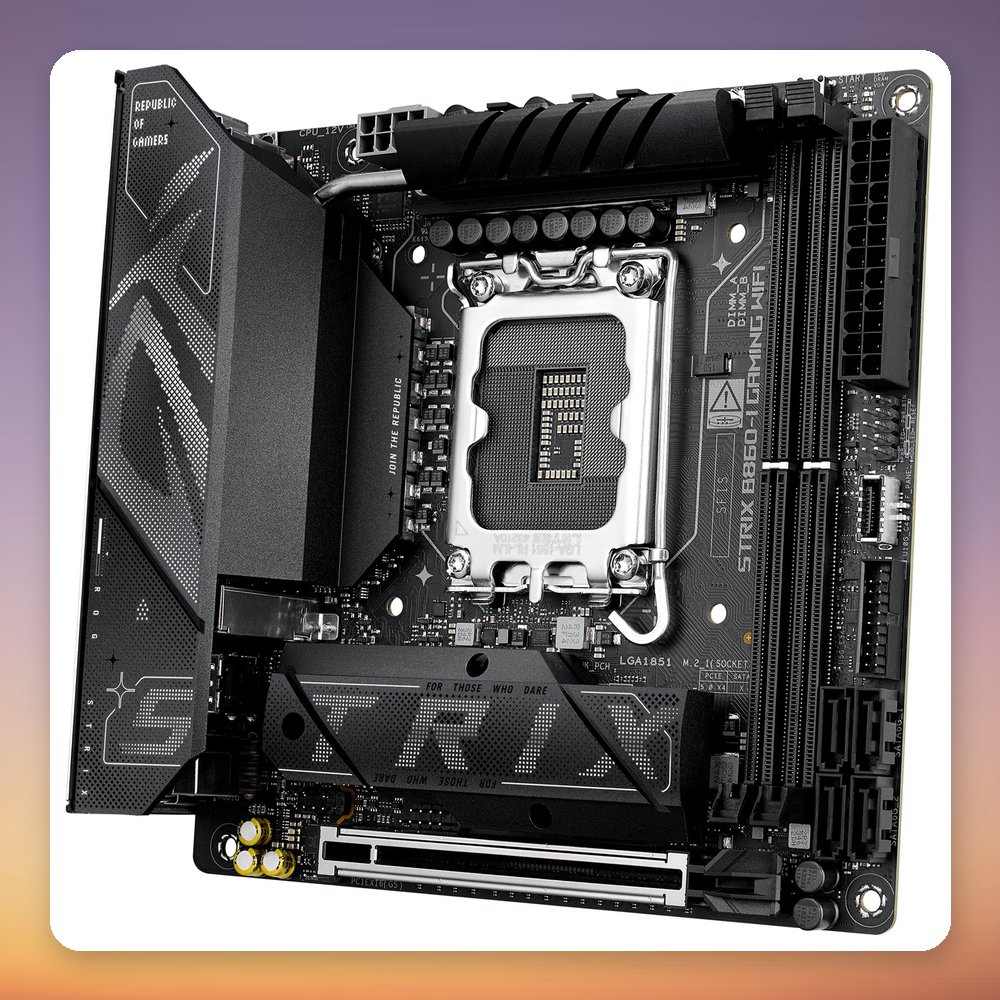

The Asus ROG Strix B860-I Gaming WiFi is a Mini-ITX motherboard built on the Intel B860 chipset for LGA 1851 Core Ultra (Series 2) processors. In a 170 x 170 mm board it fits Wi-Fi 7, Bluetooth 5.4, 2.5 Gb Ethernet, a Thunderbolt 4 port and a PCIe 5.0 x16 slot, while the M.2_1 slot supports PCIe 5.0 x4 and the M.2_2 slot PCIe 4.0 x4.

With two DDR5 DIMM slots supporting up to 128 GB and speeds up to 9066+ MT/s (OC), including CUDIMM, it suits compact gaming and small form factor builds. Storage options are two M.2 slots plus four SATA 6 Gb/s ports with RAID 0/1/5/10, and the rear I/O includes HDMI, DisplayPort, a USB-C 20 Gbps port and an optical S/PDIF output. A BIOS update may be needed for the newest processors.

Specification

• Manufacturer: Asus
• Model: ROG Strix B860-I Gaming WiFi
• MPN: 90MB1JB0-M0EAY0
• EAN: 4711387815991
• Form factor: Mini-ITX (170 x 170 mm)
• CPU socket: Intel LGA 1851
• Chipset: Intel B860
• Supported processors: Intel Core Ultra (Series 2, Arrow Lake)
• Memory: 2x DDR5 DIMM, dual-channel, up to 128 GB, non-ECC
• Memory speed: Up to DDR5-9066+ (OC), XMP and AEMP III supported
• Expansion slot: 1x PCIe 5.0 x16
• M.2 slots: 2x M.2 (Key M): M.2_1 PCIe 5.0 x4, M.2_2 PCIe 4.0 x4
• SATA: 4x SATA 6 Gb/s, RAID 0/1/5/10
• Networking: Intel 2.5 Gb Ethernet, Wi-Fi 7, Bluetooth 5.4
• Rear USB: 1x USB-C 20 Gbps, 1x USB-A 10 Gbps, 3x USB-A 5 Gbps, 2x USB 2.0
• Thunderbolt: 1x Thunderbolt 4
• Video outputs: 1x HDMI, 1x DisplayPort (needs CPU with integrated graphics)
• Audio: Realtek ALC1220P 7.1 with SupremeFX, optical S/PDIF out
• Power connectors: 24-pin ATX + 8-pin EPS
