Product Overview

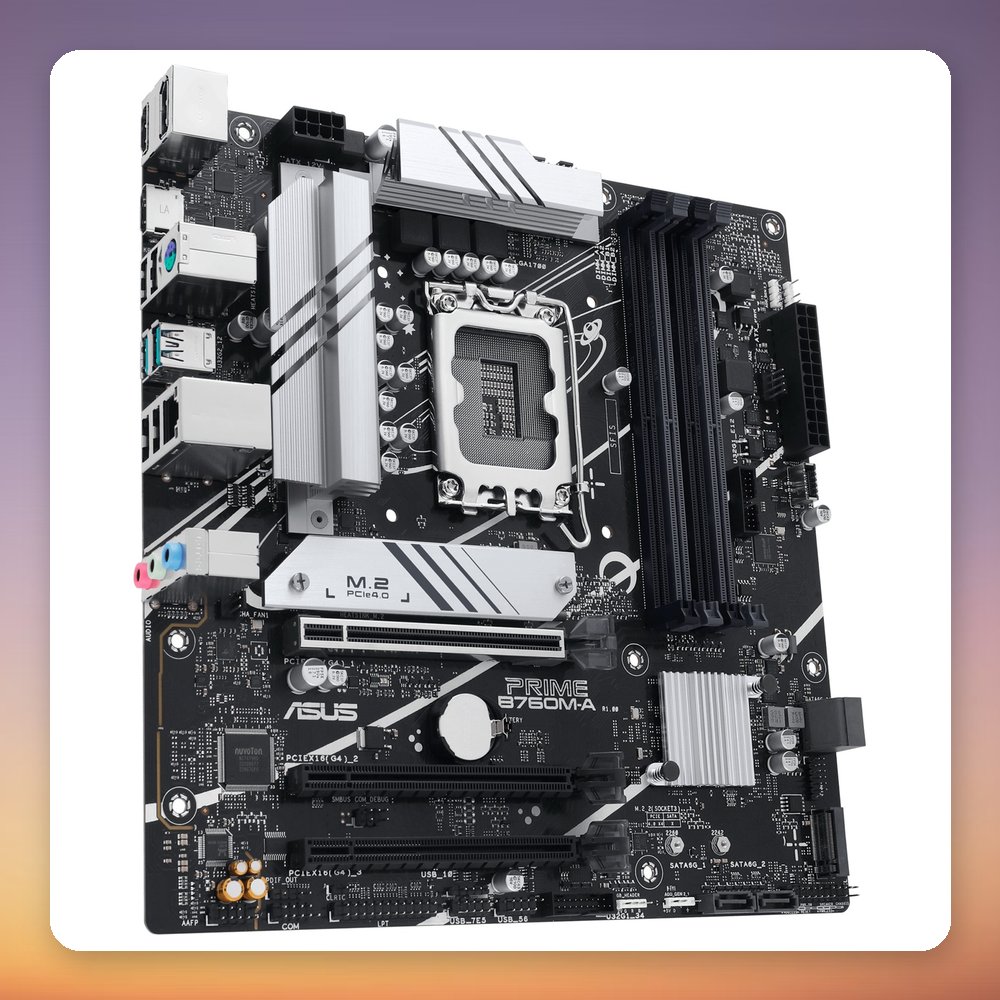

The Asus PRIME B760M-A-CSM is a micro ATX motherboard for Intel LGA 1700 processors, built on the Intel B760 chipset. It has four DDR5 DIMM slots in dual-channel, supporting speeds up to DDR5-7200 (OC), two M.2 slots and four SATA connectors. Networking comes from a Realtek 2.5 Gb Ethernet port, and video output is covered by two HDMI ports and one DisplayPort.

This board suits compact and mid-sized builds that need modern DDR5 memory and flexible storage without moving to a larger ATX board. It offers three PCIe 4.0 x16-length slots, 7.1-channel audio, four 4-pin PWM fan headers and AURA Sync RGB support, including three addressable RGB headers. It is part of the Asus Corporate Stable Model line, which comes with ASUS Control Center Express. A BIOS update may be needed for the newest processors.

Specification

• Manufacturer: Asus
• Model: PRIME B760M-A-CSM
• MPN: 90MB1EK0-M1EAYC
• EAN: 4711387140710
• CPU socket: LGA 1700
• Chipset: Intel B760
• Form factor: micro ATX
• Memory: 4x DDR5 DIMM, dual-channel, non-ECC
• Memory speed: DDR5-4800 to 7200 (OC)
• Maximum memory: 192 GB
• Expansion slots: 3x PCIe 4.0 x16-length (1x x16, 1x x4, 1x x1)
• Storage: 2x M.2 (M key, 42-80 mm), 4x SATA III
• Networking: Realtek 2.5 Gb Ethernet
• Audio: Realtek 7.1-channel HD audio
• Rear video outputs: 2x HDMI, 1x DisplayPort
• Rear USB: 2x USB-A 3.2 Gen 2 (10 Gbps), 4x USB-A 2.0, PS/2 combo
• RGB: AURA Sync, 1x RGB header, 3x addressable RGB headers
• Dimensions (W x H x D): 244 x 244 x 36 mm
• Weight: 690 g
