Product Overview

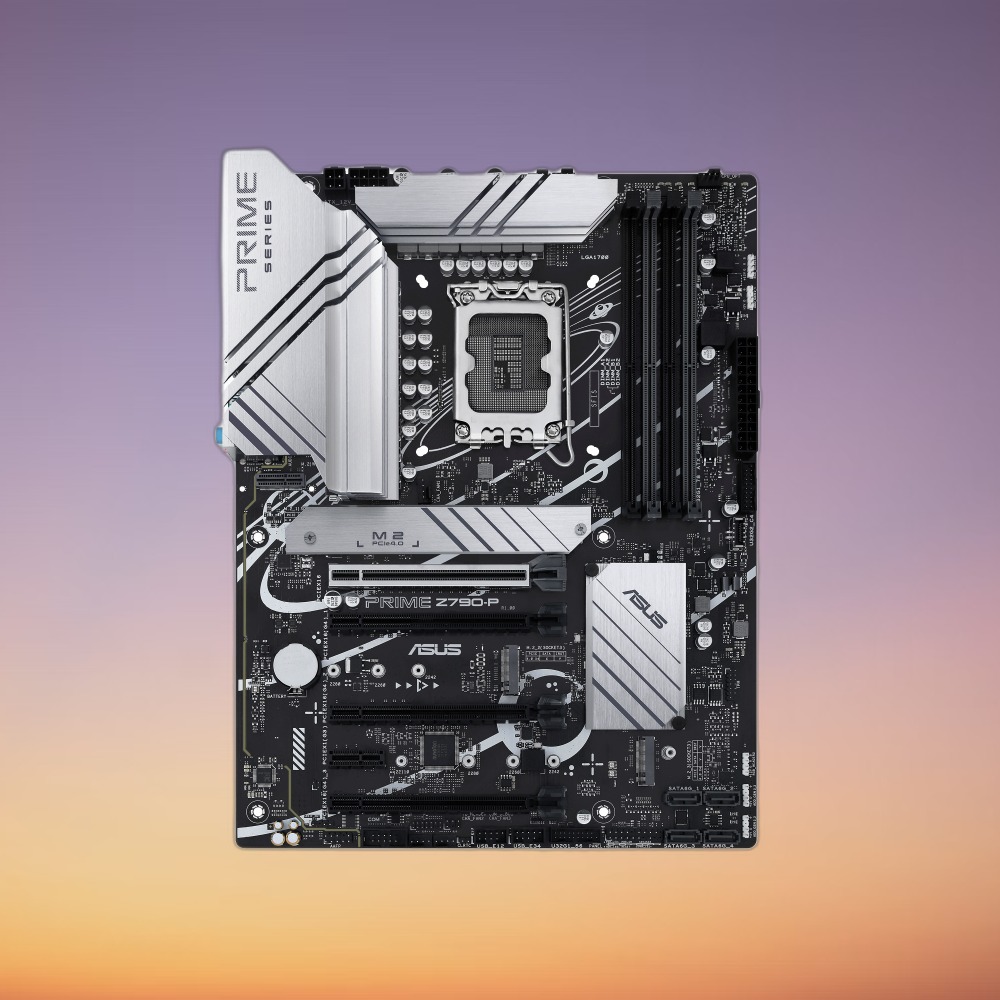

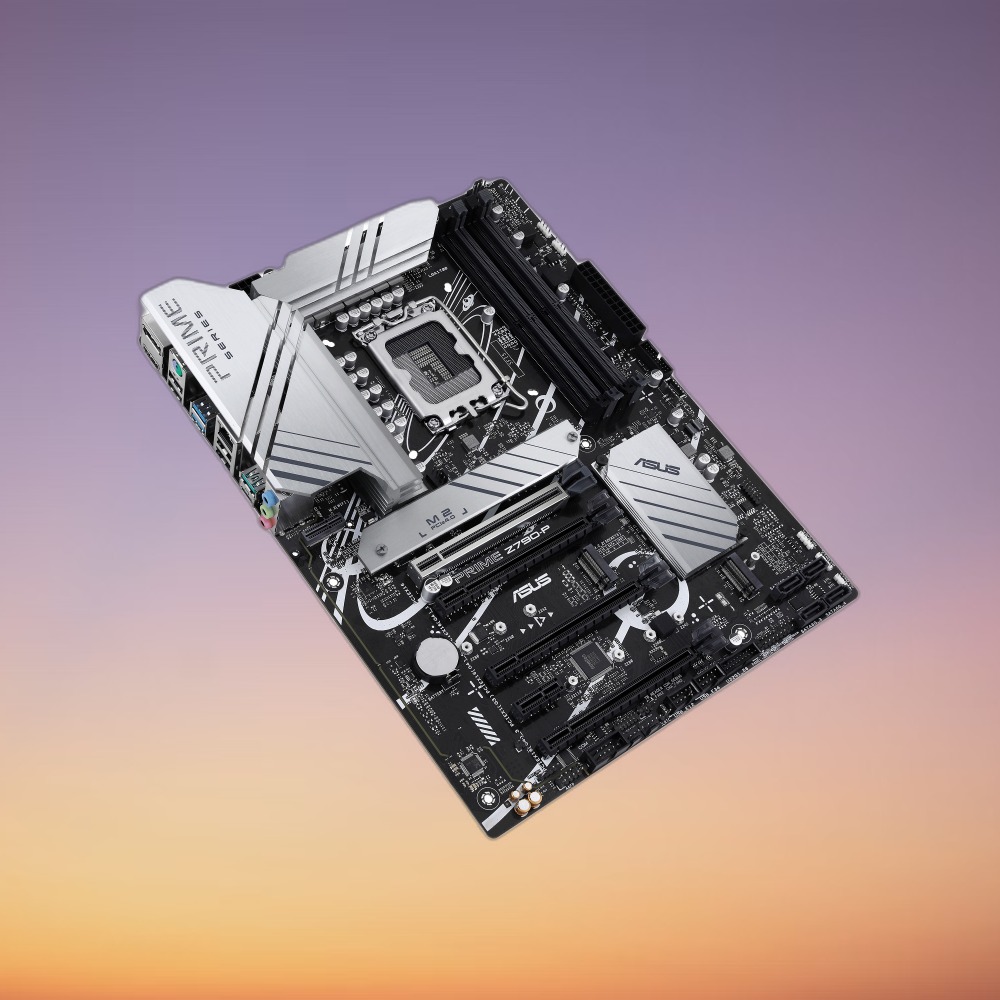

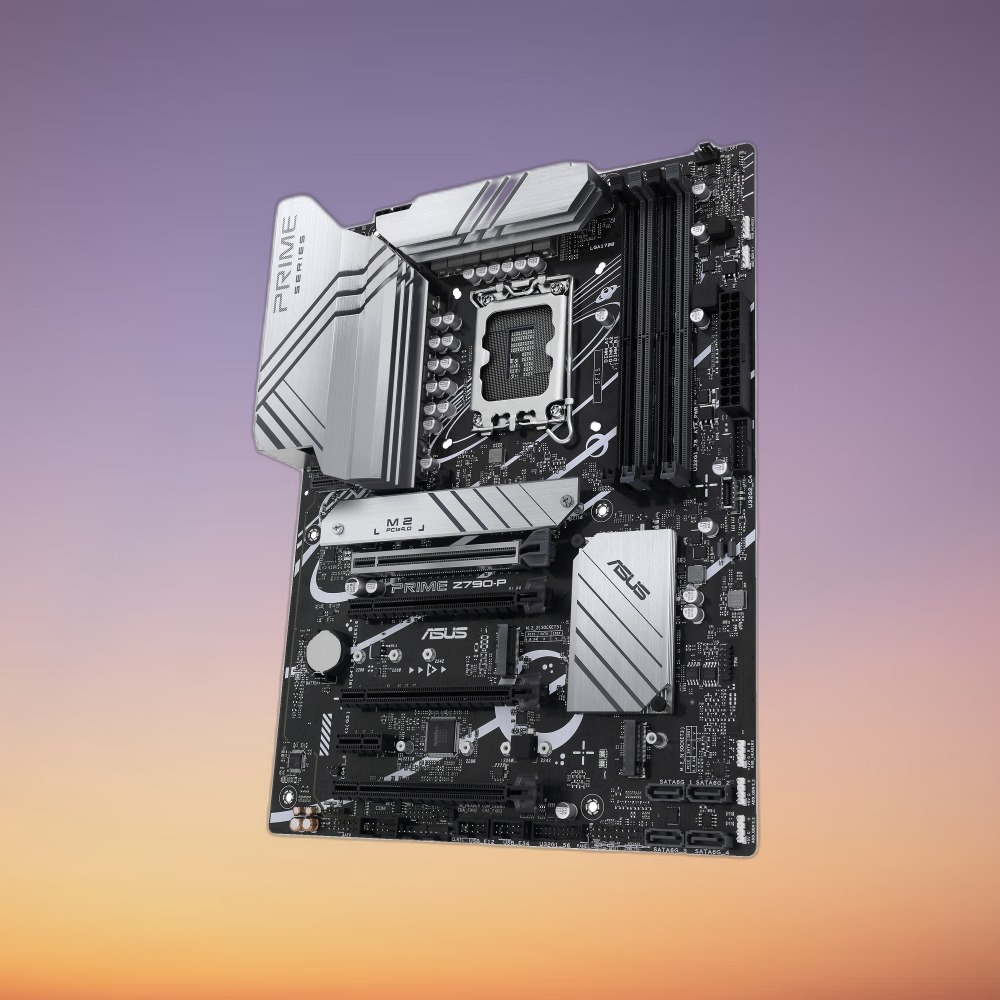

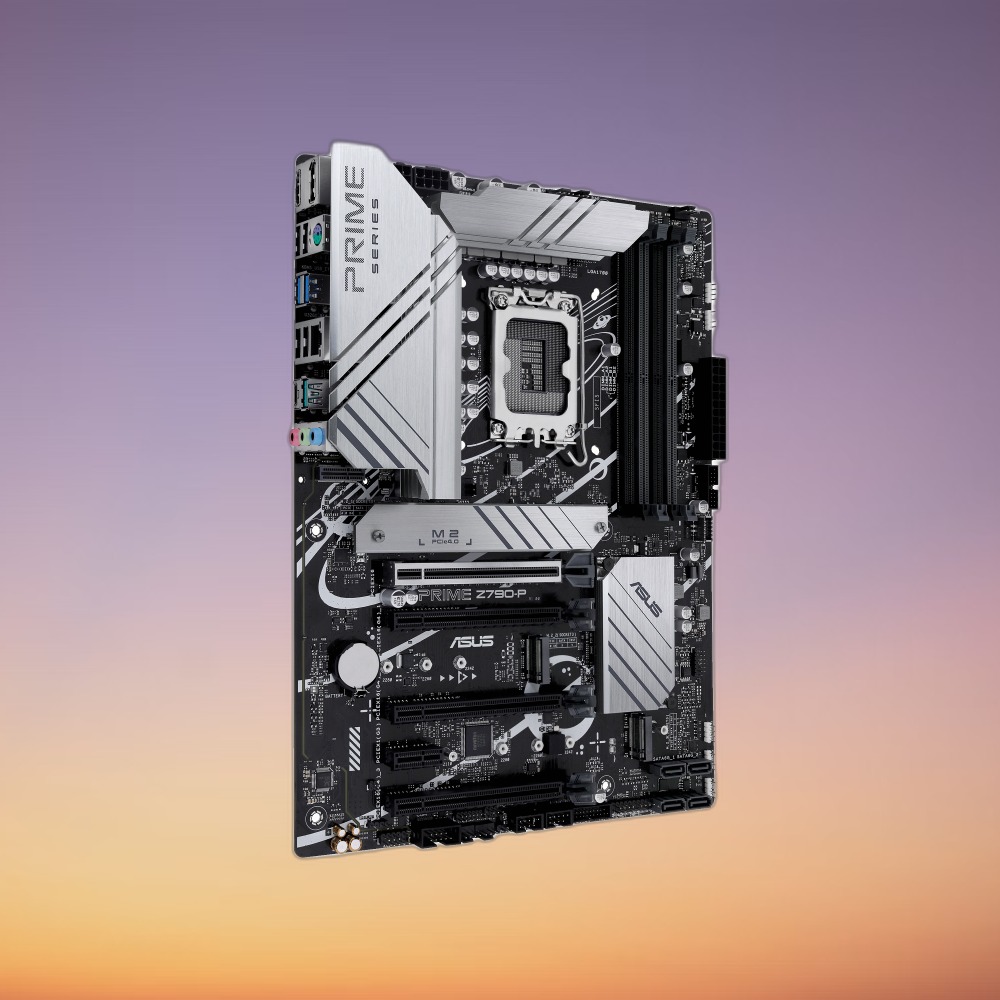

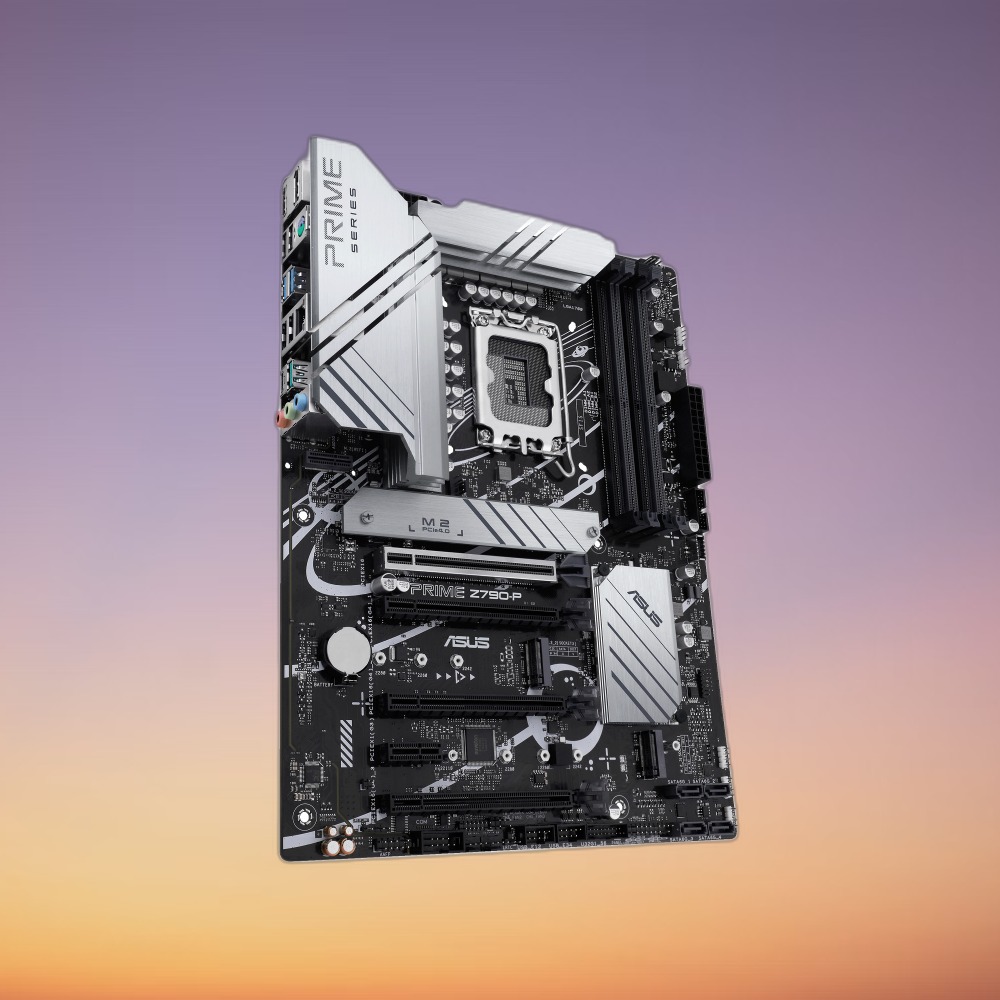

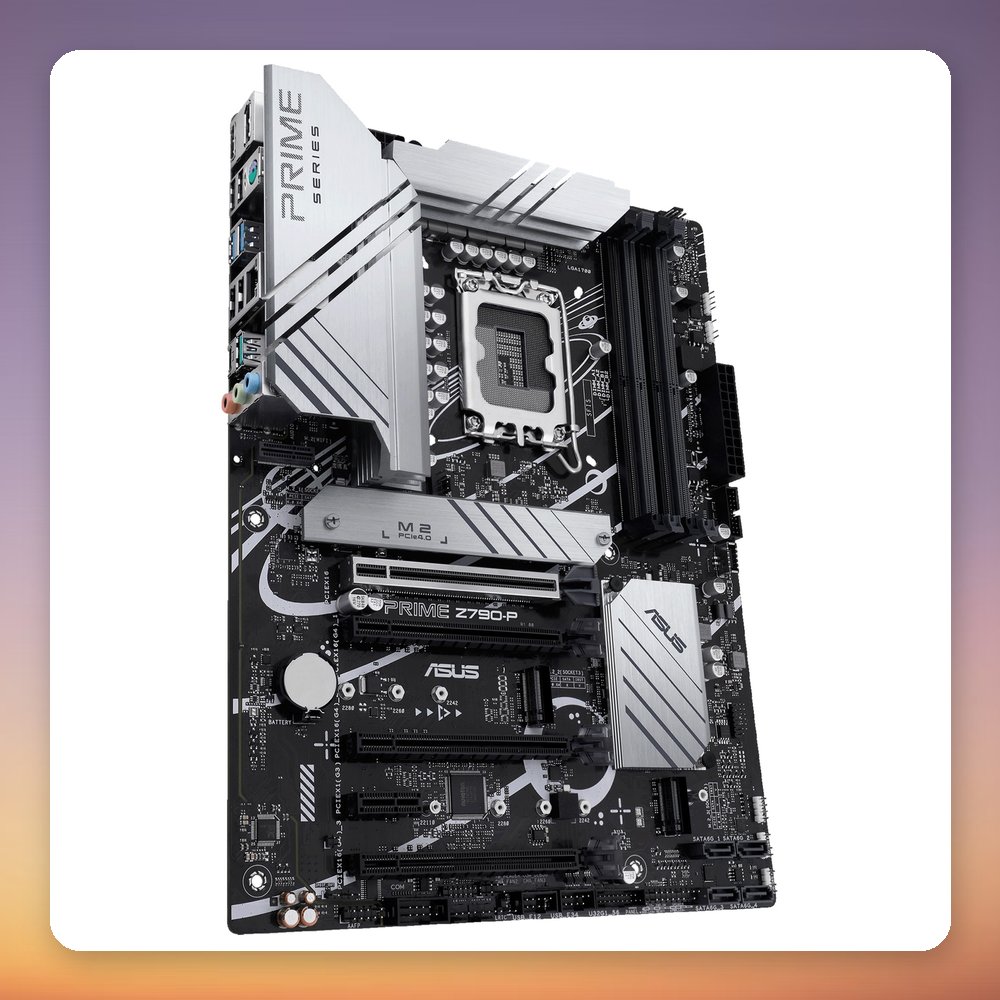

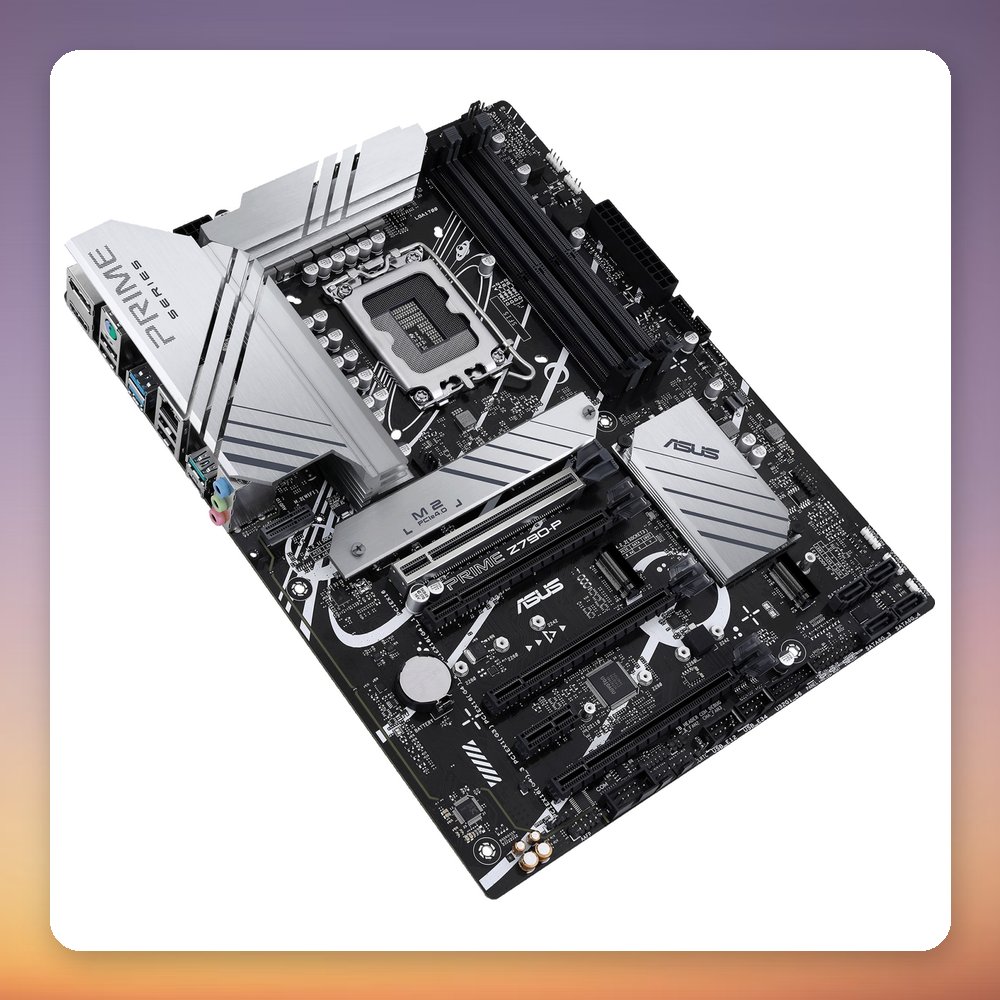

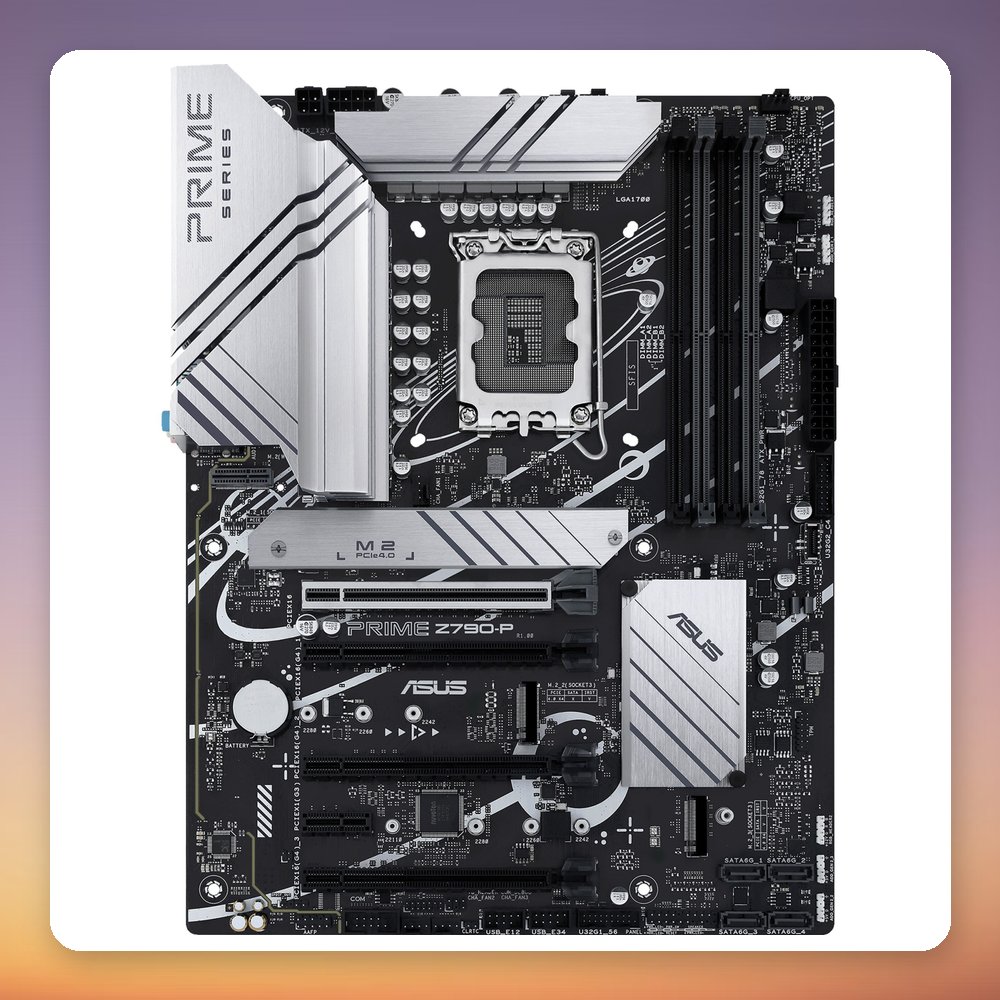

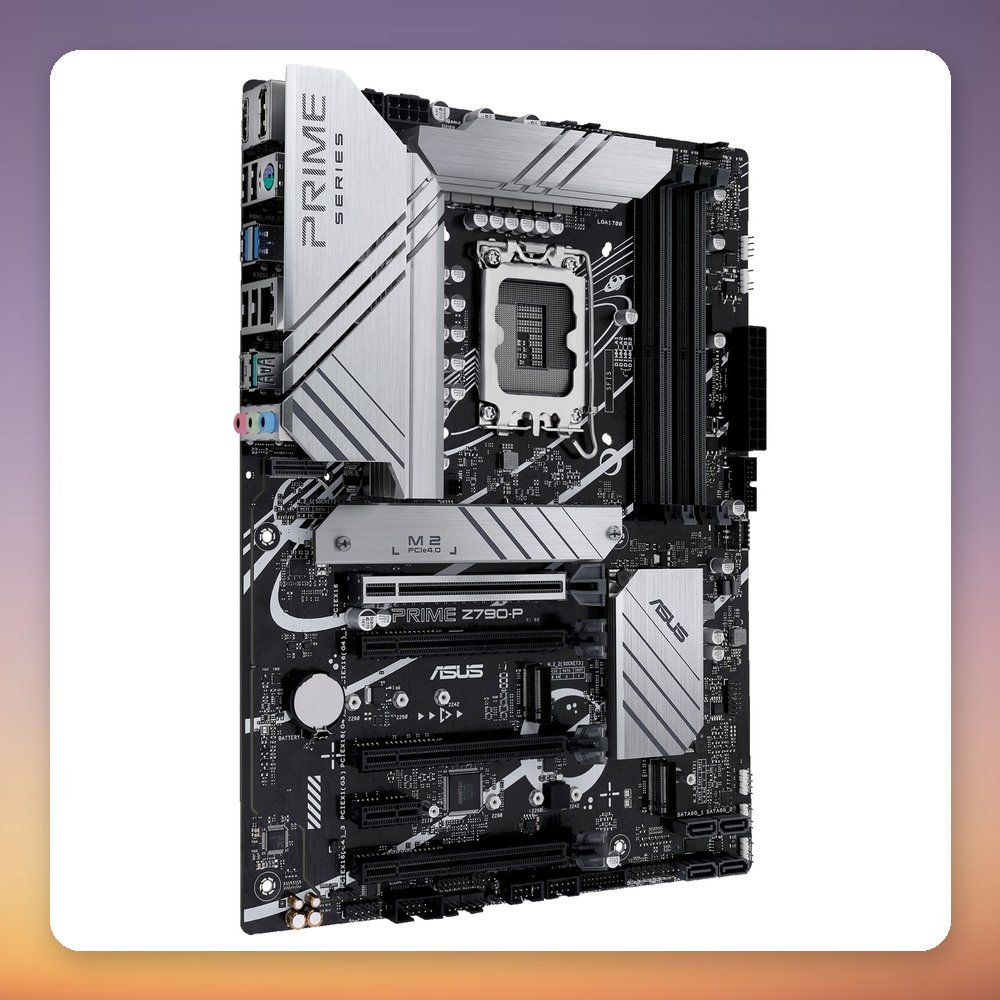

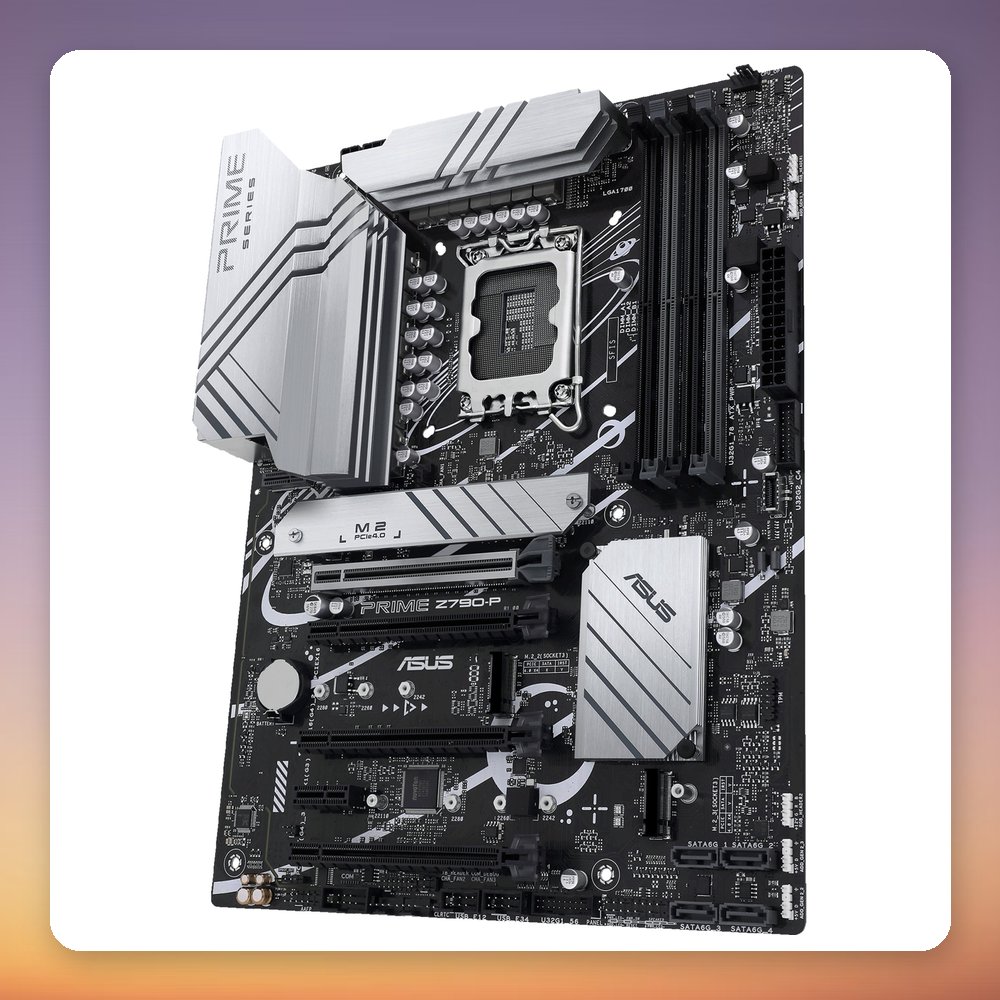

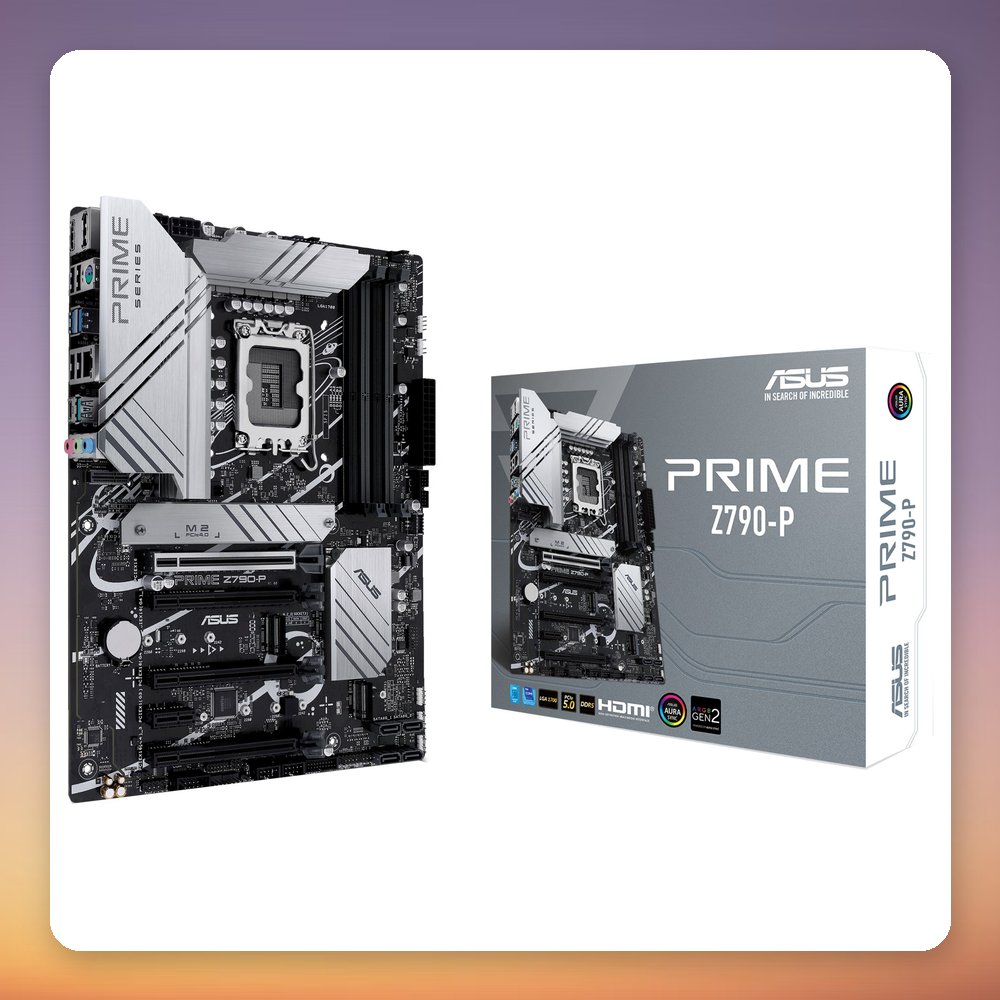

The Asus PRIME Z790-P is an ATX motherboard built on the Intel Z790 chipset for LGA 1700 processors. It has four DDR5 DIMM slots in dual-channel for up to 256 GB of memory per the Wave data, with support for overclocked kits up to DDR5-7000, along with one PCIe 5.0 x16 slot, three M.2 slots and 2.5 Gigabit Ethernet on the Realtek controller.

This board suits a mid-range to high-end Intel gaming or general-purpose build where you want DDR5, fast NVMe storage and plenty of connectivity. Display outputs (HDMI and DisplayPort) are only usable with a CPU that has integrated graphics. It also offers four SATA ports with RAID 0/1/5/10, AURA Sync RGB headers and six 4-pin PWM fan headers. A BIOS update may be required to support the newest processors.

Specification

• Manufacturer: Asus
• Model: PRIME Z790-P
• MPN: 90MB1CK0-M1EAY0
• EAN: 4711081937449
• Socket: LGA 1700
• Chipset: Intel Z790
• Form factor: ATX
• Memory: 4x DDR5 DIMM, dual-channel, up to 256 GB
• Memory speed: DDR5-4800 up to 7000 (OC)
• Expansion slots: 1x PCIe 5.0 x16, 3x PCIe x16 (x4 electrical, per Wave data), 1x PCIe 3.0 x1
• M.2 slots: 3x M.2 (M key, 42-110 mm, SATA/PCIe), plus 1x M.2 WLAN slot
• SATA: 4x SATA III, RAID 0/1/5/10

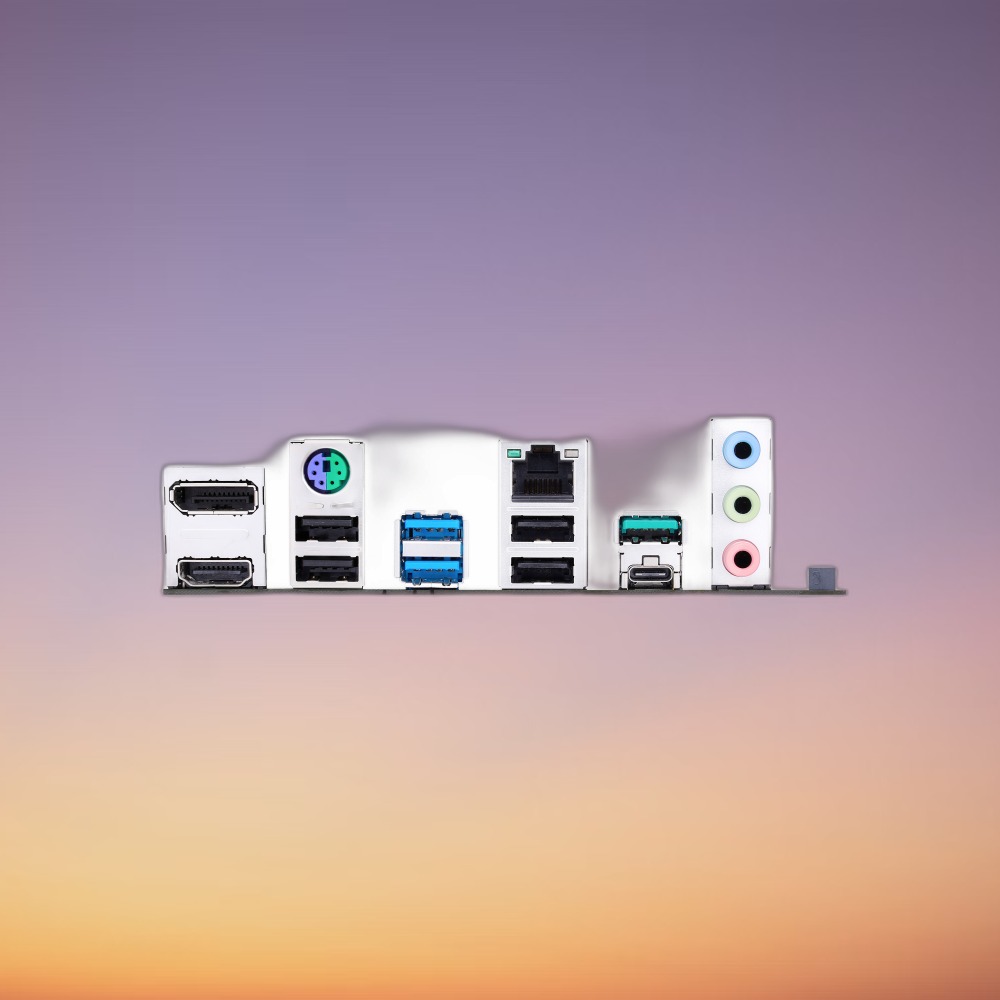

• Rear USB: 1x USB-C 10 Gbit/s, 1x USB-A 10 Gbit/s, 2x USB-A 5 Gbit/s, 4x USB 2.0
• Video outputs: 1x HDMI, 1x DisplayPort (needs CPU with integrated graphics)
• Networking: 1x Realtek 2.5 Gigabit Ethernet
• Audio: Realtek 7.1 Surround Sound
• Fan headers: 6x 4-pin PWM
• RGB: 2x RGB headers, 3x addressable RGB headers, AURA Sync
• Power connectors: 24-pin + 8-pin + 4-pin ATX12V
• Dimensions (W x D): 305 x 234 mm
