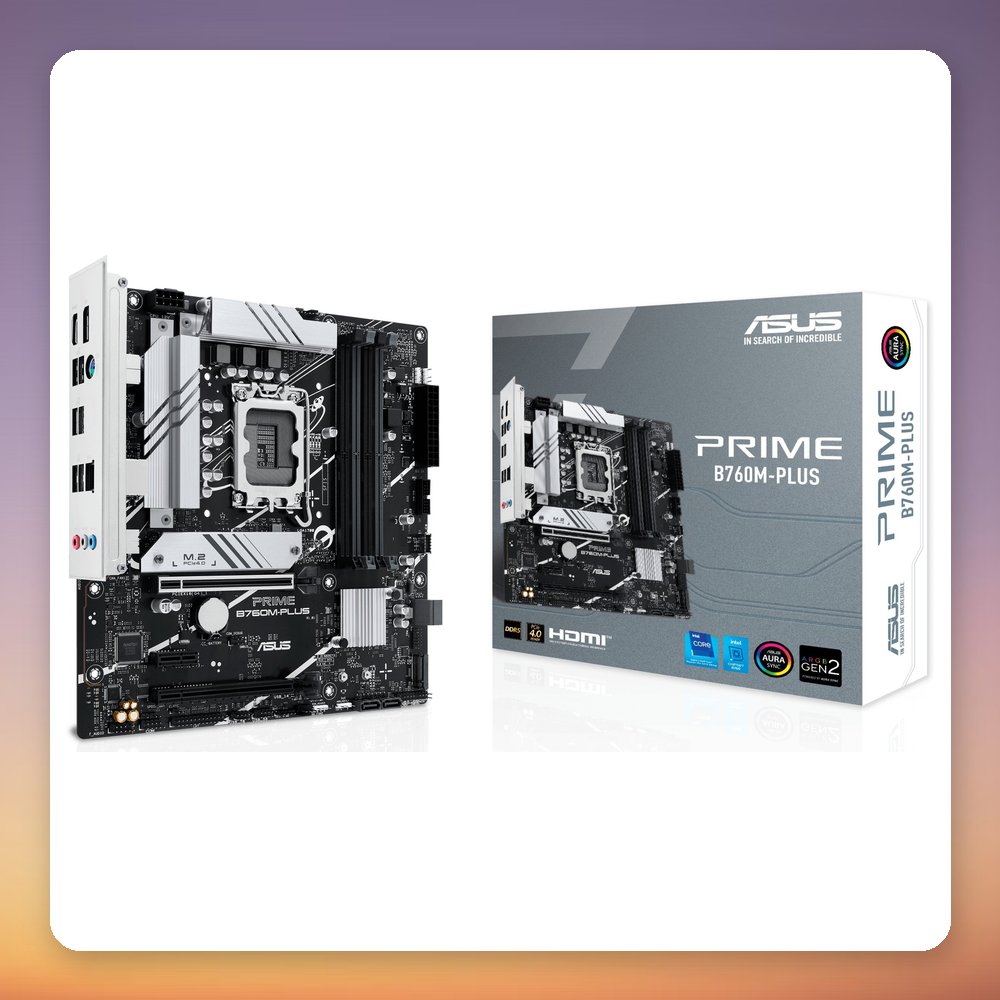

Asus PRIME B760M-PLUS Intel B760 LGA 1700 DDR5 Micro ATX Motherboard
€167.77
Delivery: 7-12 business days
Asus PRIME B760M-PLUS Intel B760 LGA 1700 DDR5 Micro ATX Motherboard
- Four DDR5 slots, up to 192 GB, 7200+ MHz (OC)
- Two PCIe 4.0 M.2 slots plus four SATA III ports
- 2.5 Gigabit Ethernet and HDMI + DisplayPort outputs
- Four 4-pin PWM fan headers and three ARGB headers
More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.
In stock
✅
Product Overview
The Asus PRIME B760M-PLUS is a micro ATX motherboard built on the Intel B760 chipset for LGA 1700 processors, supporting 12th and 13th Gen Intel CPUs. It uses four DDR5 DIMM slots in dual-channel mode for up to 192 GB of memory, with supported speeds up to 7200 MHz (overclocked), and adds two M.2 slots running at PCIe 4.0 plus 2.5 Gigabit Ethernet.
This board suits a compact gaming or everyday PC build where you want DDR5 memory and fast NVMe storage without paying for a larger ATX board. Storage options include four SATA III ports and two M.2 slots with RAID 0, 1, 5 and 10 support. Rear I/O covers HDMI, DisplayPort, two USB 3.2 Gen 2 Type-A ports and 7.1-channel audio, while internal headers include one RGB and three addressable RGB (AURA Sync). There is no onboard Wi-Fi.
Specification
- Manufacturer: Asus
- Model: PRIME B760M-PLUS
- MPN: 90MB1GY0-M0EAY0
- EAN: 47113874699100
- Socket: LGA 1700
- Chipset: Intel B760
- Form factor: micro ATX
- Memory type: 4x DDR5 DIMM, dual-channel, non-ECC
- Maximum memory: 192 GB
- Memory speeds: DDR5-4800 up to 7200+ (OC)
- M.2 slots: 2x M.2 (M key), PCIe Gen 4.0, 42-80 mm
- SATA ports: 4x SATA III
- RAID: 0, 1, 5, 10
- Expansion slots: 2x PCIe 4.0 x16 (1x x16, 1x x4), 1x PCIe x1
- Networking: Realtek 2.5 Gigabit Ethernet, no Wi-Fi
- Audio: Realtek 7.1 Surround Sound HD
- Rear I/O: 1x HDMI, 1x DisplayPort, 2x USB-A 3.2 Gen 2, 4x USB 2.0, 1x PS/2, audio jacks
- Lighting headers: 1x RGB, 3x addressable RGB (AURA Sync)
- Power connectors: 24-pin ATX + 8-pin EPS 12V
- Dimensions (W x D): 244 x 244 mm
delivery time 7-12 business days
| Weight | 1.5 kg |
|---|
