Product Overview

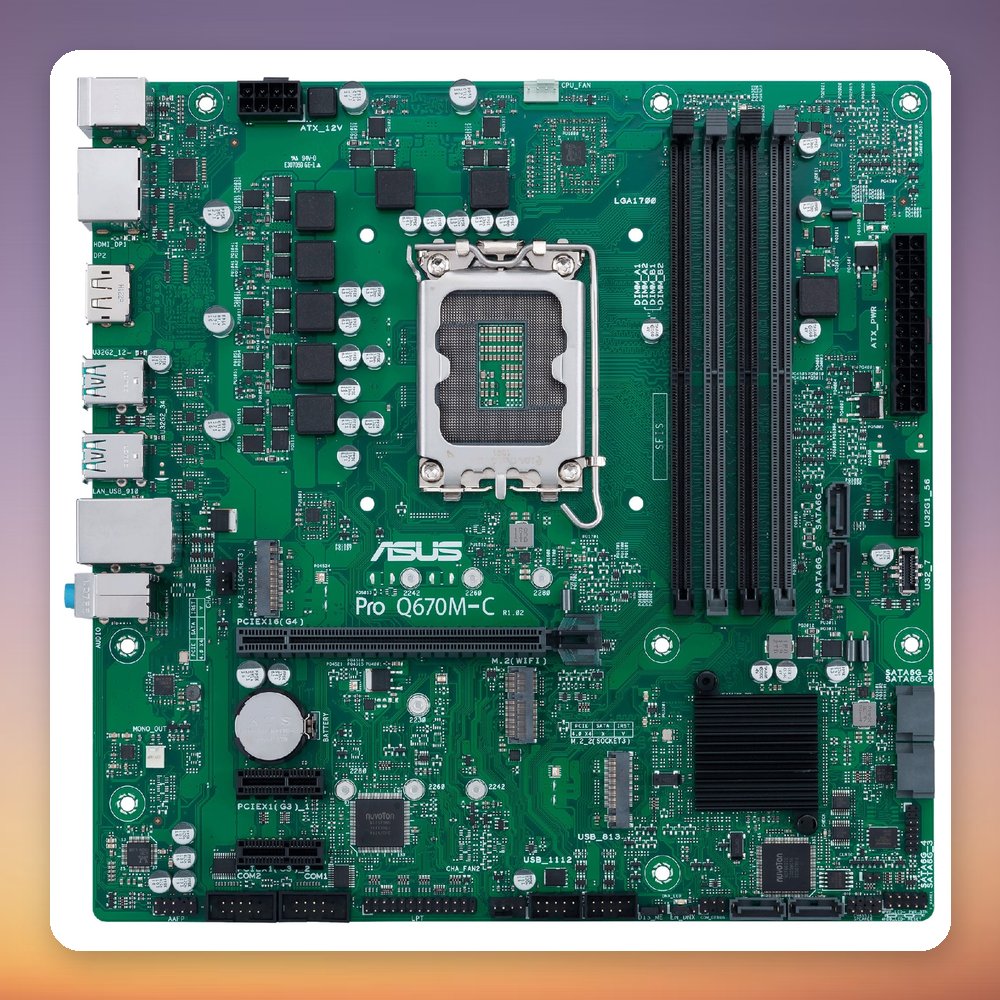

The Asus PRO Q670M-C-CSM Intel Q670 motherboard is a micro ATX board for LGA 1700 processors, built on the Intel Q670 chipset. It has four DDR5 DIMM slots in dual-channel, one PCIe 4.0 x16 slot, two PCIe 3.0 x1 slots, six SATA III ports and two M.2 slots. It belongs to Asus’s Corporate Stable Model (CSM) range for business use and includes Asus Boot Defender BIOS protection.

This board suits office, workstation-style and small-form-factor builds that need stability and manageability more than overclocking features. Video outputs are one HDMI 2.1 and two DisplayPort 1.4, which only work with a CPU that has integrated graphics. Storage options include RAID 0, 1, 5 and 10, and LAN is Intel Gigabit Ethernet. A BIOS update may be required to support the newest processors.

Specification

• Manufacturer: Asus
• Model: PRO Q670M-C-CSM
• MPN: 90MB19E0-M2EAYC
• EAN: 4711081518389
• Socket: LGA 1700
• Chipset: Intel Q670
• Form factor: micro ATX (244 x 244 mm)
• Memory: 4x DDR5 DIMM, dual-channel
• Supported memory speeds: DDR5-4800 to DDR5-5600 (Wave); 4800 MHz (Icecat)
• Maximum memory: 192 GB (Wave); 128 GB (Icecat)
• Expansion slots: 1x PCIe 4.0 x16, 2x PCIe 3.0 x1
• Storage: 6x SATA III, 2x M.2, RAID 0/1/5/10
• Video outputs: 1x HDMI 2.1, 2x DisplayPort 1.4 (CPU with integrated graphics required)
• Rear USB: 4x USB-A 3.2 Gen 2 (10 Gbit/s), 2x USB-A 2.0, 2x PS/2
• LAN: Intel Gigabit Ethernet
• Audio: 7.1 channels
• Wi-Fi: No
• Power connectors: 24-pin ATX + 8-pin EPS
• Weight: 634 g
• Dimensions (W x H x D): 244 x 51 x 244 mm
