Product Overview

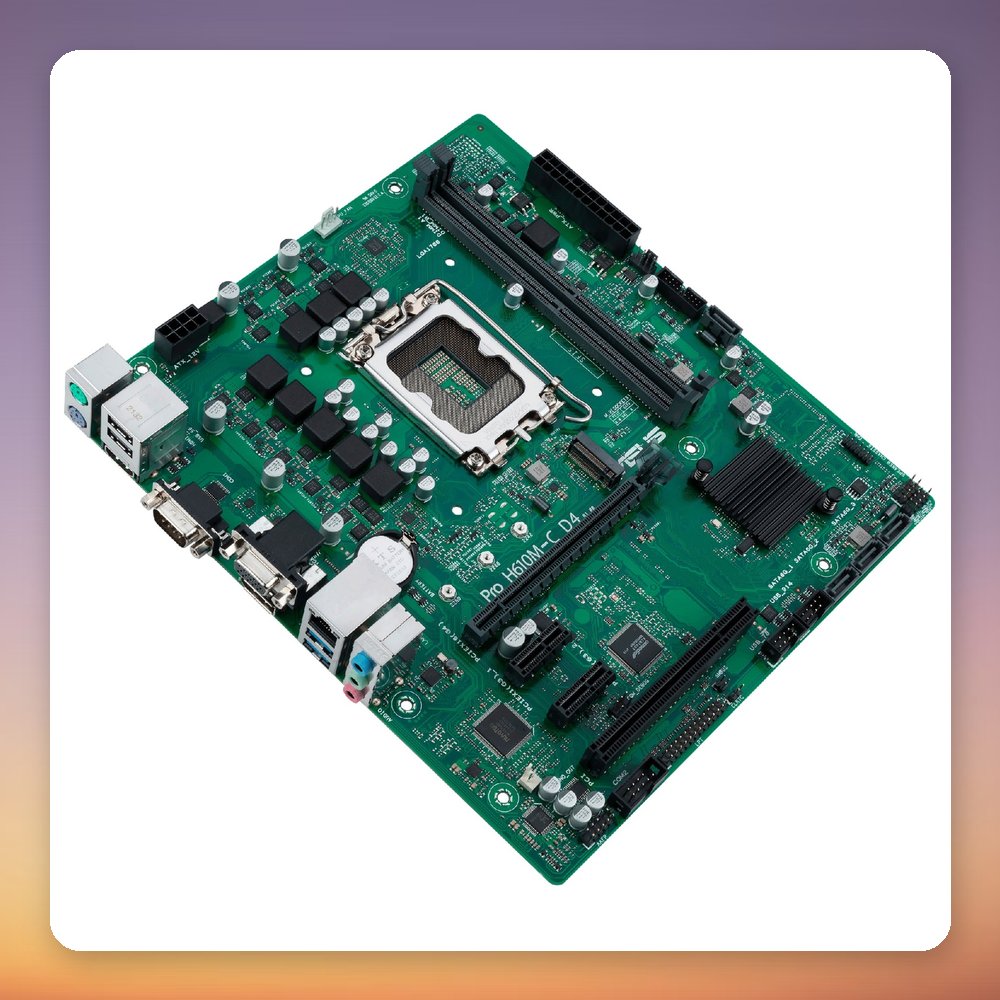

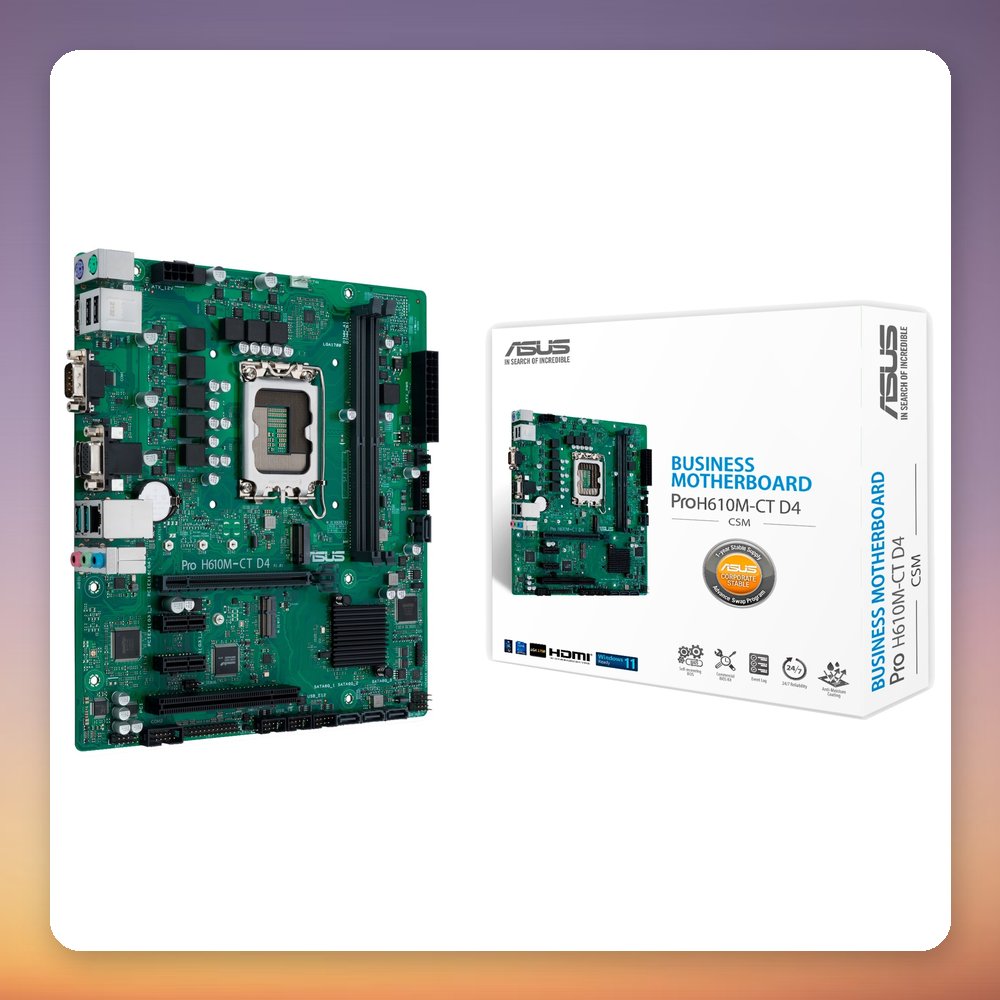

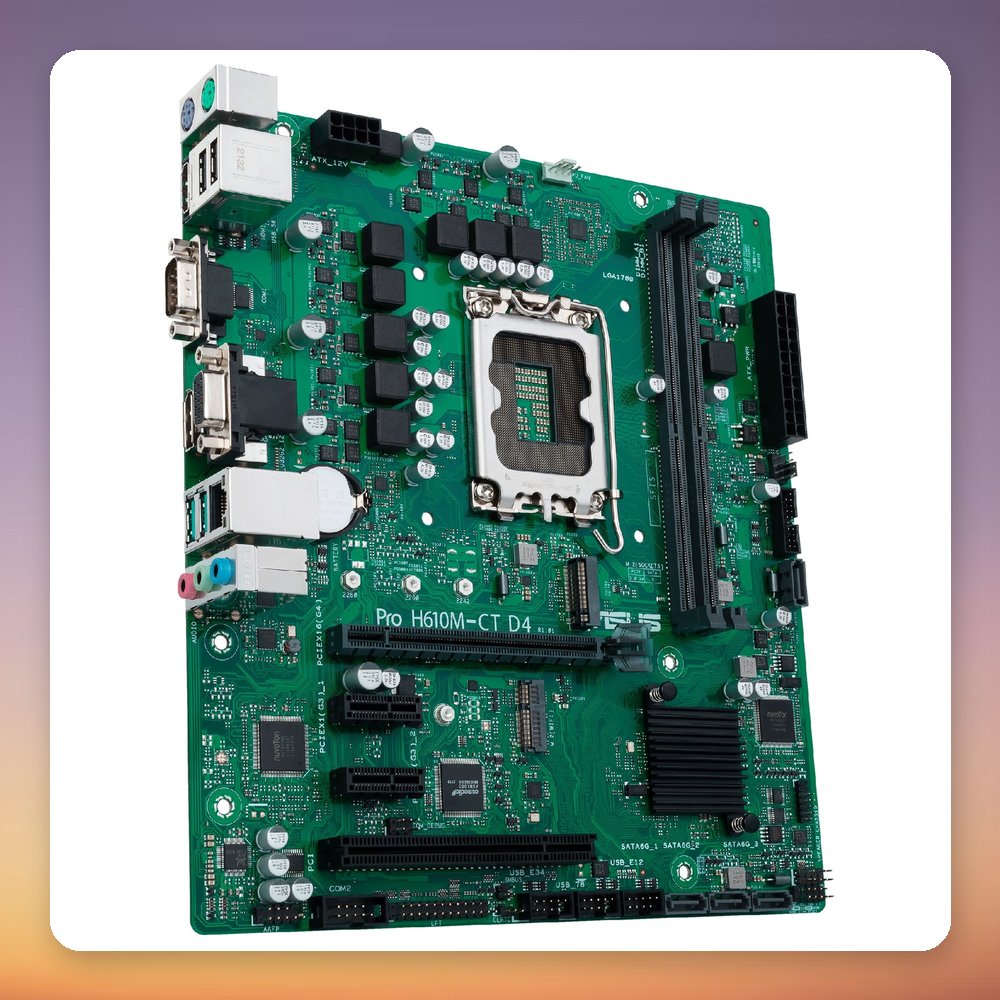

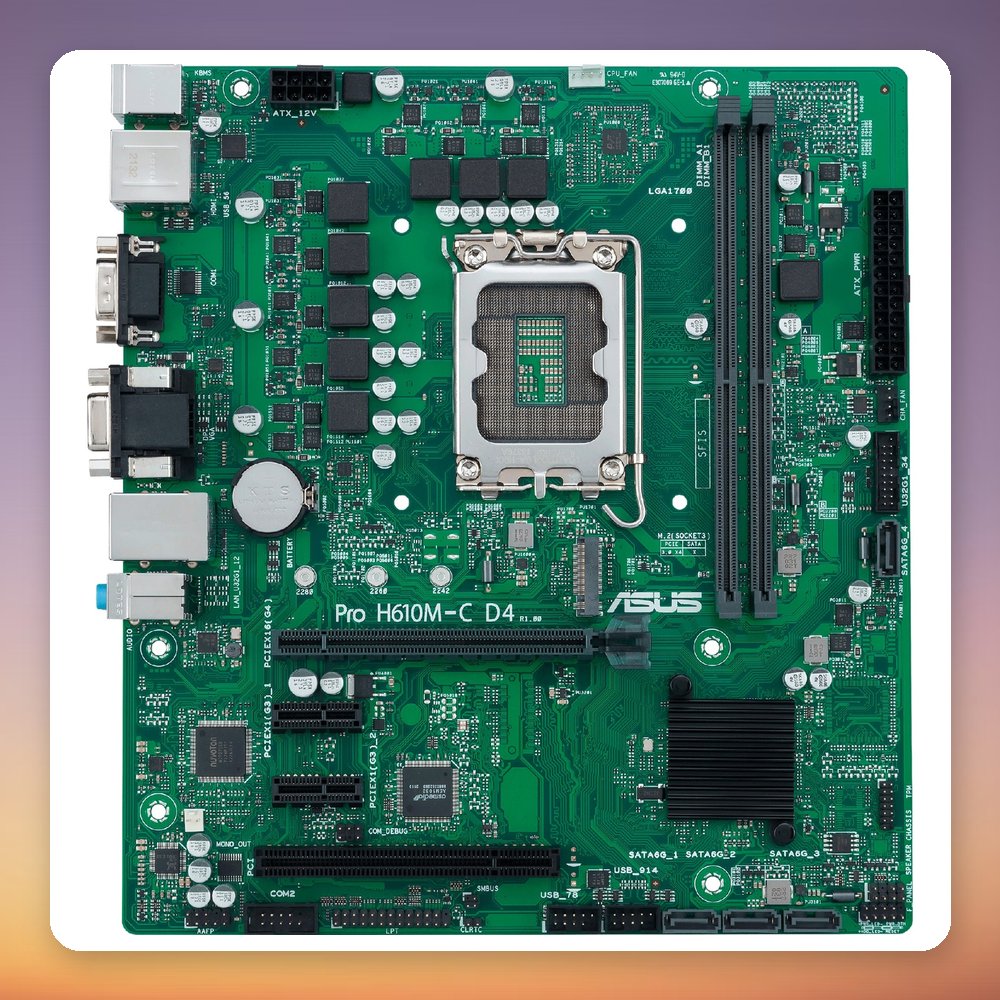

The Asus PRO H610M-C D4-CSM is an LGA 1700 micro ATX motherboard built around the Intel H610 chipset, supporting 12th Gen Intel processors. It takes up to 64 GB of DDR4 across two DIMM slots in dual-channel, with speeds up to DDR4-3200. What sets it apart from basic H610 boards is the PCIe 4.0 x16 slot, the M.2 slot for SATA and PCIe drives, and the older connectivity still on the board: a PCI slot, PS/2 ports and VGA alongside HDMI and DisplayPort.

This board suits a budget or office-style build around an Intel Core, Pentium or Celeron processor on LGA 1700. Intel 1Gb Ethernet, Realtek 7.1 audio, a TPM header and ASUS Self-recovering BIOS protection cover the essentials, and AURA Sync RGB headers are included. It belongs to the ASUS Corporate Stable Model (CSM) range, which comes with Control Center Express management software. Video outputs only work with a CPU that has integrated graphics, and a BIOS update may be needed for the newest processors.

Specification

• Manufacturer: Asus
• Model: PRO H610M-C D4-CSM
• MPN: 90MB1A30-M0EAYC
• EAN: 4711081699132
• Socket: LGA 1700
• Chipset: Intel H610
• Form factor: Micro ATX
• Memory: 2x DDR4 DIMM, dual-channel, up to 64 GB, non-ECC
• Memory speeds: DDR4-2133 to DDR4-3200
• Expansion slots: 1x PCIe 4.0 x16, 2x PCIe 3.0 x1, 1x PCI
• Storage: 1x M.2 (M key, SATA and PCIe, 42-80 mm), SATA III ports
• Video outputs: HDMI, DisplayPort, VGA (requires CPU with integrated graphics)
• Rear USB: 2x USB 3.2 Gen 2 Type-A, 2x USB 2.0 Type-A, 1x USB-C 2.0 (audio)
• Networking: Intel 1Gb Ethernet
• Audio: Realtek 7.1 Surround
• RGB: 2x RGB headers, 1x addressable RGB header, AURA Sync
• BIOS: 128 Mbit UEFI AMI BIOS

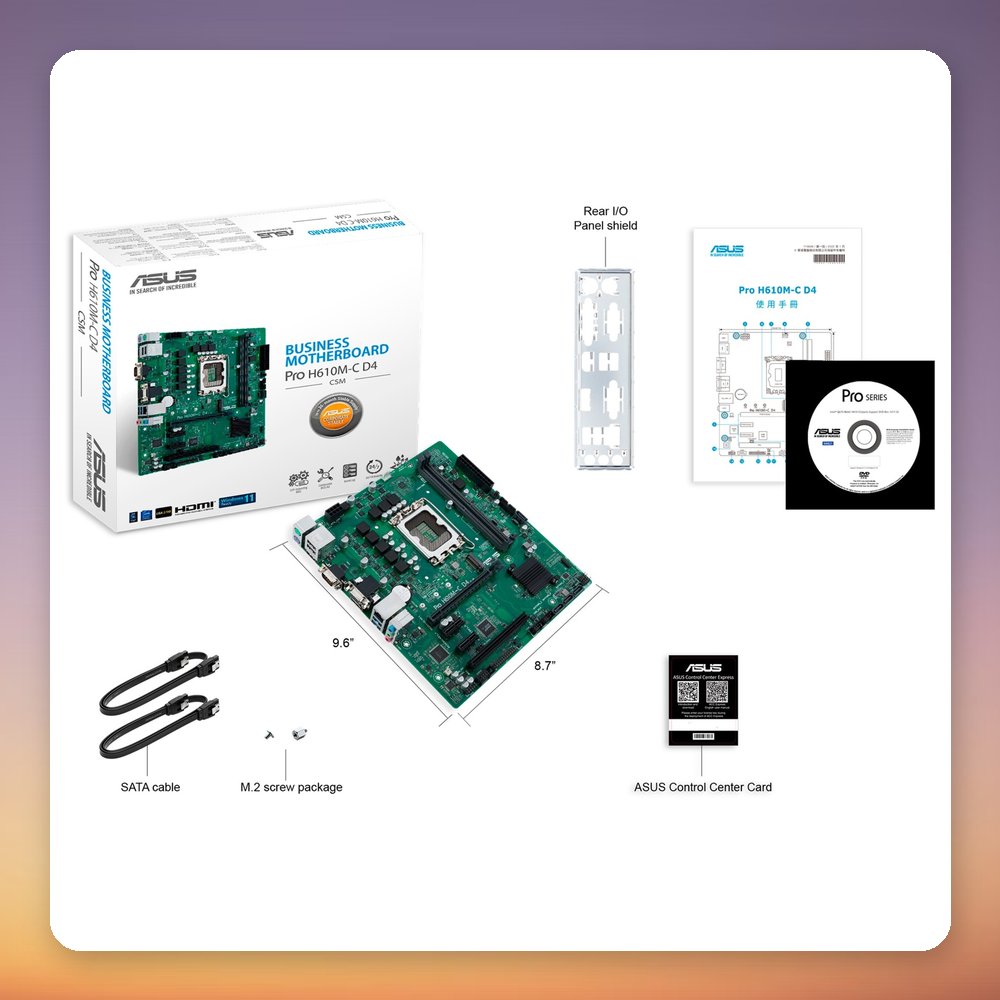

• Dimensions (W x D): 244 x 220 mm
• Weight: 382 g
