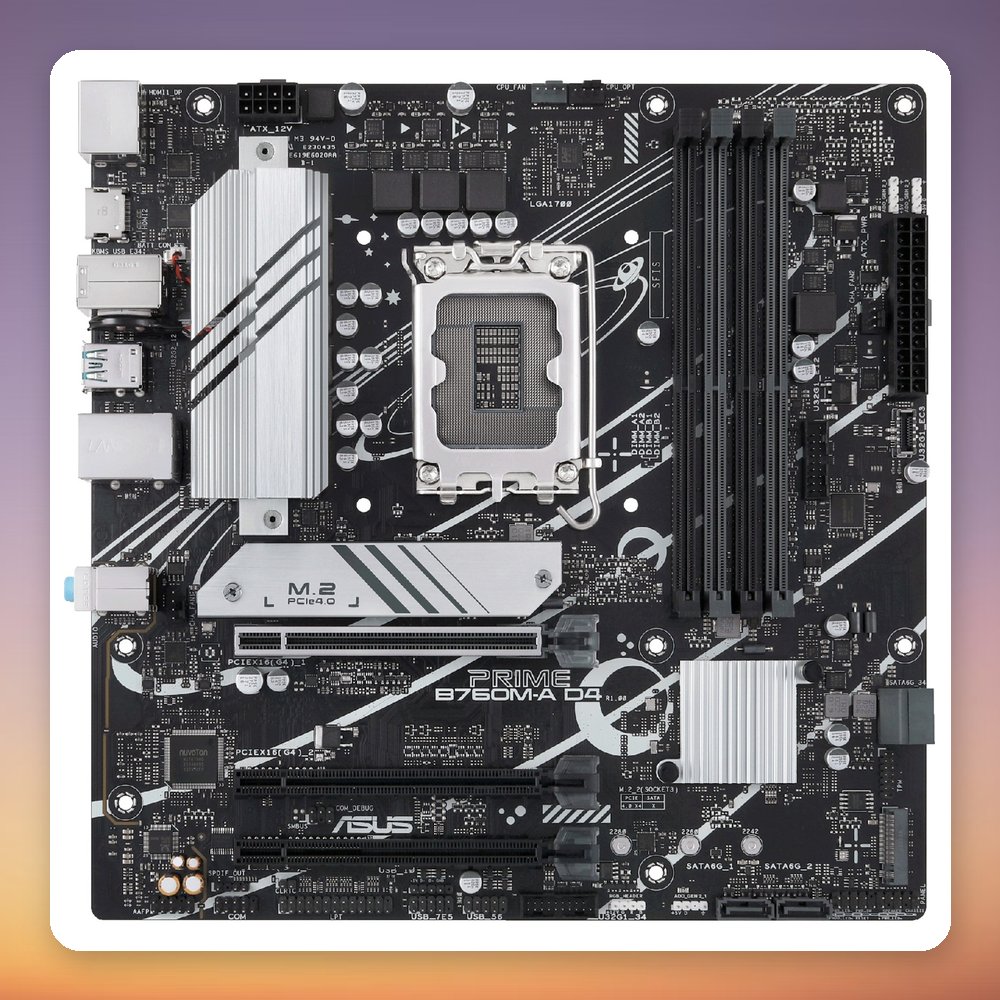

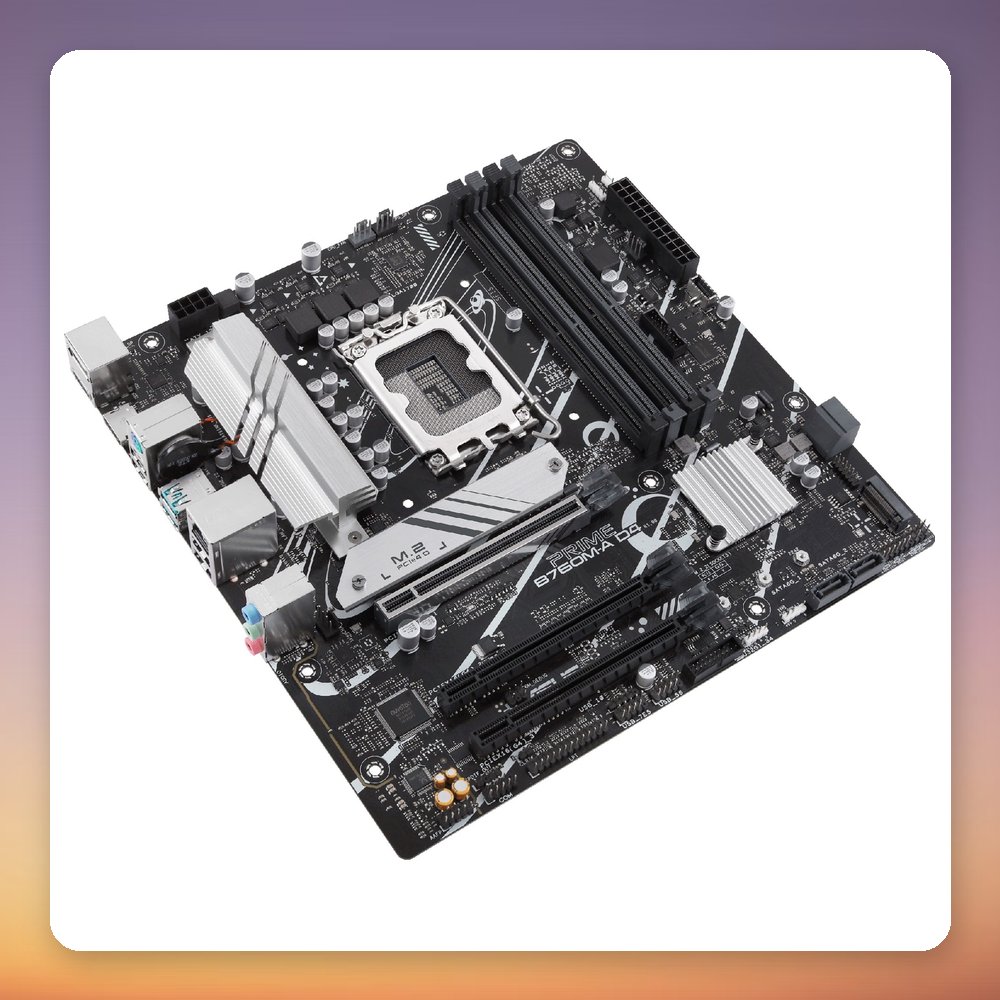

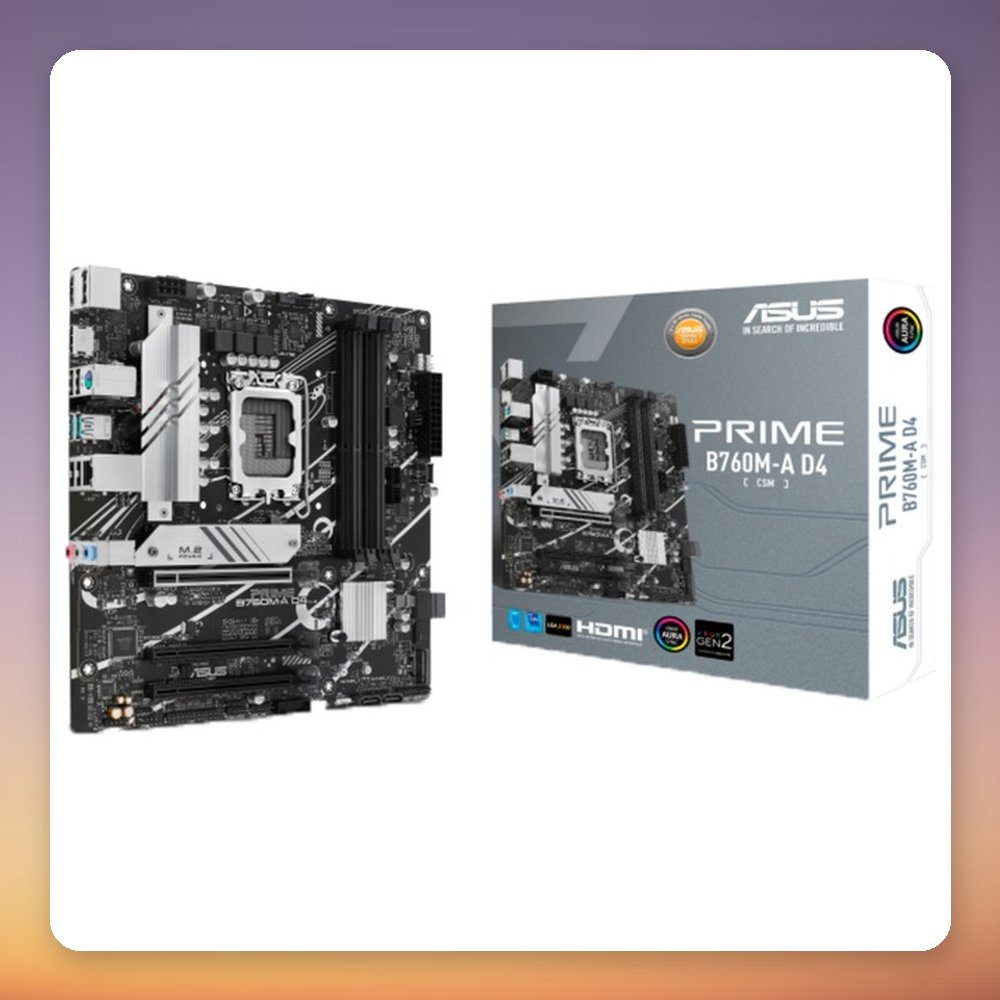

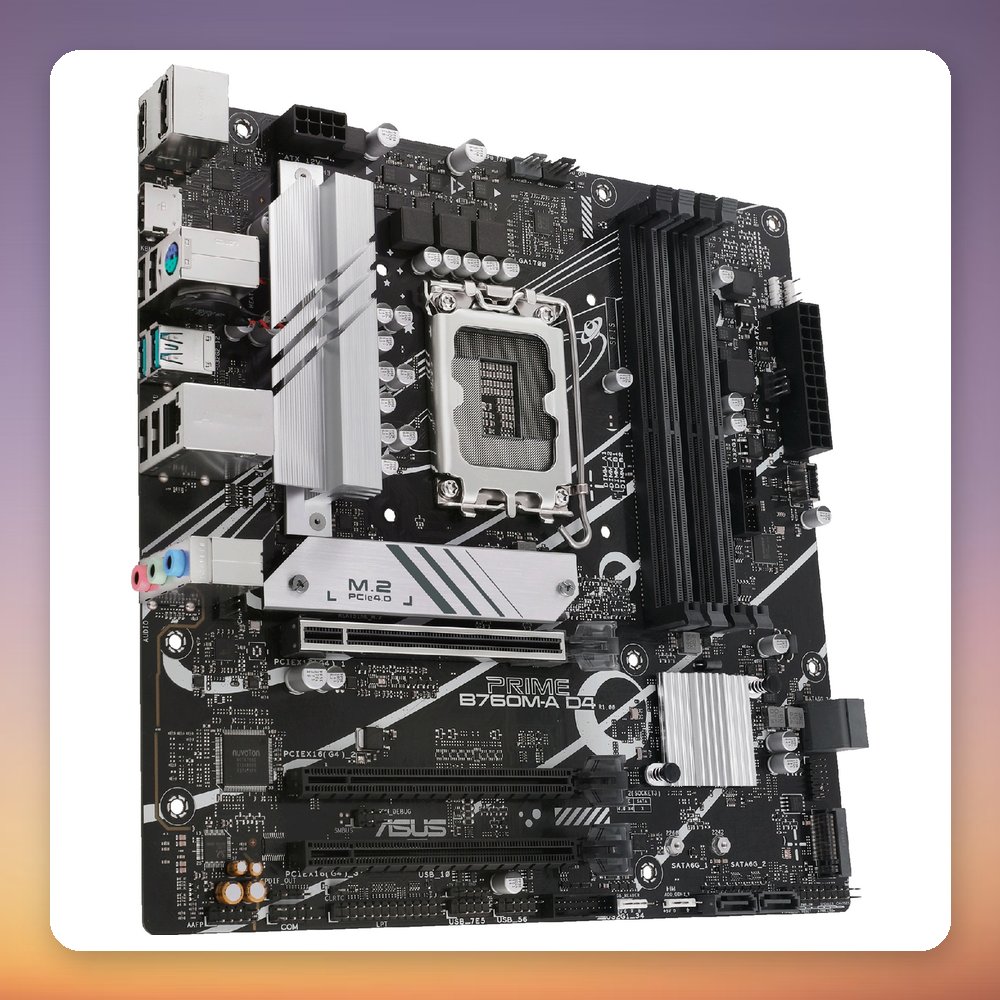

Name: Asus PRIME B760M-A D4-CSM Intel B760 LGA 1700 DDR4 micro ATX Motherboard
Brand: Asus
SKU: 100019984
Price: 179.52 EUR
Availability: InStock

Asus PRIME B760M-A D4-CSM Intel B760 LGA 1700 DDR4 micro ATX Motherboard

€179.52

Delivery: 7-12 business days
Asus PRIME B760M-A D4-CSM Intel B760 LGA 1700 DDR4 micro ATX Motherboard

Four DDR4 slots, up to 128 GB, DDR4-5333 (OC)
Two M.2 slots plus four SATA III ports
2.5 Gb Ethernet and 10 Gbit/s USB 3.2 Gen 2
Two HDMI and one DisplayPort video outputs

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100019984 Category: Intel Motherboards Tags: Asus,, B760, Intel,, motherboard, Brand: Asus

Description
Additional information

✅

Product Overview

The Asus PRIME B760M-A D4-CSM is a micro ATX motherboard for LGA 1700 processors, built on the Intel B760 chipset. What sets it apart is DDR4 support: four DIMM slots take up to 128 GB in dual-channel, with speeds listed up to DDR4-5333 (OC), so existing DDR4 memory can be reused. It also offers two M.2 slots, four SATA III ports and 2.5 Gb Ethernet.

This board suits a compact, budget-conscious Intel gaming or home PC on 12th or 13th generation Core processors. Video outputs include two HDMI and one DisplayPort, usable with a CPU that has integrated graphics. Extras include three addressable RGB headers (AURA Sync), a TPM header, 7.1 channel audio and three PWM fan headers. A BIOS update may be needed to support the newest processors.

Specification

Manufacturer: Asus
Model: PRIME B760M-A D4-CSM
MPN: 90MB1D00-M1EAYC
EAN: 47110819840610
Socket: LGA 1700
Chipset: Intel B760
Form factor: micro ATX
Memory: 4x DDR4 DIMM, dual-channel, up to 128 GB, non-ECC
Memory speed: DDR4-2133 up to DDR4-5333 (OC)
Expansion slots: 1x PCIe 4.0 x16, 1x PCIe x4, 1x PCIe x1
M.2 slots: 2
SATA III ports: 4
RAID: 0, 1, 5, 10
Rear USB: 2x USB-A 3.2 Gen 2 (10 Gbit/s), 4x USB-A 2.0
Video outputs: 2x HDMI 2.1, 1x DisplayPort 1.4
Networking: Realtek 2.5 Gb Ethernet (no Wi-Fi)
Audio: Realtek 7.1 channel HD audio
RGB headers: 1x RGB, 3x addressable RGB (AURA Sync)
Dimensions (W x H x D): 244 x 244 x 36 mm
Weight: 690 g
