Asus PRIME B660M-A D4-CSM Intel B660 LGA 1700 DDR4 mATX Motherboard
€180.37
Delivery: 7-12 business days
Asus PRIME B660M-A D4-CSM Intel B660 LGA 1700 DDR4 mATX Motherboard
- LGA 1700 with Intel B660 chipset
- 4x DDR4 slots, up to 128 GB
- Two M.2 slots plus four SATA III ports
- Intel Gigabit LAN, HDMI x2 and DisplayPort
More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.
In stock
✅
Product Overview

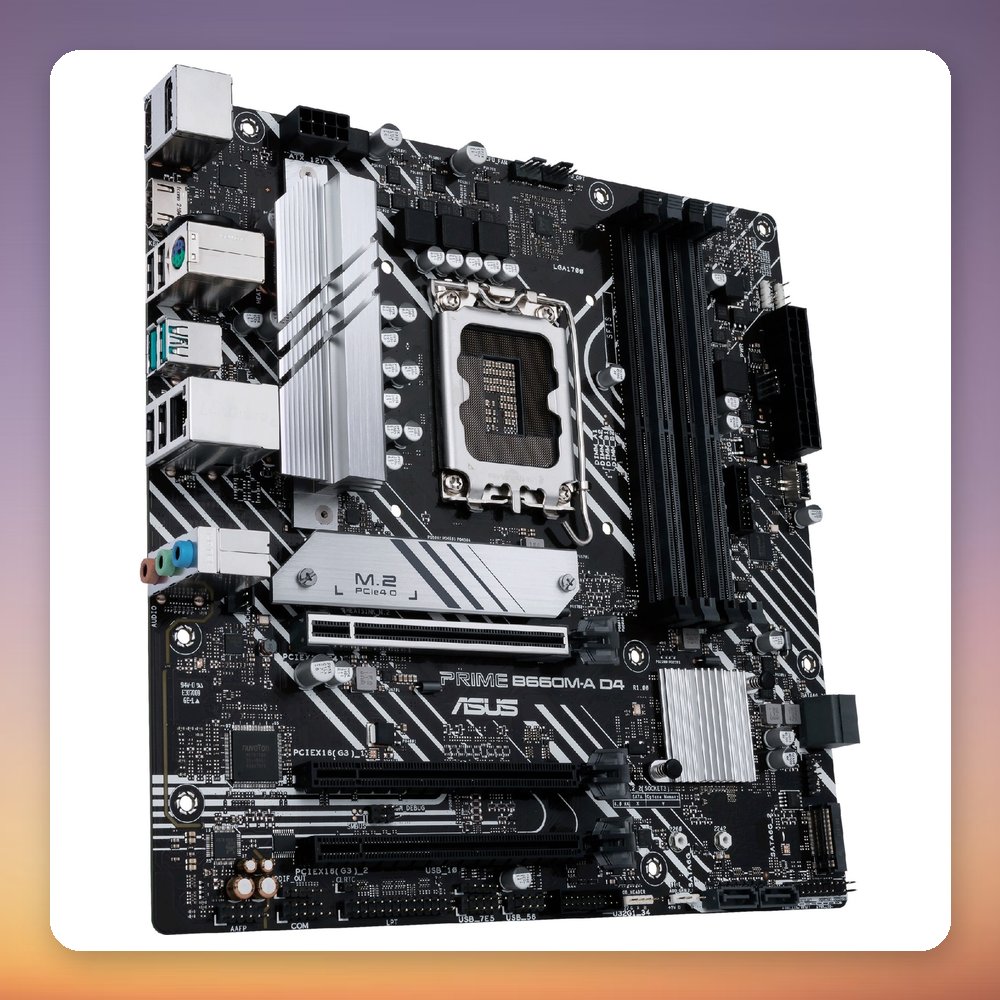

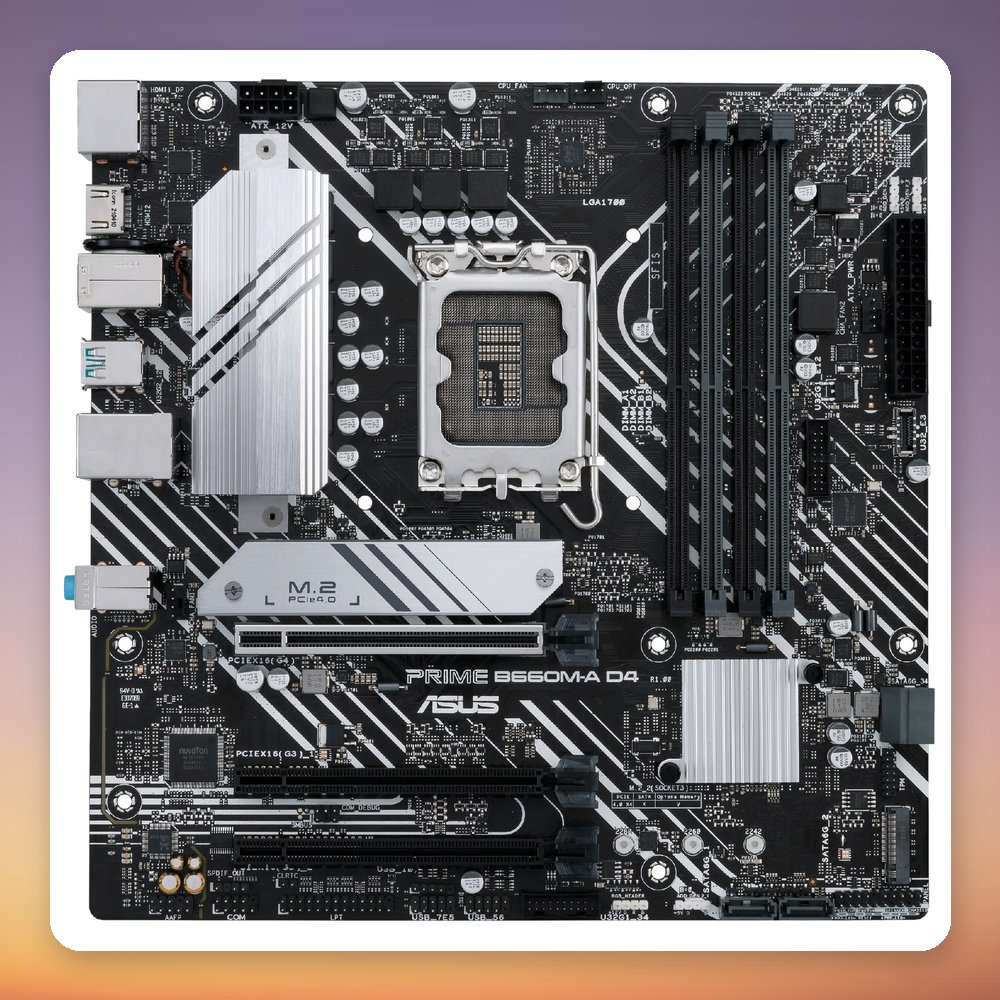

The Asus PRIME B660M-A D4-CSM is an Intel B660 micro-ATX motherboard for LGA 1700 processors, supporting Celeron, Pentium Gold and Core i3, i5, i7 and i9 CPUs. It carries four DDR4 DIMM slots in dual-channel for up to 128 GB, two M.2 slots, four SATA III ports and one PCIe 4.0 x16 slot, plus Intel Gigabit LAN and HDMI and DisplayPort video outputs.
This board suits compact desktop builds that keep DDR4 memory rather than moving to DDR5, and it works well for office, home and general-purpose PCs. As a CSM model it comes with 36-month lifecycle support and ASUS Control Center Express management software. There is no onboard Wi-Fi, and the video outputs only work with a CPU that has integrated graphics. A BIOS update may be needed for the newest processors.
Specification
- Manufacturer: Asus
- Model: PRIME B660M-A D4-CSM
- MPN: 90MB19K0-M1EAYC
- EAN: 4711081508045
- CPU Socket: LGA 1700
- Chipset: Intel B660
- Form Factor: micro ATX
- Memory: 4x DDR4 DIMM, dual-channel, up to 128 GB, non-ECC
- Memory Speed: DDR4-2133 to DDR4-5333 (OC)
- Expansion Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 1x PCIe 3.0 x1
- M.2 Slots: 2x M.2 (M key), SATA and PCIe, 42-110 mm
- SATA: 4x SATA III 6Gb/s, RAID 0/1/5/10
- Rear USB: 2x USB 3.2 Gen 2, 4x USB 2.0
- Video Outputs: 2x HDMI, 1x DisplayPort
- Networking: Intel Gigabit LAN, no Wi-Fi
- Audio: Realtek ALC897, 7.1 channel
- RGB: 1x RGB header, 3x addressable RGB headers, AURA Sync
- Dimensions (W x D): 244 x 244 mm
delivery time 7-12 business days
| Weight | 1.5 kg |
|---|
