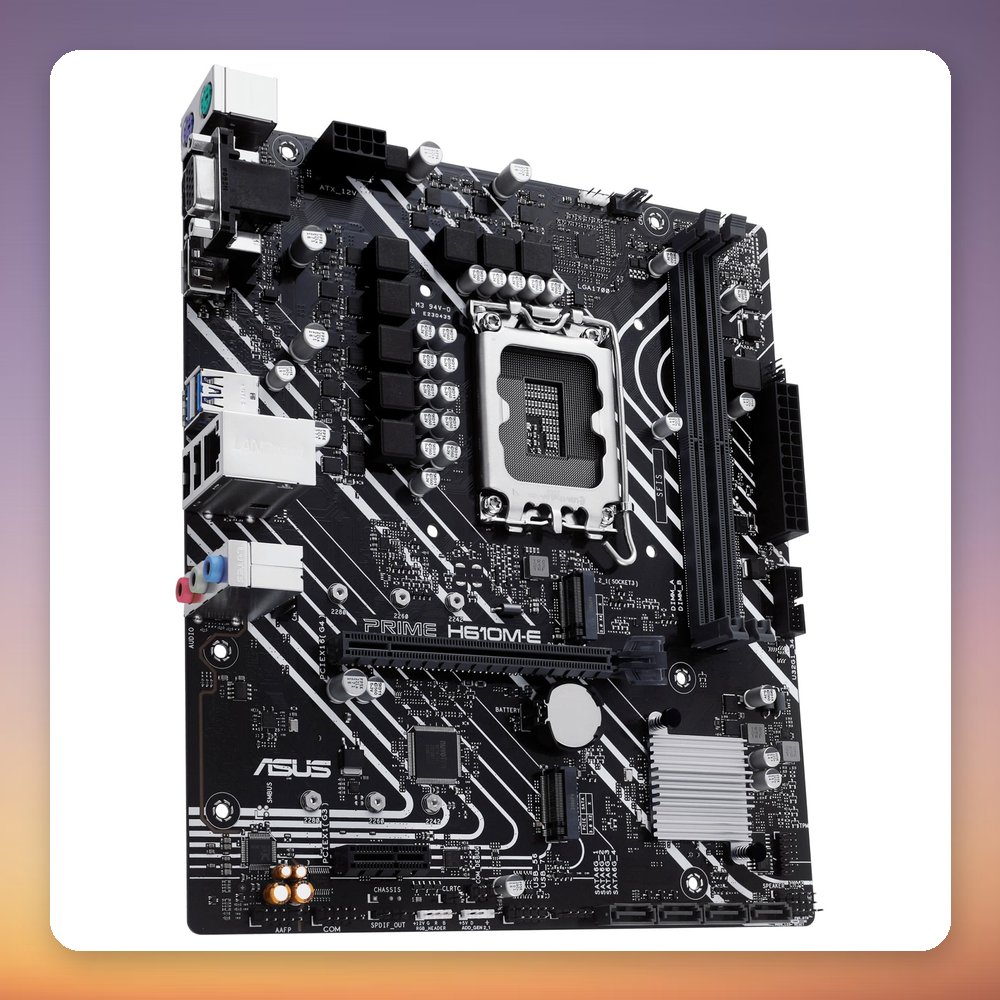

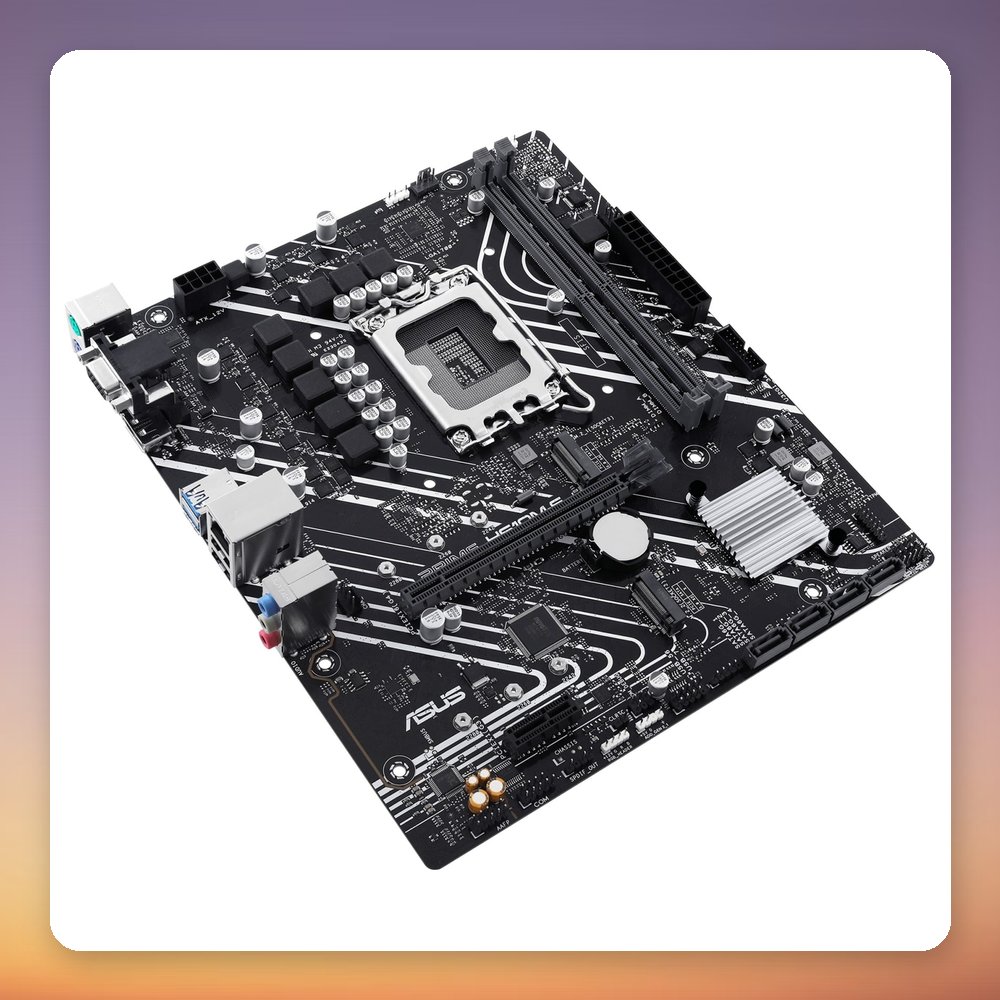

Name: Asus PRIME H610M-E-CSM Intel H610 LGA 1700 DDR5 micro ATX Motherboard
Brand: Asus
SKU: 100019991
Price: 129.59 EUR
Availability: InStock

Asus PRIME H610M-E-CSM Intel H610 LGA 1700 DDR5 micro ATX Motherboard

€129.59

Delivery: 7-12 business days
Asus PRIME H610M-E-CSM Intel H610 LGA 1700 DDR5 micro ATX Motherboard

LGA 1700 with Intel H610 chipset
2x DDR5 slots, up to 96 GB, DDR5-5600
Two M.2 slots plus four SATA III ports
HDMI 2.1, DisplayPort 1.4 and VGA outputs

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100019991 Category: Intel Motherboards Tags: 12th, Asus,, Gen,, Hardware, INTEL, motherboard,, PC Brand: Asus

Description
Additional information

✅

Product Overview

The Asus PRIME H610M-E-CSM is an Intel H610 micro ATX motherboard for LGA 1700 processors, with two DDR5 DIMM slots supporting up to 96 GB at speeds up to DDR5-5600. It combines a PCIe 4.0 x16 slot with two M.2 slots and four SATA ports, and offers four display outputs (HDMI, DisplayPort, VGA) for CPUs with integrated graphics.

This board suits a compact, budget-focused desktop build around a 12th or 13th generation Intel Celeron, Pentium Gold, Core i3, i5, i7 or i9 processor. Gigabit LAN, 7.1-channel audio, a TPM header and a 128 Mbit UEFI BIOS are included, and Windows 10 and Windows 11 are supported. As part of the Asus Corporate Stable Model programme it ships with Asus Control Center Express. A BIOS update may be required for the newest processors.

Specification

Manufacturer: Asus
Model: PRIME H610M-E-CSM
MPN: 90MB1G10-M0EAYC
EAN: 4711387259795
Socket: LGA 1700
Chipset: Intel H610
Form factor: micro ATX
Memory: 2x DDR5 DIMM, dual-channel, up to 96 GB
Supported memory speeds: DDR5-4800 / 5000 / 5200 / 5400 / 5600 (non-ECC)
Expansion slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
M.2 slots: 2x M.2 (M key), SATA and PCIe, 42-80 mm
SATA: 4x SATA III 6 Gb/s
Video outputs: HDMI 2.1, DisplayPort 1.4, VGA
Rear USB: 2x USB 3.2 Gen 1 Type-A, 2x USB 2.0
Networking: Realtek Gigabit Ethernet (no Wi-Fi)
Audio: Realtek 7.1-channel HD Audio
Fan headers: 3x 4-pin PWM, plus 1x RGB LED header (AURA Sync)
Dimensions (W x D): 244 x 211 mm

return to the shop
see our fanpage

delivery time 7-12 business days

Weight	0.979 kg
