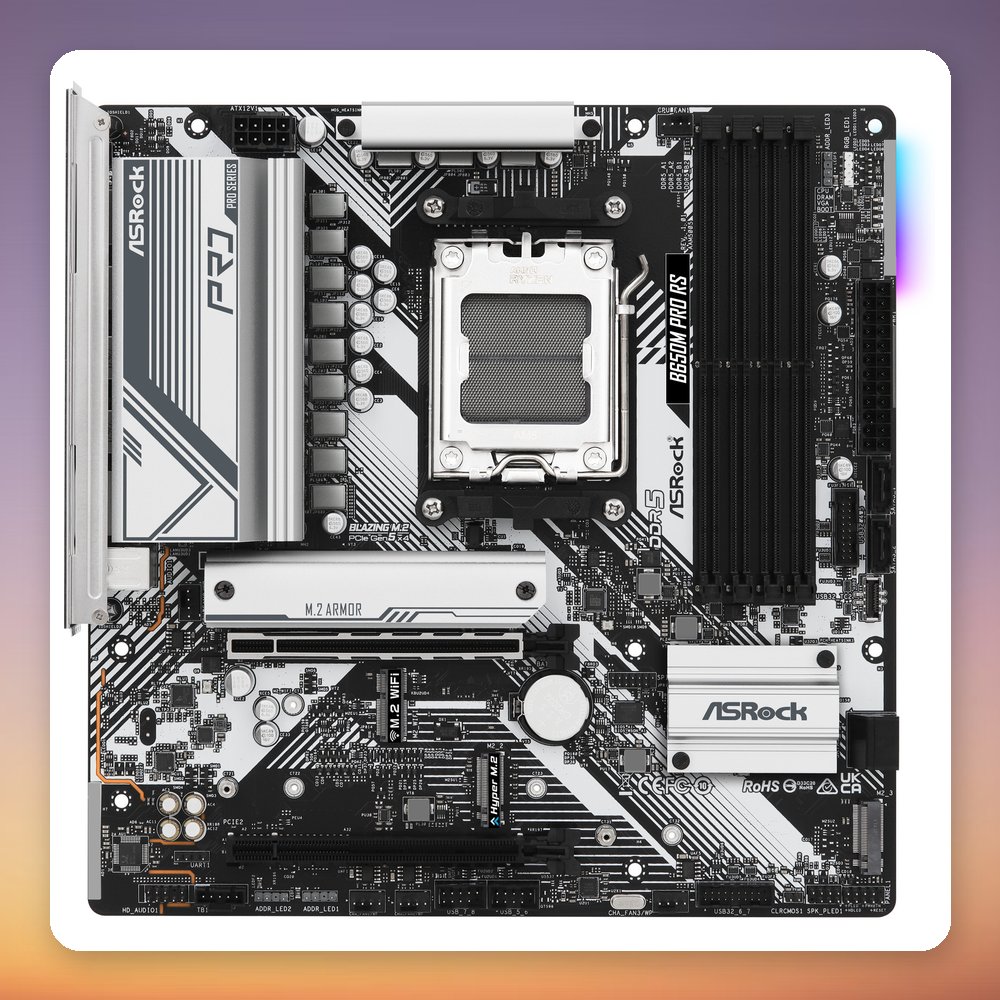

Name: ASRock B650M Pro RS AM5 Micro-ATX Motherboard, B650, DDR5, 3x M.2
Brand: Asrock
SKU: 100021912
Price: 149.84 EUR
Availability: InStock

ASRock B650M Pro RS AM5 Micro-ATX Motherboard, B650, DDR5, 3x M.2

€149.84

Delivery: 7-12 business days
ASRock B650M Pro RS AM5 Micro-ATX Motherboard, B650, DDR5, 3x M.2

3x M.2 slots, including one PCIe Gen5 x4
4x DDR5 slots, up to 192 GB and 7200+ (OC)
2.5 Gigabit LAN and 10 Gbit/s USB-C and USB-A
Ryzen 7000, 8000 and 9000 series support

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100021912 Category: AMD Motherboards Tags: AMD, Asrock,, B650M, motherboard,, PRO, RS,, Ryzen Brand: Asrock

Description
Additional information

✅

Product Overview

The ASRock B650M Pro RS AM5 motherboard is a µATX board built on the AMD B650 chipset for Ryzen 7000, 8000 and 9000 series processors. It stands out with three M.2 slots, one of them PCIe Gen5 x4, four DDR5 DIMM slots supporting up to 192 GB, and 2.5 Gigabit LAN, all on a compact 244 x 244 mm board.

This board suits compact gaming and general-purpose builds that still need plenty of storage and fast memory. Memory is supported up to DDR5-7200+ (OC) in dual channel, with ECC support listed. Display outputs (HDMI and DisplayPort) work with CPUs that have integrated graphics. Connectivity includes USB-C and USB-A 10 Gbit/s ports, four SATA ports, five 4-pin PWM fan headers and addressable RGB headers. The package includes a manual, two SATA cables and M.2 mounting accessories.

Specification

Manufacturer: Asrock
Model: B650M Pro RS
MPN: 90-MXBLP0-A0UAYZ
EAN: 4710483943096
Socket: AM5
Chipset: AMD B650
Form factor: µATX
Memory slots: 4x DDR5, dual channel
Max memory: 192 GB
Memory speed: Up to DDR5-7200+ (OC)
ECC support: Yes
M.2 slots: 3x (Gen5 x4, Gen4 x4, Gen4 x2), 2260/2280
SATA ports: 4
Expansion slots: 1x PCIe x16, 1x PCIe x4
LAN: 2.5 Gigabit (Dragon RTL8125BG)
Audio: Realtek ALC897, Nahimic Audio
Rear USB ports: 1x USB-C 10 Gbit/s, 1x USB-A 10 Gbit/s, 1x USB-C 5 Gbit/s, 2x USB-A 5 Gbit/s, 4x USB-A 2.0
Video outputs: 1x HDMI, 1x DisplayPort (CPU with integrated graphics required)
Dimensions (W x H): 244 x 244 mm

return to the shop
see our fanpage

delivery time 7-12 business days

Weight	1.2 kg
