Product Overview

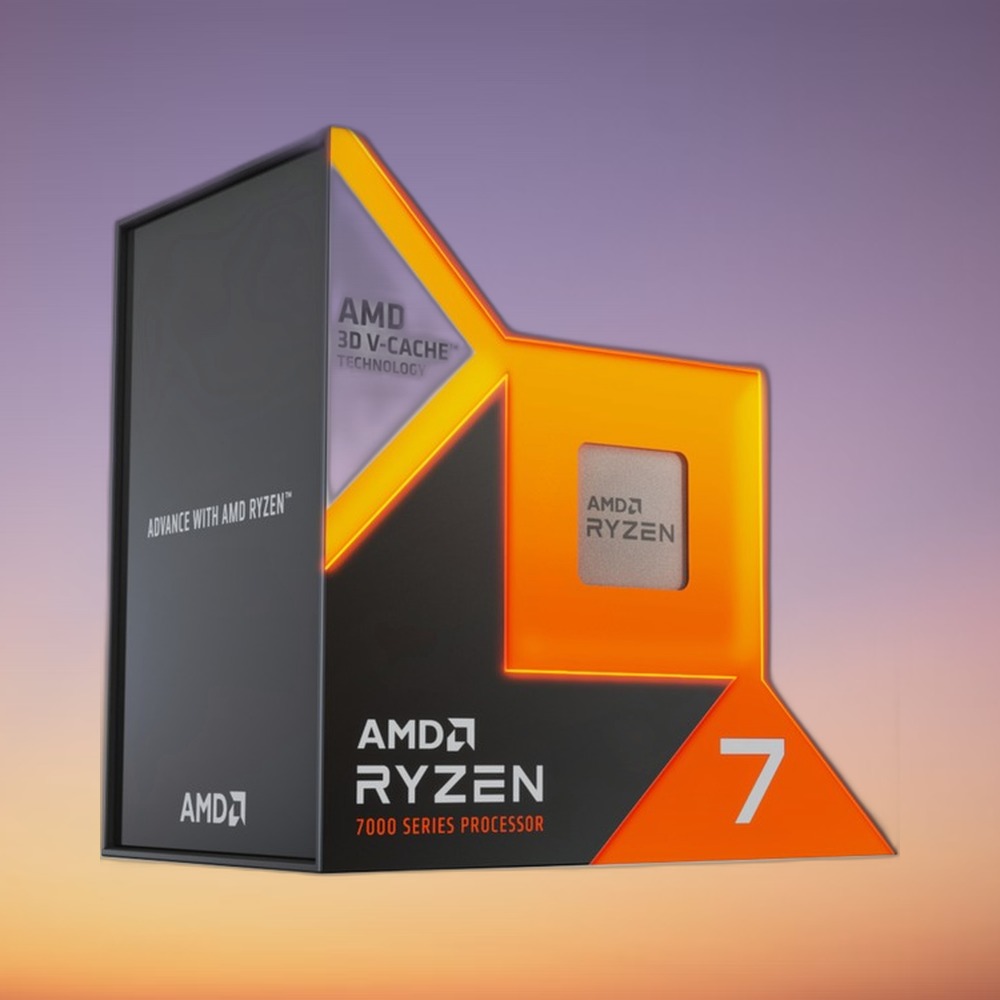

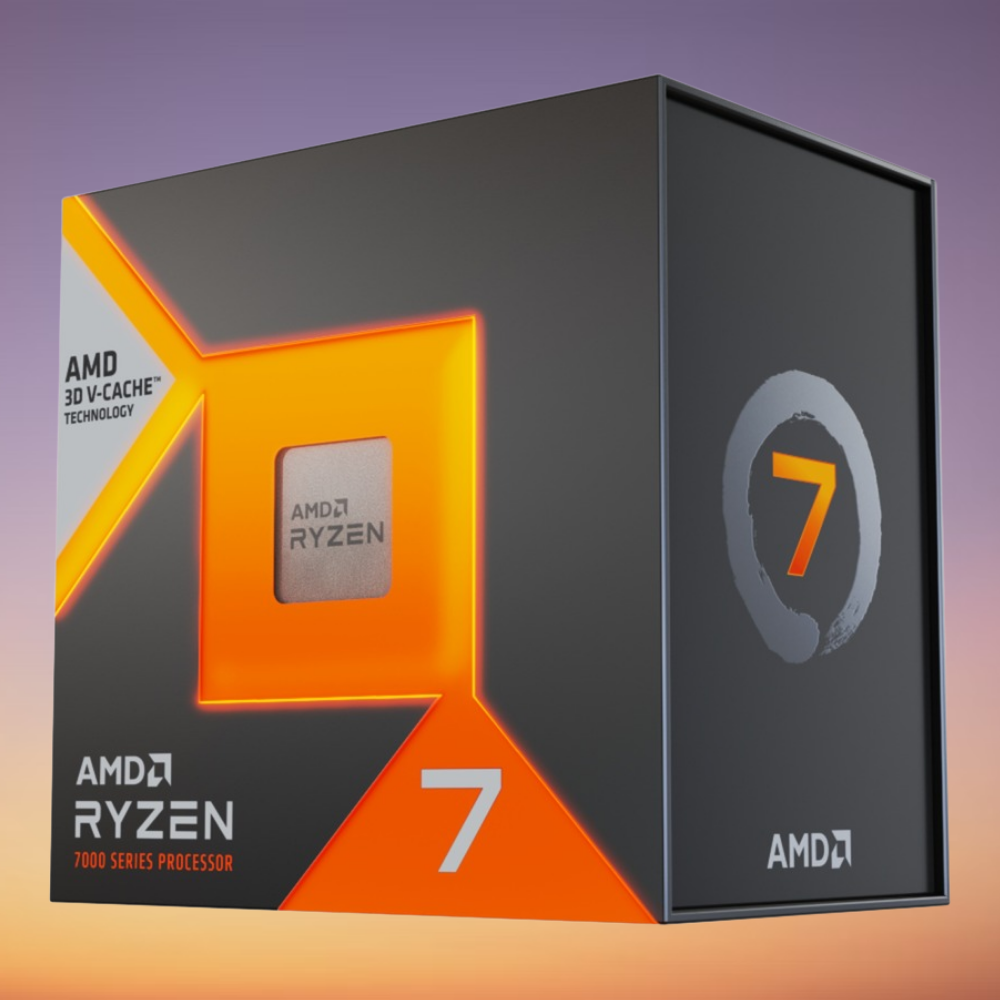

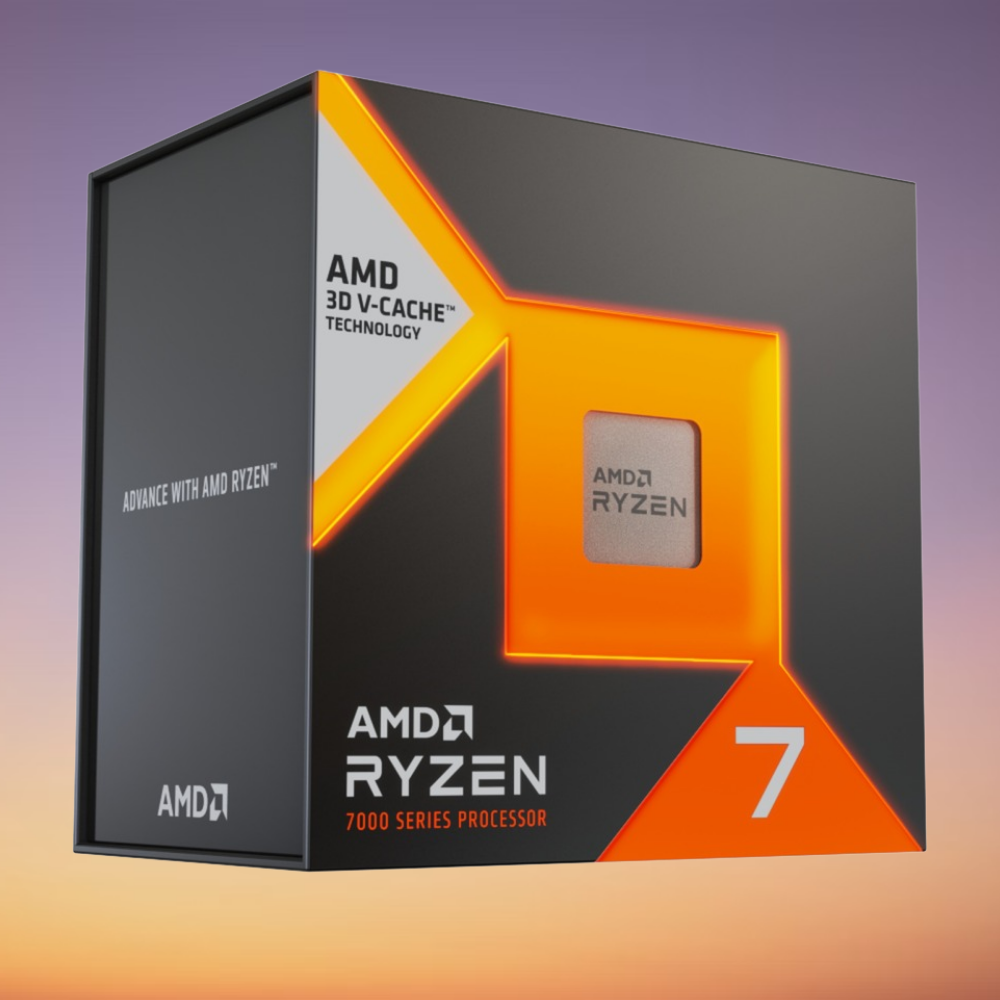

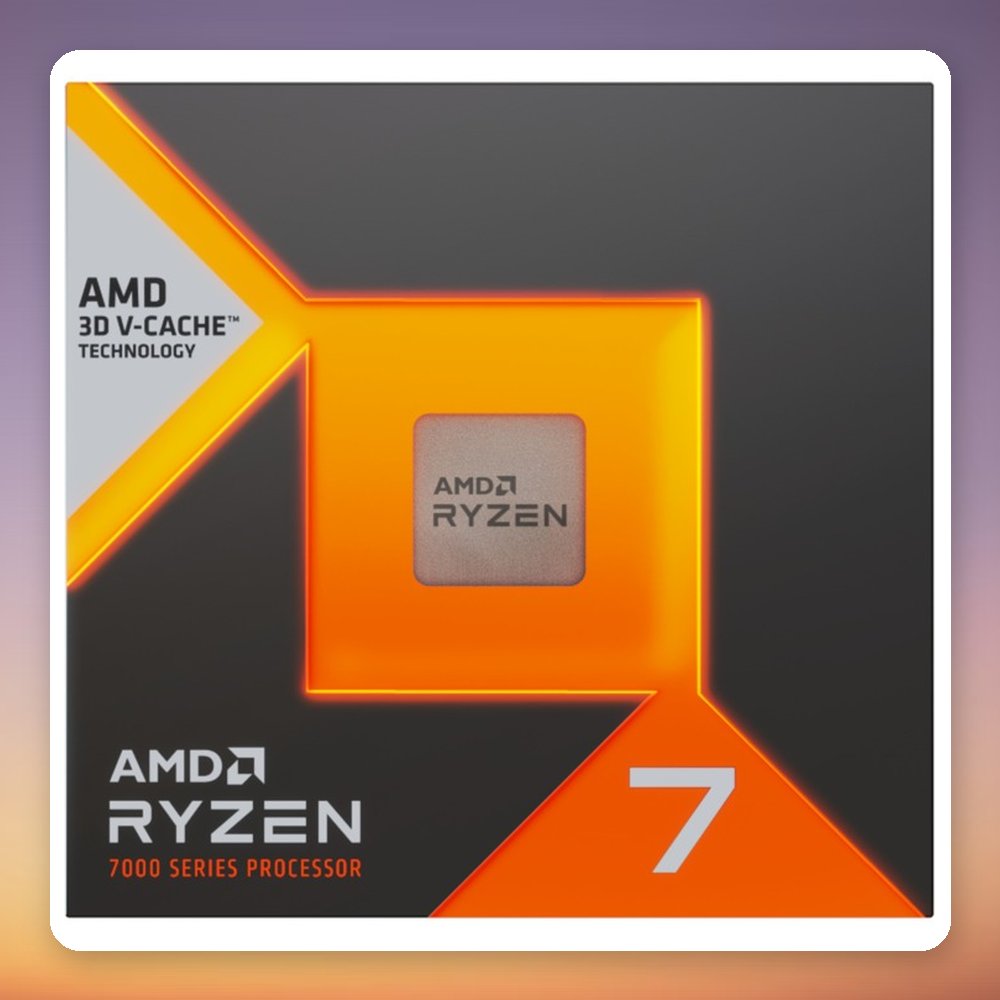

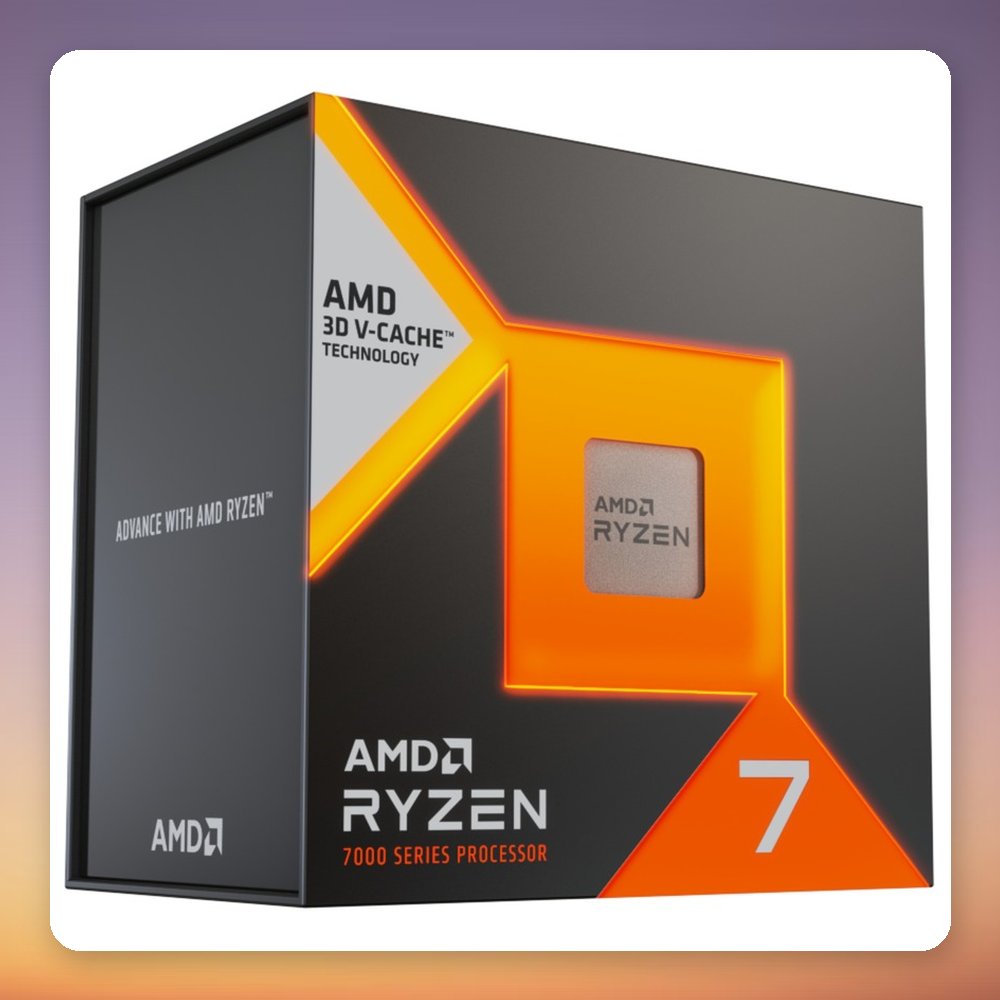

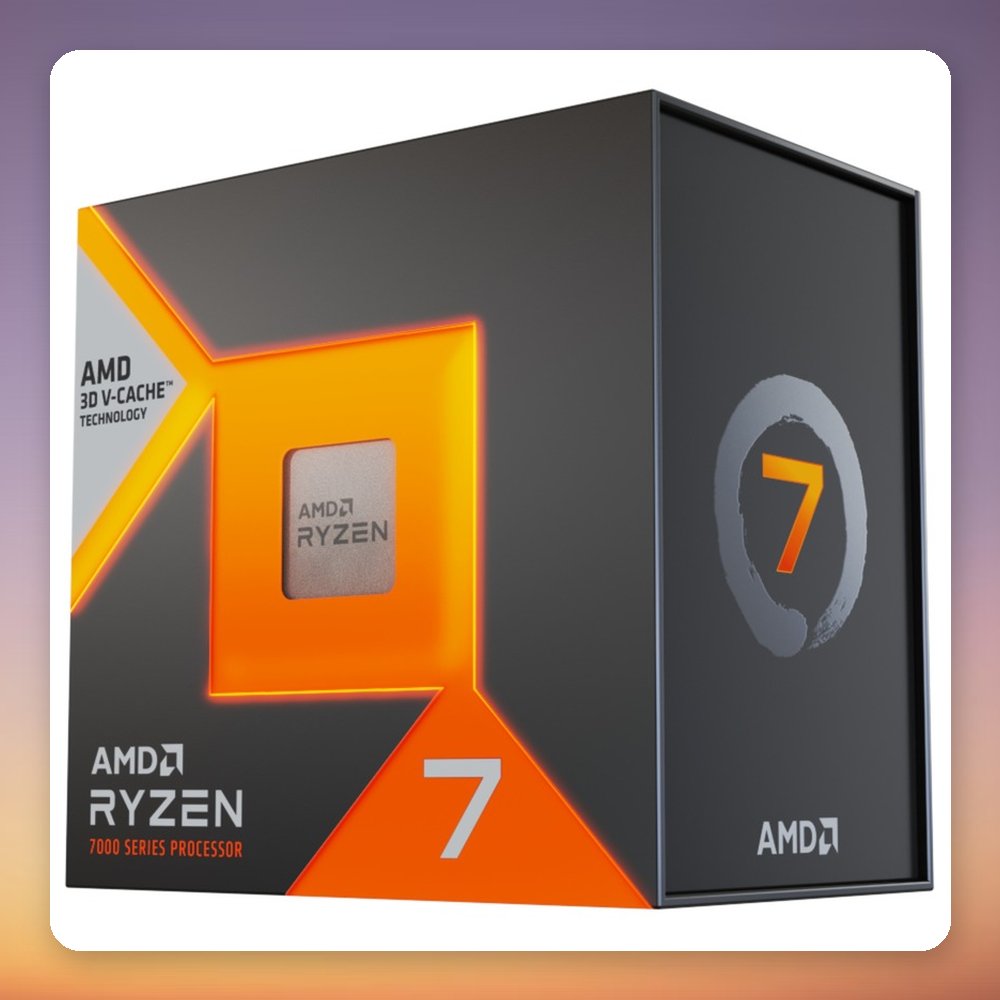

The AMD Ryzen 7 7800X3D is an 8-core, 16-thread desktop processor for the AM5 socket, built on the Zen 4 architecture and a 5 nm process. What sets it apart is its 96 MB of L3 cache, delivered through AMD’s 3D V-Cache technology, which AMD says lowers latency and adds gaming performance. It runs at a 4.2 GHz base clock and boosts up to 5.0 GHz.

This is a processor for gaming PCs built on AM5 motherboards with PCIe 5.0 support. It has a 120 W TDP, dual-channel memory support and integrated AMD Radeon Graphics, so a display output is available without a dedicated graphics card. Precision Boost 2 and Precision Boost Overdrive are supported, and the chip is unlocked. This boxed version ships without a cooler, so you will need to buy a compatible one separately.

Specification

• Manufacturer: AMD
• Model: Ryzen 7 7800X3D
• MPN: 100-100000910WOF
• EAN: 730143314930
• Socket: AM5
• Cores / Threads: 8 cores / 16 threads
• Base clock: 4.2 GHz
• Max boost clock: up to 5.0 GHz
• L3 cache: 96 MB (98,304 KB)
• L2 cache: 8 MB
• L1 cache: 512 KB
• Microarchitecture: Zen 4 (Raphael)
• Process: 5 nm
• TDP: 120 W
• Integrated graphics: AMD Radeon Graphics (400 MHz base, 2200 MHz turbo)
• Memory: Dual-channel, ECC supported
• PCIe version: Up to PCIe 5.0
• Unlocked: Yes
• Cooler: Not included
