Product Overview

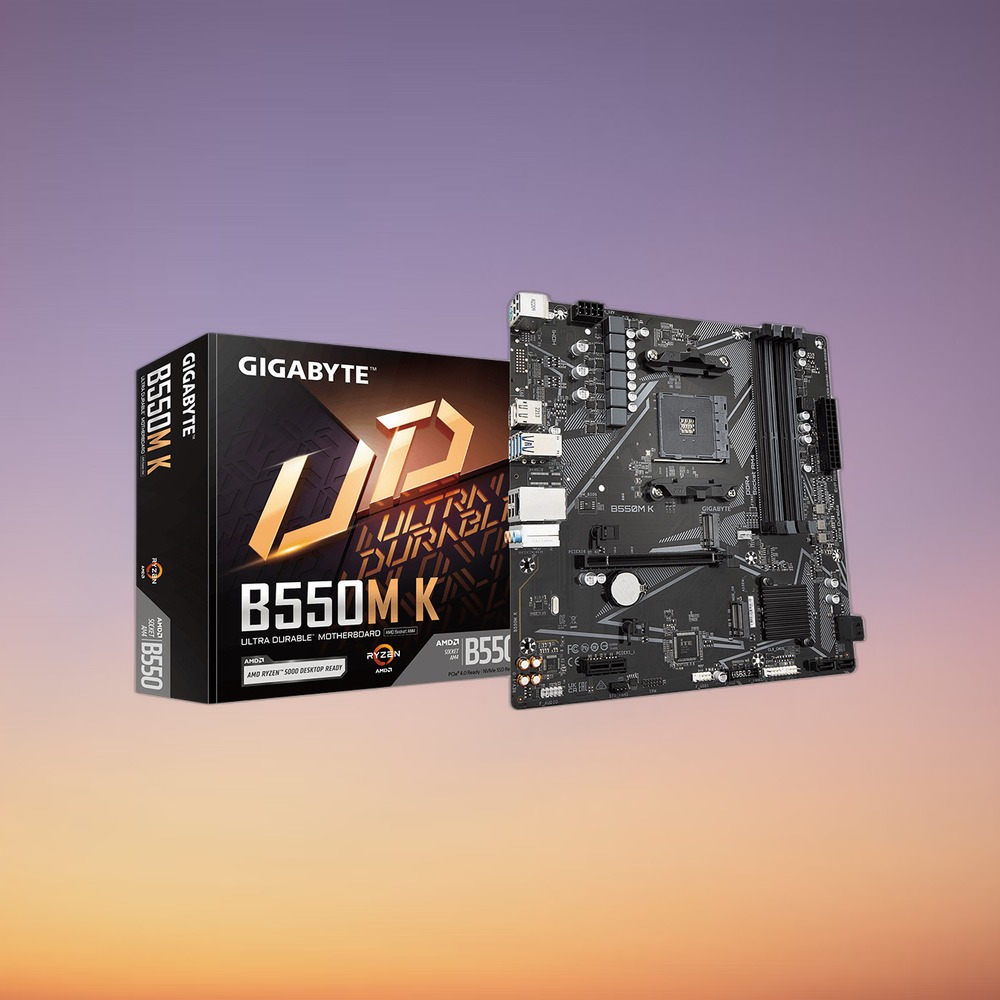

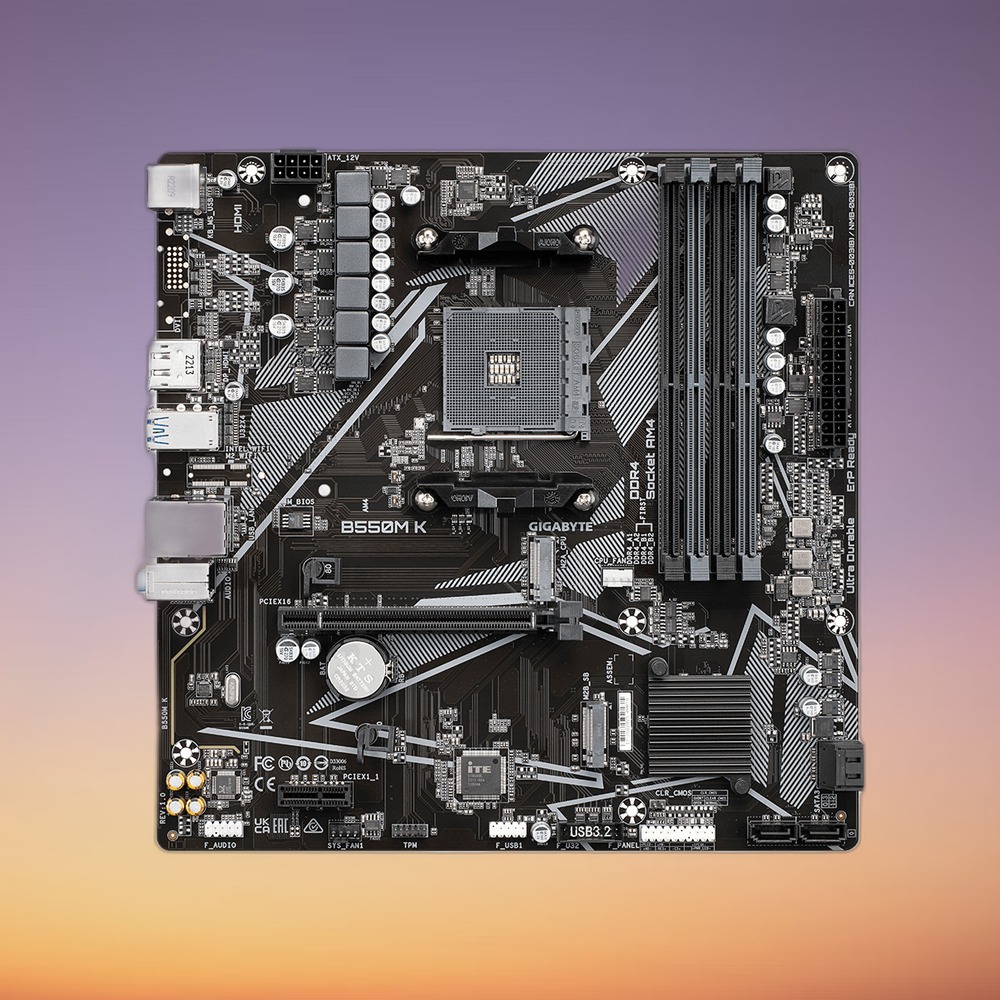

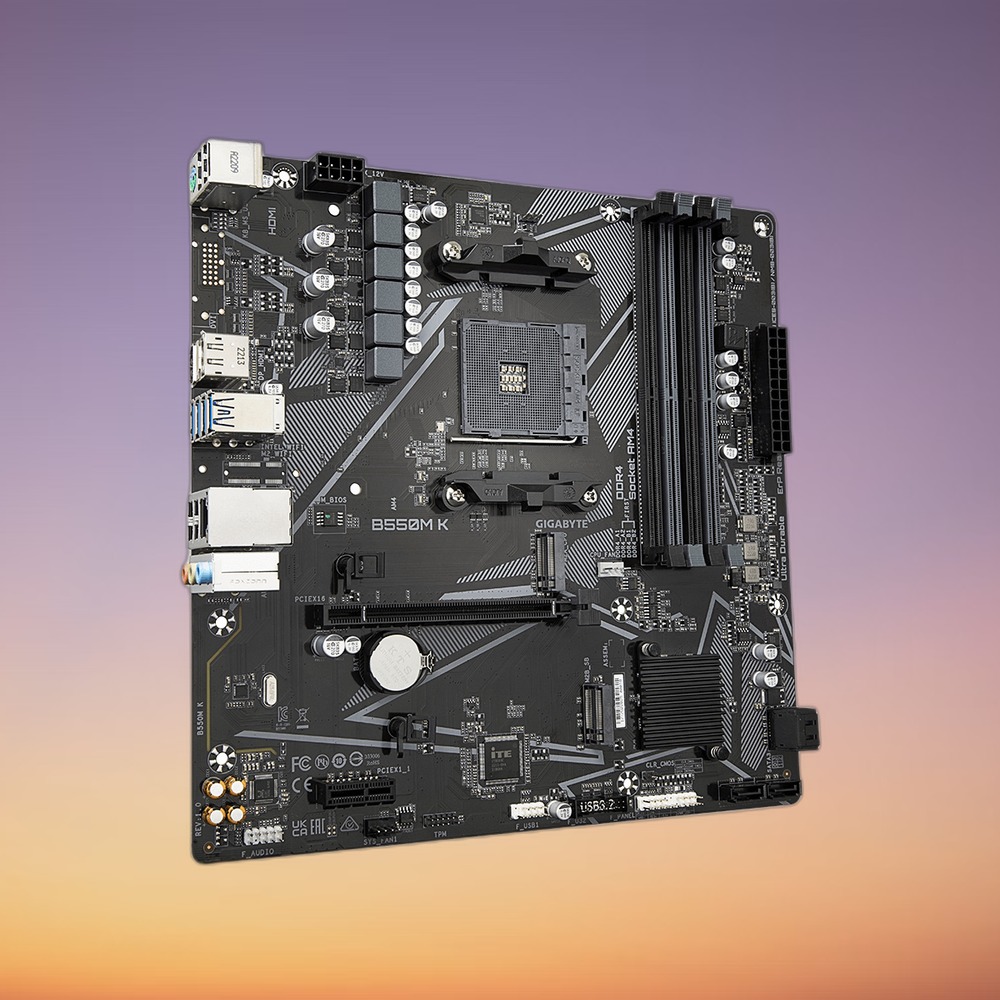

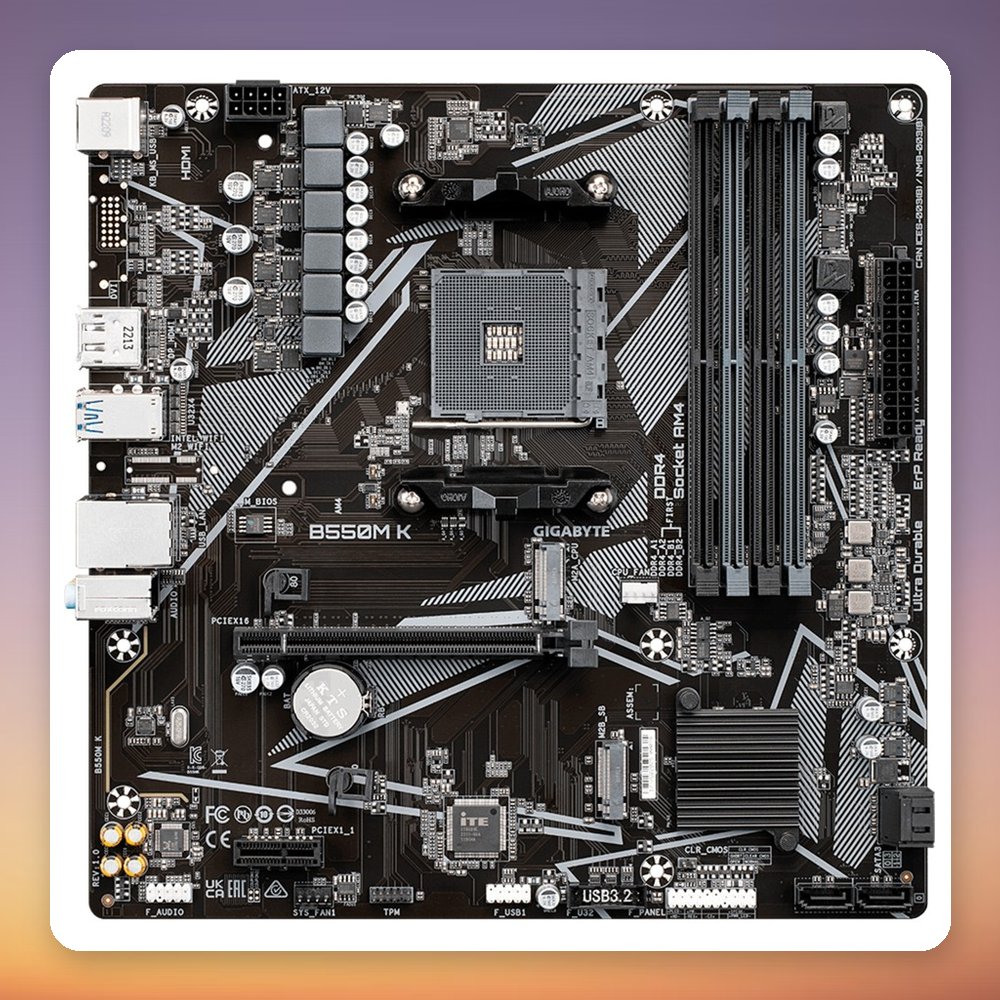

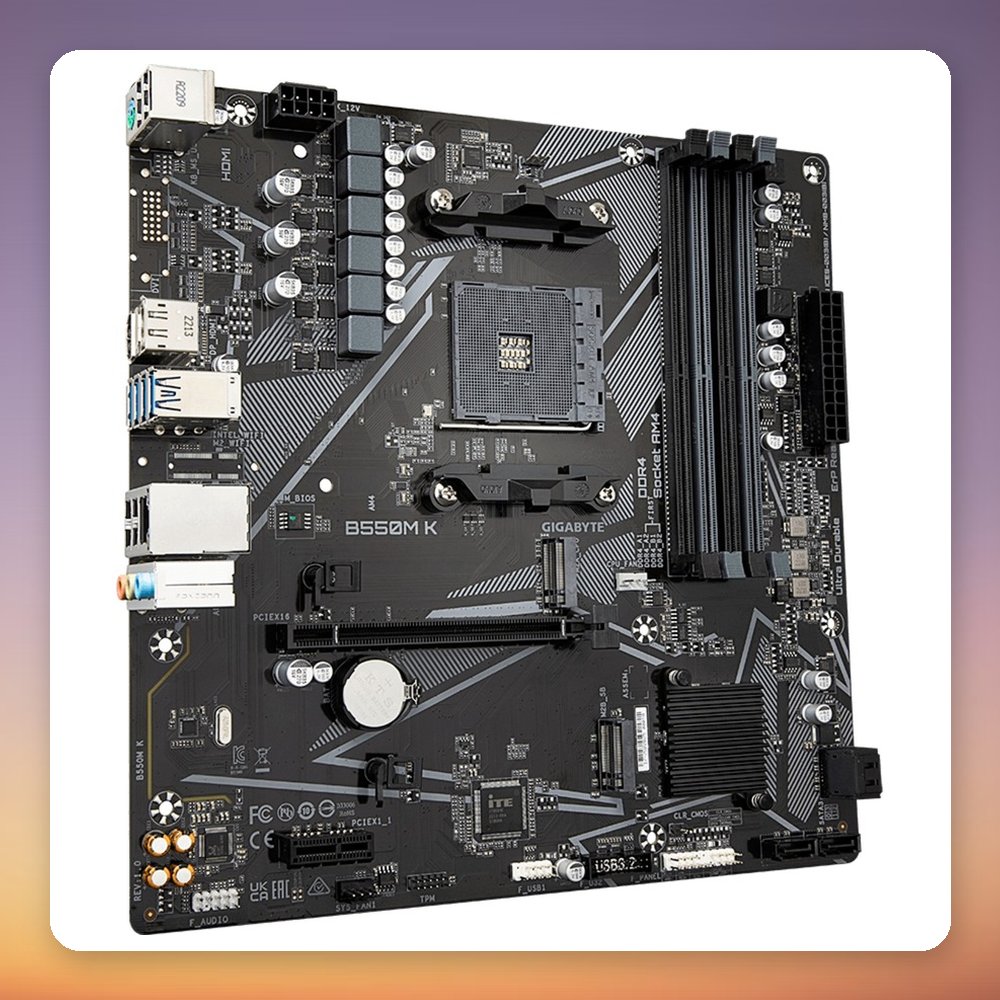

GIGABYTE B550M K Motherboard – AMD Ryzen 5000 CPUs, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM.

Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H

Specification

• EAN: [‘4719331852764’, ‘0889523036006’, ‘889523036006’]
• Supported memory clock speed (max): 4733 MHz
• Maximum internal memory: 128 GB
• Unbuffered memory: Yes
• Maximum internal memory per slot: 32 GB
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2, SATA
• Number of HDDs supported: 2
• Number of storage drives supported: 6
• RAID support: Yes
• RAID levels: 0, 1, 10
• Parallel processing technology support: Not supported
• Maximum resolution: 5120 x 2880 pixels
• HDCP: Yes
• DirectX version: 12.0
• USB 2.0 connectors: 1
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• Number of SATA III connectors: 4
• Front panel audio connector: Yes
• Front panel connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Number of CPU fan connectors: 1
• Number of chassis fan connectors: 1
• EPS power connector (8-pin): Yes
• Number of EPS power connectors (8-pin): 1
• TPM connector: Yes
• 12V power connector: Yes

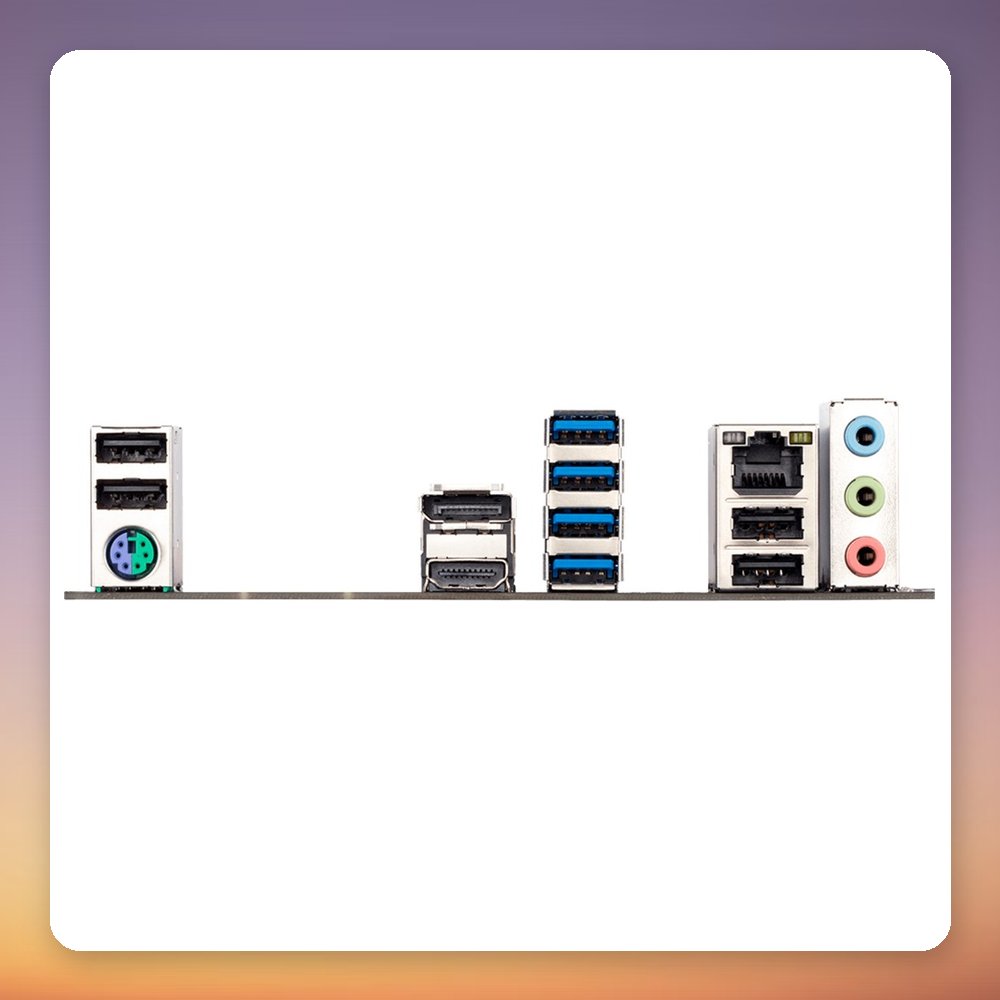

• USB 2.0 ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• Ethernet LAN (RJ-45) ports: 1
• PS/2 ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• DisplayPorts quantity: 1
• DisplayPort version: 1.4
