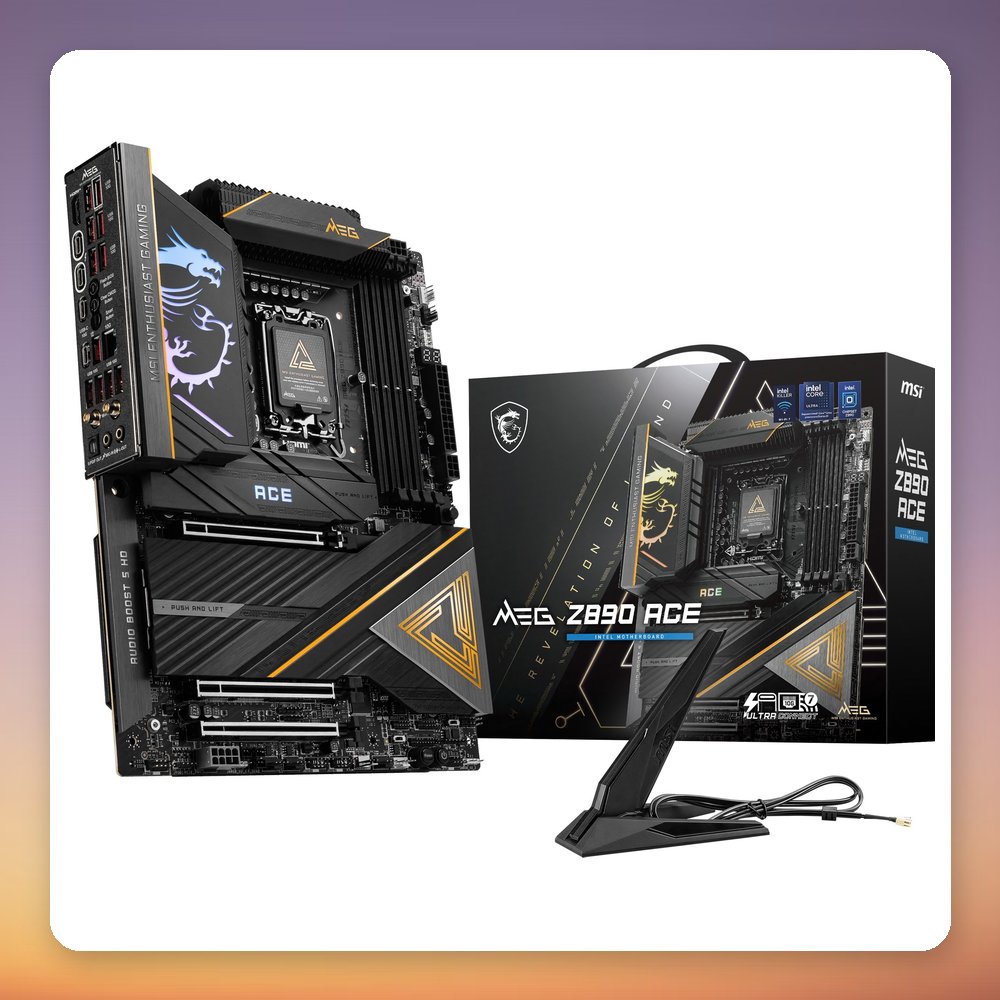

MSI MEG Z890 ACE ATX Motherboard, Intel Z890, LGA1851, DDR5, 10 GbE, WiFi 7
MSI MEG Z890 ACE ATX Motherboard, Intel Z890, LGA1851, DDR5, 10 GbE, WiFi 7 – image 2
MSI MEG Z890 ACE ATX Motherboard, Intel Z890, LGA1851, DDR5, 10 GbE, WiFi 7 – image 3
MSI MEG Z890 ACE ATX Motherboard, Intel Z890, LGA1851, DDR5, 10 GbE, WiFi 7 – image 4
MSI MEG Z890 ACE ATX Motherboard, Intel Z890, LGA1851, DDR5, 10 GbE, WiFi 7 – image 5
MSI MEG Z890 ACE ATX Motherboard, Intel Z890, LGA1851, DDR5, 10 GbE, WiFi 7 – image 6

MSI MEG Z890 ACE ATX Motherboard, Intel Z890, LGA1851, DDR5, 10 GbE, WiFi 7

€528.75

Delivery: 7-12 business days
MSI MEG Z890 ACE ATX Motherboard, Intel Z890, LGA1851, DDR5, 10 GbE, WiFi 7

  • 10 GbE LAN plus WiFi 7 and Bluetooth 5.4
  • Five M.2 slots and four SATA ports
  • Two Thunderbolt 4 ports and 13 rear 10 Gbit/s USB ports
  • DDR5 up to 256 GB, rated up to 9200 MT/s (O.C.)

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100078165 Category: Tags: , , , Brand:

✅

Product Overview

The MSI MEG Z890 ACE is an ATX motherboard built on the Intel Z890 chipset for LGA1851 Core Ultra (Arrow Lake) processors. What sets it apart is its connectivity: 10 GbE LAN from the Marvell AQC113CS, an Intel Killer BE1750x WiFi 7 module with Bluetooth 5.4, two Thunderbolt 4 ports and five M.2 slots, alongside four DDR5 slots that take up to 256 GB.

It suits high-end Intel gaming and enthusiast builds that need a lot of storage and fast networking. Expansion comes from one PCIe 5.0 x16 slot, one PCIe 5.0 x16 slot running at x8 and one PCIe 4.0 x16 slot running at x4. Audio uses a Realtek ALC4082 codec with an ESS9219Q DAC. There are eight 4-pin PWM fan headers and Mystic Light RGB support. A BIOS update may be needed for the newest CPUs.

Specification

  • Manufacturer: MSI
  • Model: MEG Z890 ACE
  • MPN: 7E22-001R
  • EAN: 47113772607870
  • Socket: LGA1851
  • Chipset: Intel Z890
  • Form factor: ATX
  • Memory: 4x DDR5 DIMM, dual channel, up to 256 GB
  • Memory speed: DDR5-9200 (O.C.) / 6400 / 6200 / 6000 / 5800 / 5600 MT/s
  • Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 5.0 x16 (x8), 1x PCIe 4.0 x16 (x4)
  • M.2 slots: 5x M.2 (M key, PCIe, 60-110 mm)
  • SATA ports: 4x SATA 6 Gbit/s, RAID 0/1/5/10
  • LAN: Marvell AQC113CS 10 GbE
  • Wireless: Intel Killer BE1750x WiFi 7, Bluetooth 5.4
  • Rear USB: 11x USB-A 10 Gbit/s, 2x USB-C 10 Gbit/s
  • Thunderbolt: 2x Thunderbolt 4 (USB-C, DisplayPort video out)
  • Video output: 1x HDMI, DisplayPort 1.4 via Thunderbolt 4 (CPU with integrated graphics required)
  • Audio: Realtek ALC4082 + ESS9219Q
  • Fan headers: 8x 4-pin PWM
  • RGB headers: 1x RGB, 3x addressable RGB (Mystic Light)
  • Power connectors: 24-pin ATX + 2x 8-pin ATX12V
  • Colour: Black / gold-yellow
  • Dimensions (W x H): 243.84 x 304.8 mm

return to the shop
see our fanpage

delivery time 7-12 business days

Weight 1.5 kg
