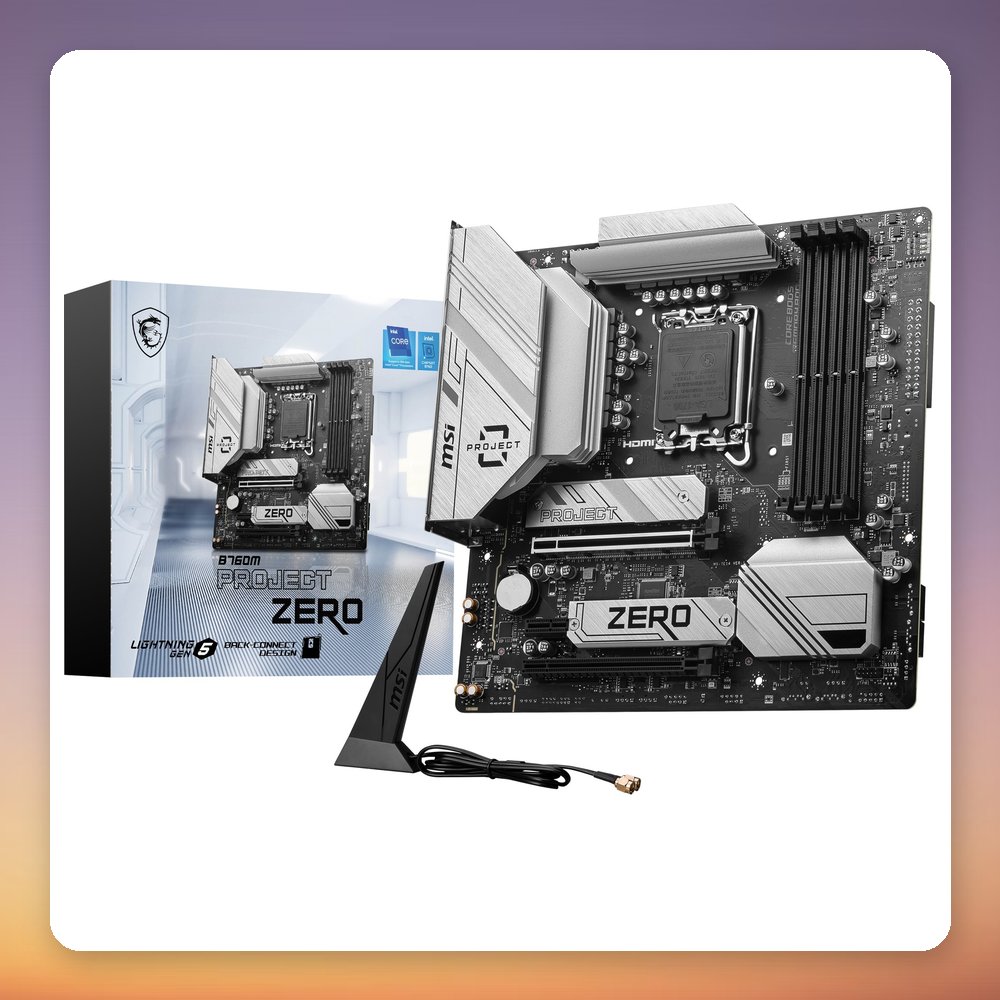

Name: MSI B760M PROJECT ZERO LGA 1700 DDR5 mATX Motherboard, Wi-Fi 6E
Brand: MSI
SKU: 100031423
Price: 278.12 EUR
Availability: InStock

MSI B760M PROJECT ZERO LGA 1700 DDR5 mATX Motherboard, Wi-Fi 6E

€278.12

Delivery: 7-12 business days
MSI B760M PROJECT ZERO LGA 1700 DDR5 mATX Motherboard, Wi-Fi 6E

Back-connect design moves power and fan headers behind the board
Wi-Fi 6E, Bluetooth 5.3 and 2.5 Gbps LAN onboard
Two M.2 slots, 4x SATA and 20 Gbps USB-C
Extended VRM heatsink with 7W/mK thermal pads and M.2 Frozr shield

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100031423 Category: Intel Motherboards Tags: B760M,, INTEL, motherboard,, MSI, Brand: MSI

Description
Additional information

✅

Product Overview

The MSI B760M PROJECT ZERO is a micro-ATX LGA 1700 motherboard on the Intel B760 chipset with four DDR5 slots, Wi-Fi 6E and 2.5 Gbps LAN. What sets it apart is its back-connect design: the power connectors, fan connectors and other pin headers are moved to the rear of the board, leaving a cleaner front view for the cooler, graphics card and motherboard itself.

This board suits a tidy, clean-looking gaming build in a micro-ATX or larger case that supports back-connect motherboards. It supports Intel 12th, 13th and 14th generation processors, up to 192 GB of dual-channel DDR5, and two M.2 slots with PCIe 4.0 x4 support. The VRM and M.2 slots are covered by heatsinks, and the kit includes SATA cables, M.2 mounting hardware and a Wi-Fi antenna.

Specification

Manufacturer: MSI
Model: B760M PROJECT ZERO
MPN: 7E14-001R
EAN: 47113771436600
Socket: LGA 1700
Chipset: Intel B760
Form factor: micro-ATX
Memory: 4x DDR5 DIMM, dual channel, up to 192 GB (OC up to 7800+ MHz)
Expansion slots: 1x PCIe x16 (PCIe 5.0), 1x PCIe 4.0 x16 (x4 lanes), 1x PCIe x1
M.2 slots: 2x M.2 (M key), 42-80 mm, PCIe 4.0 x4 / SATA
SATA ports: 4x SATA 3 with RAID 0, 1, 5, 10
Networking: Realtek 2.5 Gbps LAN, Intel Wi-Fi 6E, Bluetooth 5.3
Rear USB: 1x USB-C 20 Gbps, 3x USB-A 10 Gbps, 4x USB 2.0
Video outputs: 1x HDMI, 1x DisplayPort (needs CPU with integrated graphics)
Audio: Realtek ALC897 codec, 7.1 channels
Fan and RGB headers: 6x 4-pin PWM fan, 2x RGB, 2x addressable RGB
Dimensions (W x D): 243.8 x 243.8 mm

return to the shop
see our fanpage

delivery time 7-12 business days

Weight	1.5 kg
