Gigabyte Z890M Gaming X Intel Z890 LGA 1851 DDR5 Micro ATX Motherboard
€211.82
Delivery: 7-12 business days
Gigabyte Z890M Gaming X Intel Z890 LGA 1851 DDR5 Micro ATX Motherboard
- Supports DDR5 up to 8800 MHz (O.C.), 256 GB max
- Three M.2 slots plus four SATA III ports
- PCIe 5.0 x16 slot for the graphics card
- 2.5 Gb Ethernet with 2 ARGB and 1 RGB headers
More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.
In stock
✅
Product Overview

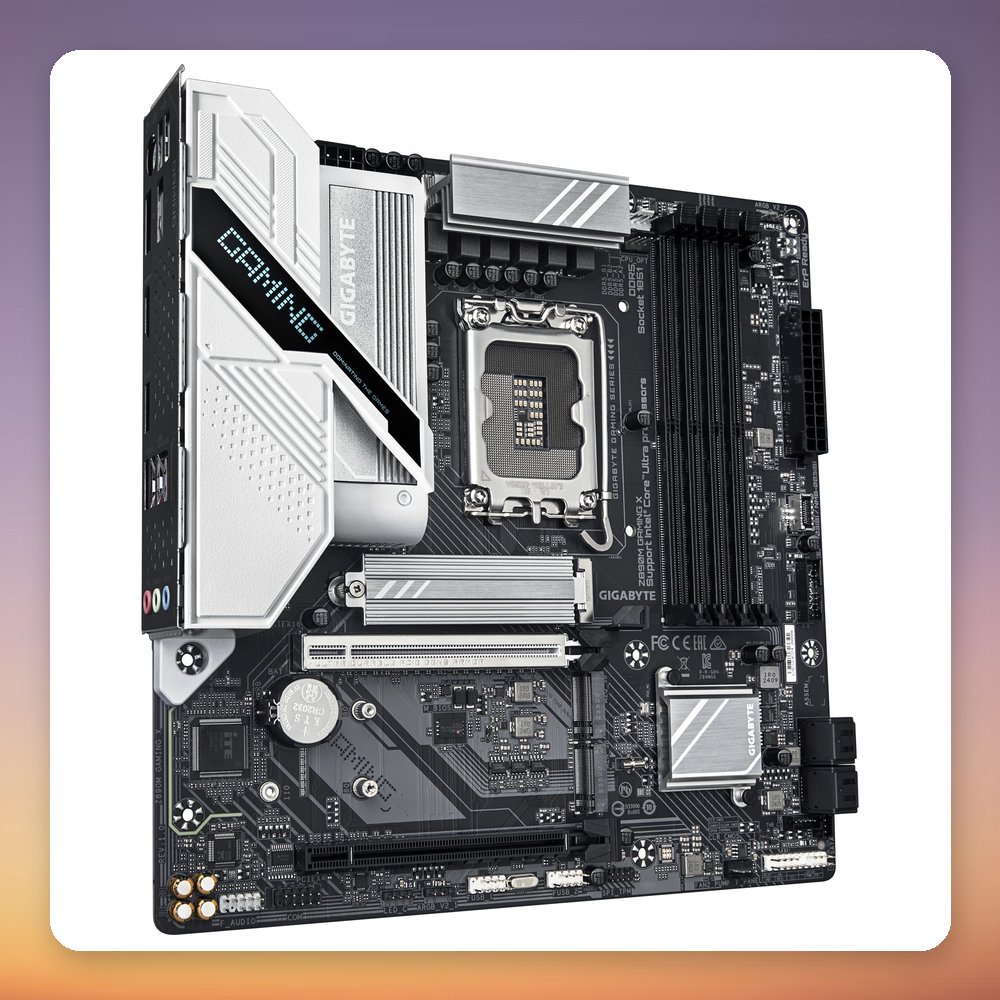

The Gigabyte Z890M Gaming X is a micro ATX motherboard built around the Intel Z890 chipset for LGA 1851 Core Ultra (Series 2) processors. It has four DDR5 slots supporting up to 256 GB and speeds up to 8800 MHz (O.C.), three M.2 slots, a PCIe 5.0 x16 slot, 2.5 Gb Ethernet and 7.1-channel audio, which is a lot of connectivity for a compact board.
This board suits a compact or mid-size gaming PC built around an unlocked Arrow Lake CPU such as a Core Ultra 5, 7 or 9 K-series chip. Storage is covered by four SATA III ports and three M.2 slots, with RAID 0, 1, 5 and 10 support. It has HDMI and two DisplayPort outputs for CPUs with integrated graphics, but no onboard Wi-Fi. A BIOS update may be needed for the newest processors.
Specification
- Manufacturer: GigaByte
- Model: Z890M Gaming X
- MPN: Z890M GAMING X
- EAN: 4719331865160
- Socket: LGA 1851
- Chipset: Intel Z890
- Form factor: micro ATX
- Memory: 4x DDR5 DIMM, dual-channel, up to 256 GB
- Memory speed: Up to DDR5-8800 (O.C.)
- Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 lanes)
- M.2 slots: 3x M.2 (M key, PCIe)
- SATA: 4x SATA III, RAID 0/1/5/10
- LAN: Realtek 2.5 Gb Ethernet
- Wi-Fi: No
- Audio: Realtek codec, 7.1 channels
- Rear video outputs: 1x HDMI, 2x DisplayPort
- Rear USB: 3x USB-A 3.2 Gen 1, 2x USB-A 2.0
- Dimensions (W x D x H): 244 x 244 x 35 mm
- Weight: 1.1 kg
delivery time 7-12 business days
| Weight | 1.5 kg |
|---|
