Product Overview

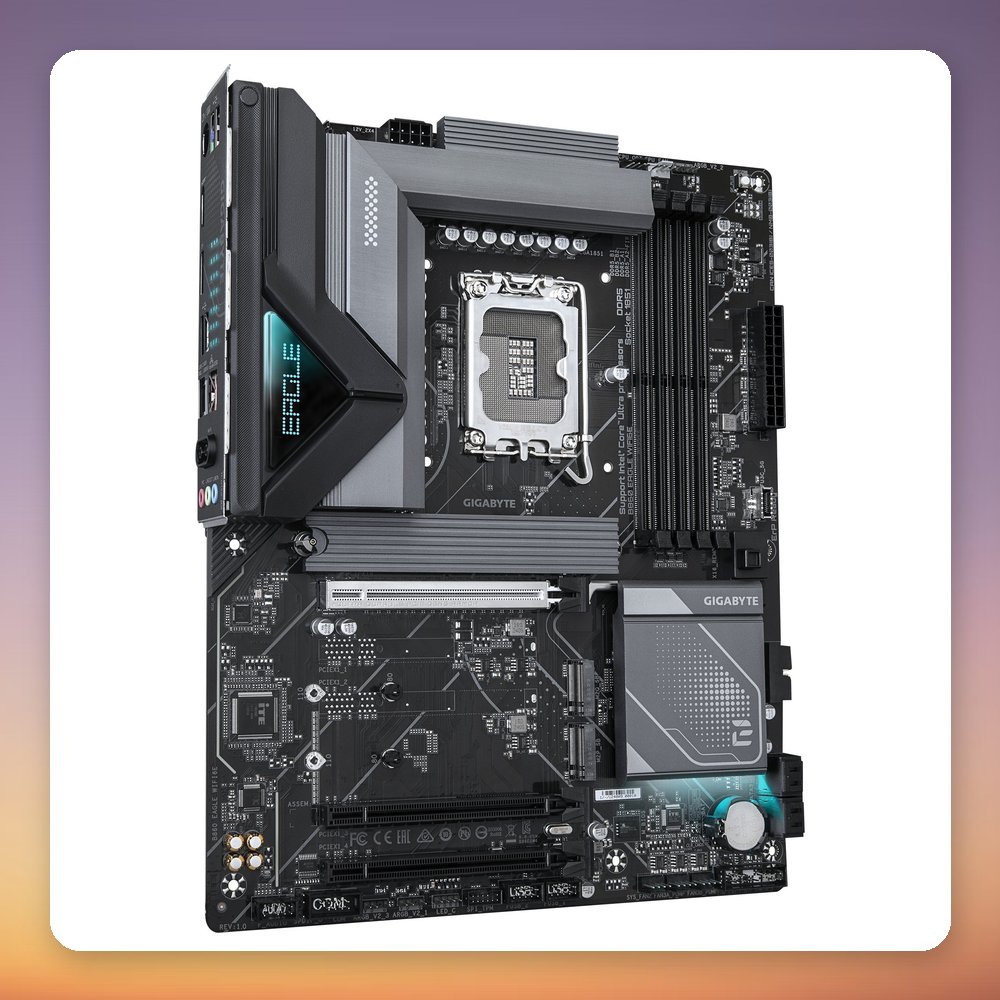

The Gigabyte B860 EAGLE WIFI6E is an ATX motherboard built on the Intel B860 chipset for LGA 1851 processors, covering the Core Ultra (Arrow Lake) range. It has four DDR5 DIMM slots supporting up to 256 GB, a PCIe 5.0 x16 slot and three M.2 slots, the first of which runs at PCIe 5.0 speed. Built-in Wi-Fi 6E, Bluetooth 5.3 and 2.5 GbE LAN come as standard.

This board suits a mid-range Intel Core Ultra gaming or general-purpose PC where you want a PCIe 5.0 SSD slot and onboard wireless without paying for a higher chipset. Storage options are generous, with four SATA III ports and RAID 0, 1, 5 and 10 support. Rear I/O includes HDMI 2.1, DisplayPort 2.1, a USB 3.2 Gen 2×2 Type-C port and optical S/PDIF. A BIOS update may be needed to support the newest processors.

Specification

• Manufacturer: GigaByte
• Model: B860 EAGLE WIFI6E
• MPN: B860 EAGLE WIFI6E
• EAN: 47193318668220
• CPU socket: LGA 1851 (Socket V1)
• Chipset: Intel B860
• Form factor: ATX
• Memory: 4x DDR5 DIMM, dual-channel, up to 256 GB
• Memory speed: Up to DDR5-9066 (O.C.), 6400 and 5600 MT/s native
• Expansion slots: 1x PCIe 5.0 x16, 2x PCIe 4.0 x16 (as listed by Icecat), 2x PCIe x1
• M.2 slots: 3 (Slot 1 PCIe 5.0, Slots 2 and 3 PCIe 4.0), up to 25110
• SATA: 4x SATA III, RAID 0/1/5/10
• LAN: Realtek RTL8125D 2.5 GbE
• Wireless: Intel Wi-Fi 6E AX211, Bluetooth 5.3
• Video outputs: 1x HDMI 2.1, 1x DisplayPort 2.1
• Rear USB: 1x USB 3.2 Gen 2×2 Type-C, 1x USB 3.2 Gen 2 Type-A, 4x USB 2.0
• Audio: Realtek ALC897, 7.1 channels
• Power connectors: 24-pin ATX, 2x 8-pin EPS
• Dimensions (W x H): 244 x 305 mm
