Product Overview

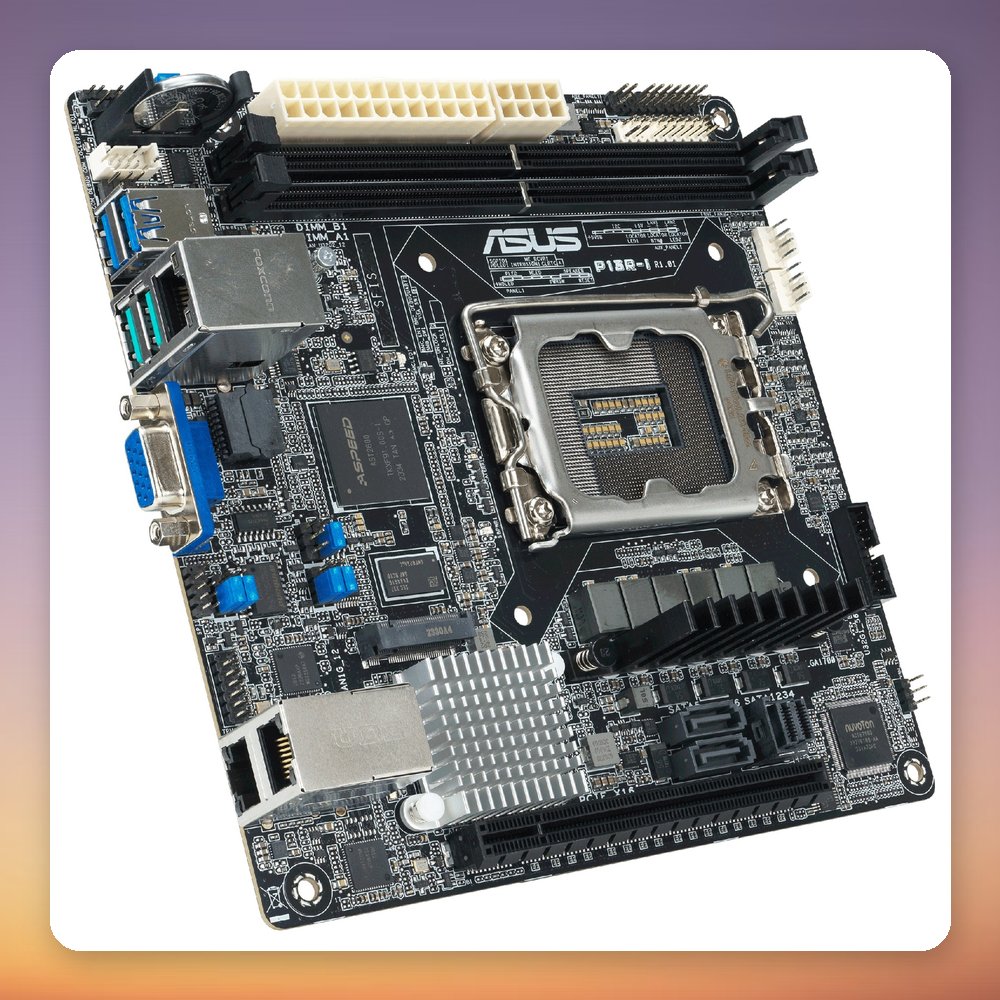

The Asus P13R-I Mini-ITX server motherboard is a compact LGA 1700 board that supports Intel Xeon processors and is built around the Intel H670 chipset according to Wave (Icecat lists it as C262). What sets it apart from ordinary Mini-ITX boards is the combination of two Intel I210-AT2 network controllers, an embedded ASMB11-iKVM module for KVM-over-IP, ECC memory support and an ASPEED AST2600 management graphics chip, all on a single small board.

The board suits small server, remote-management and compact workstation builds where out-of-band control matters. It has two DDR4 DIMM slots in dual-channel for up to 64 GB, one PCIe 5.0 x16 slot, six SATA connectors and one M.2 slot for 80 mm drives. Rear I/O includes two USB 3.2 Gen 2 ports, two USB 2.0, HDMI, DisplayPort and two RJ-45 LAN ports, plus an internal USB-C 3.2 Gen 2×2 header. A BIOS update may be needed to support the newest processors.

Specification

• Manufacturer: Asus
• Model: P13R-I
• MPN: 90SB0CR0-M0UAY1
• EAN: 4711636232623
• CPU socket: LGA 1700
• Chipset: Intel H670 (Wave); Icecat lists Intel C262
• Form factor: Mini-ITX
• Memory: 2x DDR4 DIMM, dual-channel, up to 64 GB
• Memory speeds: DDR4-3600 / 4000 / 4400 / 4800
• ECC support: Yes
• Expansion slot: 1x PCIe 5.0 x16
• M.2 slots: 1x M.2 (Key M, 80 mm, SATA/PCIe)
• SATA ports: 6x SATA
• LAN: 2x Intel I210-AT2 (RJ-45) plus 1x management LAN (ASMB11-iKVM)
• Rear USB: 2x USB-A 3.2 Gen 2 (10 Gbit/s), 2x USB-A 2.0
• Video outputs: 1x HDMI, 1x DisplayPort
• Graphics chip: ASPEED AST2600
• Audio: Realtek ALC897
• BIOS: 128 Mbit UEFI AMI BIOS
• RGB: 1x RGB header, 1x addressable RGB header (AURA Sync)
• Dimensions (W x H): 244 mm x 350 mm (as listed by Wave)
