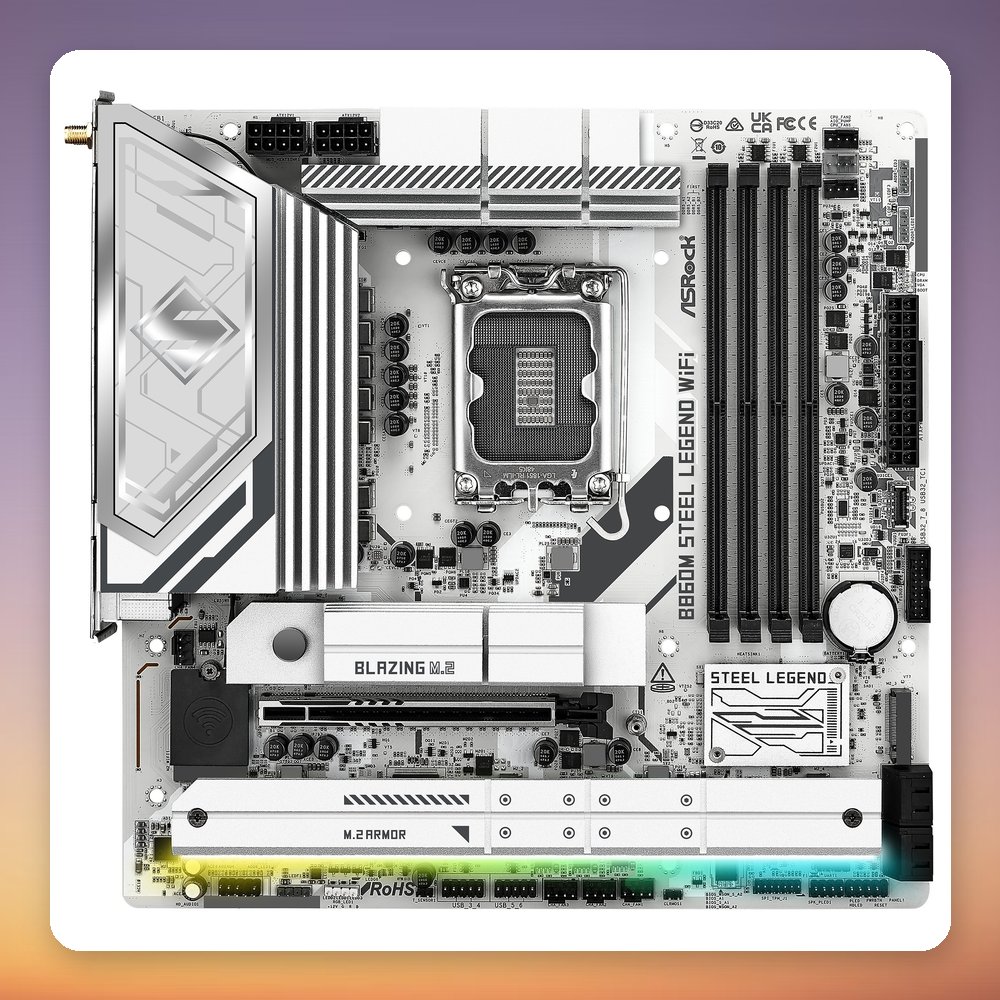

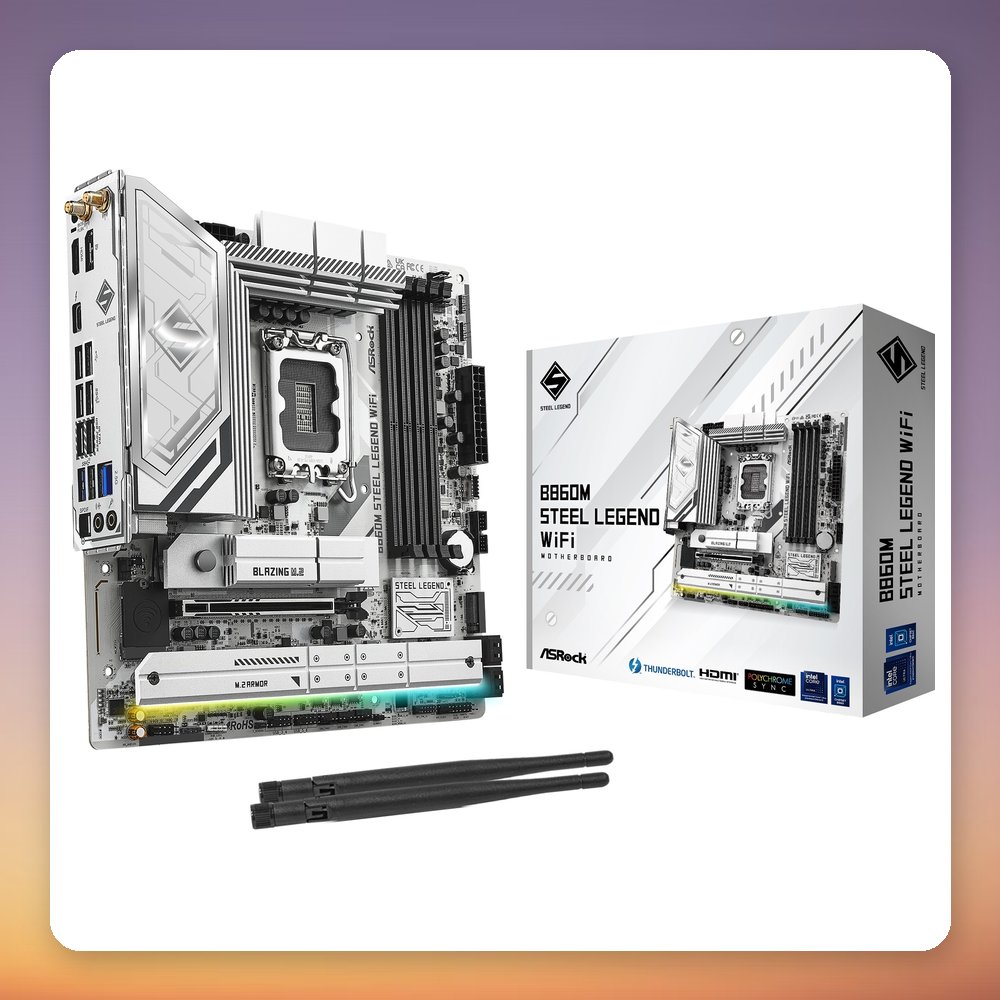

Name: ASRock B860M Steel Legend WiFi Micro ATX Motherboard, LGA 1851, White
Brand: Asrock
SKU: 100110485
Price: 200.87 EUR
Availability: InStock

ASRock B860M Steel Legend WiFi Micro ATX Motherboard, LGA 1851, White

€200.87

Delivery: 7-12 business days
ASRock B860M Steel Legend WiFi Micro ATX Motherboard, LGA 1851, White

Four M.2 slots plus four SATA ports
Thunderbolt 4 USB-C with DisplayPort support
Wi-Fi 6E, Bluetooth 5.3 and 2.5 GbE LAN
DDR5 up to 256 GB, rated to 8666 MHz (OC)

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100110485 Category: Intel Motherboards Tags: Asrock,, B860M,, motherboard,, WiFi Brand: Asrock

Description
Additional information

✅

Product Overview

The ASRock B860M Steel Legend WiFi is a white µATX motherboard built on the Intel B860 chipset for LGA 1851 Core Ultra 200-series (Arrow Lake) processors. It offers four DDR5 slots for up to 256 GB of memory, four M.2 slots and a PCIe 5.0 x16 slot, which is a lot of expansion for a board this size.

Connectivity is a strong point: Wi-Fi 6E, Bluetooth 5.3, 2.5 GbE LAN and a Thunderbolt 4 USB-C port with DisplayPort support are all included, along with HDMI and DisplayPort outputs for CPUs with integrated graphics. With four SATA ports, seven 4-pin PWM fan headers and ARGB headers, it suits a compact white gaming or general-purpose build. A BIOS update may be needed for the newest processors.

Specification

Manufacturer: Asrock
Model: B860M Steel Legend WiFi
MPN: 90-MXBQF0-A0UAYZ
EAN: 4711581490215
Socket: LGA 1851
Chipset: Intel B860
Form factor: µATX (244 x 244 mm)
Memory: 4x DDR5 DIMM, dual channel, up to 256 GB
Memory speed: DDR5-8666 (OC) / 6400 / 6200 / 6000 / 5800 / 5600 / 5400 / 5200 / 5000 / 4800 / 4400
Expansion slot: 1x PCIe 5.0 x16
M.2 slots: 4x M.2 (Key M, PCIe, 80 mm)
SATA ports: 4x SATA 3

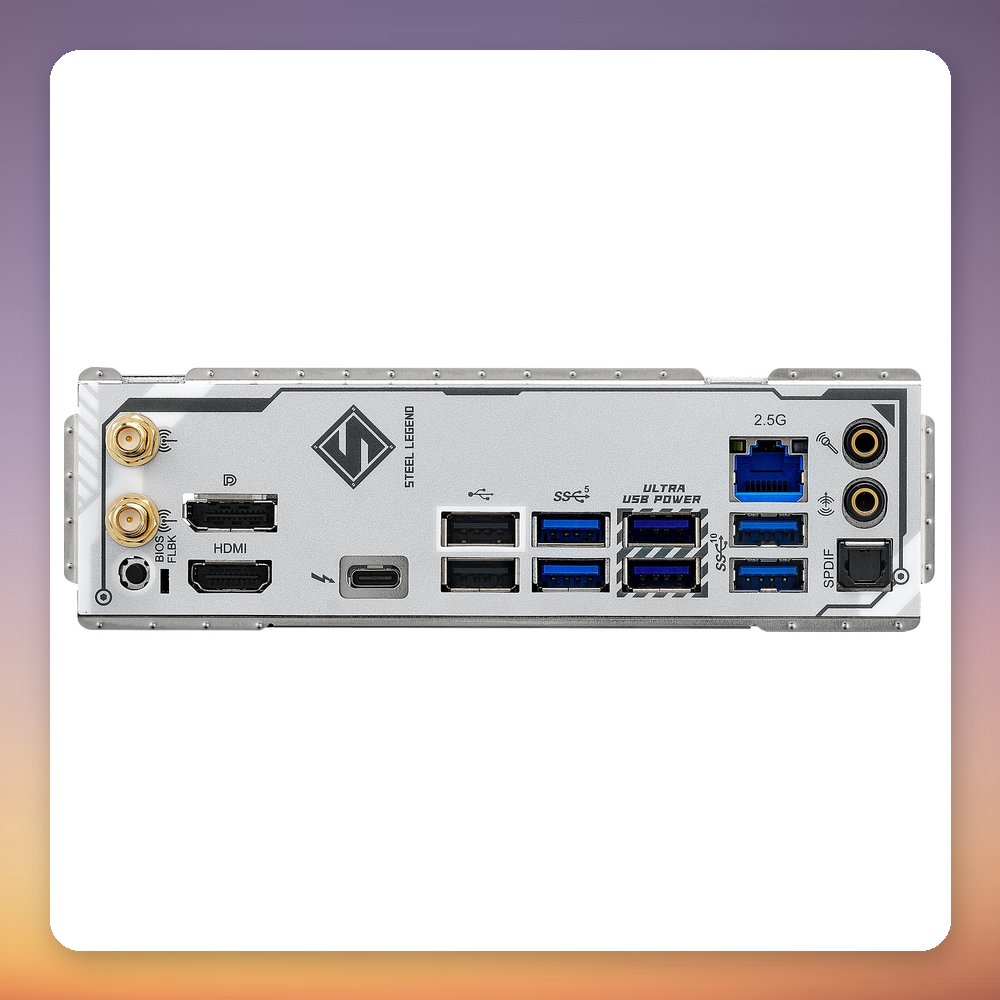

Rear USB: 2x USB-A 3.2 Gen 2, 4x USB-A 3.2 Gen 1, 2x USB-A 2.0, 1x Thunderbolt 4
Video outputs: 1x HDMI, 1x DisplayPort (CPU with integrated graphics required)
Networking: 2.5 GbE (Dragon RTL8125BG), Wi-Fi 6E (802.11axe), Bluetooth 5.3
Audio: Realtek ALC1220 7.1 Surround Sound
Fan and RGB headers: 7x 4-pin PWM fan, 3x ARGB, 1x RGB
Colour: White

return to the shop
see our fanpage

delivery time 7-12 business days

Weight	1.5 kg
