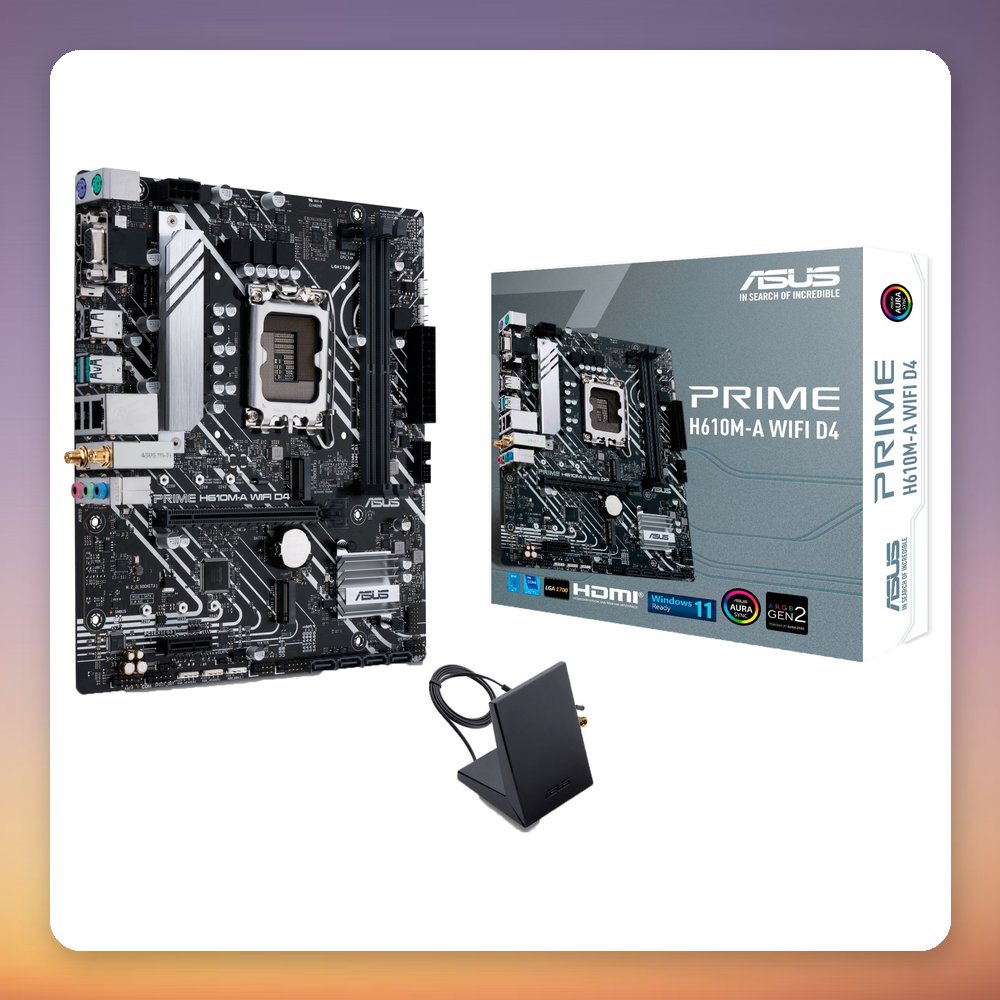

Name: Asus PRIME H610M-A WIFI D4 Intel H610 LGA 1700 Micro-ATX Motherboard
Brand: Asus
SKU: 100020045
Price: 127.08 EUR
Availability: InStock

Asus PRIME H610M-A WIFI D4 Intel H610 LGA 1700 Micro-ATX Motherboard

€127.08

Delivery: 7-12 business days
Asus PRIME H610M-A WIFI D4 Intel H610 LGA 1700 Micro-ATX Motherboard

Wi-Fi 5 and Bluetooth 5.0 built in
Two M.2 slots plus four SATA 6Gb/s ports
PCIe 4.0 x16 slot for the graphics card
HDMI 2.1, DisplayPort 1.4 and VGA outputs

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100020045 Category: Intel Motherboards Tags: 6, Asus,, Intel,, motherboard,, Wi-Fi Brand: Asus

Description
Additional information

✅

Product Overview

The Asus PRIME H610M-A WIFI D4 is a micro-ATX motherboard built on the Intel H610 chipset for LGA 1700 processors. It has two DDR4 DIMM slots running in dual channel for up to 64 GB, one PCIe 4.0 x16 slot, two M.2 slots and four SATA 6Gb/s ports, with Wi-Fi 5 and Bluetooth 5.0 already onboard so no separate wireless card is needed.

This board suits compact and budget-conscious LGA 1700 builds that reuse DDR4 memory. Display outputs include HDMI 2.1, DisplayPort 1.4 and VGA, usable when the CPU has integrated graphics. Networking is covered by Intel Gigabit LAN, and the board also provides three 4-pin PWM fan headers and one RGB header with Aura Sync support. A BIOS update may be needed for the newest processors.

Specification

Manufacturer: Asus
Model: PRIME H610M-A WIFI D4
MPN: 90MB1C80-M0EAY0
EAN: 4711081758211
Chipset: Intel H610
CPU socket: LGA 1700
Form factor: micro-ATX
Memory: 2x DDR4 DIMM, dual channel, up to 64 GB, non-ECC
Memory speeds: DDR4-2133 to DDR4-3200 MHz
Expansion slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
Storage: 2x M.2 (M key, 42-80 mm, SATA/PCIe), 4x SATA 6Gb/s
Wireless: Wi-Fi 5 (802.11ac), Bluetooth 5.0
LAN: Intel Gigabit Ethernet (1x RJ-45)
Video outputs: 1x HDMI 2.1, 1x DisplayPort 1.4, 1x VGA
Rear USB: 2x USB 3.2 Gen 1 Type-A, 4x USB 2.0
Audio: Realtek 7.1 channel HD audio
Fan and RGB headers: 3x 4-pin PWM fan, 1x RGB header (Aura Sync)
BIOS: 128 Mbit UEFI AMI BIOS
Dimensions (W x H x D): 244 x 58 x 211 mm
Weight: 815 g

return to the shop
see our fanpage

delivery time 7-12 business days

Weight	0.8 kg
