GIGABYTE B840M D2H AM5 Micro-ATX Motherboard, DDR5, 2.5GbE LAN
€115.35
Delivery: 7-12 business days
GIGABYTE B840M D2H AM5 Micro-ATX Motherboard, DDR5, 2.5GbE LAN
- Supports Ryzen 7000, 8000 and 9000 series CPUs
- Up to 128 GB DDR5, rated to 7600 MT/s (OC)
- Two M.2 slots: one PCIe 4.0, one PCIe 3.0
- 2.5GbE LAN and four SATA III ports
More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.
In stock
✅
Product Overview

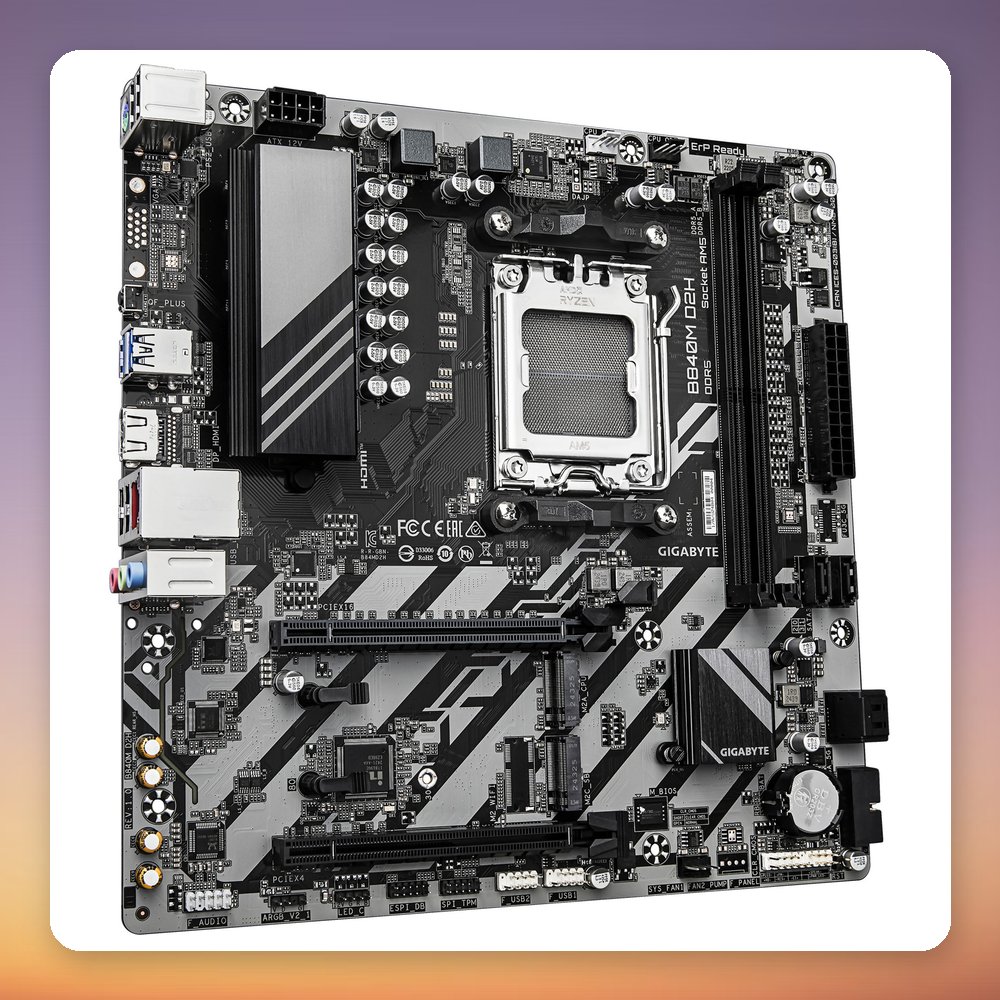

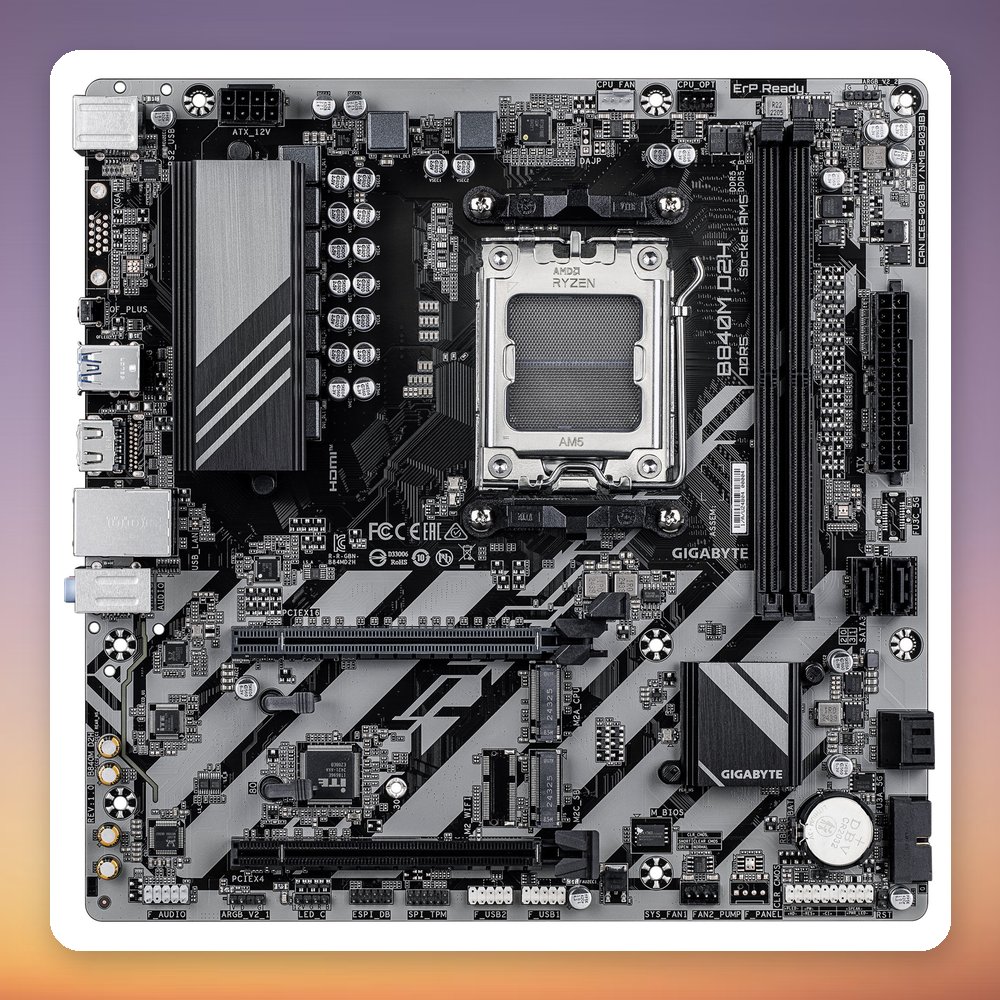

The GIGABYTE B840M D2H is a micro-ATX motherboard built on the AMD B840 chipset for Socket AM5, supporting Ryzen 7000, 8000 and 9000 series processors. It offers two DDR5 slots for up to 128 GB of memory at speeds up to 7600 MT/s (overclocked), two M.2 slots (one PCIe 4.0, one PCIe 3.0), four SATA III ports and 2.5 Gigabit Ethernet.

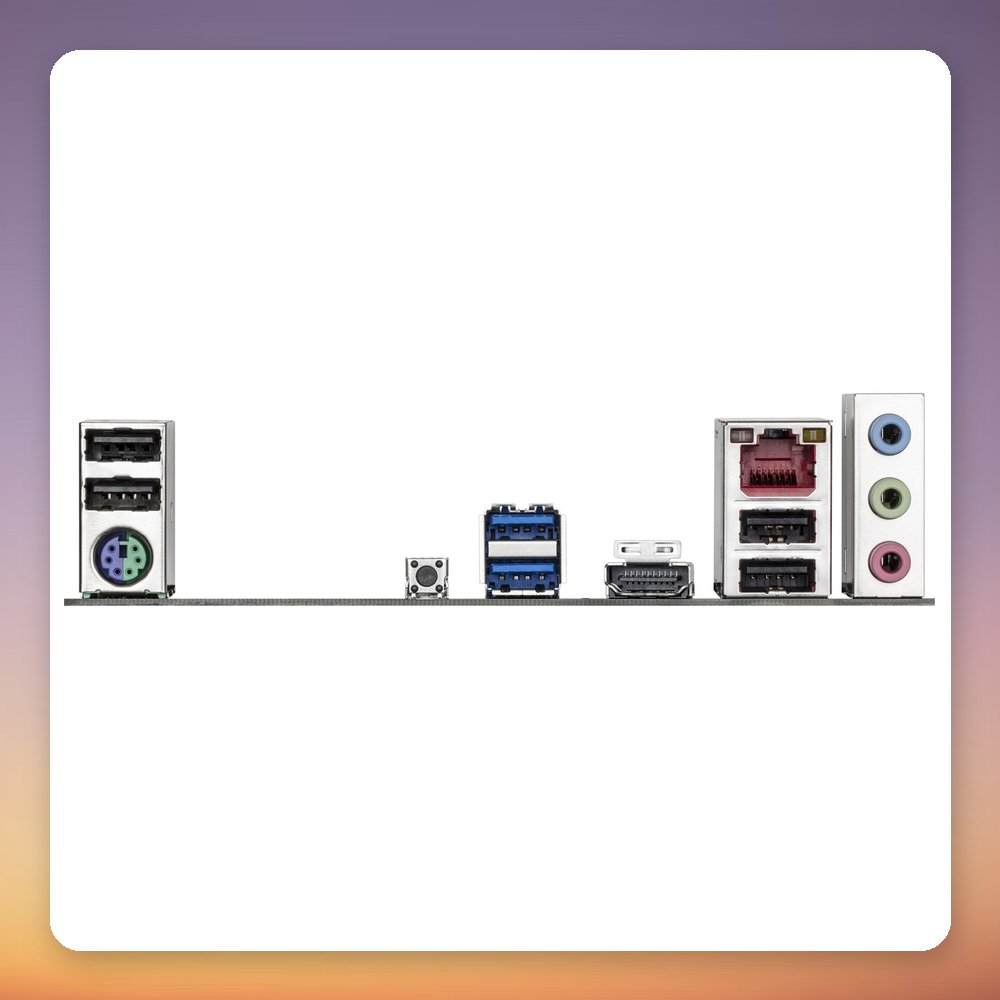

This board suits compact, budget-conscious AM5 builds where you want a modern platform without paying for extras you won’t use. A PCIe 4.0 x16 slot takes your graphics card, while the dual M.2 slots and four SATA ports cover your storage. Note that there is no onboard Wi-Fi, and a BIOS update may be needed for the newest processors. Rear I/O includes HDMI, PS/2, six USB-A ports and 7.1-channel audio.
Specification
- Manufacturer: GigaByte
- Model: B840M D2H
- MPN: B840M D2H
- EAN: 4719331868116
- CPU Socket: AMD Socket AM5
- Chipset: AMD B840
- Form Factor: micro-ATX
- Memory Slots: 2x DDR5 DIMM, dual-channel, non-ECC
- Maximum Memory: 128 GB (64 GB per slot)
- Memory Speed: Up to DDR5-7600 (overclocked)
- M.2 Slots: 2 (1x PCIe 4.0, 1x PCIe 3.0)
- SATA Ports: 4x SATA III, RAID 0/1/10
- Expansion Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x1 lanes)
- LAN: 2.5 Gigabit Ethernet (Realtek RTL8125)
- Audio: Realtek ALC897, 7.1 channels
- Rear USB: 2x USB 3.2 Gen 1 Type-A, 4x USB 2.0
- Video Output: 1x HDMI 2.1 (needs CPU with integrated graphics)
- Wi-Fi: No
- Dimensions (W x D x H): 244 x 244 x 35 mm
delivery time 7-12 business days
| Weight | 1.2 kg |
|---|
