Asus PRIME B550M-K ARGB AMD B550 Socket AM4 Micro ATX Motherboard

€103.82

Delivery: 7-12 business days
Asus PRIME B550M-K ARGB AMD B550 Socket AM4 Micro ATX Motherboard

  • Supports Ryzen 5000, 5000 G, 4000 G and 3000 Series
  • Two M.2 slots, one up to 64 Gbps via PCIe 4.0
  • HDMI 2.1 and DisplayPort 1.4 video outputs
  • Two addressable RGB headers with AURA Sync support

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100019958 Category: Tags: , , , Brand:

✅

Product Overview

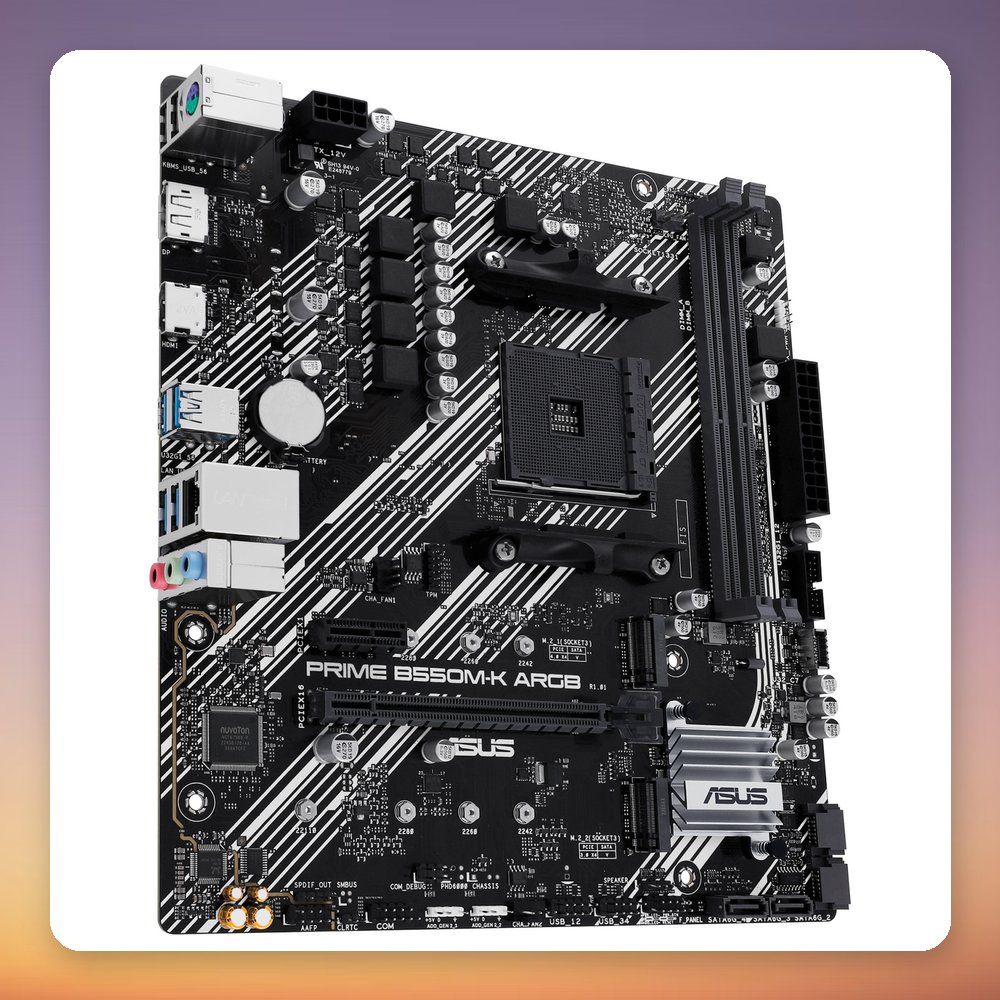

The Asus PRIME B550M-K ARGB is a micro ATX motherboard built on the AMD B550 chipset for Socket AM4 processors. It has two DDR4 slots for up to 64 GB of dual-channel memory, one PCIe 4.0 x16 slot and two M.2 slots, one of which supports transfer speeds of up to 64 Gbps via PCIe 4.0. Video outputs are HDMI 2.1 and DisplayPort 1.4.

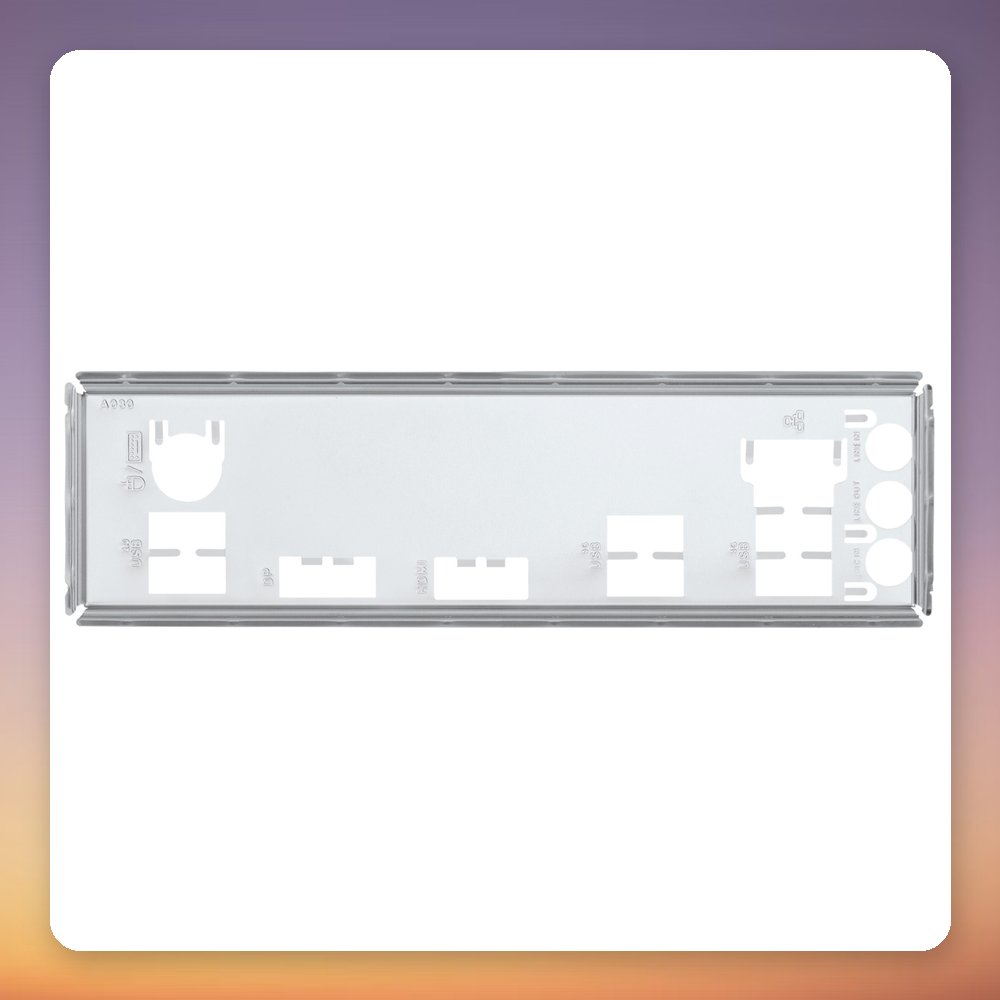

This board suits compact AM4 builds based on Ryzen 5000, 5000 G-Series, 4000 G-Series or 3000 Series processors. It has four SATA 6Gb/s ports, Gigabit Ethernet, 7.1-channel audio, and one RGB header plus two addressable RGB headers with AURA Sync support. Three 4-pin PWM fan headers are provided. The video outputs only work with a CPU that has integrated graphics, and a BIOS update may be needed for the newest processors. Two SATA cables, an M.2 screw pack and an I/O shield are included.

Specification

  • Manufacturer: Asus
  • Model: PRIME B550M-K ARGB
  • MPN: 90MB1GC0-M0EAY0
  • EAN: 4711387316030
  • CPU socket: AMD Socket AM4
  • Chipset: AMD B550
  • Form factor: micro ATX
  • Memory: 2x DDR4 DIMM, dual-channel, up to 64 GB, 2133 to 5100 MHz (O.C.), ECC supported
  • Expansion slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
  • M.2 slots: 2 (SATA and PCIe), one up to 64 Gbps via PCIe 4.0
  • SATA ports: 4x SATA 6Gb/s, RAID 0, 1, 10
  • Video outputs: 1x HDMI 2.1, 1x DisplayPort 1.4 (CPU with integrated graphics required)
  • Rear USB: 4x USB-A 3.2 Gen 1, 2x USB-A 2.0, 1x PS/2 combo
  • Internal USB: 1x USB-C 3.2 Gen 1 header, plus headers for 2x USB 3.2 Gen 1 and 4x USB 2.0
  • Networking: Realtek Gigabit Ethernet (no Wi-Fi)
  • Audio: Realtek 7.1 surround sound
  • RGB: 1x RGB header, 2x addressable RGB headers, AURA Sync
  • Fan headers: 3x 4-pin PWM
  • Power connectors: 24-pin ATX + 8-pin ATX12V
  • Dimensions (W x D): 244 x 221 mm
  • Weight: 460 g
