ASRock B650M-H/M.2+ AM5 Micro ATX Motherboard, AMD B650, 2x DDR5
€99.16
Delivery: 7-12 business days
ASRock B650M-H/M.2+ AM5 Micro ATX Motherboard, AMD B650, 2x DDR5
- Socket AM5 with Ryzen 7000, 8000F/G and 9000 support
- Two M.2 slots plus a dedicated M.2 WLAN slot
- Dual-channel DDR5, up to 96 GB across 2 slots
- Compact µATX with 4 SATA ports and RAID 0/1/10
More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.
In stock
✅
Product Overview

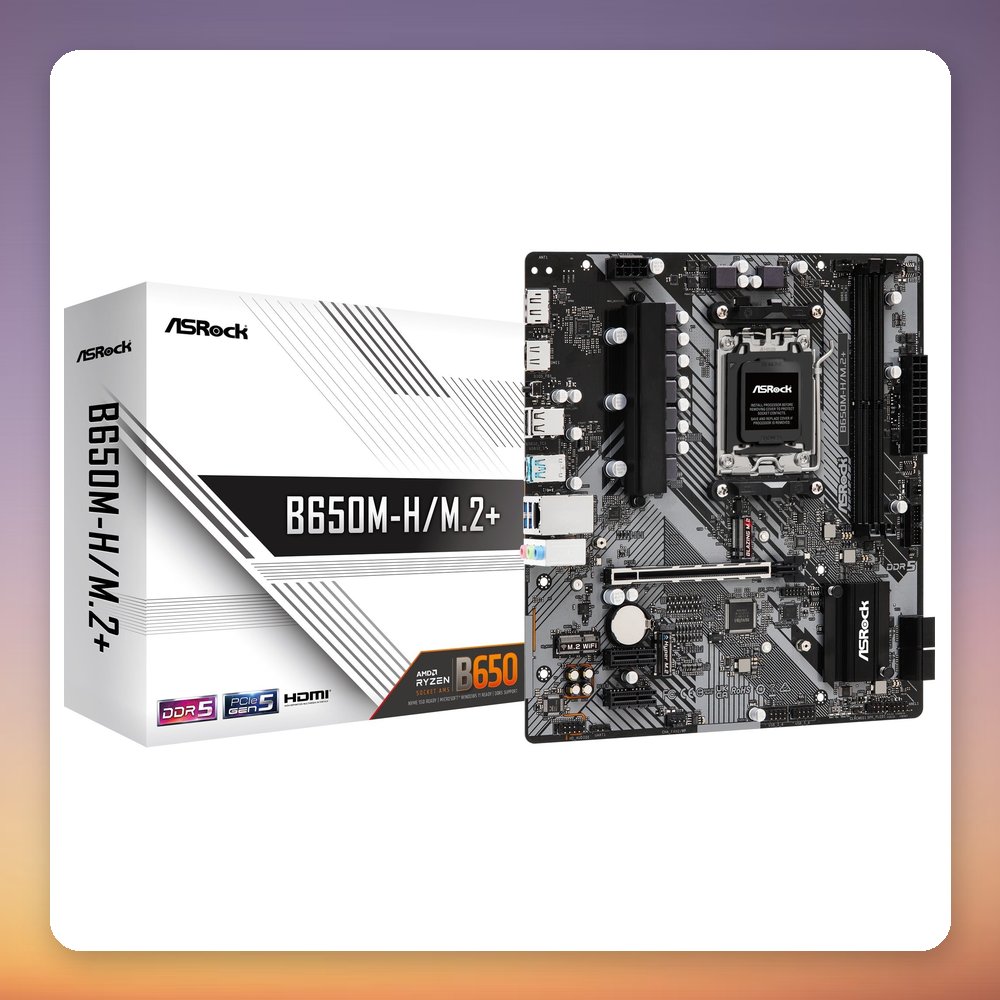

The ASRock B650M-H/M.2+ AM5 motherboard is a Micro ATX board built on the AMD B650 chipset for Socket AM5 processors. It has two DDR5 slots supporting up to 96 GB of memory, one PCIe x16 slot, two PCIe x1 slots and two M.2 connectors, plus four SATA ports. The CPU support list covers Ryzen 5, 7 and 9 from the 7000 and 9000 series, as well as the 8000F and 8000G models.
With its compact µATX footprint (244 x 244 mm), this board suits budget and mid-range AM5 builds in smaller cases, from gaming PCs to everyday systems. Video outputs (HDMI and DisplayPort) work only with a CPU that has integrated graphics. Networking is covered by Realtek Gigabit LAN, and audio by a Realtek ALC897 codec. ASRock notes that a BIOS update may be needed for the newest processors. SATA cables, screws and an I/O shield are included.
Specification
- Manufacturer: Asrock
- Model: B650M-H/M.2+
- MPN: 90-MXBMS0-A0UAYZ
- EAN: 4710483943768
- Socket: AM5
- Chipset: AMD B650
- Form factor: Micro ATX (µATX)
- Memory: 2x DDR5 DIMM, dual channel, up to 96 GB
- Memory speed: DDR5-6400+ / 5200 / 4800 / 4400 MHz
- Expansion slots: 1x PCIe x16, 2x PCIe x1
- M.2: 2x M.2 (Key M, PCIe, 60–80 mm) plus 1x M.2 Key for WLAN
- SATA: 4x SATA, RAID 0/1/10

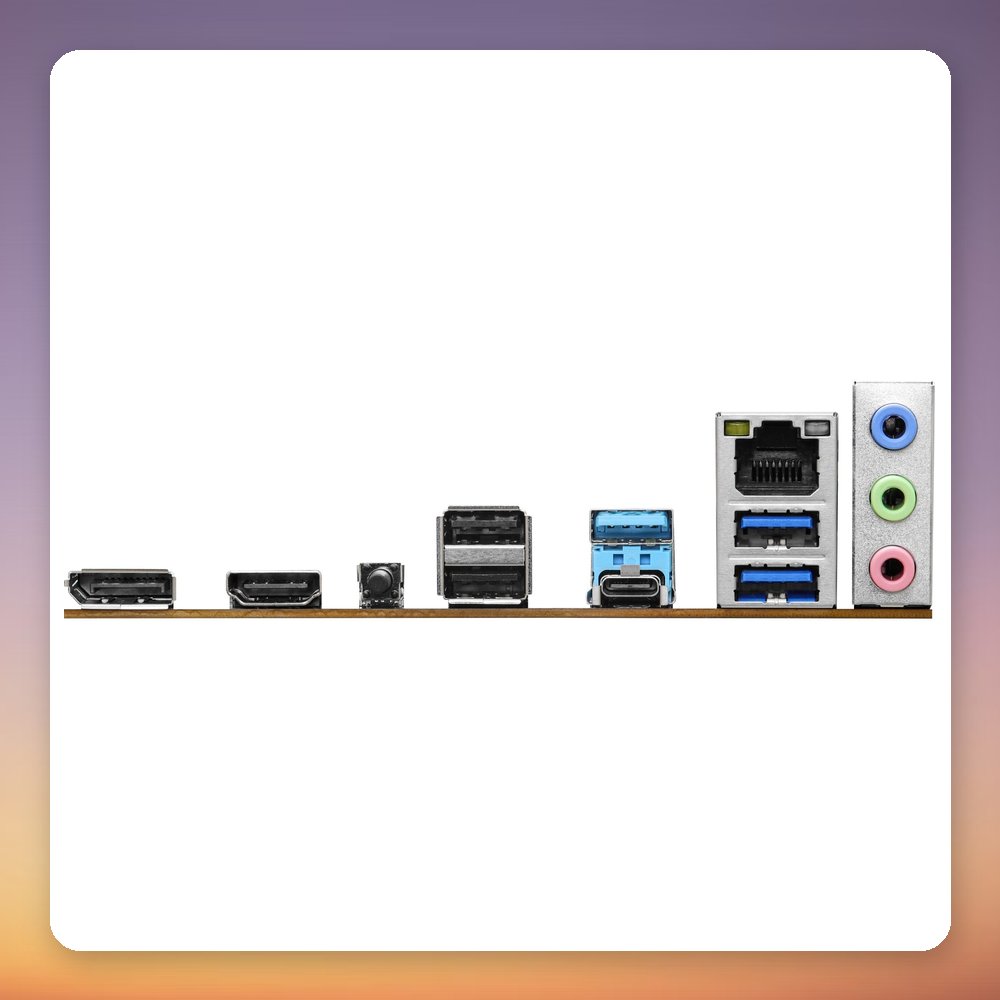

- Rear I/O USB: 1x USB-C 3.2 Gen 1, 3x USB-A 3.2 Gen 1, 2x USB-A 2.0
- Video outputs: 1x HDMI, 1x DisplayPort (requires CPU with integrated graphics)
- Network: Realtek RTL8111H Gigabit LAN (RJ-45)
- Audio: Realtek ALC897
- Power connectors: 24-pin + 8-pin ATX12V
- Dimensions (W x H): 244 x 244 mm
delivery time 7-12 business days
| Weight | 1.2 kg |
|---|
