Product Overview

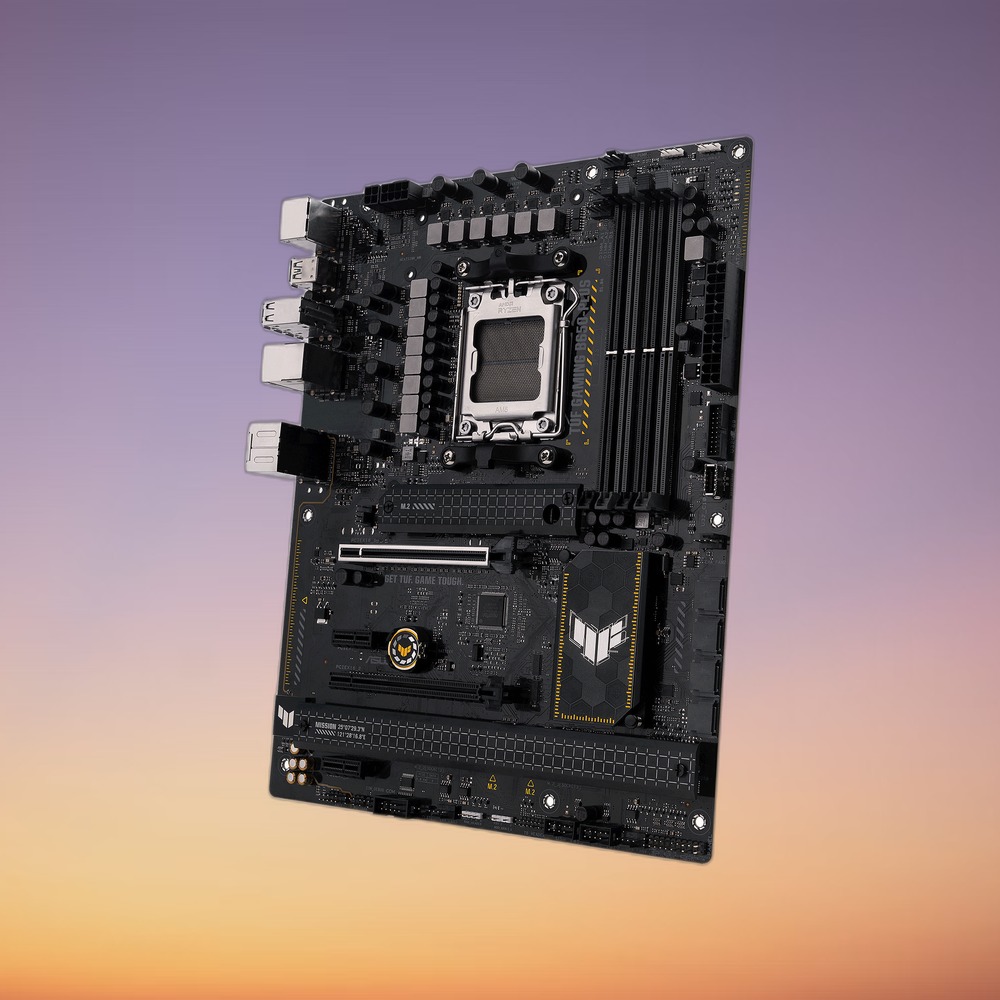

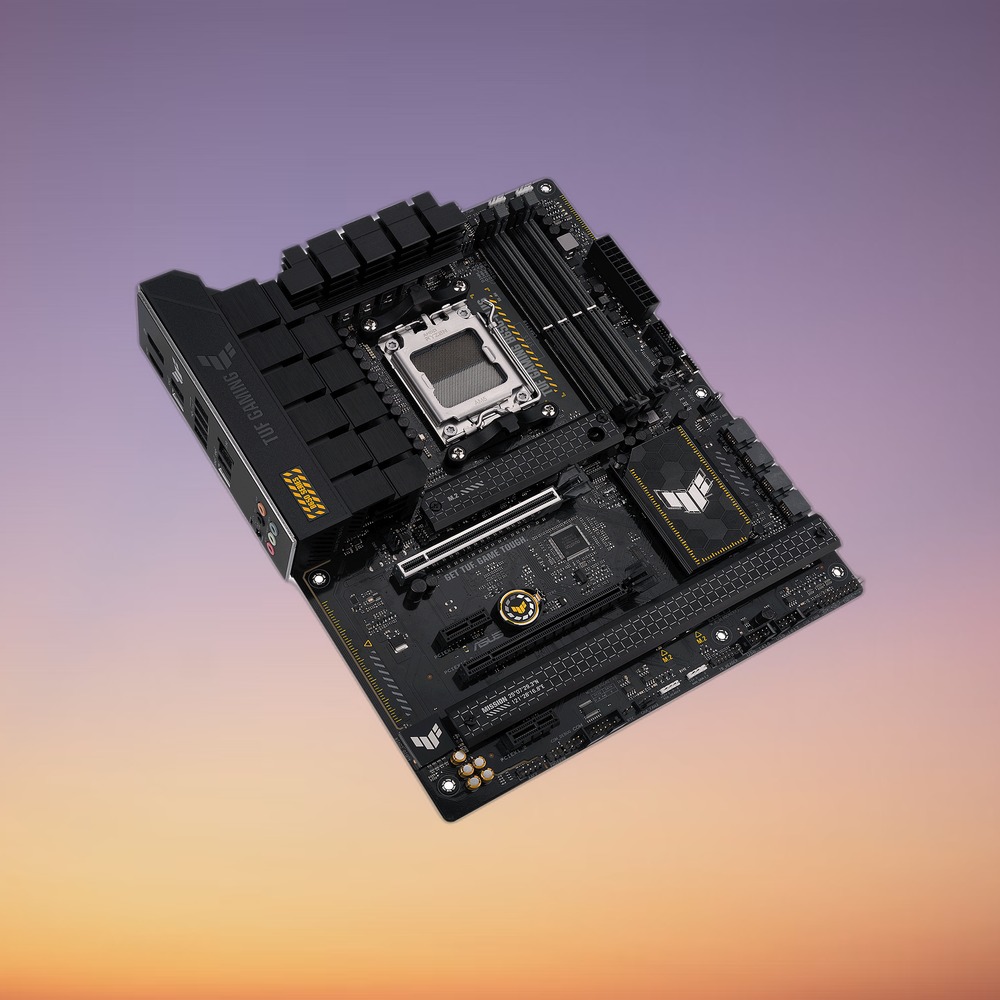

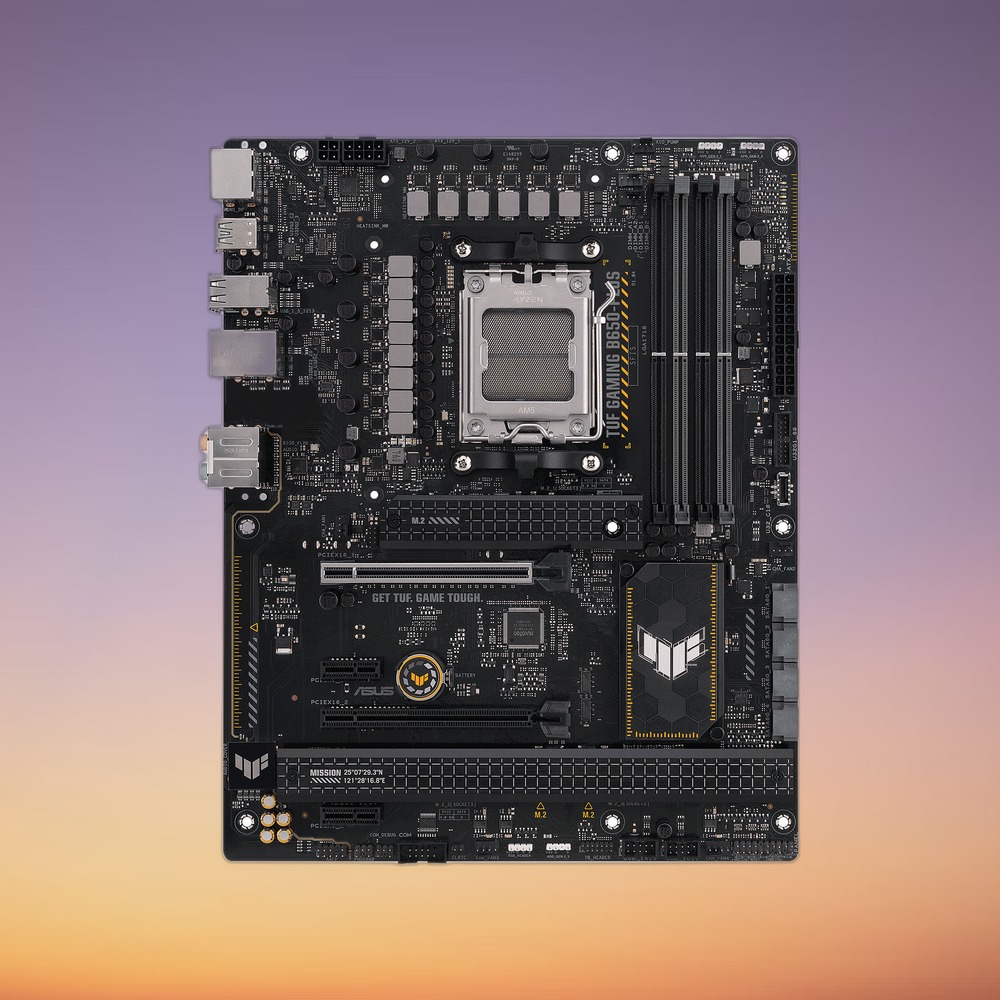

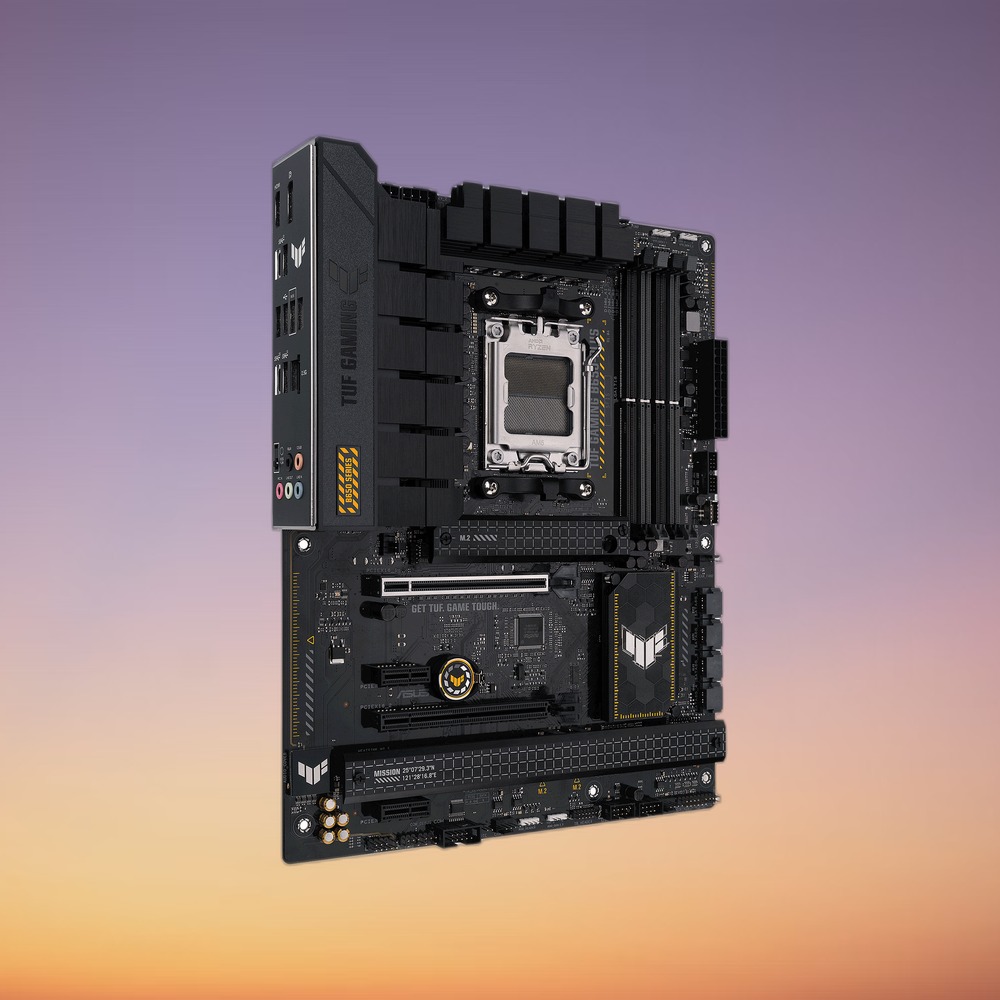

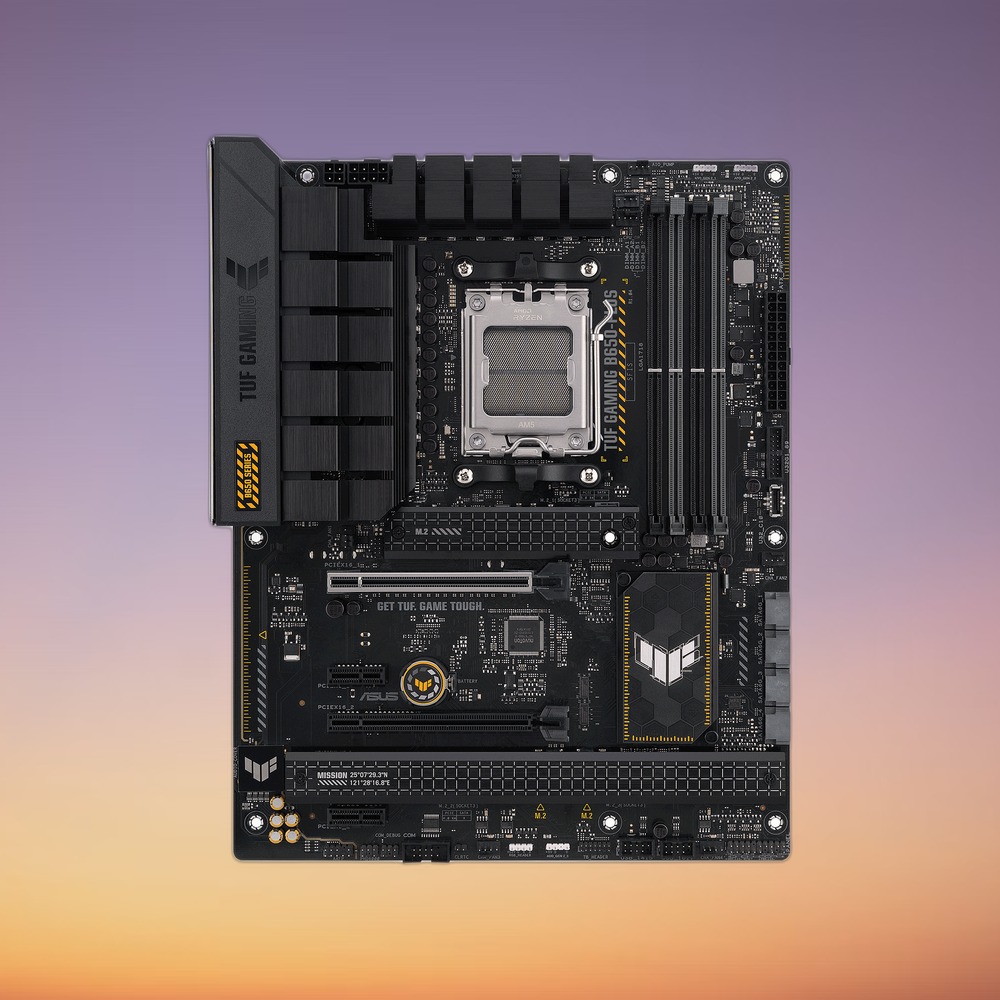

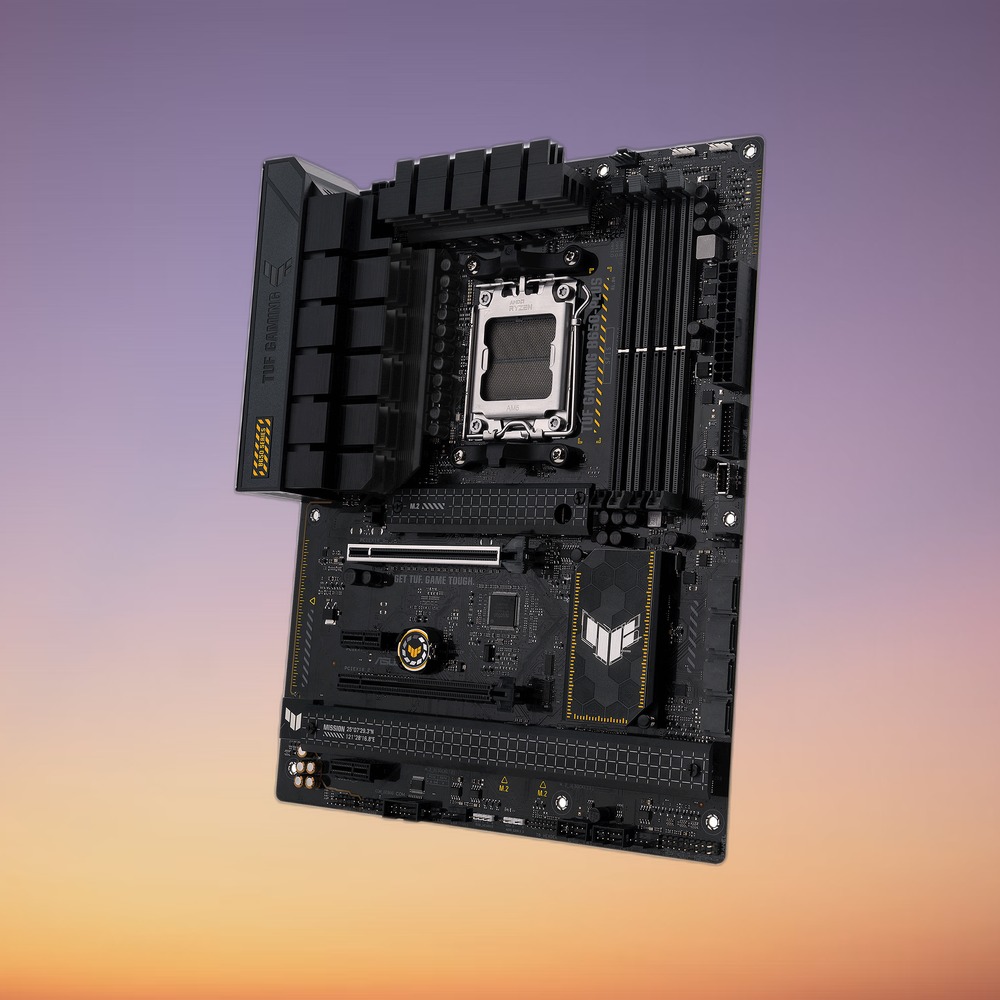

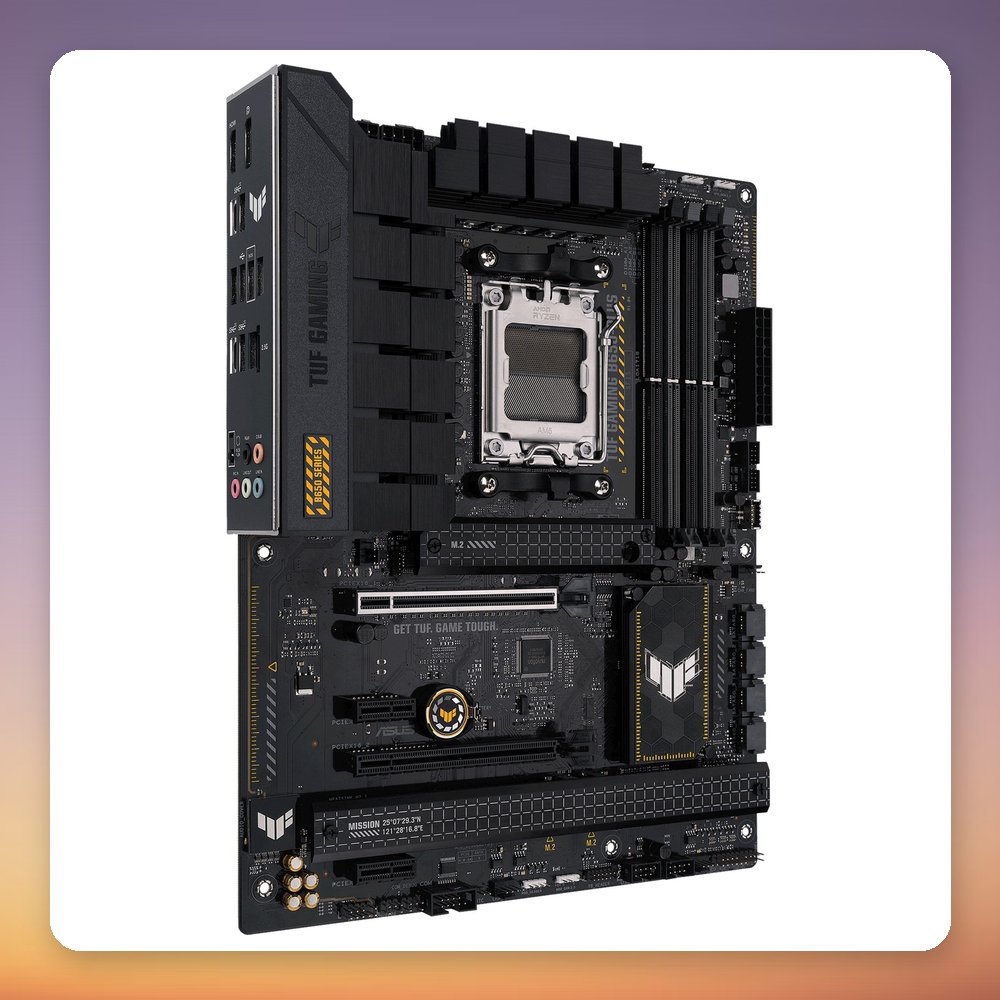

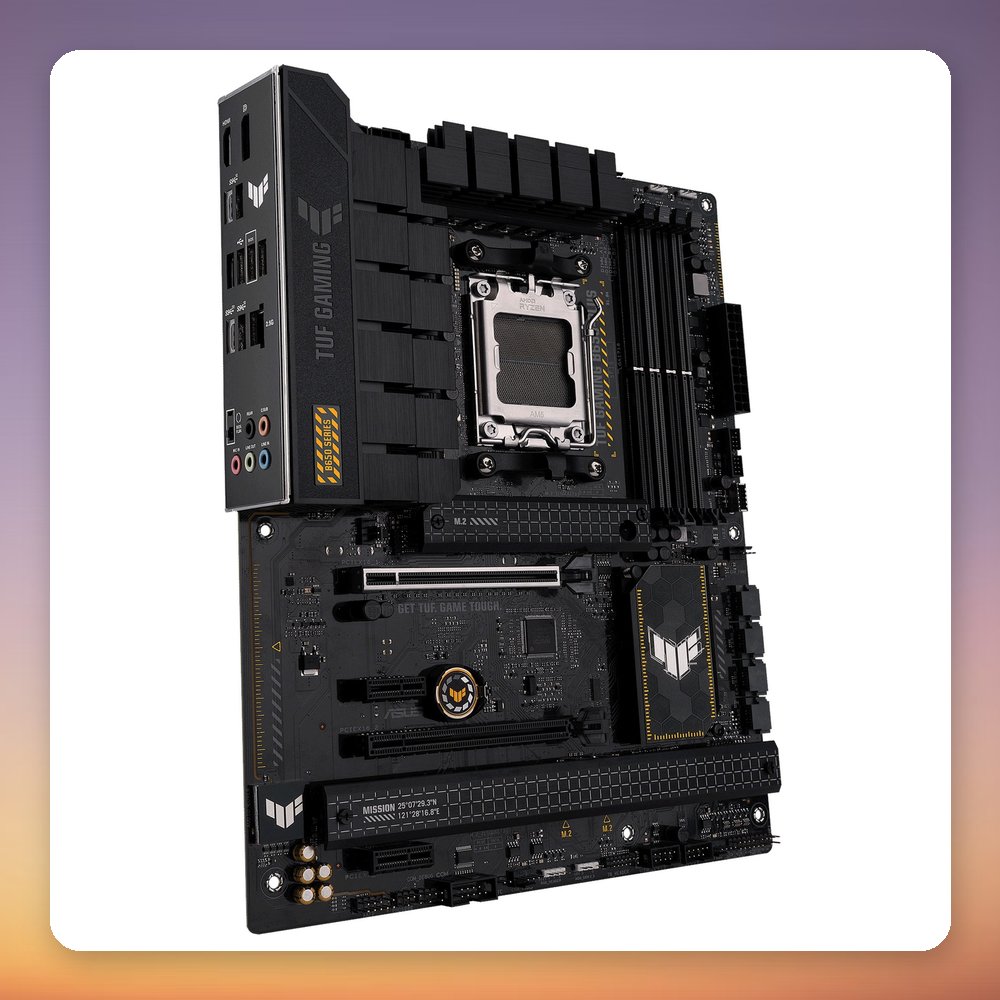

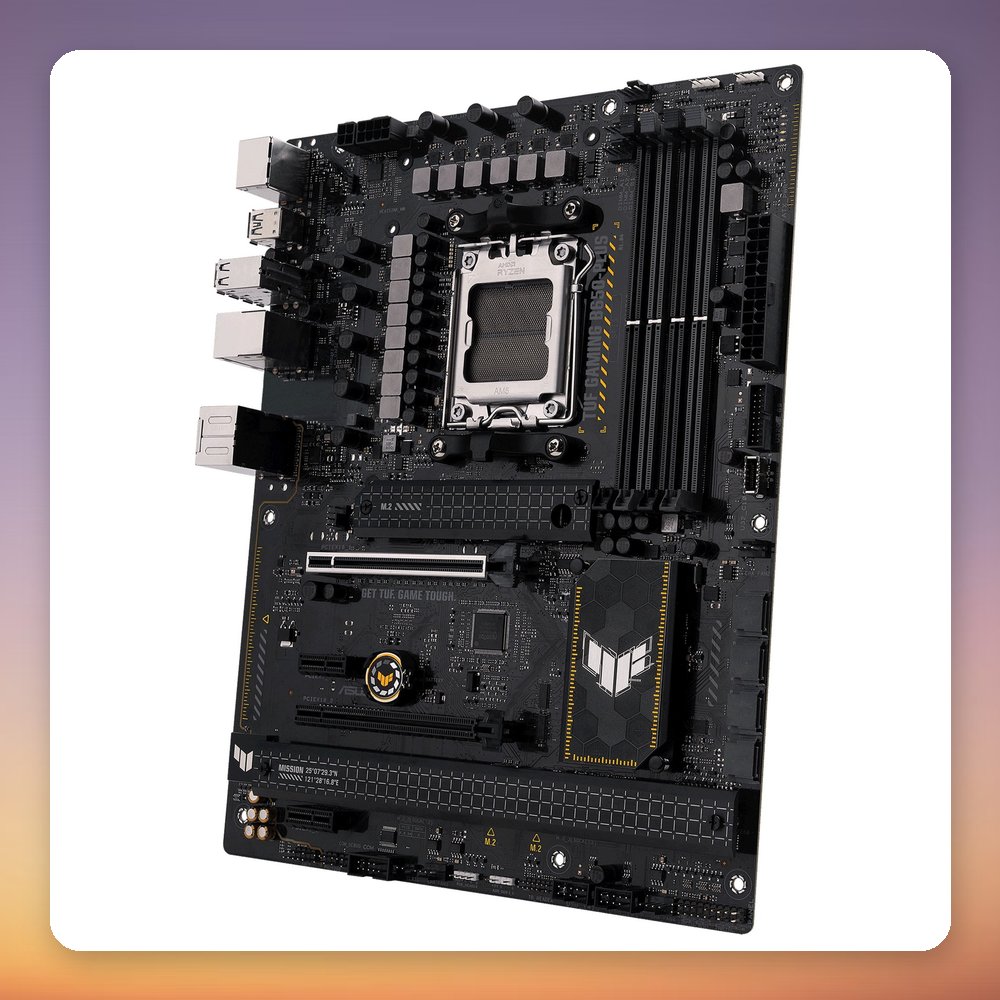

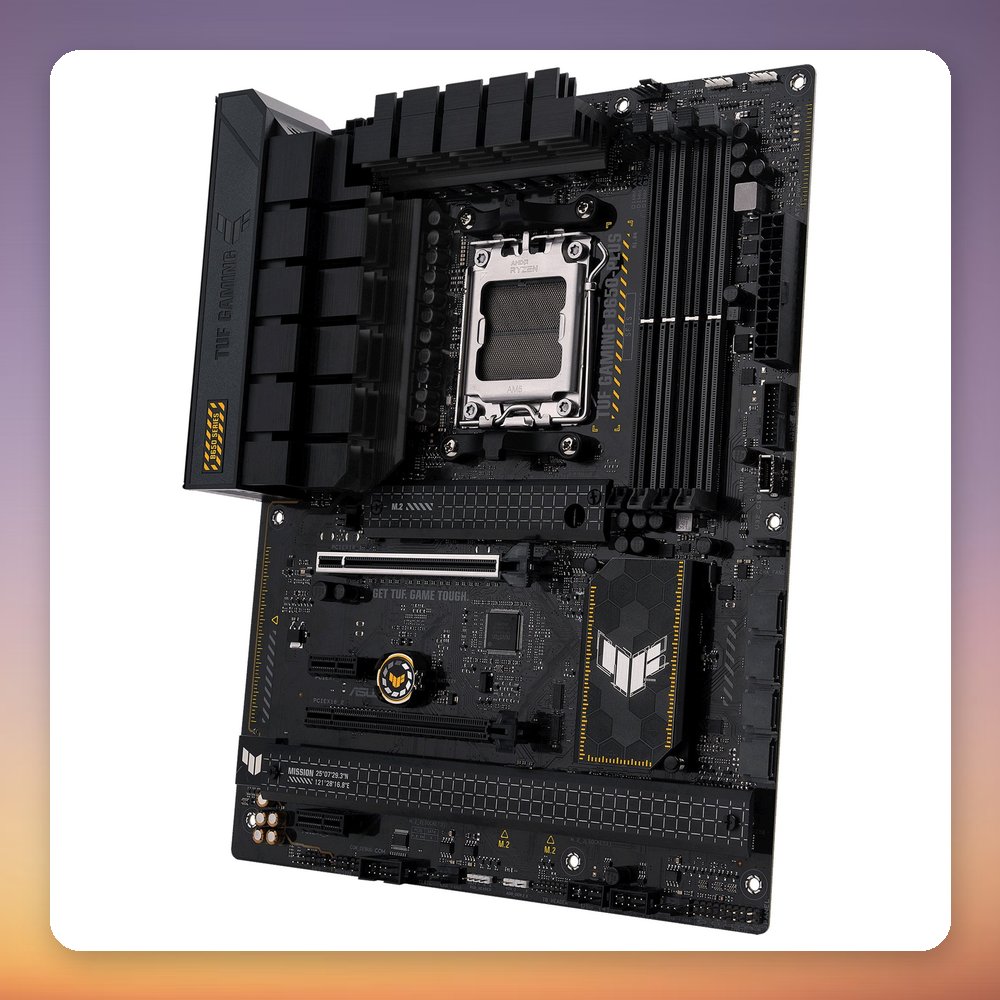

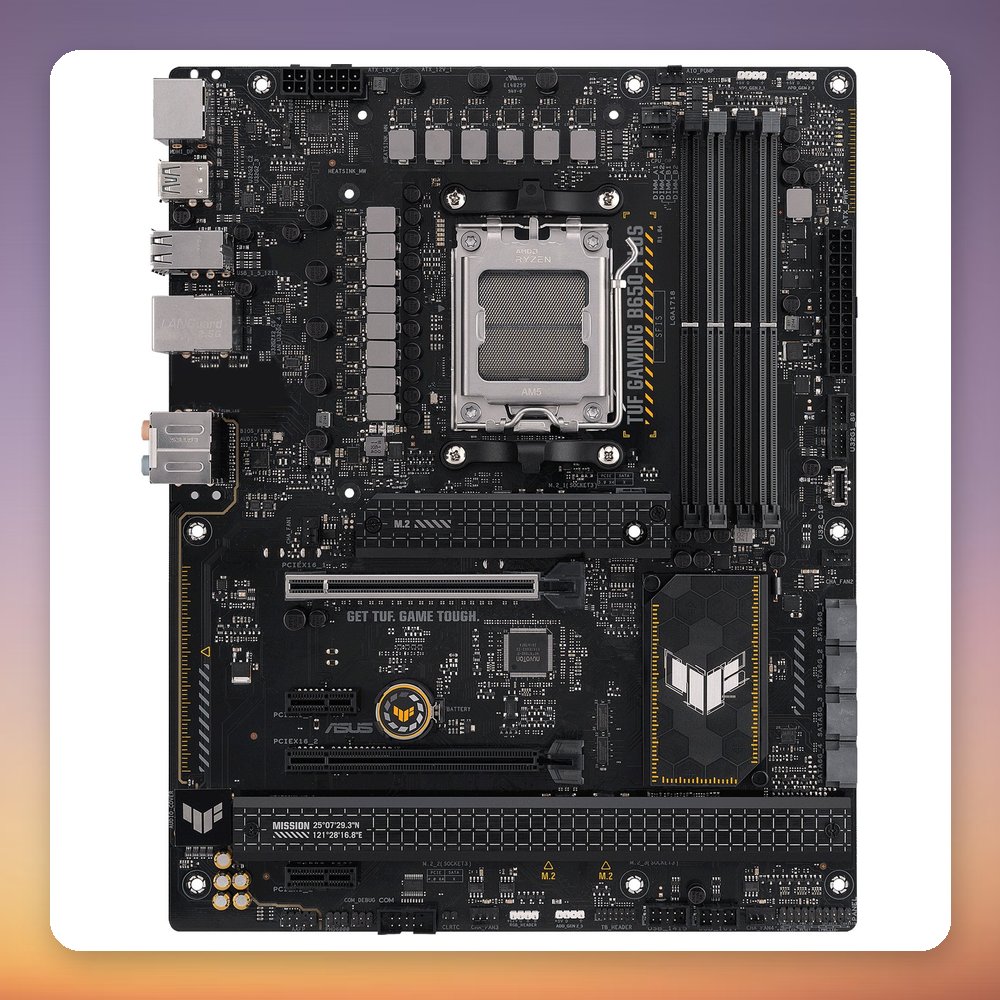

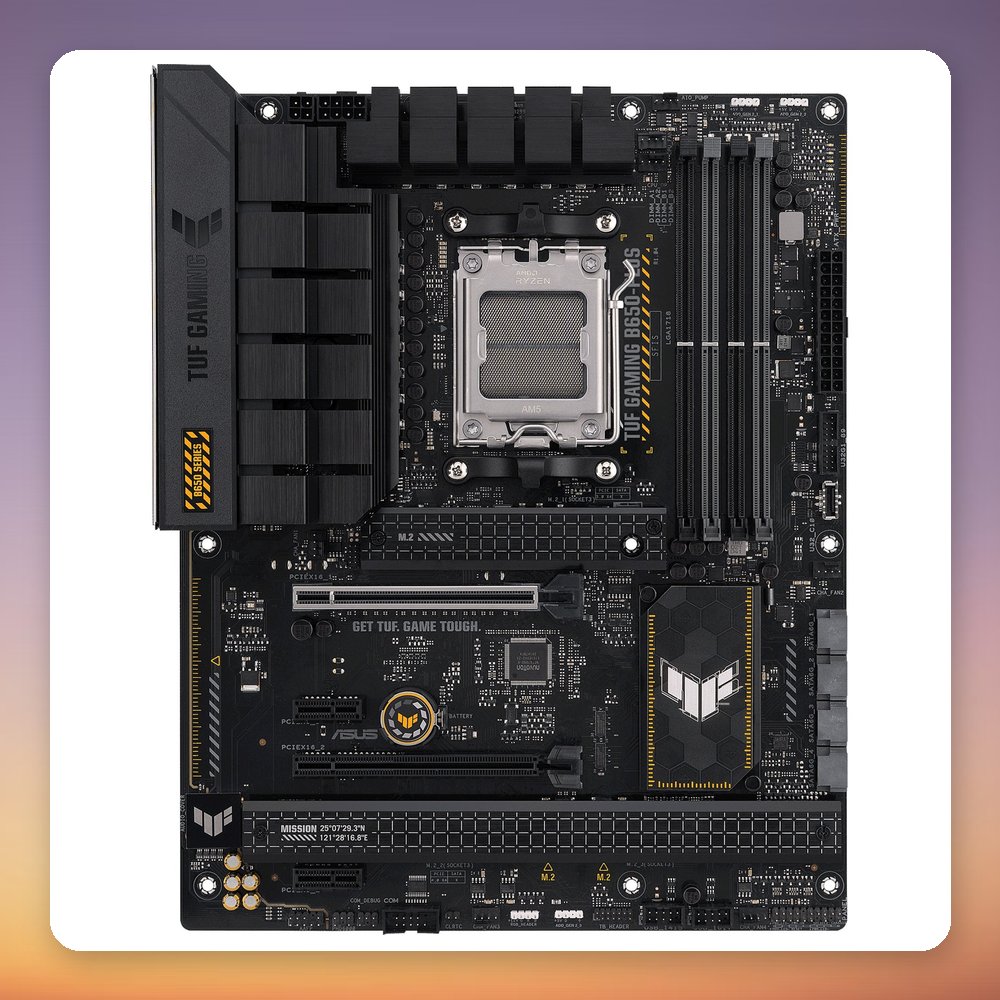

The ASUS TUF Gaming B650-Plus is an ATX motherboard for Socket AM5 built on the AMD B650 chipset. It has four DDR5 slots for up to 128 GB of memory, three M.2 slots (one PCIe 5.0, two PCIe 4.0) and 2.5 Gigabit Ethernet. Rear I/O includes a USB 3.2 Gen 2×2 Type-C port at 20 Gbit/s, plus HDMI and DisplayPort outputs.

This board suits gaming and general-purpose Ryzen builds where you want fast storage options without moving to a higher chipset. It supports Ryzen 7000, 8000 and 9000 series processors, though a BIOS update may be needed for the newest CPUs. It also offers four SATA III ports, seven 4-pin PWM fan headers, one standard RGB header and three addressable RGB headers with Aura Sync, plus a Realtek S1200A audio codec.

Specification

• Manufacturer: Asus
• Model: TUF Gaming B650-Plus
• MPN: 90MB1BY0-M0EAY0
• EAN: 4711081912767
• Socket: AMD AM5
• Chipset: AMD B650
• Form factor: ATX
• Memory: 4x DDR5 DIMM, dual-channel, up to 128 GB
• Memory speed: DDR5-4800 to DDR5-6400+ (OC)
• M.2 slots: 3x M.2 (M key): 1x PCIe 5.0, 2x PCIe 4.0, 42-110 mm
• SATA ports: 4x SATA III
• Expansion slots: 2x PCIe x16 (1x x16, 1x x4), 2x PCIe x1
• Rear USB: 1x USB-C 3.2 Gen 2×2 (20 Gbit/s), 1x USB-C 3.2 Gen 2, 2x USB-A 3.2 Gen 2, 4x USB-A 2.0
• Video outputs: 1x HDMI, 1x DisplayPort (CPU with integrated graphics required)
• Networking: Realtek 2.5 Gigabit Ethernet (no Wi-Fi)
• Audio: Realtek ALC S1200A, 7.1 channels
• Fan and RGB headers: 7x 4-pin PWM fan, 1x RGB, 3x addressable RGB (Aura Sync)
• RAID: 0, 1, 10
• Dimensions (W x H x D): 244 x 300 x 50 mm
• Weight: 1.2 kg
