Product Overview

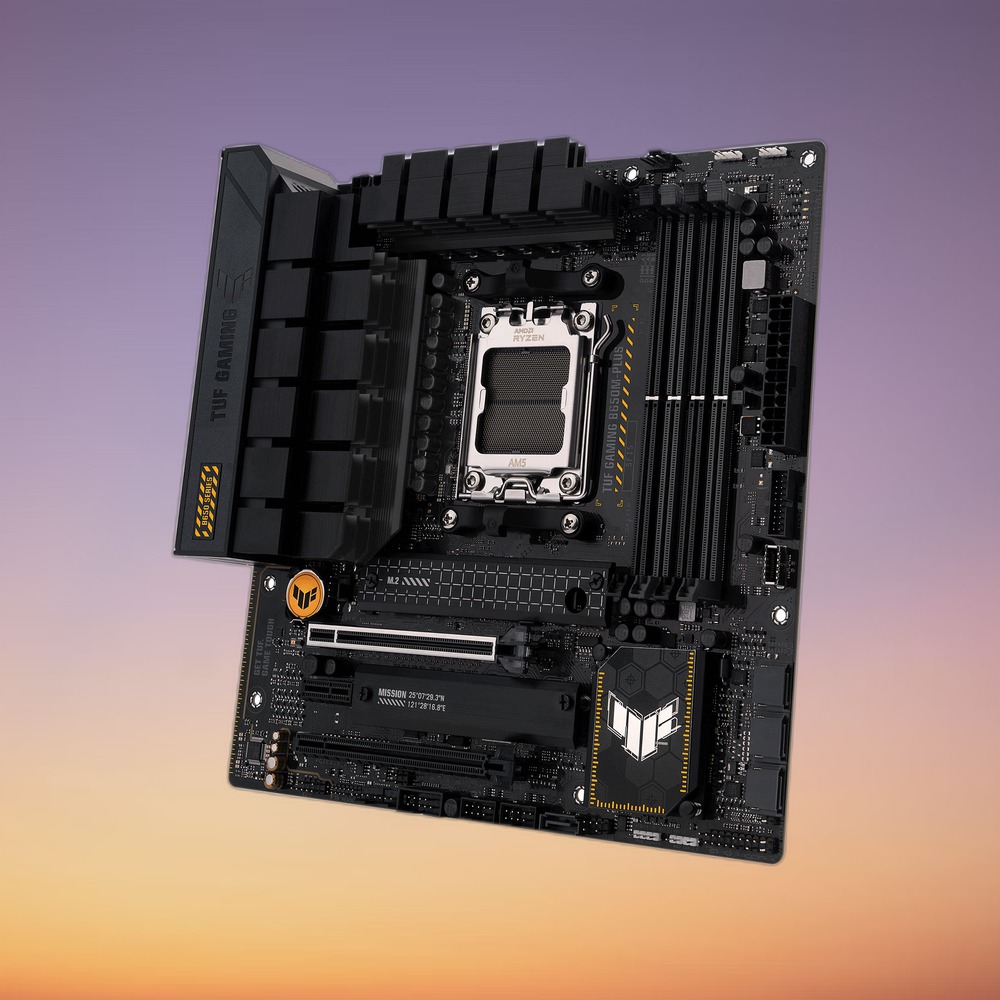

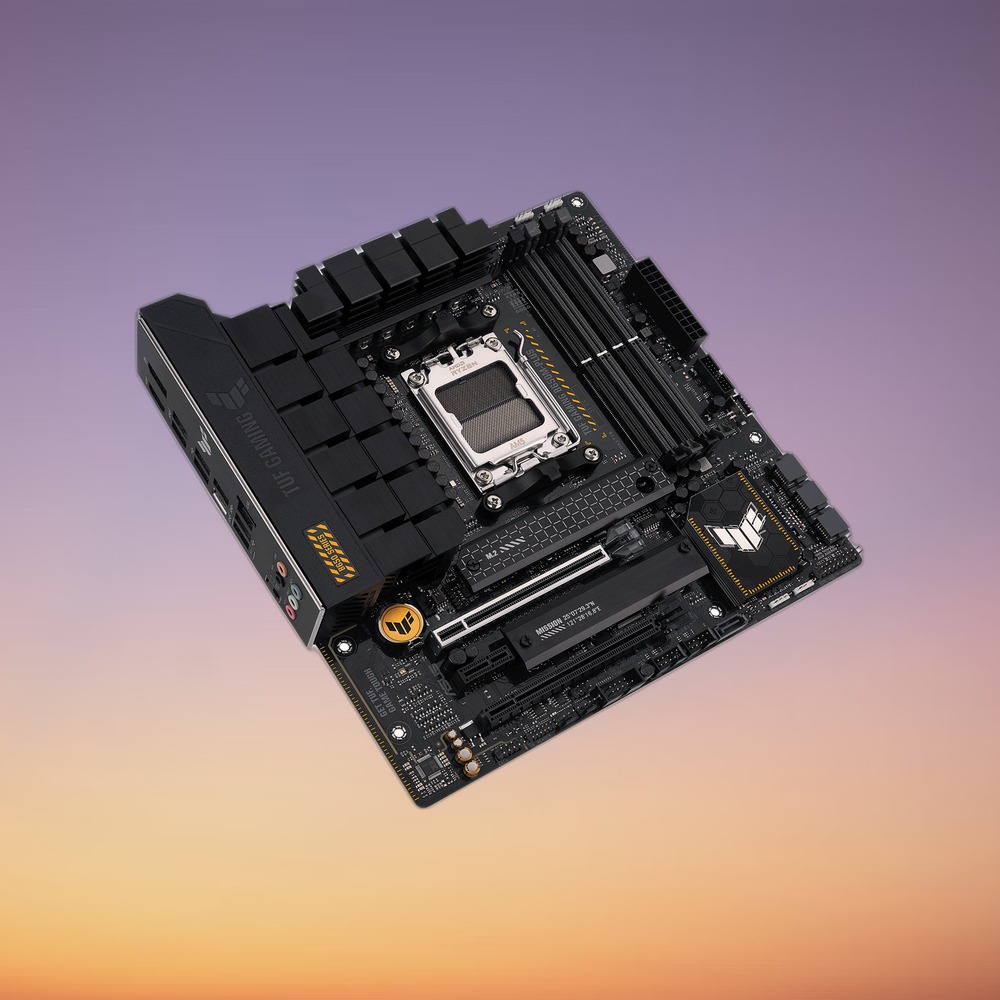

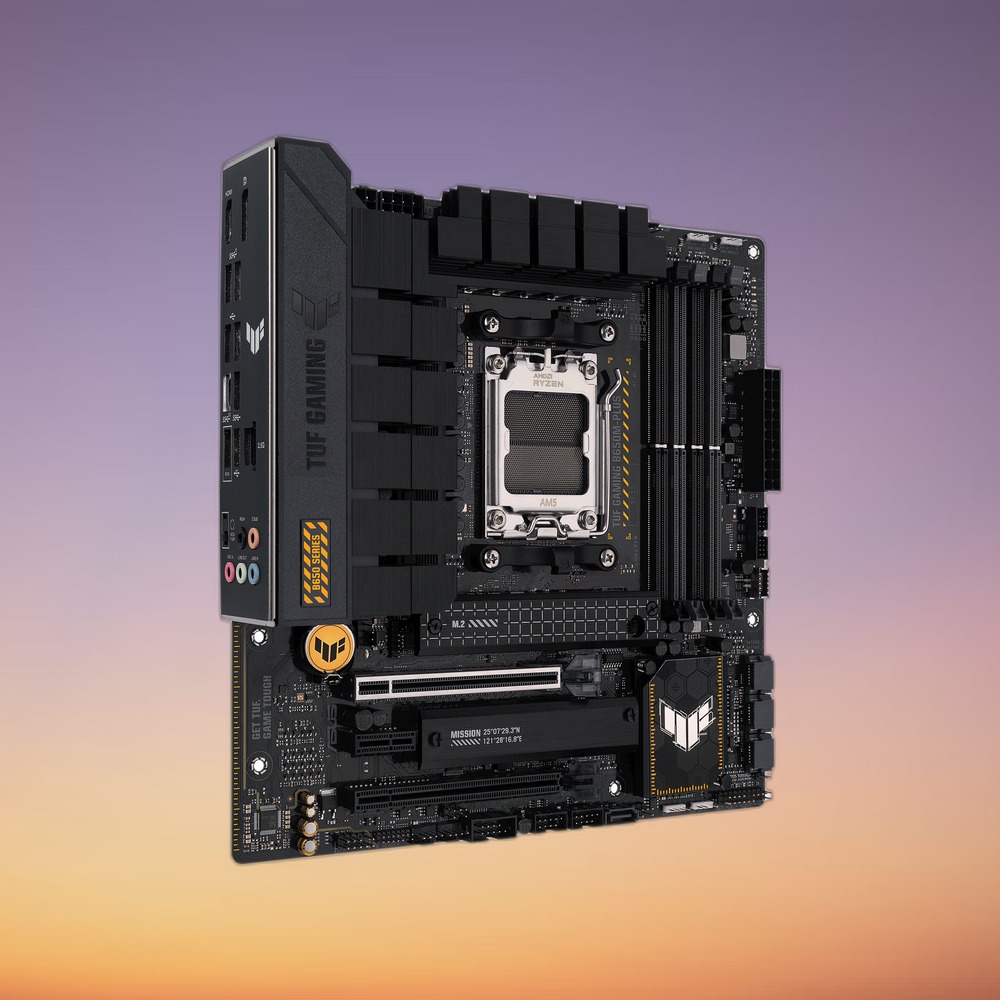

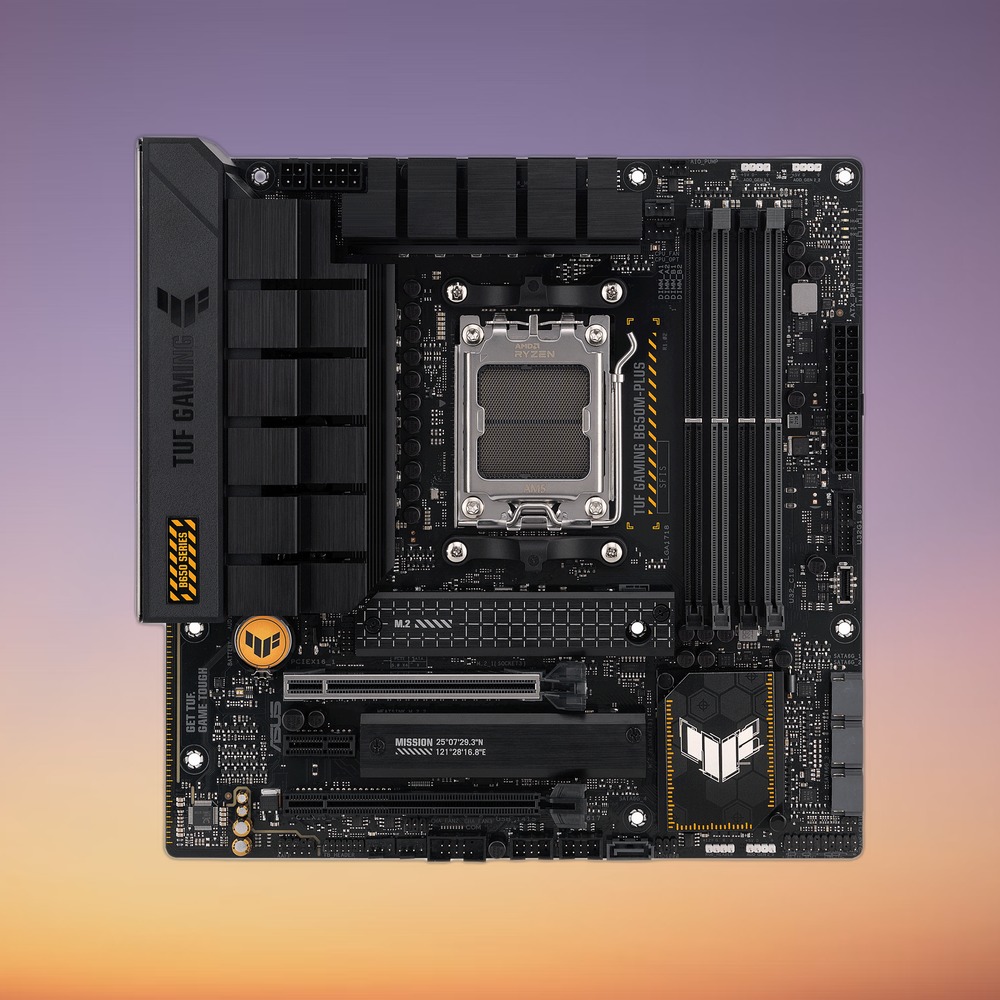

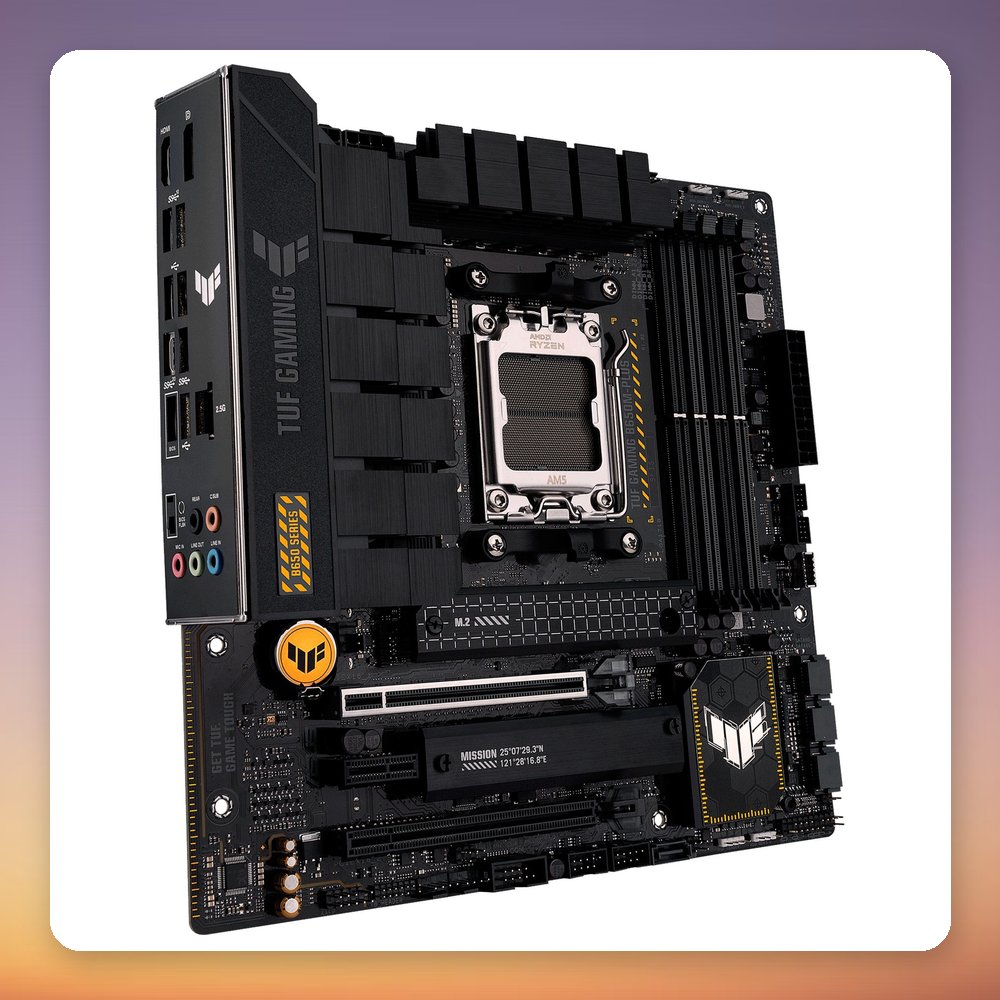

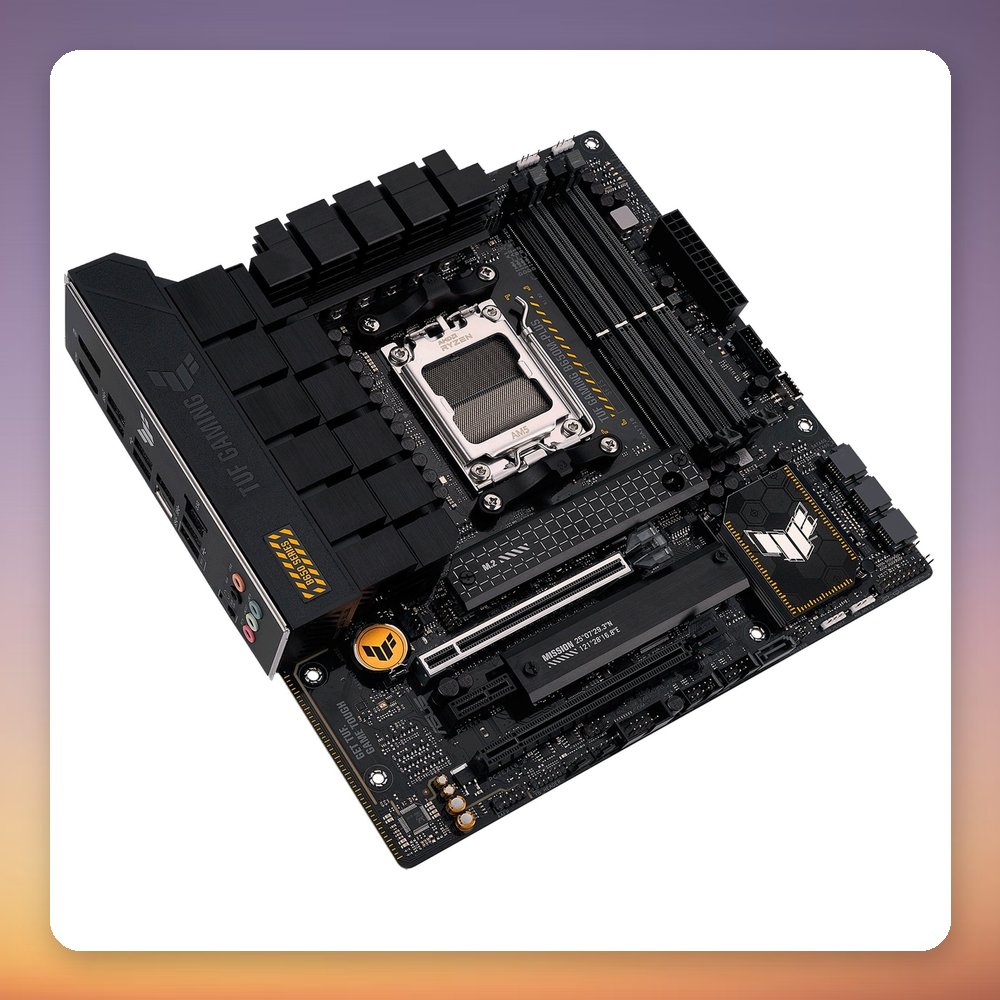

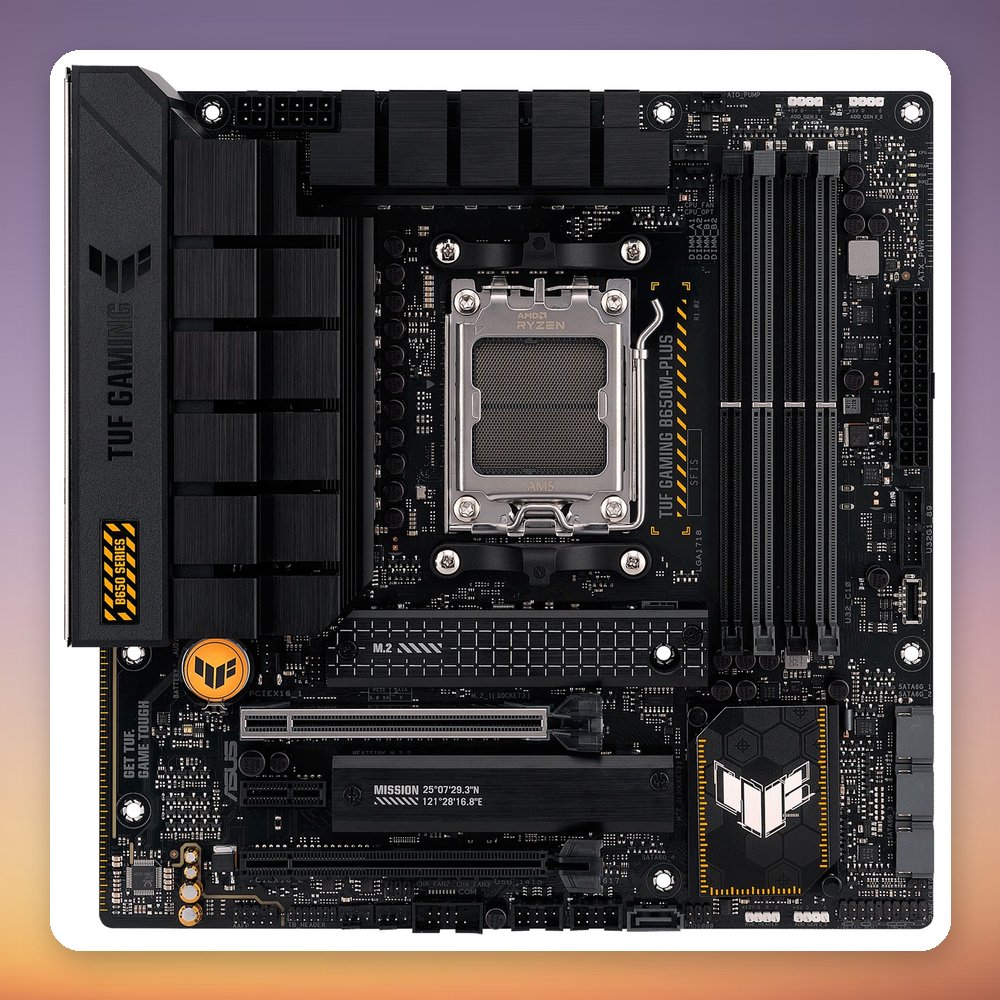

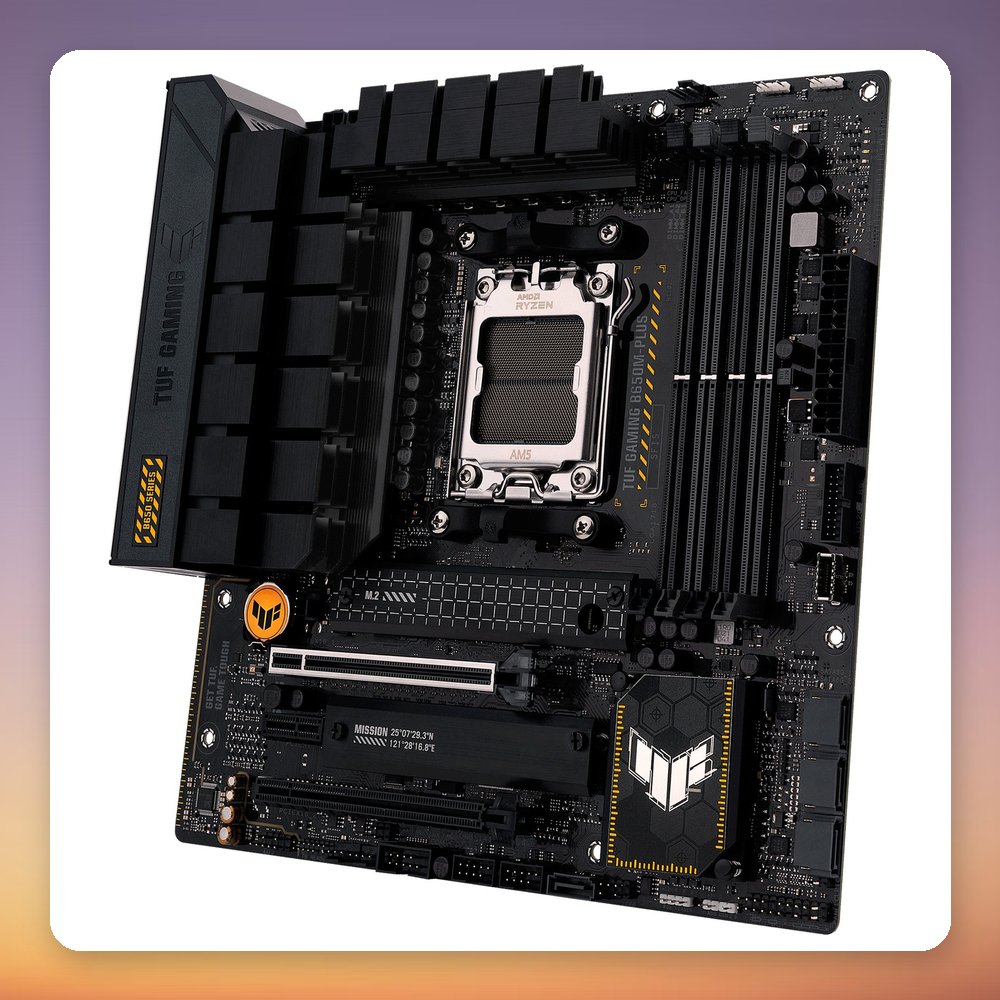

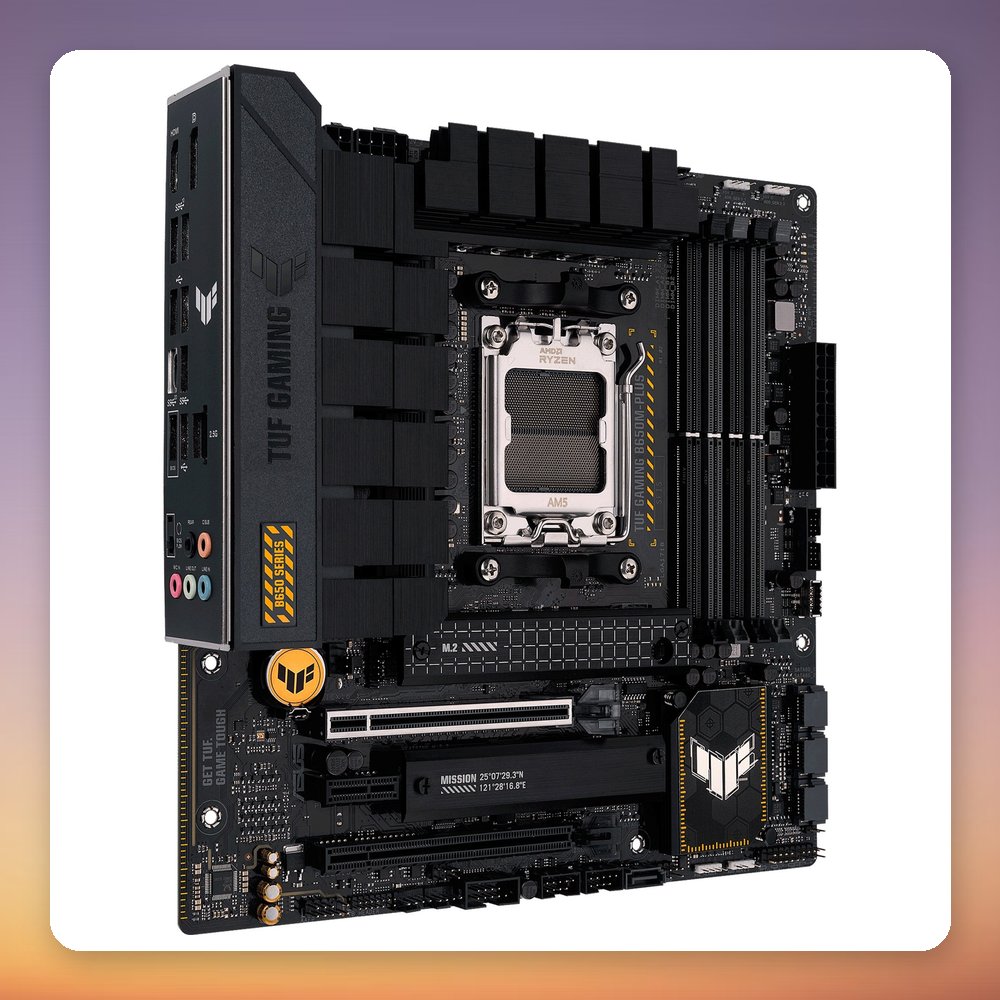

The ASUS TUF Gaming B650M-Plus is a micro-ATX AM5 motherboard built on the AMD B650 chipset. It takes Ryzen 5, 7 and 9 processors from the 7000, 8000 and 9000 series, including X3D models, and has four DDR5 slots for dual-channel memory supporting speeds up to DDR5-6400 (OC). Two M.2 slots, four SATA ports and 2.5 Gb Ethernet round out the storage and networking.

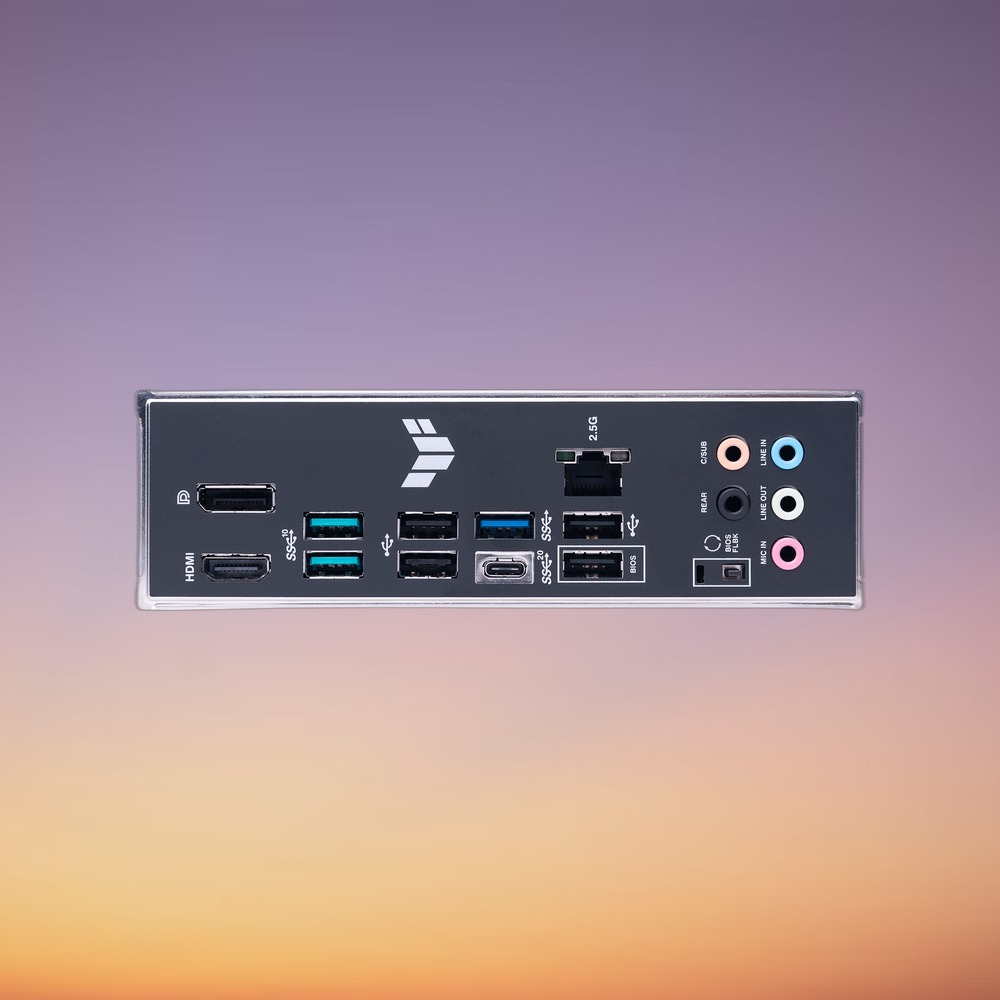

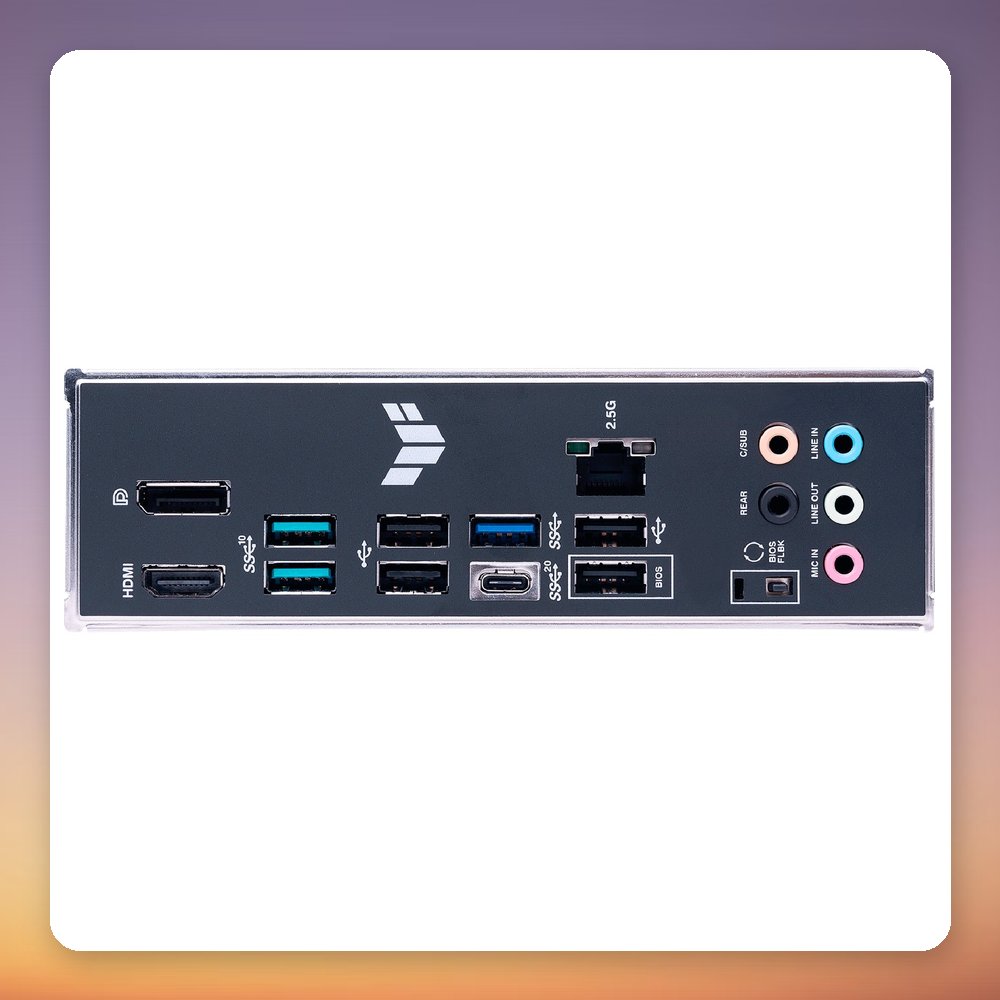

With a 244 x 244 mm footprint, this board suits compact and mid-size gaming PC builds that still need a full set of connections. The rear panel has a USB-C 3.2 Gen 2×2 port (20 Gbit/s), HDMI and DisplayPort outputs for CPUs with integrated graphics, and 7.1 audio. It has six 4-pin PWM fan headers and RGB headers. ASUS notes that a BIOS update may be needed for the newest processors.

Specification

• Manufacturer: Asus
• Model: TUF Gaming B650M-Plus
• MPN: 90MB1BG0-M0EAY0
• EAN: 4711081912392
• Socket: AM5
• Chipset: AMD B650
• Form factor: micro-ATX
• Memory: 4x DDR5 DIMM, dual-channel, up to DDR5-6400 (OC)
• ECC support: Yes
• Expansion slots: 1x PCIe x16, 1x PCIe x4, 1x PCIe x1
• M.2 slots: 2x M.2 (M key), 42-80 mm, PCIe
• SATA ports: 4x SATA III, RAID 0/1/10
• Rear USB: 1x USB-C 3.2 Gen 2×2, 2x USB-A 3.2 Gen 2, 1x USB-A 3.2 Gen 1, 4x USB 2.0
• Video outputs: 1x HDMI, 1x DisplayPort (CPU with integrated graphics required)
• LAN: Realtek 2.5 Gb Ethernet
• Audio: Realtek 7.1 surround
• Wi-Fi: No
• Fan headers: 6x 4-pin PWM
• RGB headers: 1x RGB, 3x addressable RGB (Aura Sync)
• BIOS: UEFI AMI, 256 Mbit flash
• Dimensions (W x D): 244 x 244 mm
