Product Overview

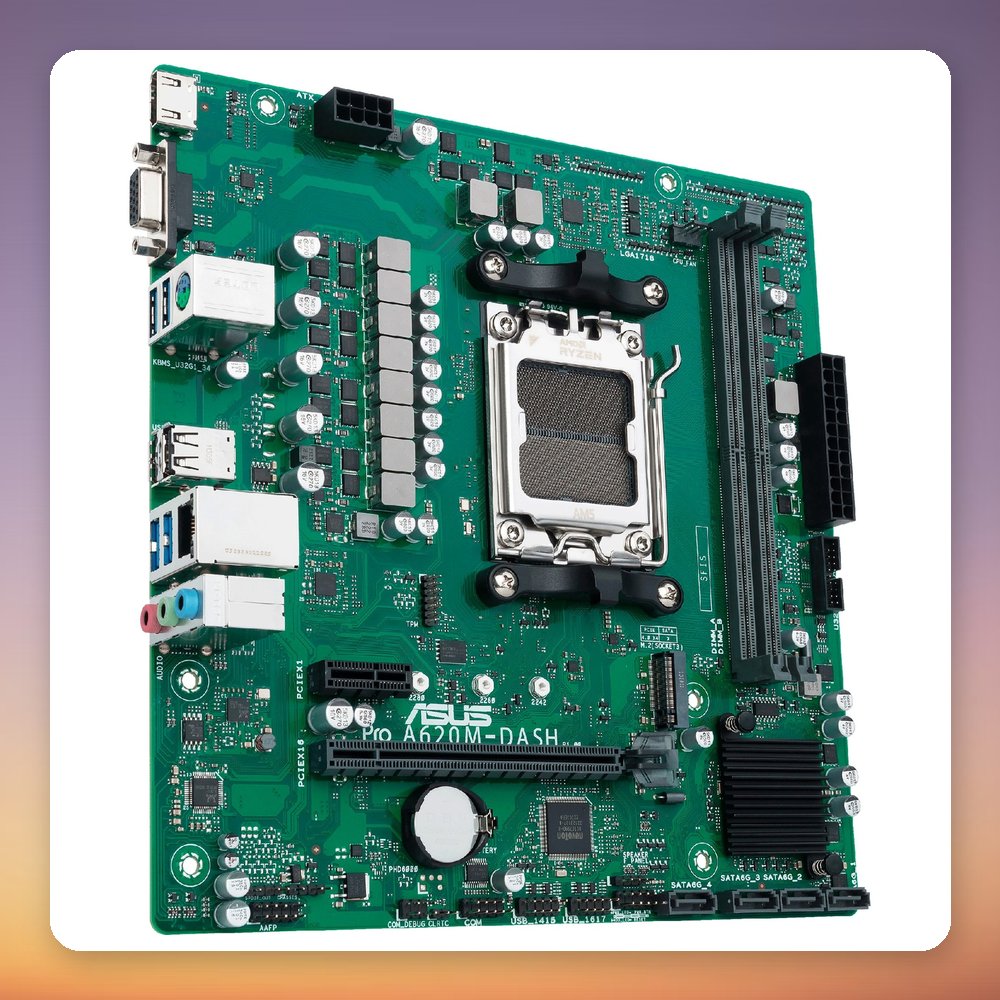

The Asus PRO A620M-DASH-CSM is a micro ATX motherboard for AMD Socket AM5 processors, built on the AMD A620 chipset. Unlike typical gaming boards, it is a business-oriented Corporate Stable Model: it is rated for 24/7 operation, has a moisture-resistant coating, a self-recovering BIOS and a TPM header. It has two DDR5 slots (up to 96 GB), one PCIe 4.0 x16 slot and one M.2 slot.

This board suits office, business and general-purpose PC builds where stability matters more than overclocking extras. Video outputs include HDMI and VGA, usable with a CPU that has integrated graphics. Connectivity includes Realtek Gigabit Ethernet, 7.1-channel audio, four SATA III ports, four USB 3.2 Gen 1 Type-A ports and a PS/2 combo port. Two SATA cables, an I/O shield and an M.2 screw set are in the box. Wi-Fi is not included.

Specification

• Manufacturer: Asus
• Model: PRO A620M-DASH-CSM
• MPN: 90MB1GD0-M0EAYC
• EAN: 4711387311363
• Socket: AMD AM5
• Chipset: AMD A620
• Form factor: micro ATX
• Memory: 2x DDR5 DIMM, dual-channel, up to 96 GB, non-ECC
• Memory speeds: DDR5-4800 to 7200+ (OC)
• Expansion slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
• M.2 slots: 1x M.2 (PCIe)
• SATA: 4x SATA III, RAID 0/1/10
• Rear USB: 4x USB 3.2 Gen 1 Type-A, 2x USB 2.0, 1x USB-C 2.0 (audio)
• Video outputs: 1x HDMI, 1x VGA (requires CPU with integrated graphics)
• Networking: Realtek 8111EPV Gigabit Ethernet, no Wi-Fi
• Audio: Realtek 7.1 channel
• Power connectors: 24-pin ATX + 8-pin EPS
• Dimensions (W x D): 226 mm x 221 mm
