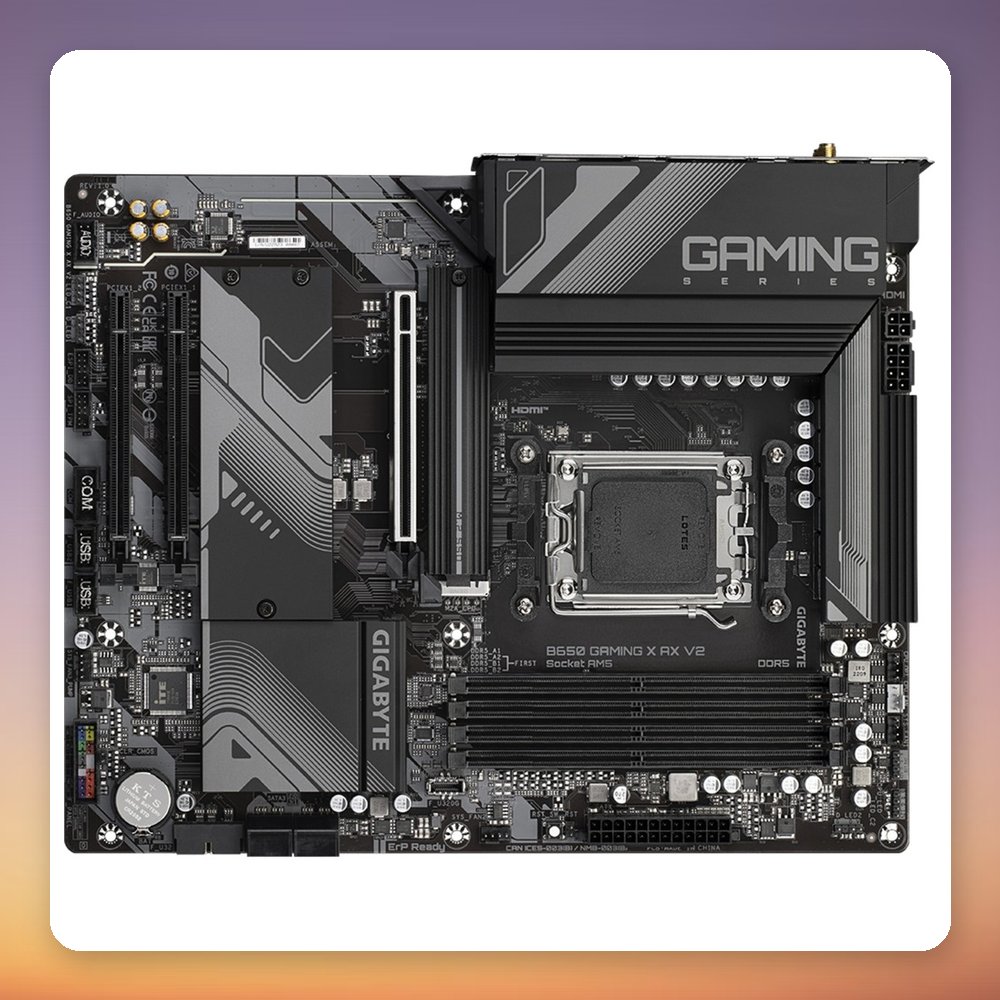

Gigabyte B650 Gaming X AX V2 ATX Motherboard, AM5, DDR5, Wi-Fi 6E
€160.03
Delivery: 7-12 business days
Gigabyte B650 Gaming X AX V2 ATX Motherboard, AM5, DDR5, Wi-Fi 6E
- Supports Ryzen 7000, 8000 and 9000 series on AM5
- One PCIe 5.0 and two PCIe 4.0 M.2 slots
- Wi-Fi 6E, Bluetooth 5.3 and 2.5GbE LAN onboard
- DDR5 up to 8000 MHz (OC), 192 GB across four slots
More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.
In stock
✅
Product Overview
The Gigabyte B650 Gaming X AX V2 is an ATX motherboard built on the AMD B650 chipset for Socket AM5 processors. It supports Ryzen 7000, 8000 and 9000 series CPUs (a BIOS update may be needed for the newest ones) and has four DDR5 slots for up to 192 GB of memory at speeds up to DDR5-8000 (OC). Storage options include one PCIe 5.0 M.2 slot, two PCIe 4.0 M.2 slots and four SATA ports.
With Wi-Fi 6E, Bluetooth and a Realtek 2.5GbE LAN port onboard, this board suits AM5 gaming builds without needing separate network cards. The rear I/O includes a USB-C 10 Gbit/s port, three USB-A 10 Gbit/s ports, HDMI and DisplayPort, and an internal USB-C 20 Gbit/s header handles front-panel connectivity. Five 4-pin PWM fan headers and RGB Fusion headers cover cooling and lighting, and the board supports RAID 0, 1 and 10.
Specification
- Manufacturer: GigaByte
- Model: B650 Gaming X AX V2
- MPN: B650 GAMING X AX V2
- EAN: 4719331860073
- Socket: AMD AM5
- Chipset: AMD B650
- Form factor: ATX
- Memory: 4x DDR5 DIMM, dual-channel, up to 192 GB
- Memory speed: Up to DDR5-8000 (OC)
- M.2 slots: 3x (1x PCIe 5.0, 2x PCIe 4.0), 80–110 mm
- SATA ports: 4x SATA III
- RAID: 0, 1, 10
- Expansion slots: 1x PCIe x16 (Gen 4), 2x PCIe x16 (Gen 3)
- Networking: Realtek 2.5GbE LAN, Wi-Fi 6E, Bluetooth 5.3
- Rear USB: 1x USB-C 10 Gbit/s, 3x USB-A 10 Gbit/s, 1x USB-A 5 Gbit/s, 3x USB 2.0
- Video outputs: 1x HDMI 2.1, 1x DisplayPort 1.4 (CPU with integrated graphics required)
- Audio: Realtek ALC897, 7.1 channels
- Fan headers: 5x 4-pin PWM
- RGB headers: 2x RGB, 2x addressable RGB (RGB Fusion)
delivery time 7-12 business days
| Weight | 1.5 kg |
|---|
