Product Overview

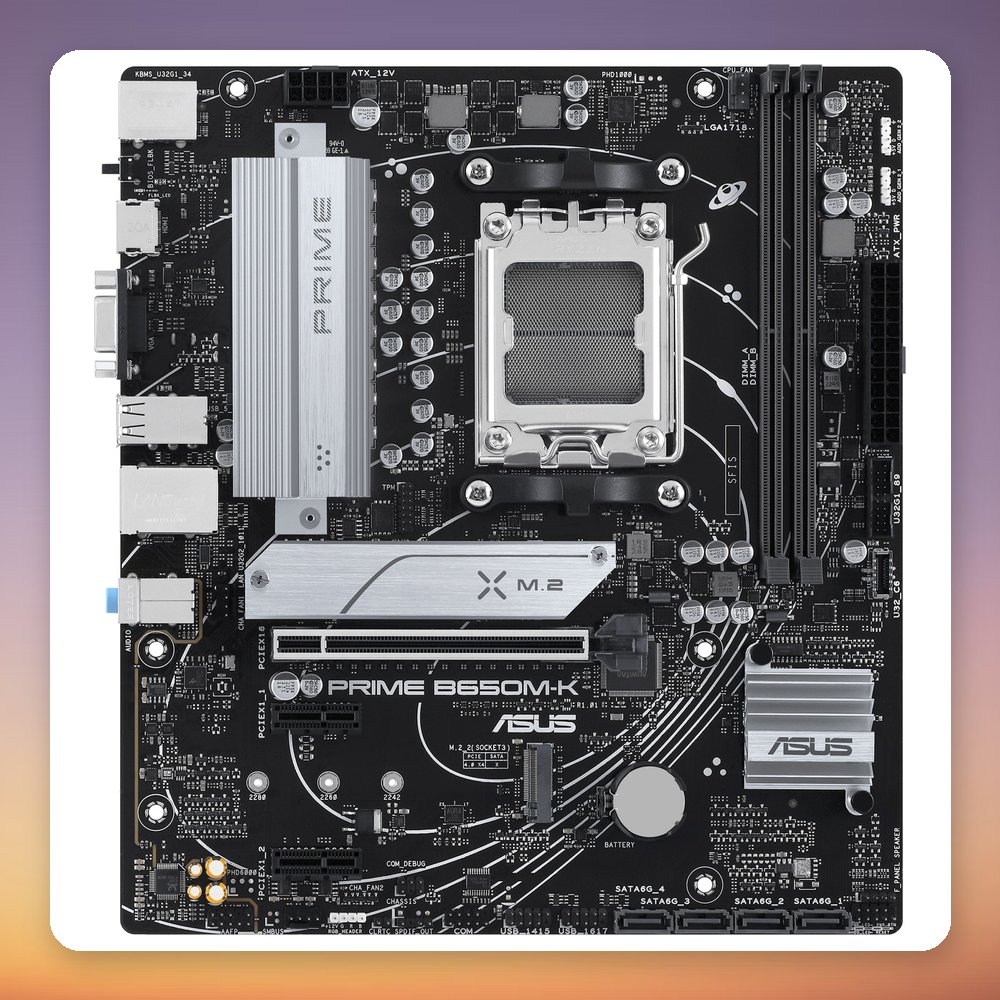

The Asus PRIME B650M-K is a micro-ATX motherboard for Socket AM5, built on the AMD B650 chipset. It takes Ryzen 7000, 8000 and 9000 series processors, including X3D models, and offers two DDR5 slots for up to 96 GB of memory. Storage is covered by two M.2 slots (one with PCIe 5.0 support) and four SATA III ports, while 2.5 Gigabit Ethernet is built in.

With a PCIe 4.0 x16 slot, two PCIe 4.0 x1 slots and a compact micro-ATX footprint, the board suits a straightforward Ryzen gaming or home PC build. HDMI and VGA outputs work with CPUs that have integrated graphics, and the rear panel adds two USB 3.2 Gen 2 ports alongside 5 Gbit/s and USB 2.0 ports. Two addressable RGB headers and one RGB header support AURA Sync lighting, and a TPM header is on board.

Specification

• Manufacturer: Asus
• Model: PRIME B650M-K
• MPN: 90MB1F60-M0EAY0
• EAN: 4711387236628
• CPU socket: AMD Socket AM5
• Chipset: AMD B650
• Form factor: micro-ATX
• Memory: 2x DDR5 DIMM, dual-channel, up to 96 GB
• Memory speeds: DDR5-4800 to DDR5-7800 (higher speeds via overclocking)
• M.2 slots: 2x M.2 (1x with PCIe 5.0 support)
• SATA ports: 4x SATA III, RAID 0/1/10
• Expansion slots: 1x PCIe 4.0 x16, 2x PCIe 4.0 x1
• Networking: Realtek 2.5 Gb Ethernet (no Wi-Fi)
• Audio: Realtek 7.1 surround sound
• Video outputs: 1x HDMI, 1x VGA (requires CPU with integrated graphics)
• Rear USB: 2x USB-A 3.2 Gen 2, 2x USB-A 3.2 Gen 1, 4x USB 2.0
• Lighting: AURA Sync, 2x addressable RGB header, 1x RGB header
• Dimensions (W x H x D): 221 mm x 244 mm
