Product Overview

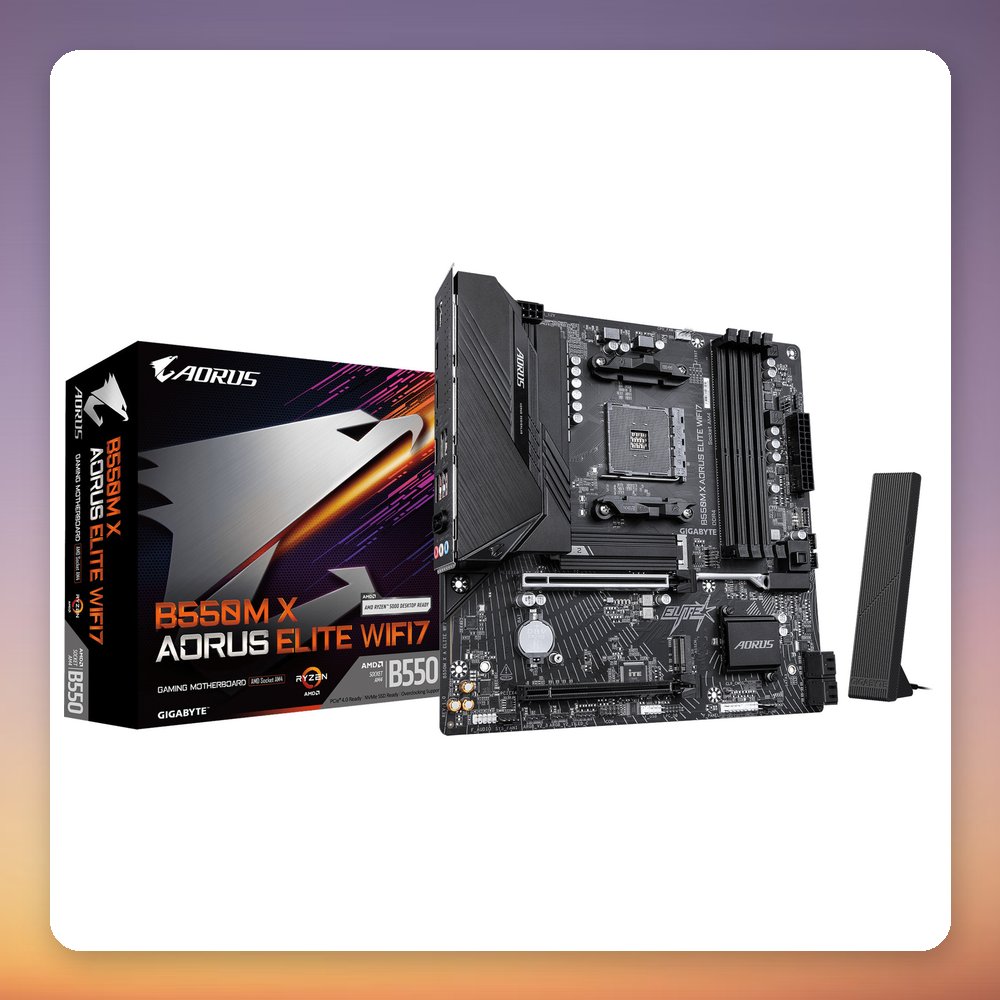

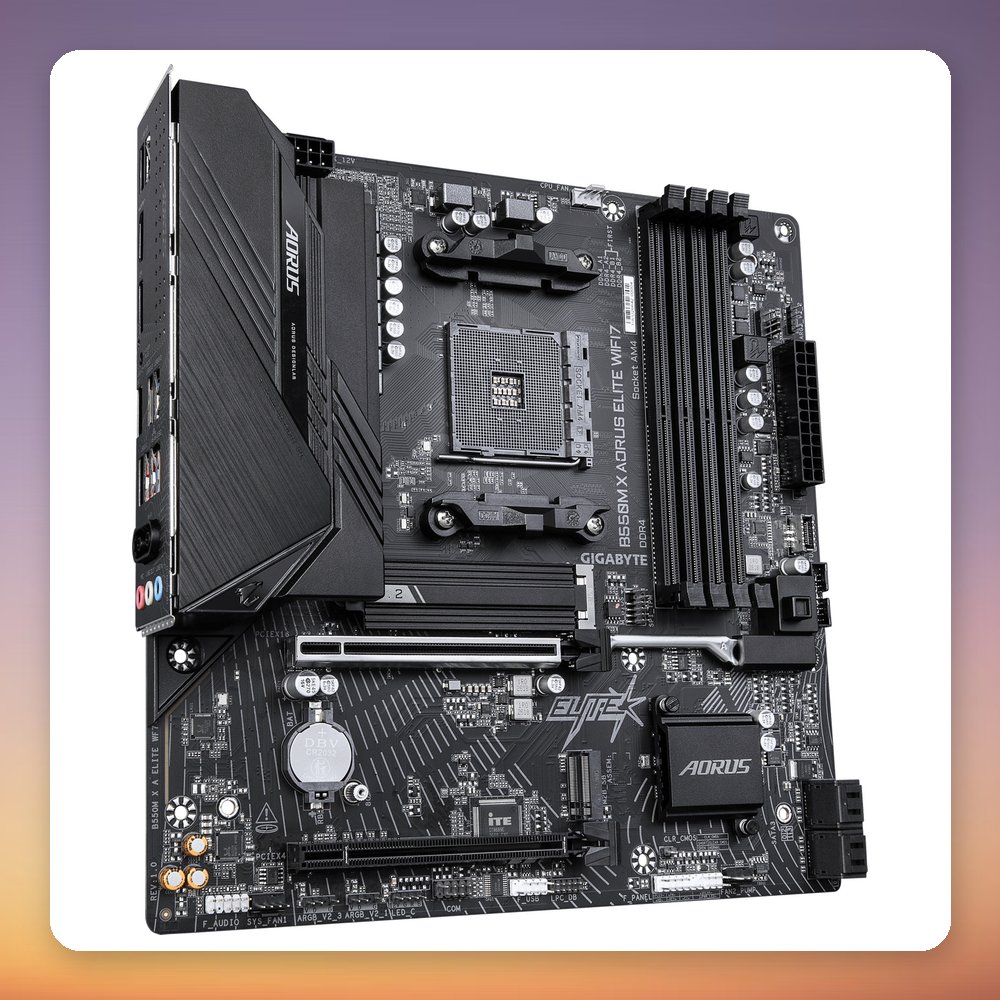

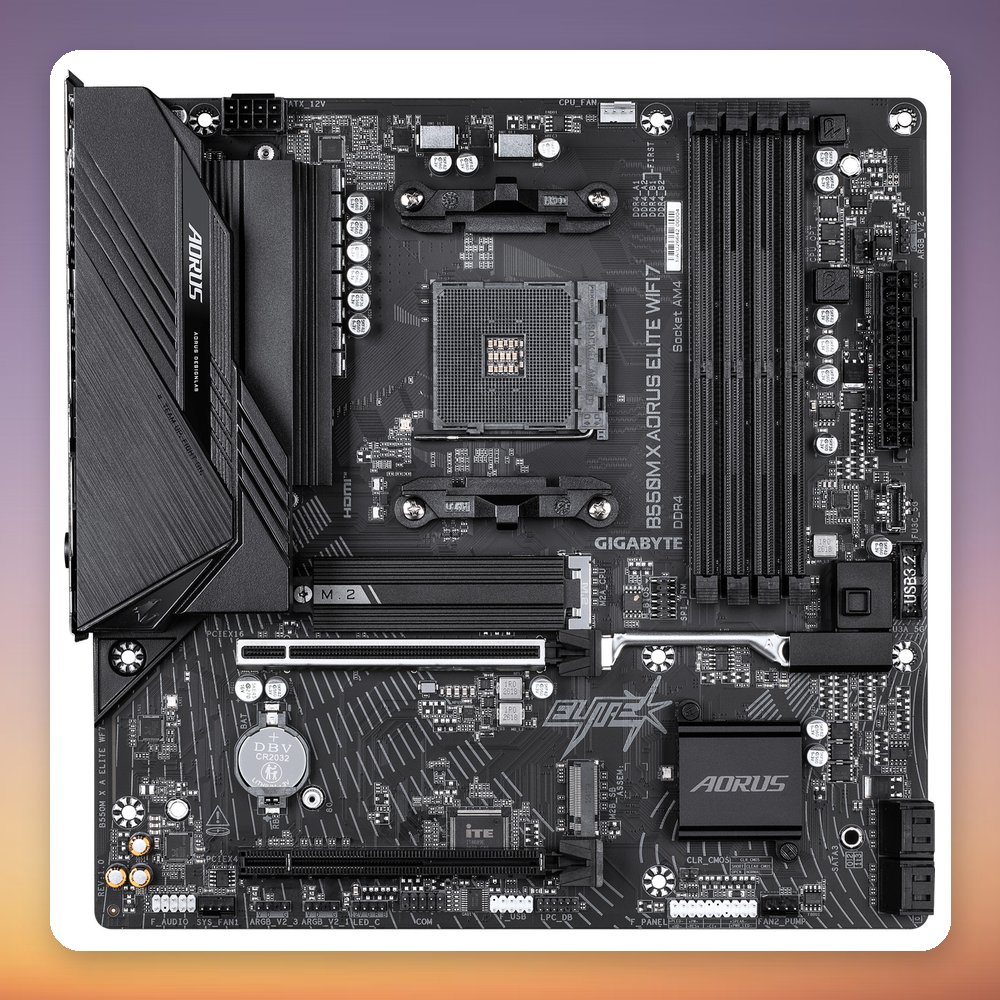

The GigaByte B550M X AORUS ELITE WIFI7 is a micro-ATX motherboard for AMD Socket AM4 processors, built around the AMD B550 chipset. What sets it apart from most B550 boards is the Realtek Wi-Fi 7 (RTL8922AE) module with Bluetooth 5.4, alongside 2.5 GbE wired LAN. It offers four DDR4 slots for up to 128 GB, one PCIe 4.0 x16 slot and two M.2 slots.

This board suits a compact AM4 gaming or general-purpose PC based on a Ryzen 3000, 4000 or 5000 series processor, particularly where you want modern wireless without adding a separate card. Four SATA III ports and RAID 0, 1 and 10 cover plenty of storage, and the board has one RGB header and three addressable RGB headers for lighting. The source data notes that a BIOS update may be needed for the newest processors.

Specification

• Manufacturer: GigaByte
• Model: B550M X AORUS ELITE WIFI7
• MPN: B550M X A ELITE WF7
• EAN: 4719331884086
• Socket: AMD AM4
• Chipset: AMD B550
• Form factor: micro-ATX (µATX)
• Compatible CPUs: AMD Ryzen 5000, 4000 and 3000 series
• Memory: 4x DDR4 DIMM, dual-channel, up to 128 GB
• Memory speeds: DDR4-2133 to DDR4-3200 native, up to DDR4-4733 (O.C.)
• ECC support: Yes (ECC and non-ECC)
• Expansion slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4 lanes), 1x PCIe x1
• M.2 slots: 2x M.2 (M key), SATA and PCIe, 42-110 mm
• SATA: 4x SATA III, RAID 0/1/10
• Networking: Realtek 2.5 GbE LAN, Wi-Fi 7 (802.11be), Bluetooth 5.4
• Rear USB: 1x USB-C 3.2 Gen 1, 4x USB-A 3.2 Gen 1, 2x USB-A 2.0
• Video outputs: 1x HDMI, 1x DVI-D (requires CPU with integrated graphics)
• Power connectors: 24-pin ATX + 8-pin ATX12V
• RGB: 1x RGB header, 3x addressable RGB headers, RGB Fusion
• Dimensions (W x H): 244 x 244 mm
• Weight: 1.6 kg
