Product Overview

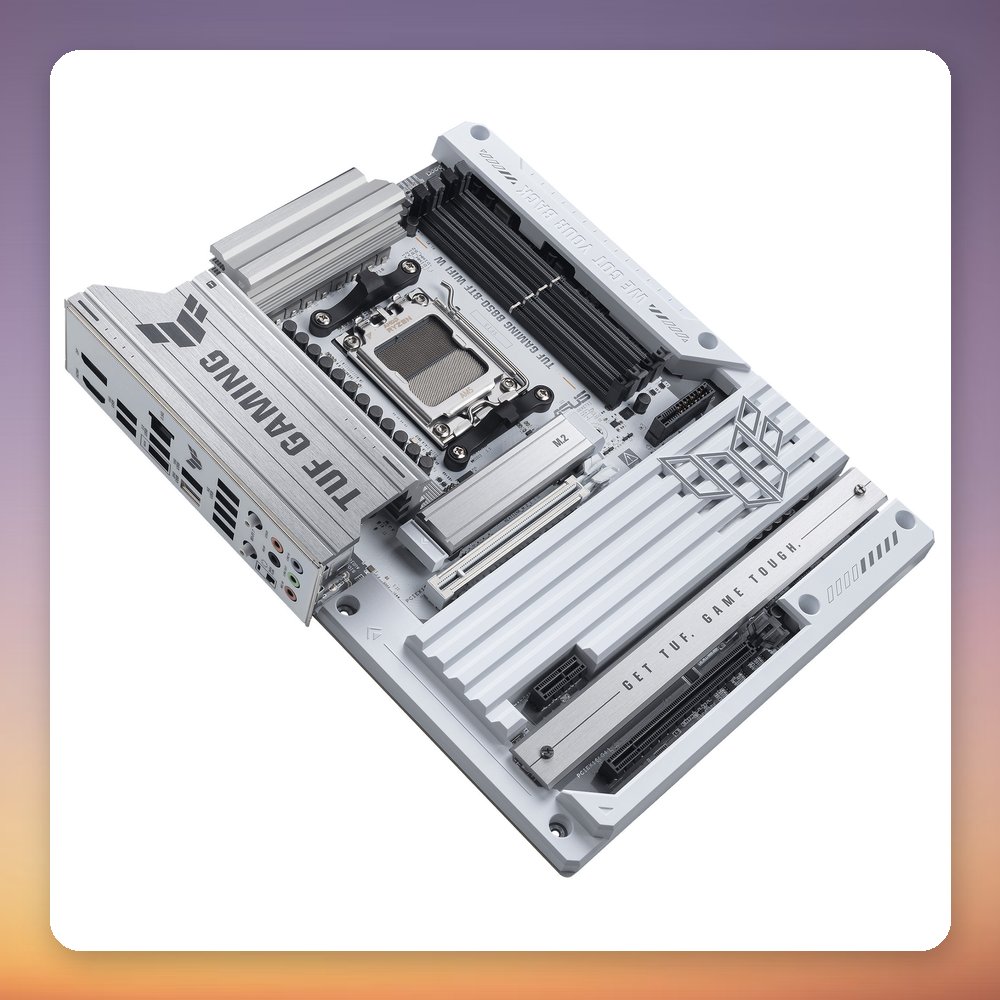

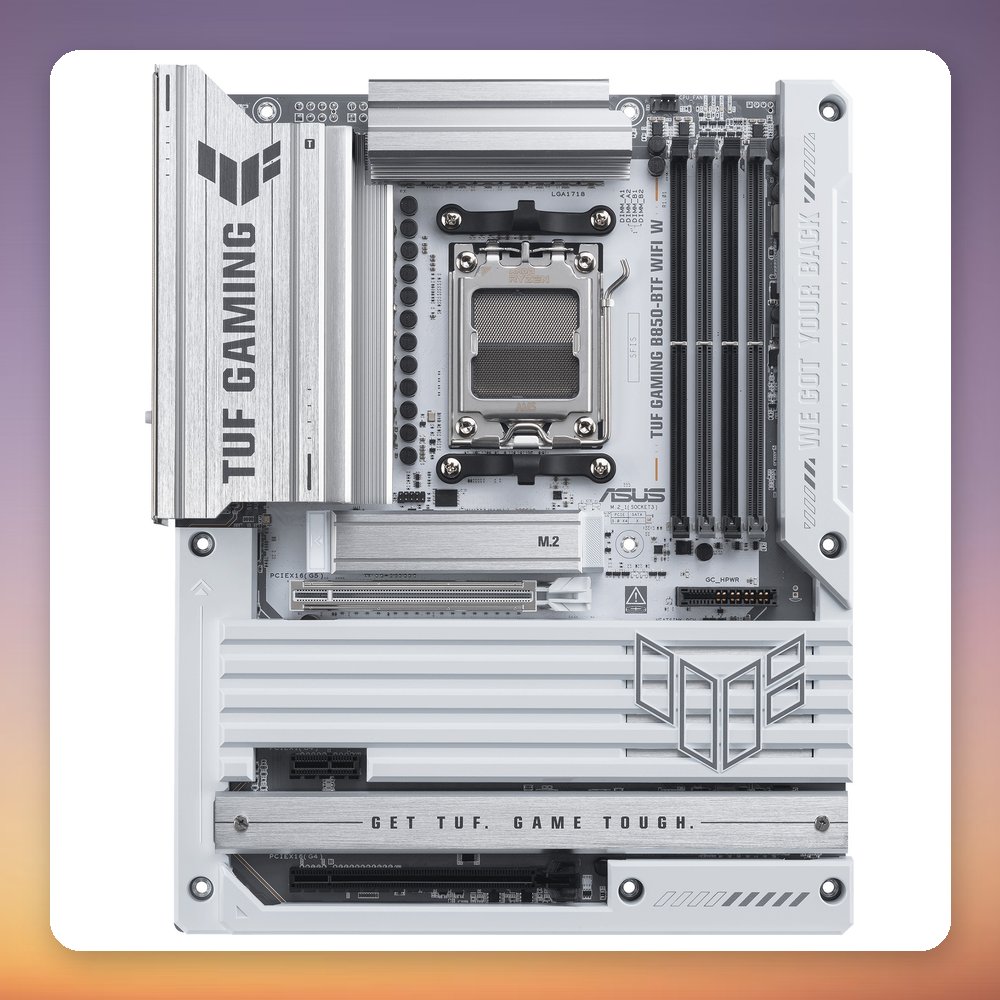

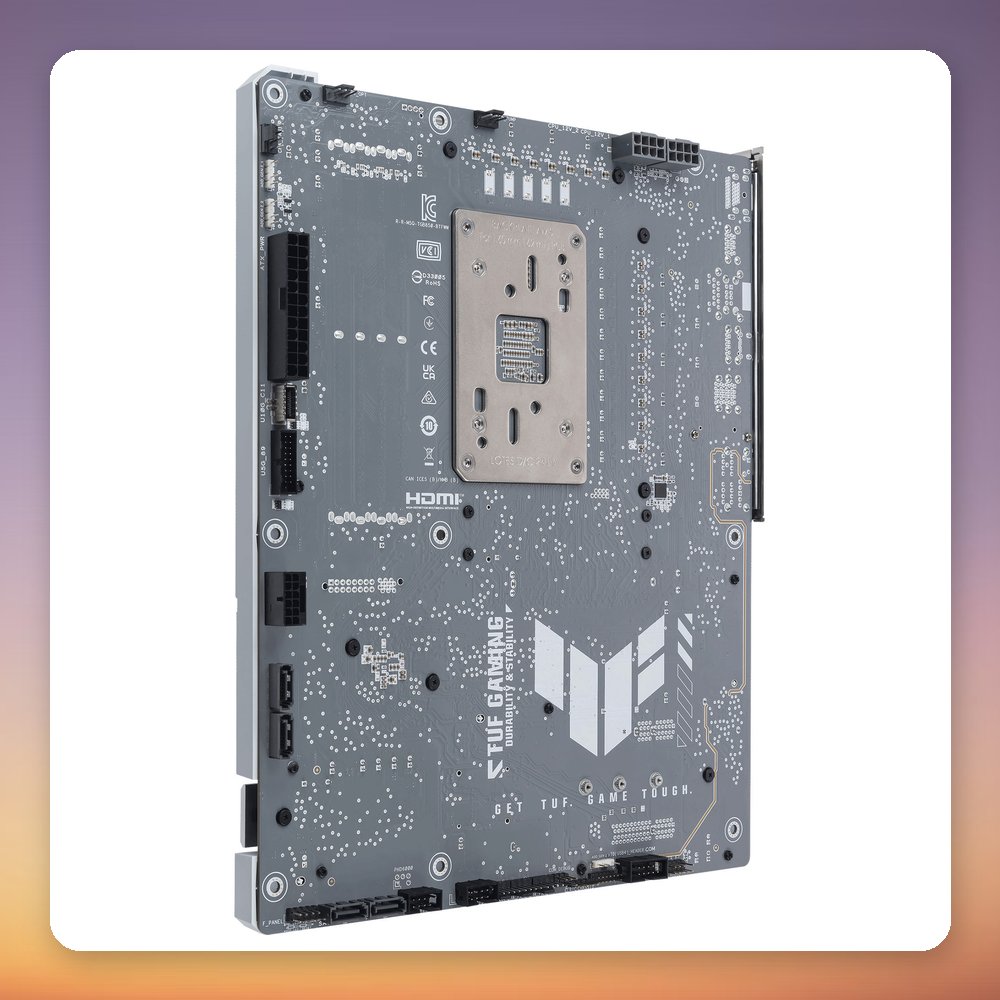

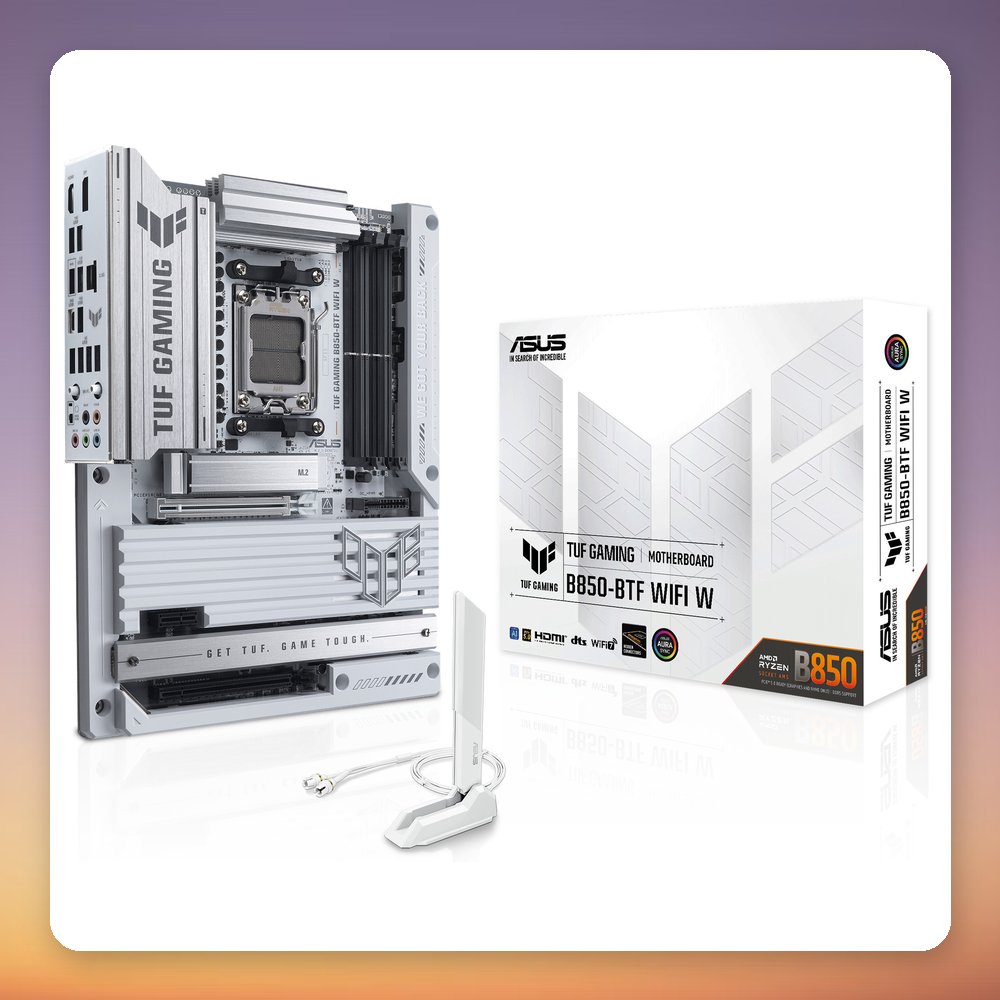

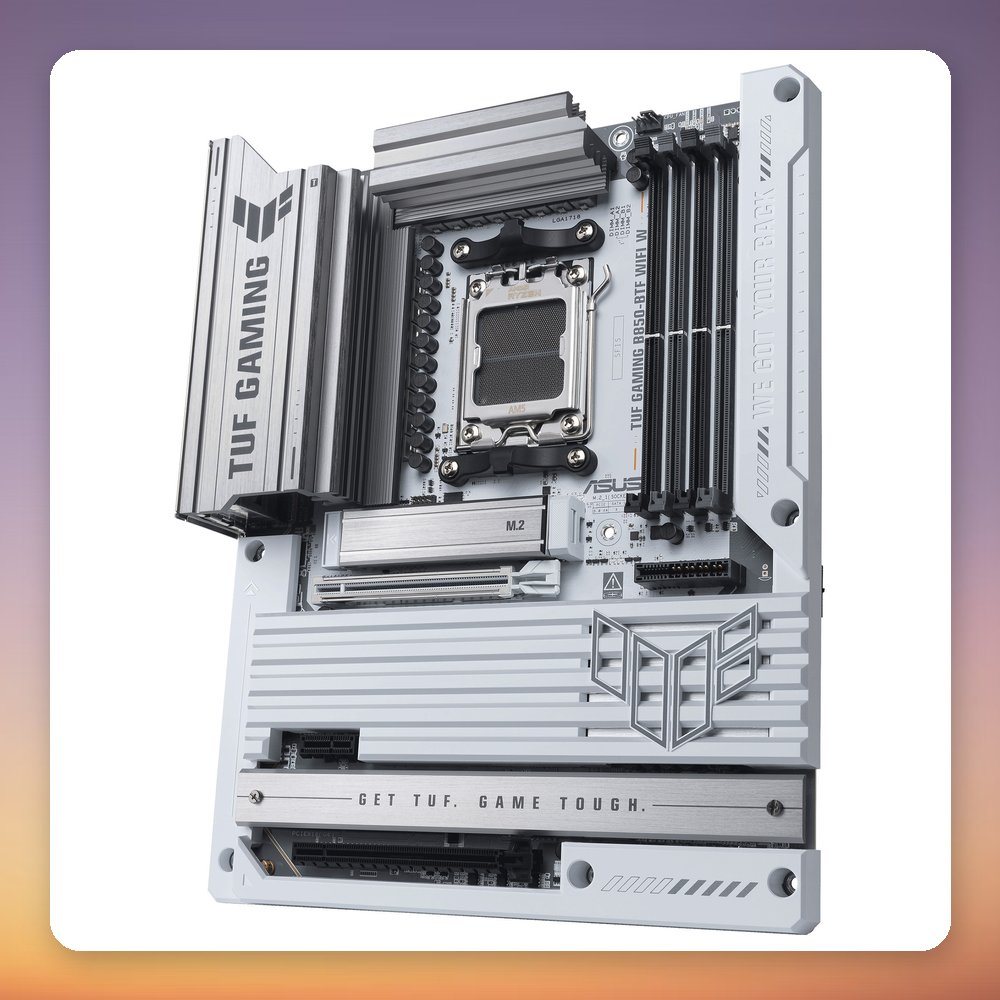

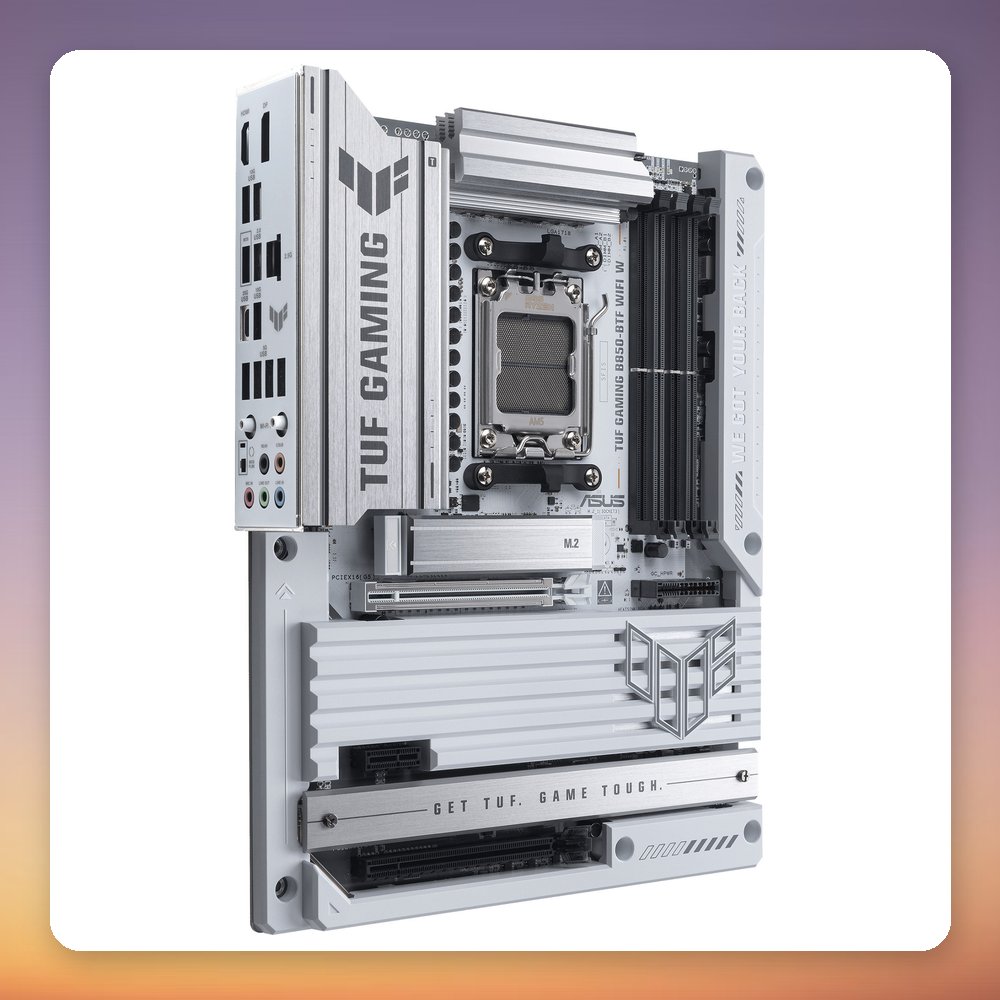

The Asus TUF Gaming B850-BTF WiFi W is an ATX motherboard for AMD Socket AM5, built on the B850 chipset. It belongs to Asus’s BTF (Back To the Future) range, which places the connectors on the underside of the board and supplies up to 600 W to BTF graphics cards through a high-power slot, for clean cable management. It supports Ryzen 7000, 8000 and 9000 series processors, four DDR5 slots up to 256 GB, and three M.2 slots.

With a white finish, this board suits a clean-looking gaming build where hidden cabling matters, ideally paired with a BTF graphics card. Connectivity includes Wi-Fi 7 with Bluetooth 5.4, 2.5 Gb Ethernet, Realtek ALC1220P 7.1 audio and a USB-C 3.2 Gen 2×2 (20 Gbps) port. There is one PCIe 5.0 x16 slot for the graphics card. Asus notes a BIOS update may be needed to support the newest processors.

Specification

• Manufacturer: Asus
• Model: TUF Gaming B850-BTF WiFi W
• MPN: 90MB1KW0-M0EAY0
• EAN: 4711387941874
• Socket: AMD AM5
• Chipset: AMD B850
• Form factor: ATX
• Memory: 4x DDR5 DIMM, dual-channel, up to 256 GB, up to DDR5-8000+ (OC)
• Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 lanes), 1x PCIe 4.0 x1
• Storage: 3x M.2 (M key), 4x SATA III, RAID 0/1/5/10
• Networking: Wi-Fi 7 (802.11be), Bluetooth 5.4, Realtek 2.5 Gb Ethernet
• Audio: Realtek ALC1220P 7.1 surround
• Rear USB: 1x USB-C 3.2 Gen 2×2, 3x USB-A 3.2 Gen 2, 4x USB-A 3.2 Gen 1, 2x USB-A 2.0
• Video outputs: 1x HDMI, 1x DisplayPort (CPU with integrated graphics required)
• Fan headers: 7x 4-pin PWM, 3x addressable RGB headers
• BIOS: UEFI AMI, 256 Mbit flash ROM
• Colour: White
• Dimensions (W x H x D): 305 x 244 x 48 mm
• Weight: 1.44 kg
