Product Overview

The Asus TUF Gaming B650E-E WiFi is an ATX motherboard for AMD Socket AM5, built on the AMD B650 chipset. It supports Ryzen 7000, 8000 and 9000 series processors, including X3D models, and offers four DDR5 slots for up to 192 GB of memory with ECC support. Storage is covered by three M.2 slots, the first running at PCIe 5.0, plus four SATA ports with RAID 0, 1 and 10.

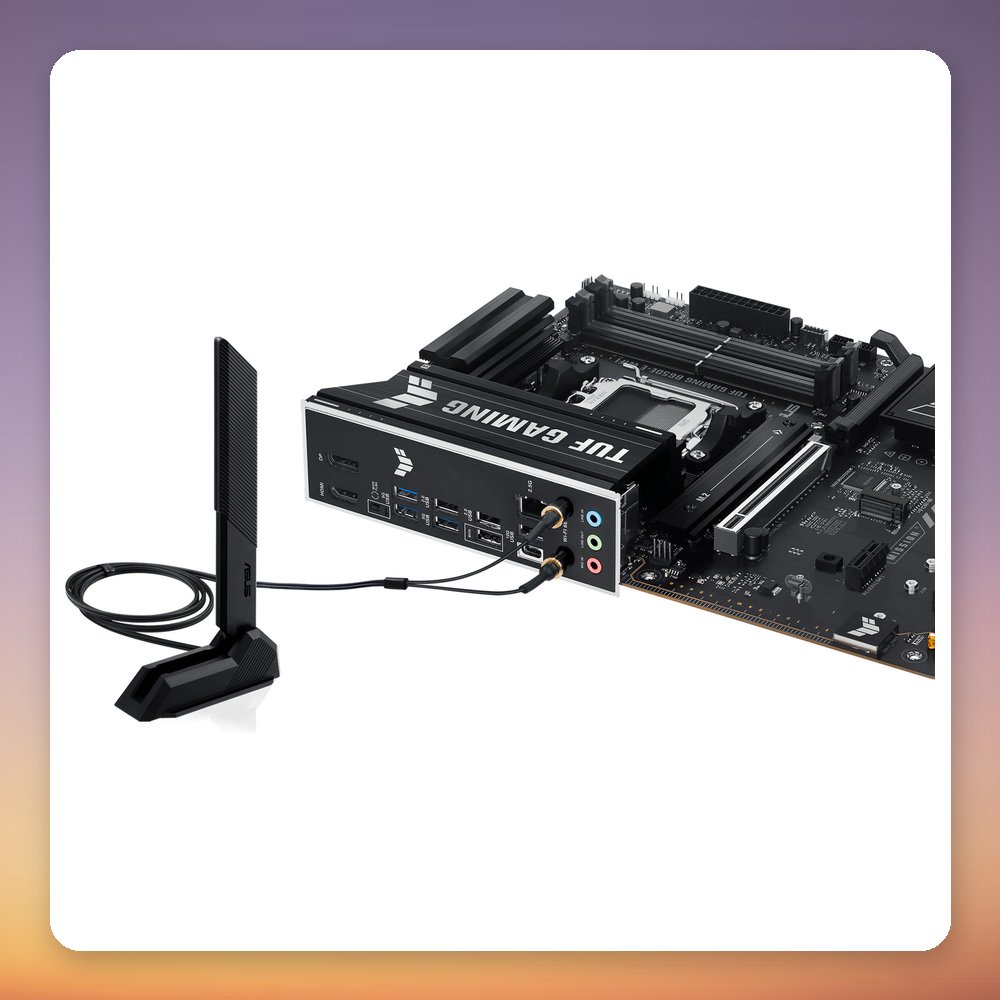

This board suits a gaming build around a current Ryzen CPU that needs a PCIe 5.0 x16 slot for the graphics card and fast NVMe storage. Connectivity includes 2.5 Gb Ethernet, Wi-Fi 6E and Bluetooth, so no extra network card is needed. The rear I/O has a USB-C 3.2 Gen 2 port, HDMI and DisplayPort for CPUs with integrated graphics, and there are seven 4-pin PWM fan headers. A BIOS update may be needed for the newest processors.

Specification

• Manufacturer: Asus
• Model: TUF Gaming B650E-E WiFi
• MPN: 90MB1LT0-M0EAY0
• EAN: 4711387992494
• Socket: AMD AM5
• Chipset: AMD B650
• Form factor: ATX
• Supported CPUs: AMD Ryzen 7000, 8000 and 9000 series
• Memory slots: 4x DDR5 DIMM, dual-channel
• Maximum memory: 192 GB (ECC supported)
• Memory speeds: DDR5-4800 to 8000+ MHz (OC)
• M.2 slots: 3x (slot 1 PCIe 5.0, slots 2 and 3 PCIe 4.0)
• SATA ports: 4x SATA III, RAID 0/1/10
• Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x1 lanes), 1x PCIe 4.0 x1
• Networking: Realtek 2.5 Gb Ethernet, Wi-Fi 6E
• Rear USB: 1x USB-C 3.2 Gen 2, 2x USB-A 3.2 Gen 2, 3x USB-A 3.2 Gen 1, 3x USB 2.0
• Video outputs: 1x HDMI, 1x DisplayPort (CPU with integrated graphics required)
• Fan headers: 7x 4-pin PWM
• RGB headers: 3x addressable RGB, 1x RGB (Aura Sync)
• Colour: Black
• Dimensions (W x H x D): 244 x 305 x 50 mm
