Product Overview

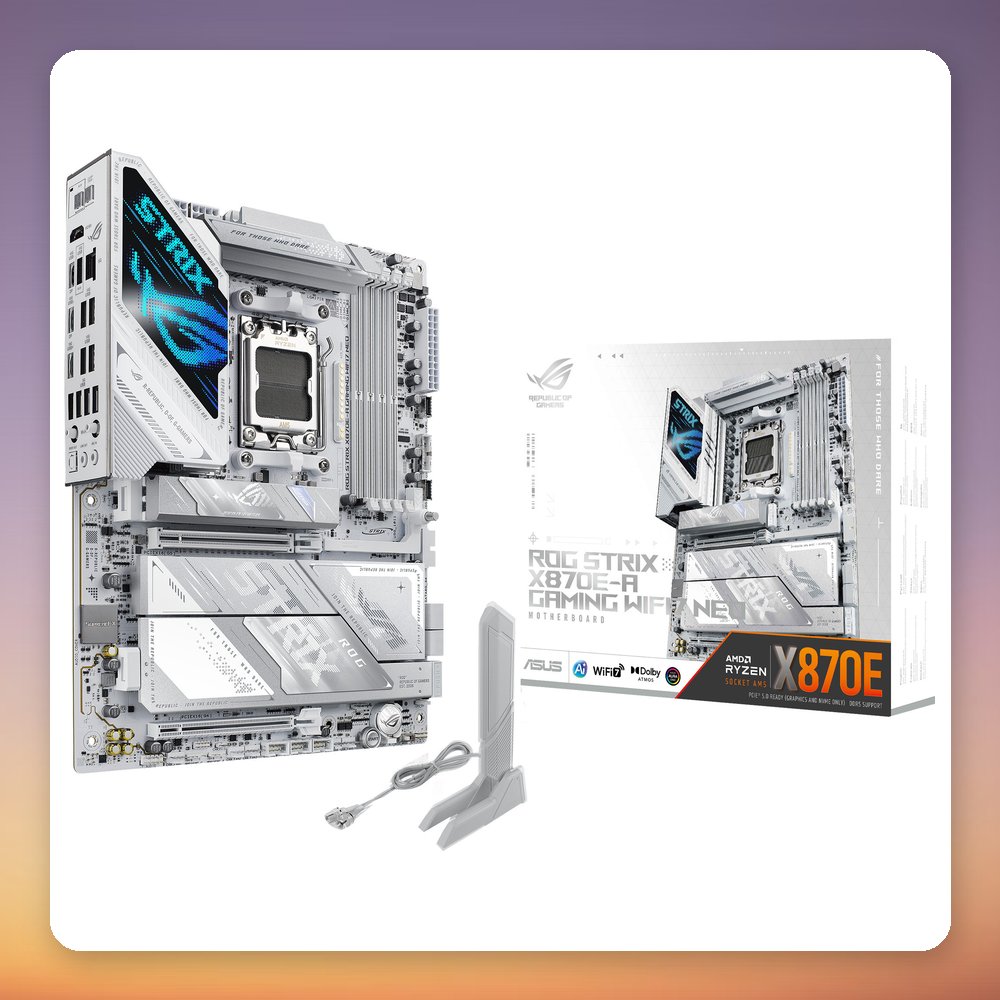

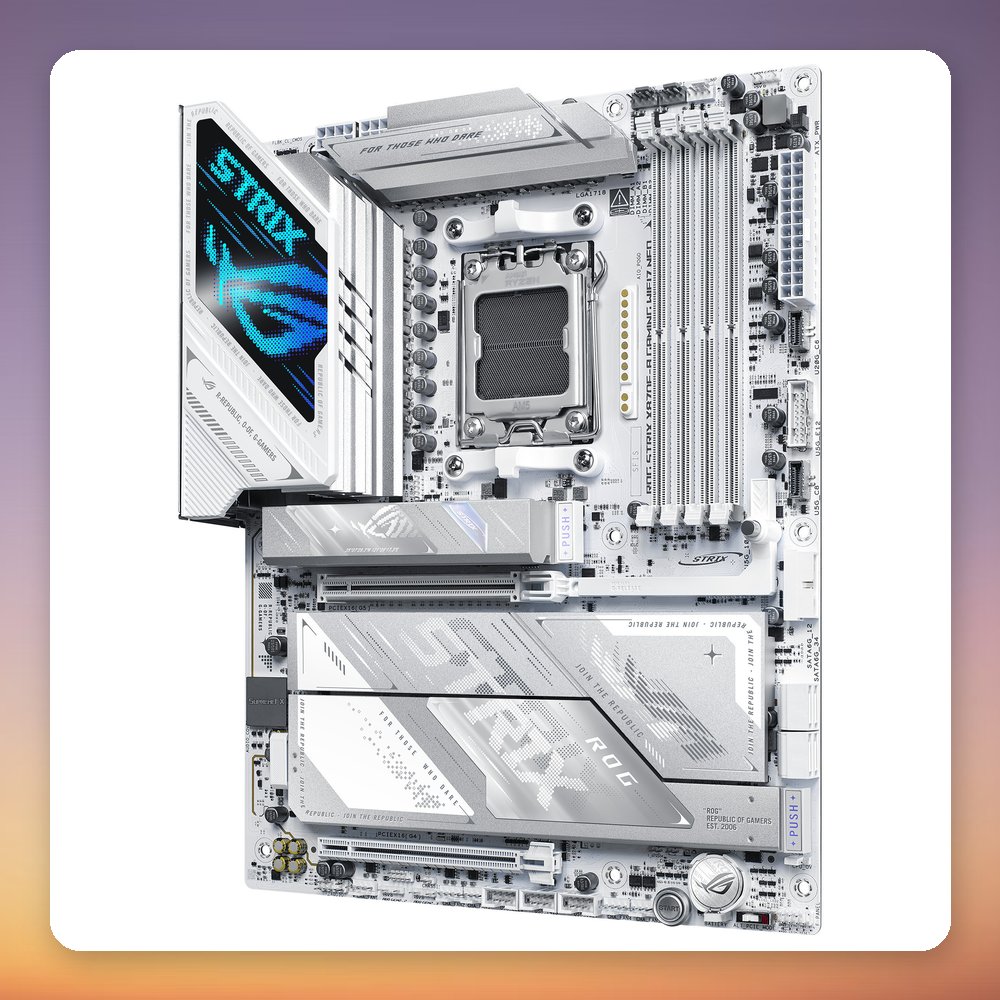

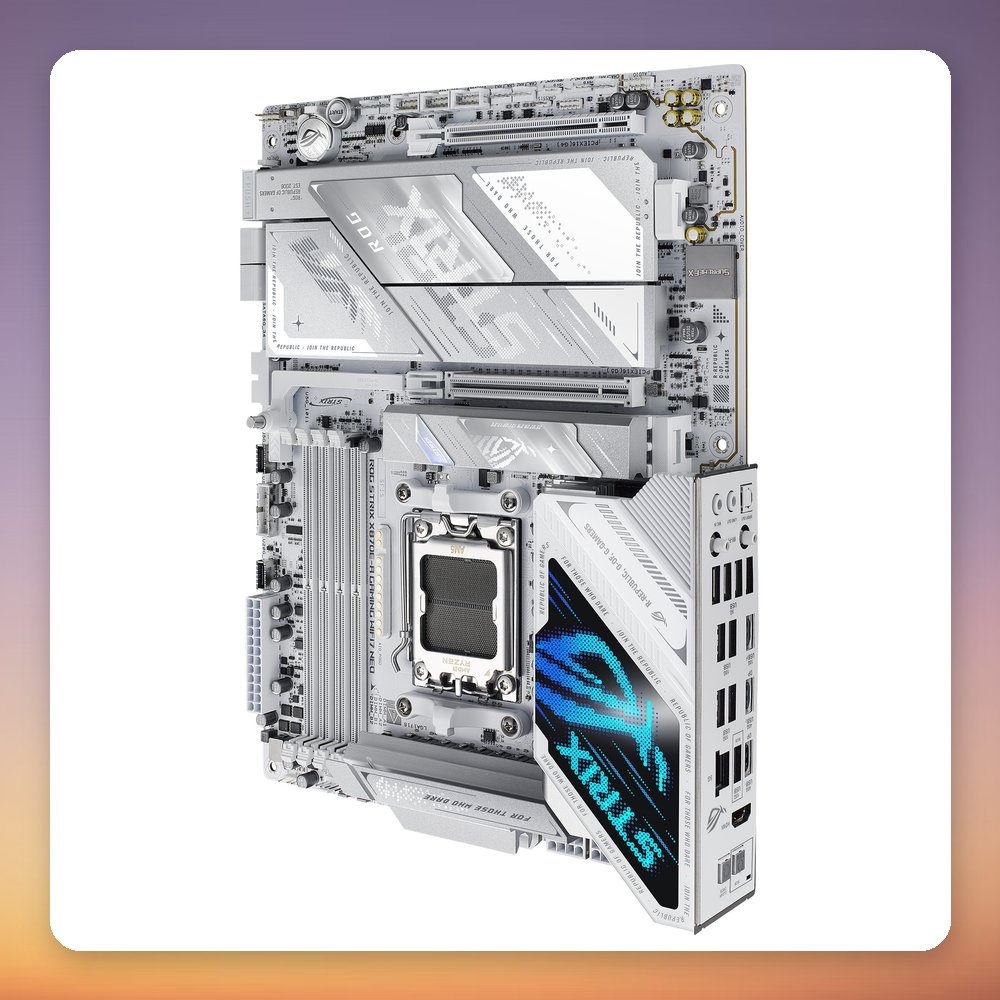

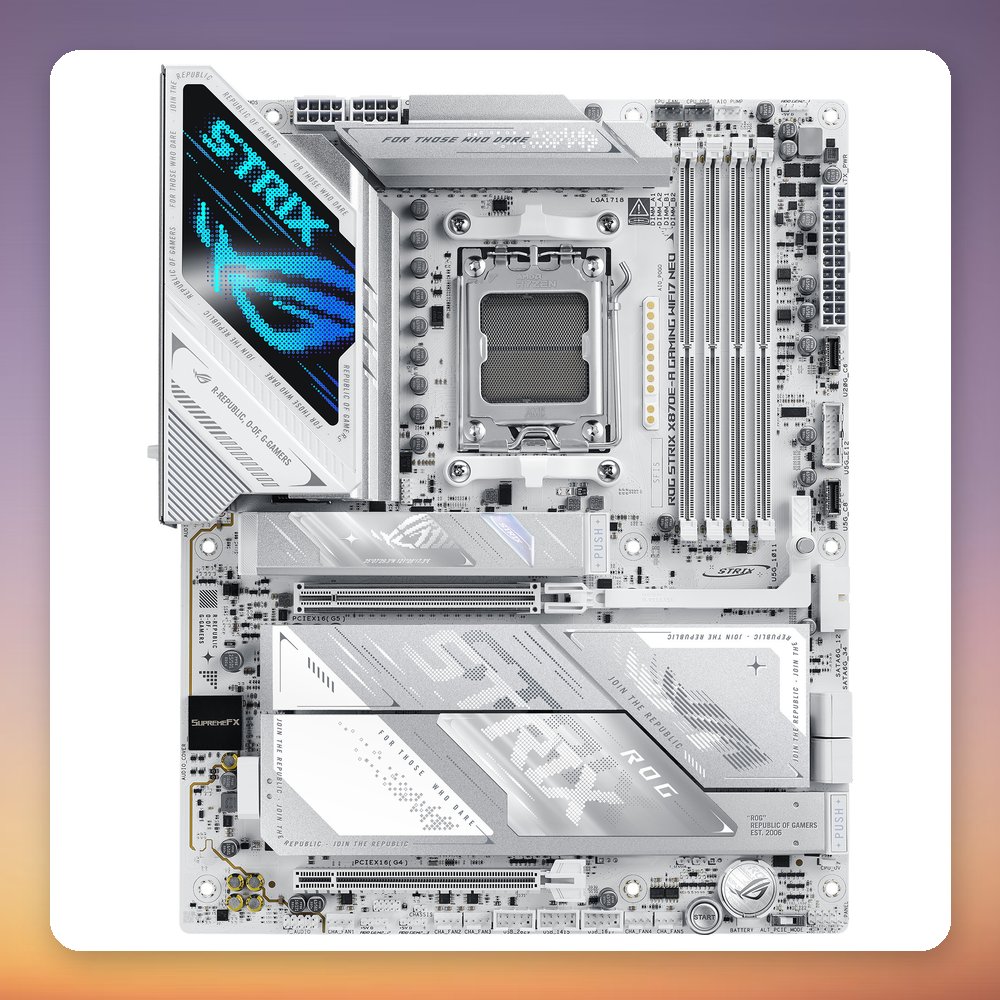

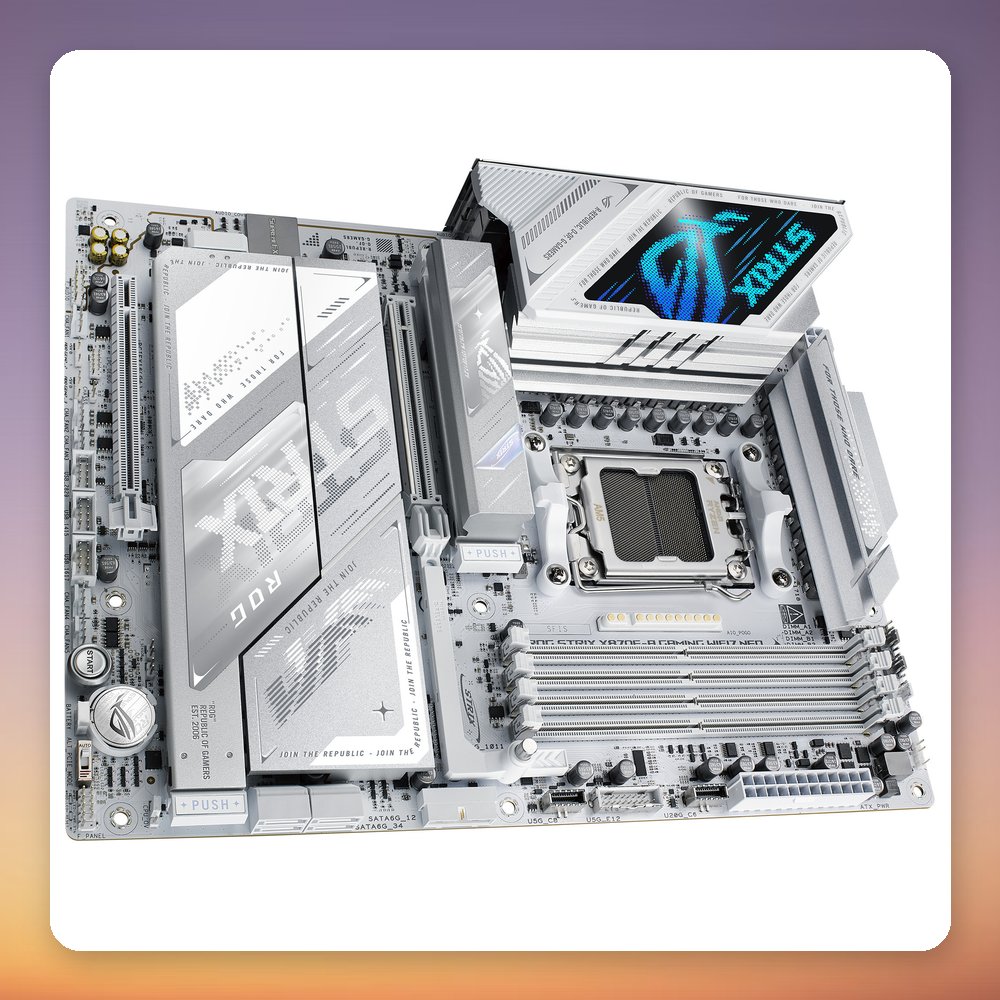

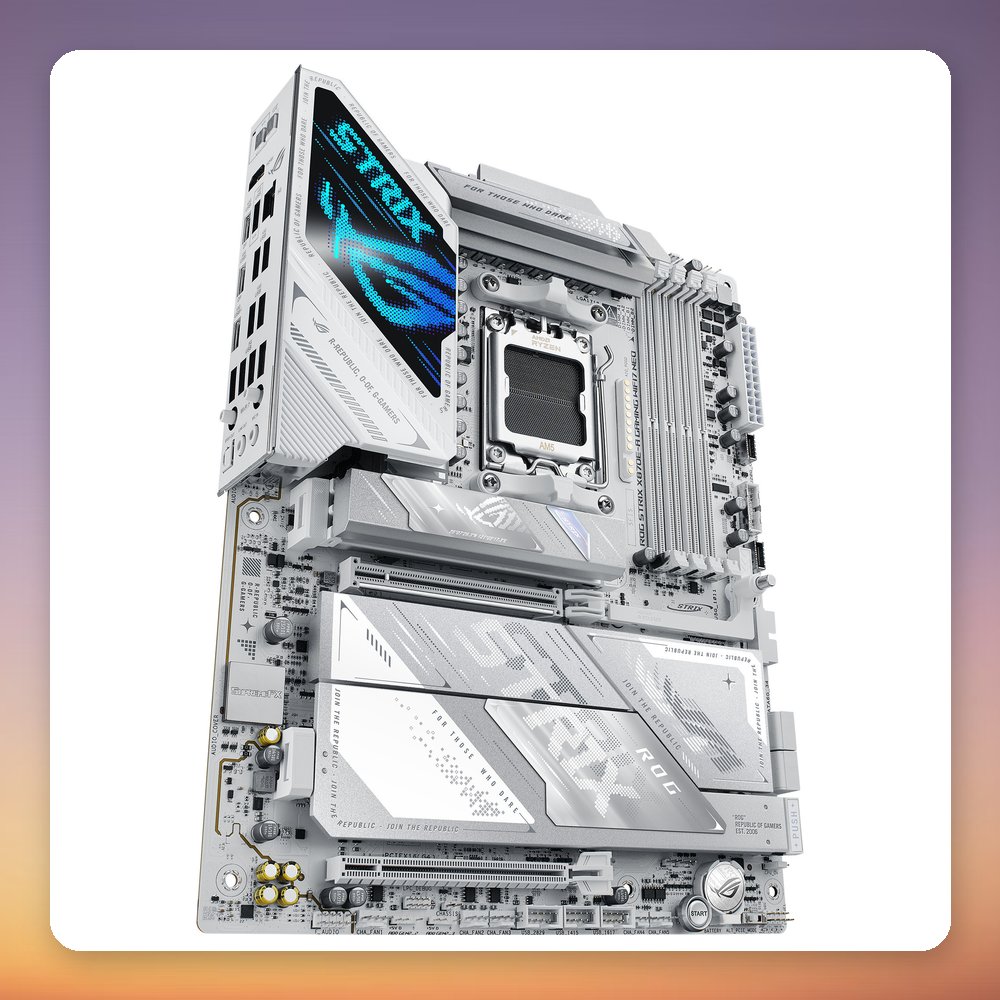

The Asus ROG Strix X870E-A Gaming WiFi7 NEO is an ATX motherboard for Socket AM5, built on the AMD X870E chipset and finished in white. It supports Ryzen 7000, 8000 and 9000 series processors, offers a PCIe 5.0 x16 slot and four M.2 slots that all run at up to PCIe 5.0. Connectivity includes two USB4 ports, Wi-Fi 7 with Bluetooth 5.4 and a 5 Gigabit Ethernet port.

With four DDR5 slots for up to 256 GB of memory, ECC and non-ECC support, and four SATA III ports alongside the M.2 slots, this board suits a white-themed gaming or high-performance AM5 build with plenty of storage. It also includes three addressable RGB headers with Aura Sync, six 4-pin PWM fan headers and a front-panel USB-C 20 Gbps connector. A BIOS update may be required for the newest processors.

Specification

• Manufacturer: Asus
• Model: ROG Strix X870E-A Gaming WiFi7 NEO
• MPN: 90MB1P30-M0EAY0
• EAN: 4711636491617
• Socket: AMD Socket AM5
• Chipset: AMD X870E
• Form factor: ATX (305 x 244 mm)
• Memory: 4x DDR5 DIMM, dual-channel, up to 256 GB, ECC and non-ECC
• Max memory speed: Up to 9600 MHz (overclocked)
• PCIe slots: 1x PCIe 5.0 x16
• M.2 slots: 4x M.2 (M key), all up to PCIe 5.0
• SATA: 4x SATA III, RAID 0/1/5/10
• Rear USB: 2x USB4, 1x USB-C 10 Gbps, 5x USB-A 10 Gbps, 4x USB-A 5 Gbps
• Internal USB: 1x USB-C 20 Gbps (USB 3.2 Gen 2×2), USB 3.2 Gen 1 and USB 2.0 headers
• Networking: Realtek 5 Gigabit Ethernet, Wi-Fi 7 (MediaTek MT7925), Bluetooth 5.4
• Video output: HDMI, 2x DisplayPort via USB4 (CPU with integrated graphics required)
• RGB: 3x addressable RGB headers, Aura Sync
• Colour: White
• Weight: 1.9 kg
