Product Overview

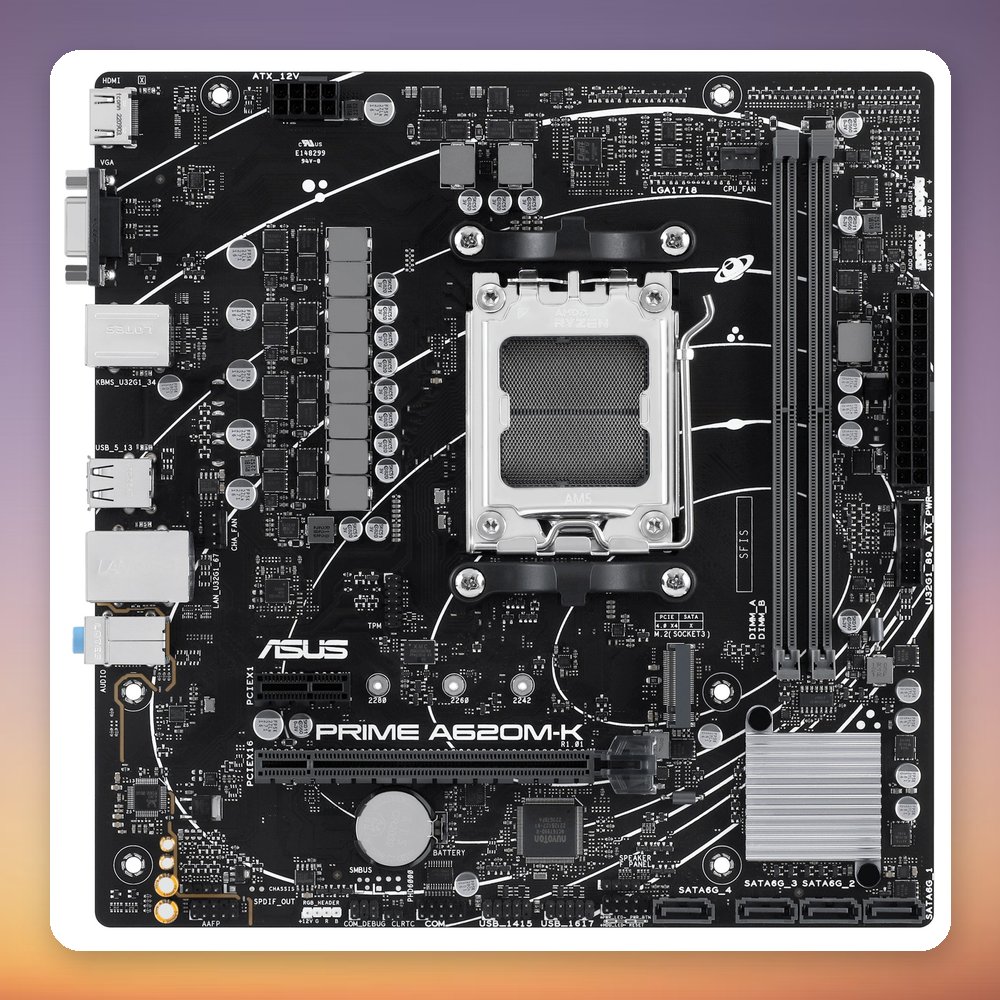

The Asus PRIME A620M-K is a Micro-ATX motherboard built on the AMD A620 chipset with a Socket AM5 CPU socket. It takes two DDR5 DIMMs in dual-channel for up to 96 GB of memory, with supported speeds from 4800 up to 6400 MHz in the Icecat data (the Wave listing adds overclocked profiles up to 7000). A PCIe 4.0 x16 slot handles the graphics card, and the single M.2 slot is a PCIe-interface slot for an SSD.

This board suits a compact, budget-minded Ryzen 7000, 8000 or 9000 build, including X3D models, according to the supported CPU list. Video outputs (HDMI and VGA) only work with a CPU that has integrated graphics. You also get four SATA 6 Gbps ports, four USB 3.2 Gen 1 Type-A ports on the rear, Realtek Gigabit Ethernet, Realtek 7.1 audio and Aura Sync RGB headers. There is no Wi-Fi. Two SATA cables and an M.2 screw set are included.

Specification

• Manufacturer: Asus
• Model: PRIME A620M-K
• MPN: 90MB1F40-M0EAY0
• EAN: 4711387242087
• Socket: AMD AM5
• Chipset: AMD A620
• Form factor: Micro-ATX
• Memory: 2x DDR5 DIMM, dual-channel, up to 96 GB, non-ECC
• Memory speed: DDR5-4800 to 6400 MHz (higher speeds with overclocking)
• Expansion slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
• Storage: 1x M.2 (PCIe), 4x SATA 6 Gbps, RAID support

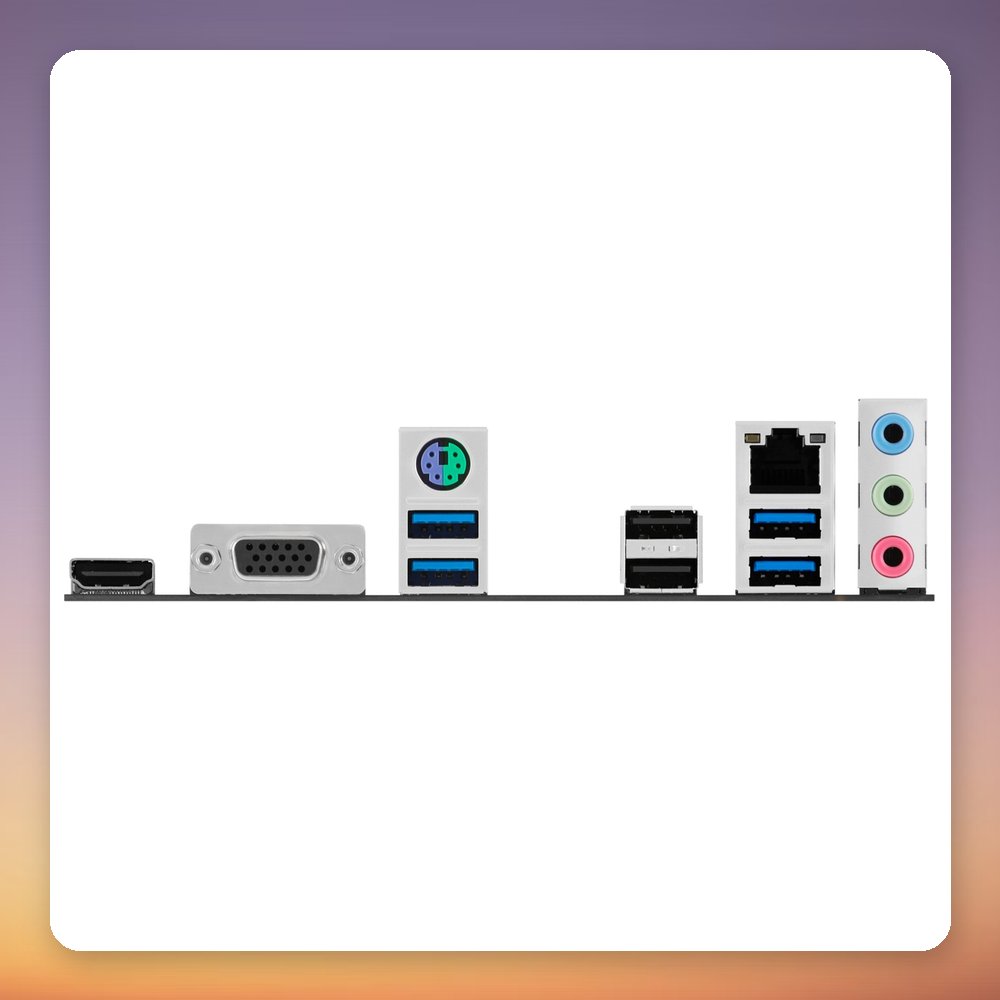

• Rear I/O: 4x USB 3.2 Gen 1 Type-A, 2x USB 2.0, HDMI, VGA, PS/2, RJ-45, 3x audio jacks
• Internal headers: 2x 4-pin PWM fan, 2x addressable RGB, 1x RGB, TPM, serial port
• Networking: Realtek 1 Gb Ethernet, no Wi-Fi
• Audio: Realtek 7.1 channel
• RGB: Aura Sync
• Power connectors: 24-pin ATX + 8-pin EPS
• BIOS: UEFI AMI, 256 Mbit flash ROM
• Dimensions (W x D): 226 mm x 221 mm

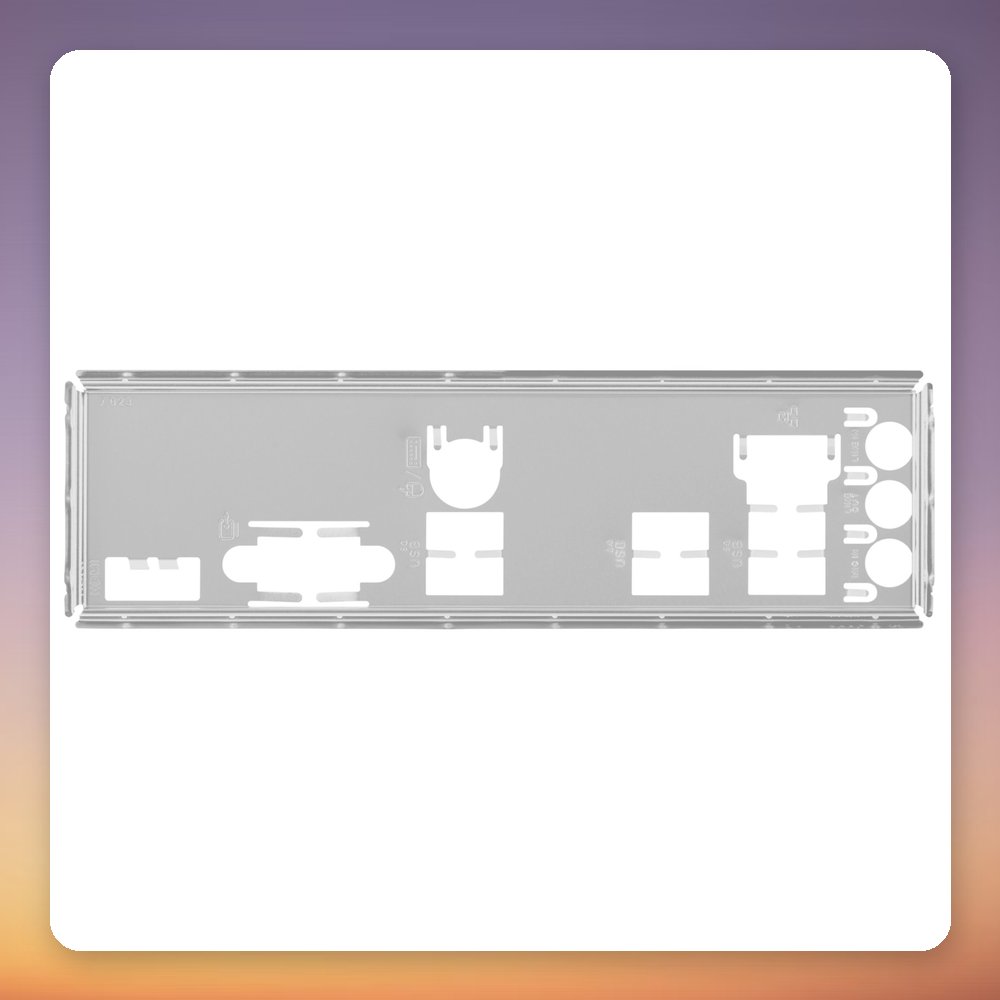

• In the box: 2x SATA cables, I/O shield, M.2 screw set, manual
