Name: Asus PRIME B840-PLUS WIFI AMD B840 AM5 ATX Motherboard, DDR5, Wi-Fi 6E
Brand: Asus
SKU: 100102603
Price: 218.62 EUR
Availability: InStock

Asus PRIME B840-PLUS WIFI AMD B840 AM5 ATX Motherboard, DDR5, Wi-Fi 6E

€218.62

Delivery: 7-12 business days
Asus PRIME B840-PLUS WIFI AMD B840 AM5 ATX Motherboard, DDR5, Wi-Fi 6E

Three M.2 slots, two of them PCIe 4.0
Wi-Fi 6E, Bluetooth 5.3 and 2.5 Gb Ethernet built in
Seven 4-pin PWM fan headers and three ARGB headers

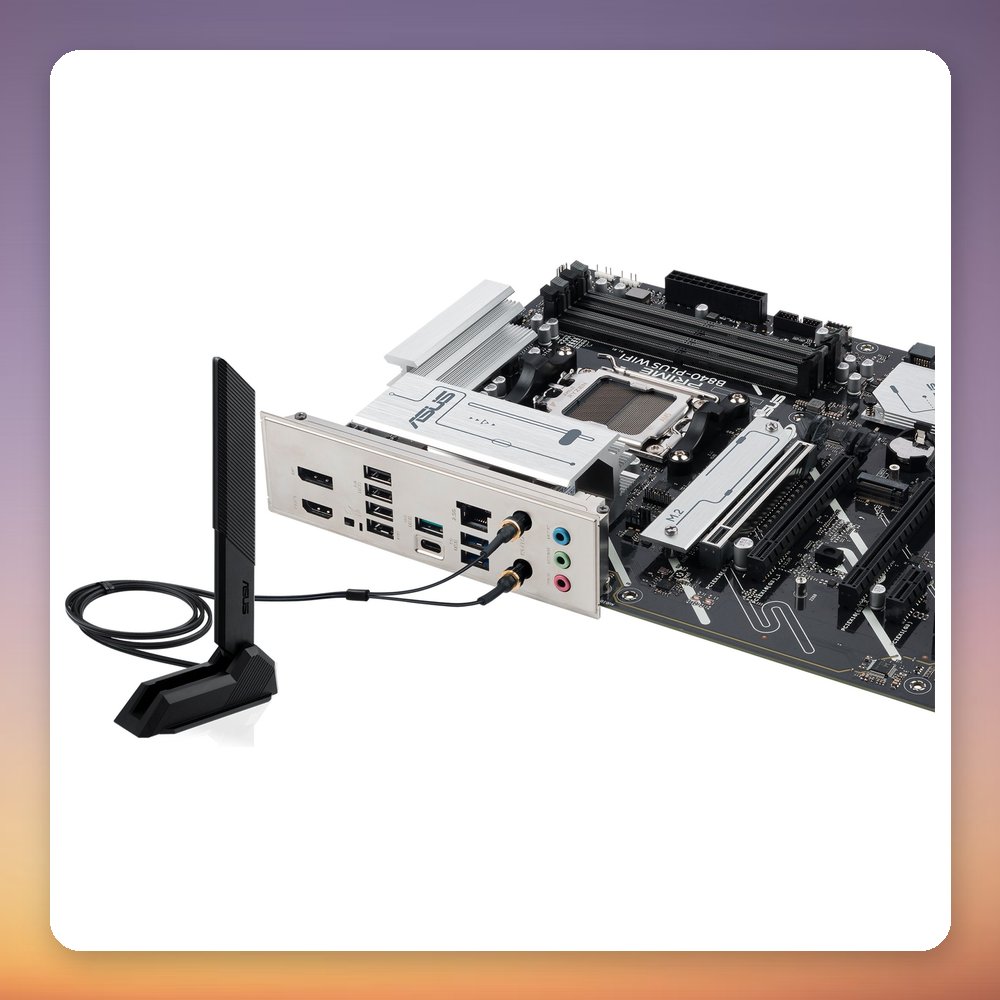

USB-C 10 Gbit/s on rear I/O

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100102603 Category: AMD Motherboards Tags: Asus,, Intel,, motherboard,, Wi-Fi Brand: Asus

Description
Additional information

✅

Product Overview

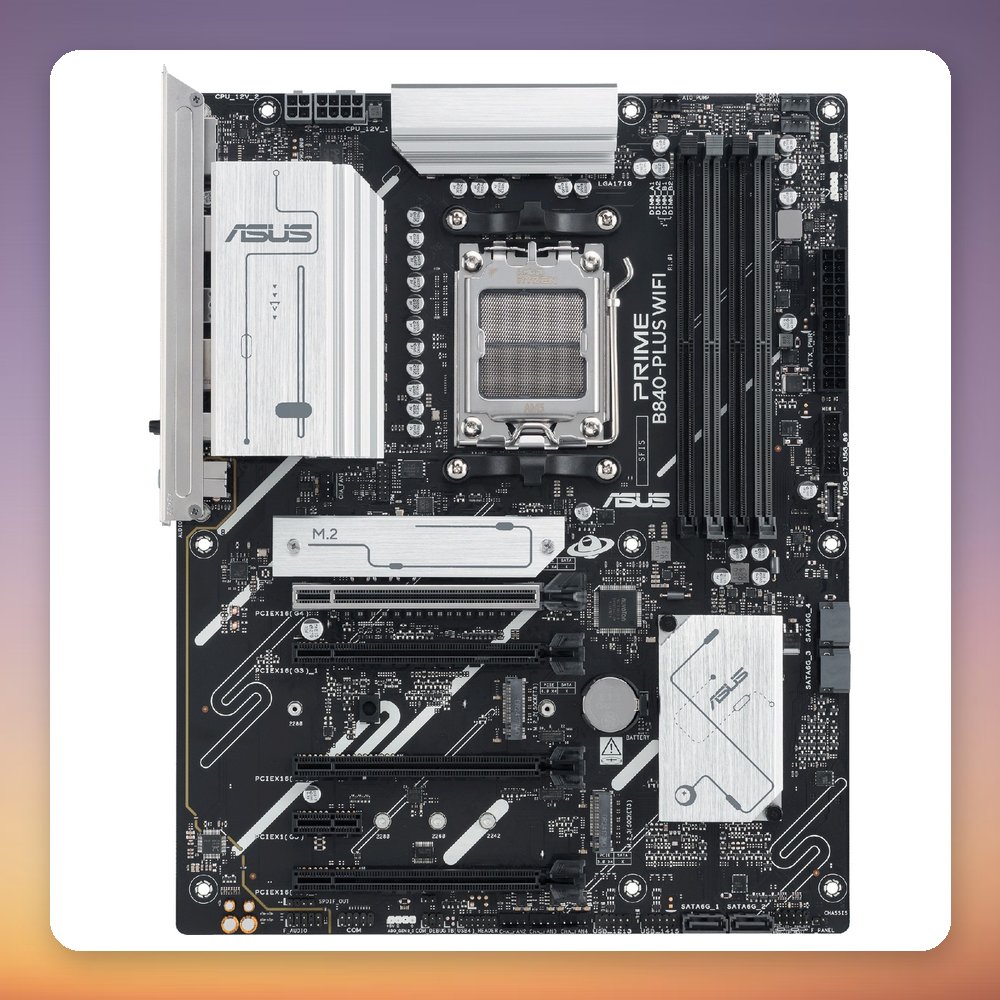

The Asus PRIME B840-PLUS WIFI is an ATX motherboard for Socket AM5 built on the AMD B840 chipset. It supports AMD Ryzen 7000, 8000 and 9000 series processors, including X3D models, and offers four DDR5 slots, three M.2 slots (two PCIe 4.0, one PCIe 3.0), Wi-Fi 6E with Bluetooth 5.3 and 2.5 Gigabit Ethernet on board.

It suits a mid-range Ryzen AM5 gaming or general-purpose build where you want fast NVMe storage, built-in wireless and plenty of fan headers without paying for a higher-tier chipset. Seven 4-pin PWM fan headers and three addressable RGB headers (Aura Sync) cover cooling and lighting. Storage includes four SATA ports with RAID 0, 1, 5 and 10. Rear I/O has HDMI, DisplayPort and a USB-C 10 Gbit/s port. A BIOS update may be needed for the newest processors.

Specification

Manufacturer: Asus
Model: PRIME B840-PLUS WIFI
MPN: 90MB1IZ0-M0EAY0
EAN: 4711387797273
Socket: AMD AM5
Chipset: AMD B840
Form factor: ATX (305 x 244 mm)
Memory: 4x DDR5 DIMM, dual-channel, up to 7600 MT/s (OC)
Maximum memory: 192 GB (Asus description; Wave listing states 256 GB)
M.2 slots: 3x M.2 (M key): 2x PCIe 4.0, 1x PCIe 3.0
SATA: 4x SATA III, RAID 0, 1, 5, 10
Expansion slots: 1x PCIe 4.0 x16, 3x PCIe 3.0 x16, 1x PCIe 3.0 x1
Networking: Realtek 2.5 Gb Ethernet, Wi-Fi 6E, Bluetooth 5.3
Rear USB: 1x USB-C 10 Gbit/s, 1x USB-A 10 Gbit/s, 2x USB-A 5 Gbit/s, 4x USB 2.0
Video outputs: 1x HDMI, 1x DisplayPort (needs CPU with integrated graphics)
Audio: Realtek 7.1 surround sound
Fan headers: 7x 4-pin PWM
RGB: 3x addressable RGB headers, Aura Sync
Power connectors: 24-pin + 8-pin + 4-pin ATX12V
