Overview

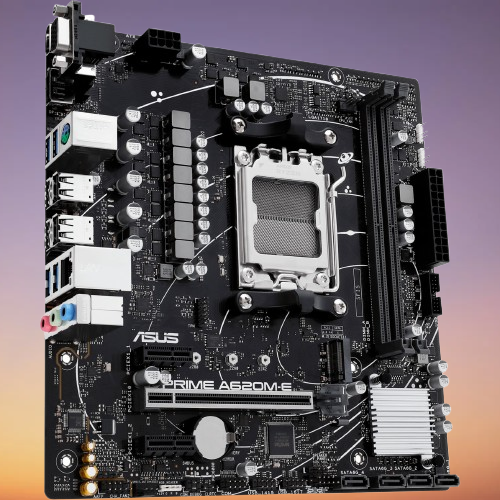

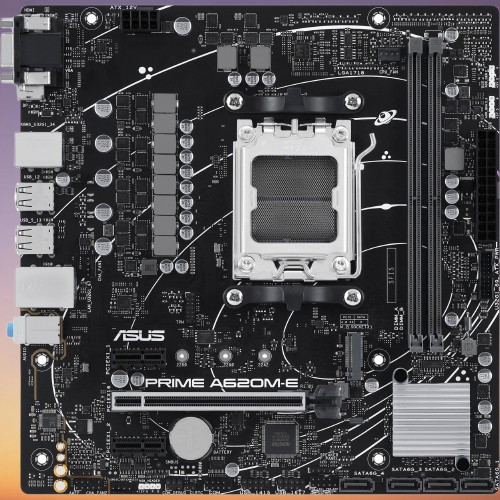

The ASUS PRIME A620M-E-CSM motherboard is designed with the AMD A620 chipset and is compatible with AMD processors utilizing the AM5 socket. It supports up to 96 GB of DDR5 RAM across two DIMM slots configured in dual-channel mode. Key features include a PCIe 4.0 x16 slot, two PCIe 3.0 x1 slots, 8-channel audio, a Gigabit LAN interface, four SATA3 ports, an M.2 slot for high-speed storage, and multiple USB connectivity options, making it a versatile choice for various computing needs.

Technical Specification

• Type – Motherboard
• Color – black/grey
• EAN – 4711387236772
• Manufacturer’s No. – 90MB1F50-M0EAYC
• Base – AM5
• Maximum supported CPUs – 1
• Operating system Support – Windows 10 ready/ Windows 11 ready
• Processor Supported models:
  • Ryzen 5 7xxx (Raphael)
  • Ryzen 5 7xxxX (Raphael)
  • Ryzen 5 7xxxF (Raphael)
  • Ryzen 5 7xxxX3D (Raphael)
  • Ryzen 5 8xxxF (Phoenix)
  • Ryzen 5 8xxxG (Phoenix)
  • Ryzen 5 9xxxX (Granite Ridge)
  • Ryzen 5 9xxxF (Granite Ridge)
  • Ryzen 7 7xxx (Raphael)
  • Ryzen 7 7xxxX (Raphael)
  • Ryzen 7 7xxxX3D (Raphael)
  • Ryzen 7 8xxxG (Phoenix)
  • Ryzen 7 8xxxF (Phoenix)
  • Ryzen 7 9xxxX (Granite Ridge)
  • Ryzen 7 9xxxX3D (Granite Ridge)
  • Ryzen 9 7xxx (Raphael)
  • Ryzen 9 7xxxX (Raphael)
  • Ryzen 9 7xxxX3D (Raphael)
  • Ryzen 9 9xxxX (Granite Ridge)
  • Ryzen 9 9xxxX3D (Granite Ridge)
• Chipset – AMD A620
• Slots:
  • PCIe x16  – 1x (of which: 1x PCIe x16)
  • PCIe x1 – 2
• BIOS – 256Mb Flash ROM, UEFI AMI BIOS
• Form factor – µATX
• Use – PC
• Power Supply – ATX12V (24-Pin + 8-Pin)
• Memory:
  • Maximum – 96 GB
  • Number of sockets – 2x DDR5
  • Supported standards – DDR5 (OC)/7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800
  • Channels – 2
  • Maximum storage ranks – 4
  • Memory controller in CPU – Yes

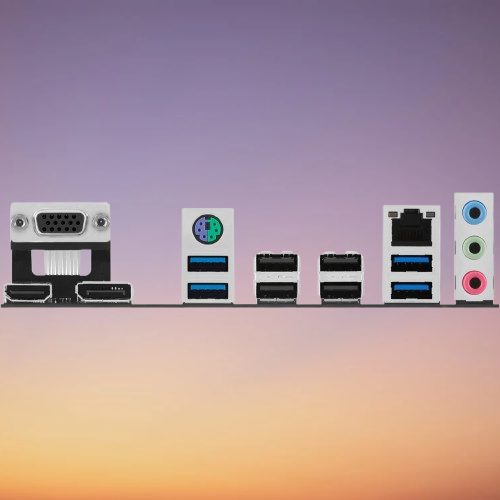

• External connections:
  • Mouse/keyboard combo (PS/2) – 1
  • USB-A 3.2 Gen 1 (5 Gbit/s) – 4 (A notice: The designation USB 3.2 Gen 1 corresponds to the earlier designations USB 3.1 Gen 1 and USB 3.0.)
  • USB-A 2.0 – 2
  • VGA – 1
  • HDMI – 1
  • DisplayPort-Out – 1
  • Microphone – 1
  • Line-In – 1
  • Line-Out – 1
  • RJ-45 – 1
• Internal connections:
  • SATA – 4
  • M.2 – 1
  • M.2 interface – PCIe
  • RGB LED Header – 1
  • addressable RGB LED header – 2
  • 4-pin PWM fan – 3
• Connections (optional):
  • USB 3.2 Gen 1 (5 Gbit/s) – 2
  • USB 2.0 – 4
  • Serial – 1
  • TPM – Yes
• RGB Standard – AURA Sync
• SATA controller – AMD A620
• Directly usable RAID levels – 0, 1, 10
• USB controller – AMD A620
• Onboard graphics – The motherboard’s graphics ports can only be used when using a CPU with an integrated graphics chip.
• Sound – Realtek 7.1 Surround Sound
• LAN – Realtek 1Gb Ethernet

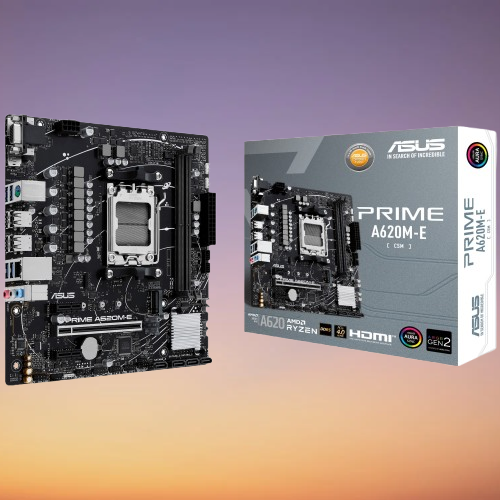

• Accesories available – 2x SATA cables, I/O shield, screw set for M.2 SSD, instructions
• Dimensions Width: 221 mm x Height: 226 mm


  ---
