ASRock B850 Pro RS ATX Motherboard, AM5, AMD B850, DDR5, 4x M.2
€170.06
Delivery: 7-12 business days
ASRock B850 Pro RS ATX Motherboard, AM5, AMD B850, DDR5, 4x M.2
- Four M.2 slots, with Slot 1 at PCIe Gen 5.0
- Supports Ryzen 7000, 8000 and 9000 series CPUs
- Four DDR5 slots, up to 256 GB and DDR5-8000+ (OC)
- Seven 4-pin PWM fan headers and 2.5 GbE LAN
More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.
In stock
✅
Product Overview

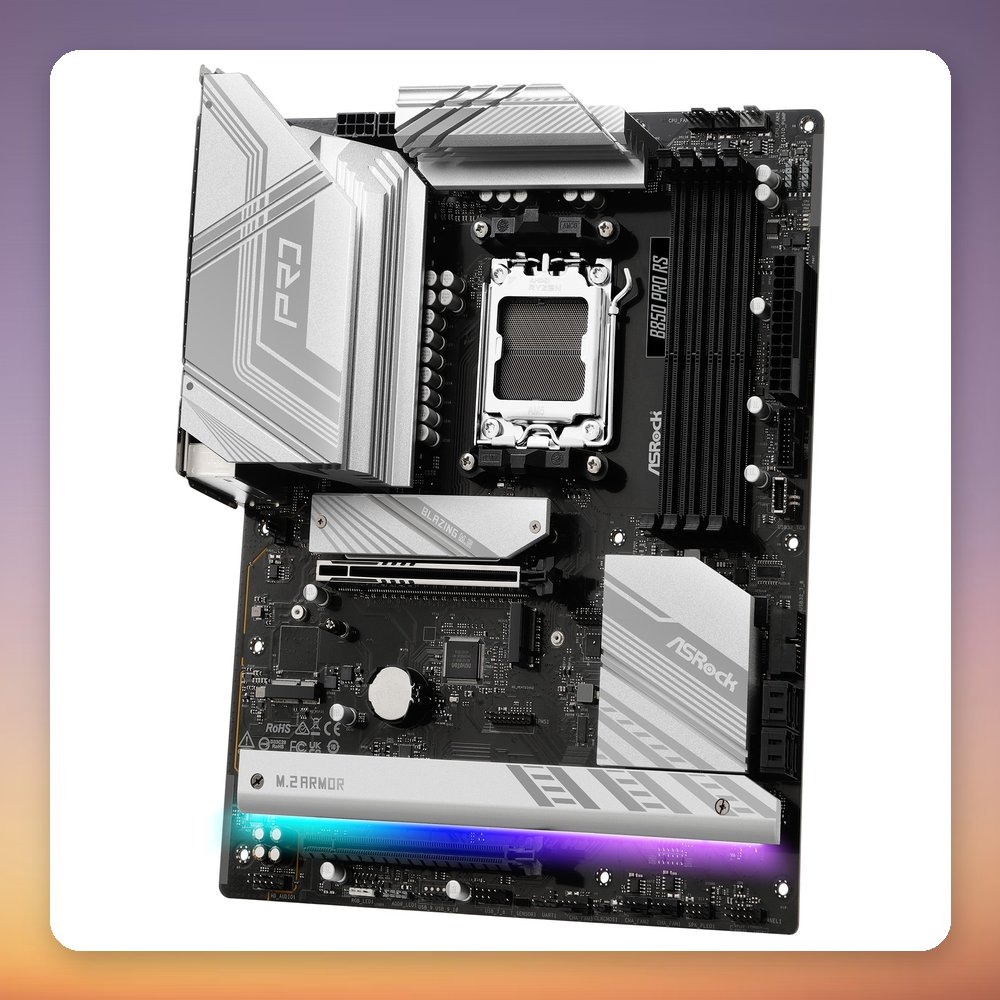

The ASRock B850 Pro RS is an ATX motherboard for AMD Socket AM5, built on the AMD B850 chipset. It supports Ryzen 7000, 8000 and 9000 series processors, including X3D models, and has four DDR5 slots for up to 256 GB of memory at speeds up to DDR5-8000+ (OC). Storage is a strong point, with four M.2 slots, the first running at PCIe Gen 5.0, plus four SATA ports.
This board suits a gaming or general-purpose AM5 build where you want plenty of storage and a solid port selection. The 2.5 Gigabit LAN, an external USB-C 3.2 Gen 2 (10 Gbit/s) port and seven 4-pin PWM fan headers cover most needs, while three addressable RGB headers let you add lighting. Integrated graphics outputs only work with a CPU that has an integrated graphics chip, and a BIOS update may be needed for the newest processors.
Specification
- Manufacturer: Asrock
- Model: B850 Pro RS
- MPN: 90-MXBQK0-A0UAYZ
- EAN: 4711581490161
- Socket: AM5
- Chipset: AMD B850
- Form factor: ATX
- Memory slots: 4x DDR5, dual channel
- Maximum memory: 256 GB (ECC supported)
- Memory speed: Up to DDR5-8000+ (OC)
- PCIe x16 slots: 2 (1x PCIe x16, 1x PCIe x4)
- M.2 slots: 4 (Slot 1 PCIe Gen 5.0, Slots 2-3 PCIe Gen 4.0, Slot 4 PCIe Gen 3.0)
- SATA ports: 4
- LAN: 2.5 Gigabit (Dragon RTL8125BG)
- Audio: Realtek ALC897

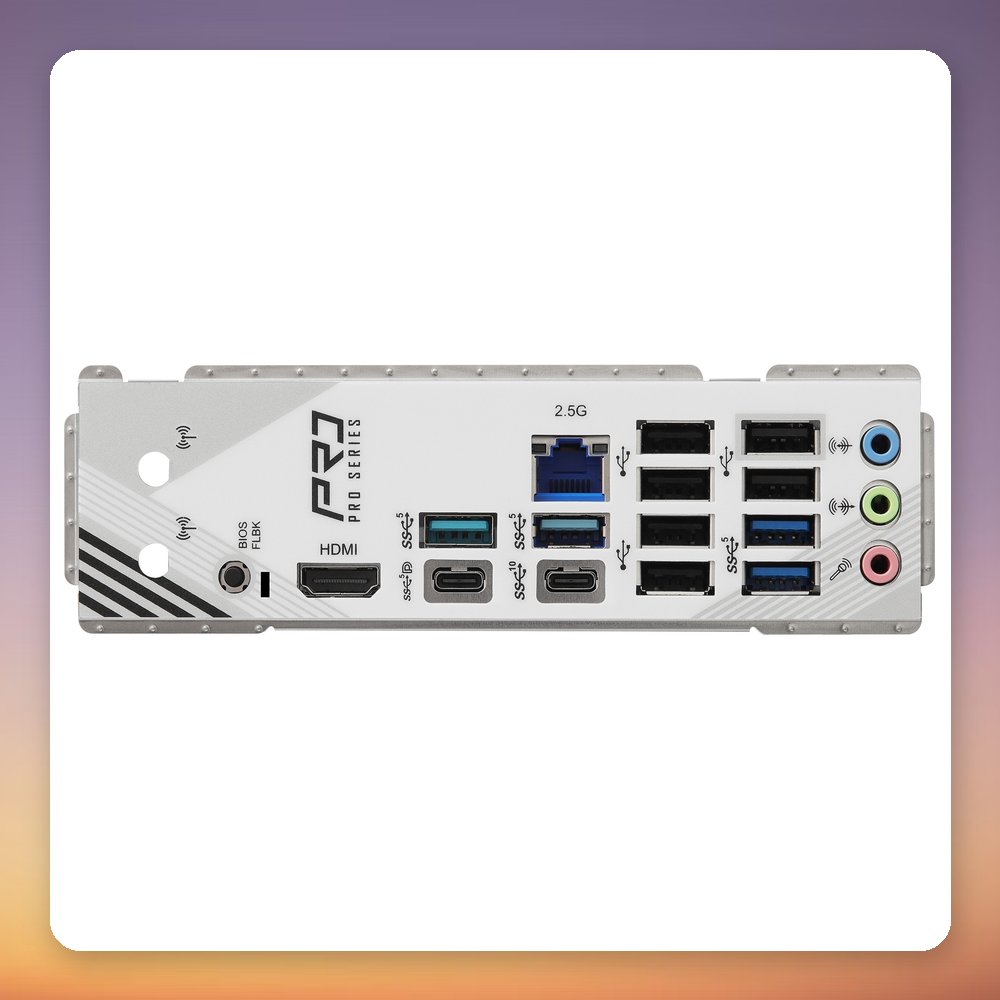

- Rear USB: 1x USB-C 3.2 Gen 2, 1x USB-C 3.2 Gen 1, 4x USB-A 3.2 Gen 1, 6x USB-A 2.0
- Video output: 1x HDMI (requires CPU with integrated graphics)
- Fan and RGB headers: 7x 4-pin PWM fan, 3x addressable RGB
- Power connectors: 24-pin + 8-pin ATX12V
- Dimensions (W x H): 244 x 305 mm
delivery time 7-12 business days
| Weight | 1.5 kg |
|---|
