Product Overview

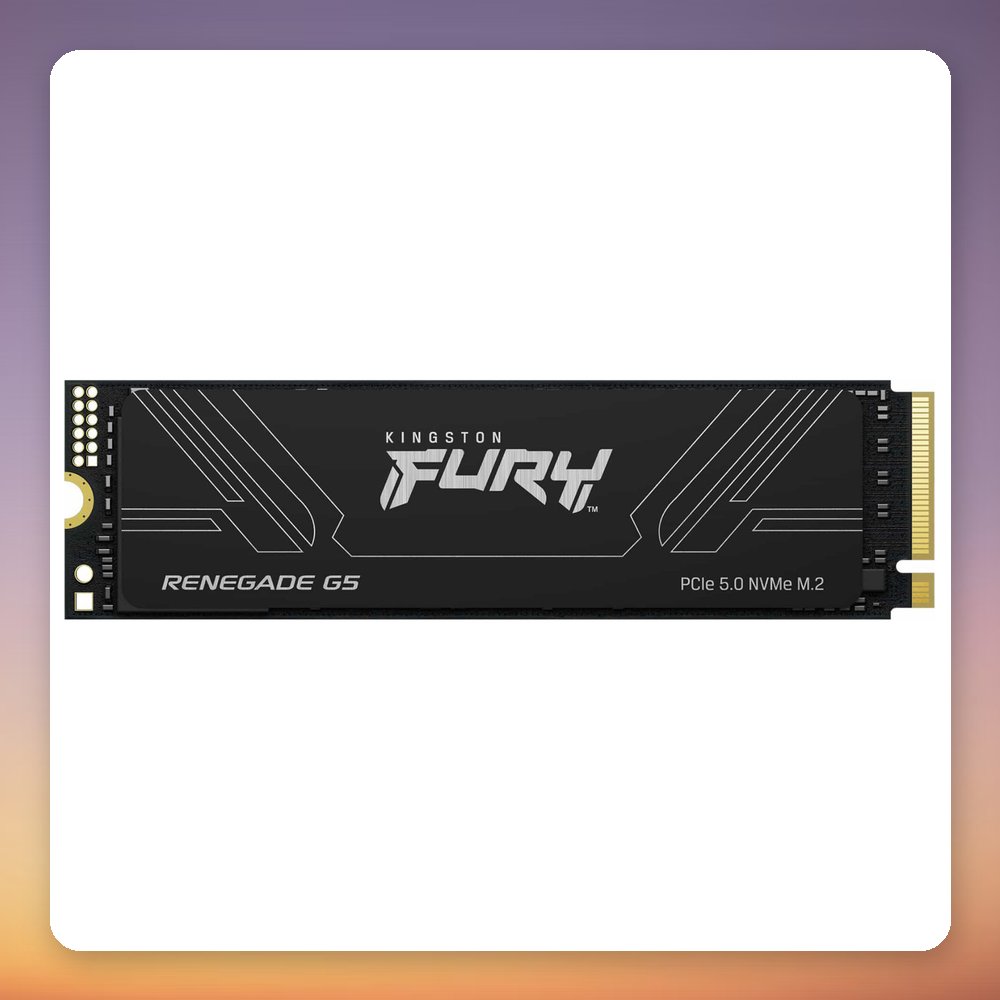

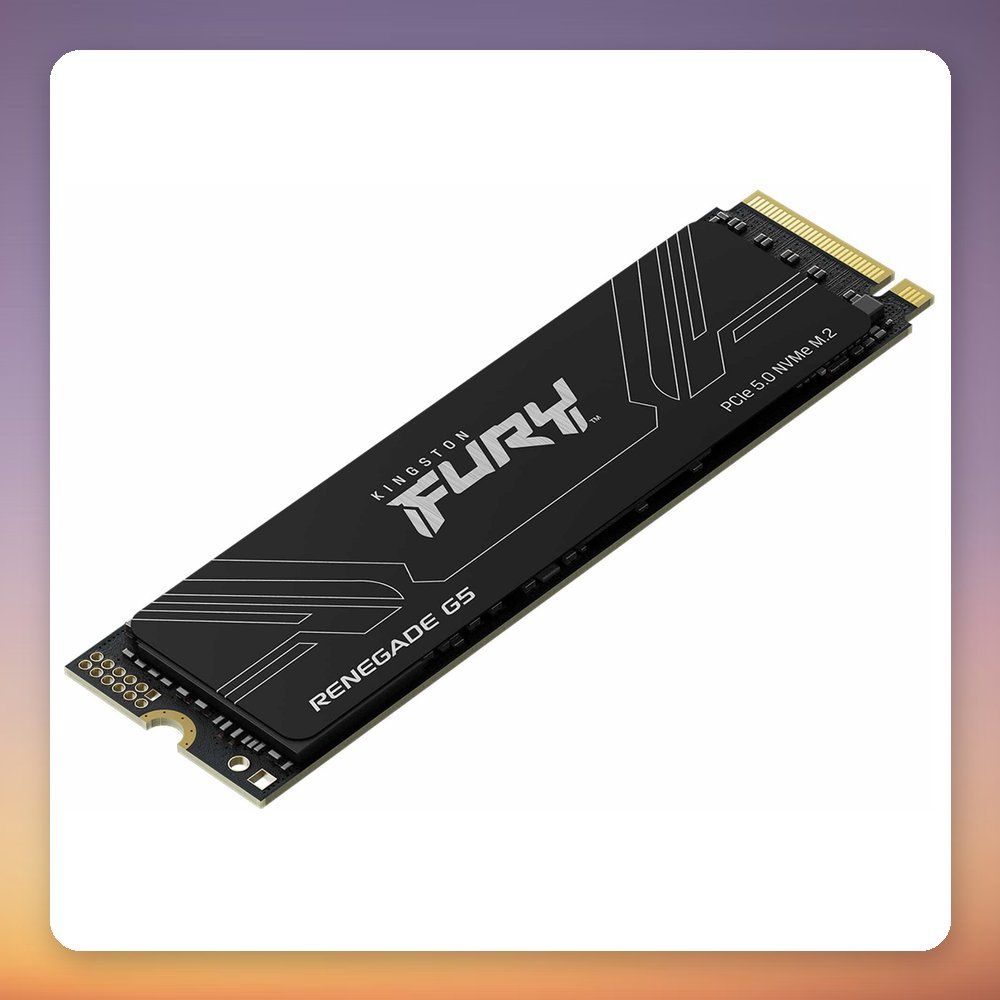

The Kingston FURY Renegade G5 8 TB is a PCIe 5.0 x4 NVMe M.2 2280 SSD with sequential speeds of up to 14,800 MB/s read and 14,000 MB/s write. It uses the Silicon Motion SM2508 controller built on 6nm lithography, 3D TLC NAND and a low-power DDR4 DRAM cache, with random performance of up to 2,200,000 IOPS for both reads and writes.

With 8 TB of capacity, this drive suits gaming PCs, video editing and data-heavy workflows where a large library of games and projects needs to sit on a single drive. The compact M.2 2280 form factor fits most motherboards and is backwards compatible with Gen3 and Gen4 systems, though full speed needs a PCIe 5.0 x4 M.2 slot. A 12-layer PCB is used for signal quality and data integrity, and the drive is rated at 2,000,000 hours MTBF.

Specification

• Manufacturer: Kingston
• Model: FURY Renegade G5
• MPN: SFYR2D/8T1
• EAN: 0740617351613
• Capacity: 8 TB
• Interface: PCIe 5.0 x4, NVMe
• Form factor: M.2 2280 (M key)
• Sequential read: Up to 14,800 MB/s
• Sequential write: Up to 14,000 MB/s
• Random read / write (4KB): Up to 2,200,000 / 2,200,000 IOPS
• NAND type: 3D TLC
• Controller: Silicon Motion SM2508
• DRAM cache: Yes (low-power DDR4)
• Power consumption: 7.5 W active, 9.5 W max, 0.27 W sleep
• MTBF: 2,000,000 hours
• Operating temperature: 0 – 70 °C
• Dimensions (W x H x D): 22 x 3.65 x 80 mm
• Weight: 9 g
• Colour: Black
