Product Overview

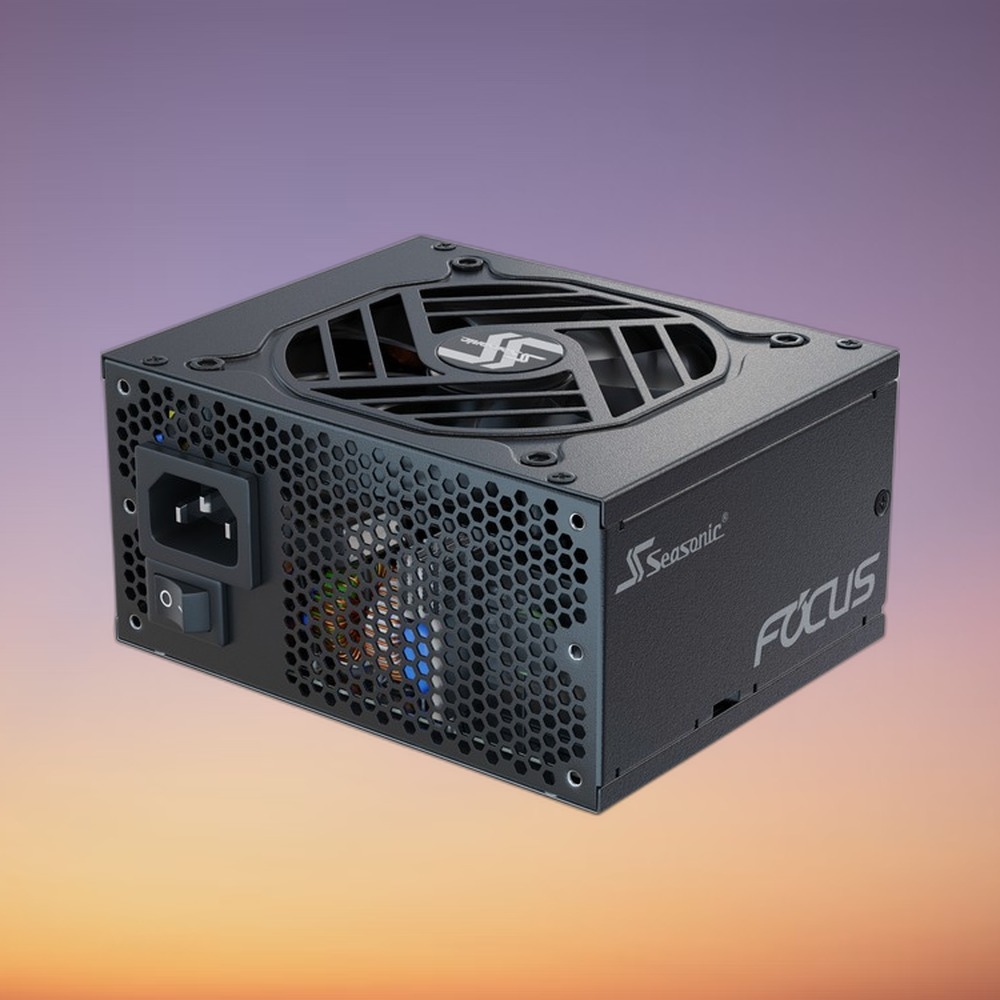

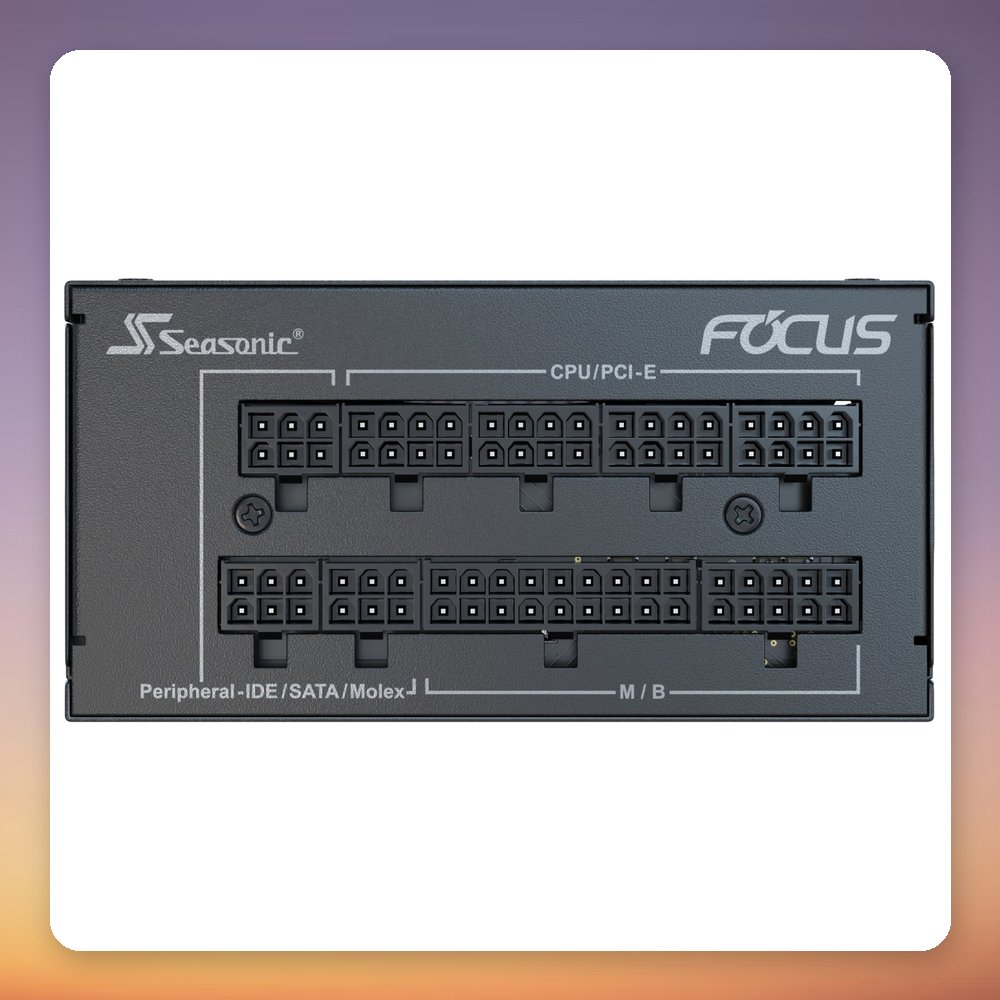

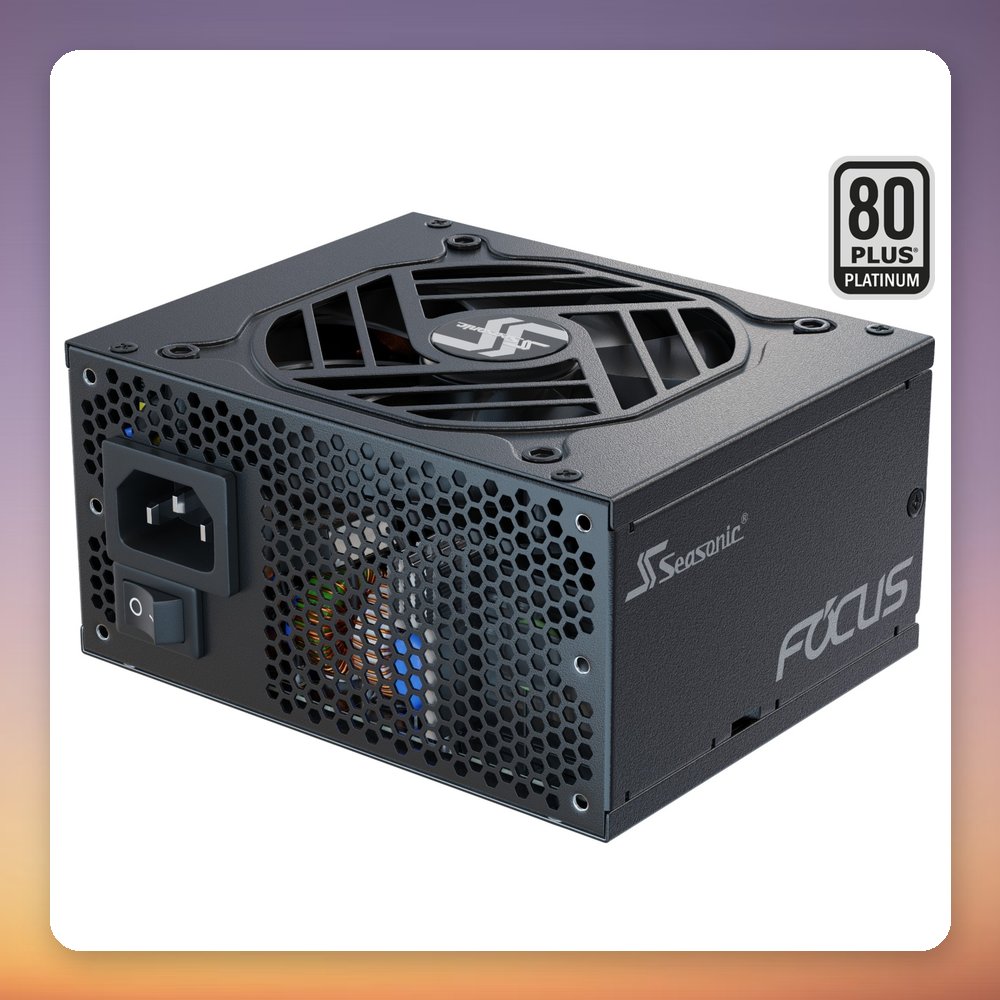

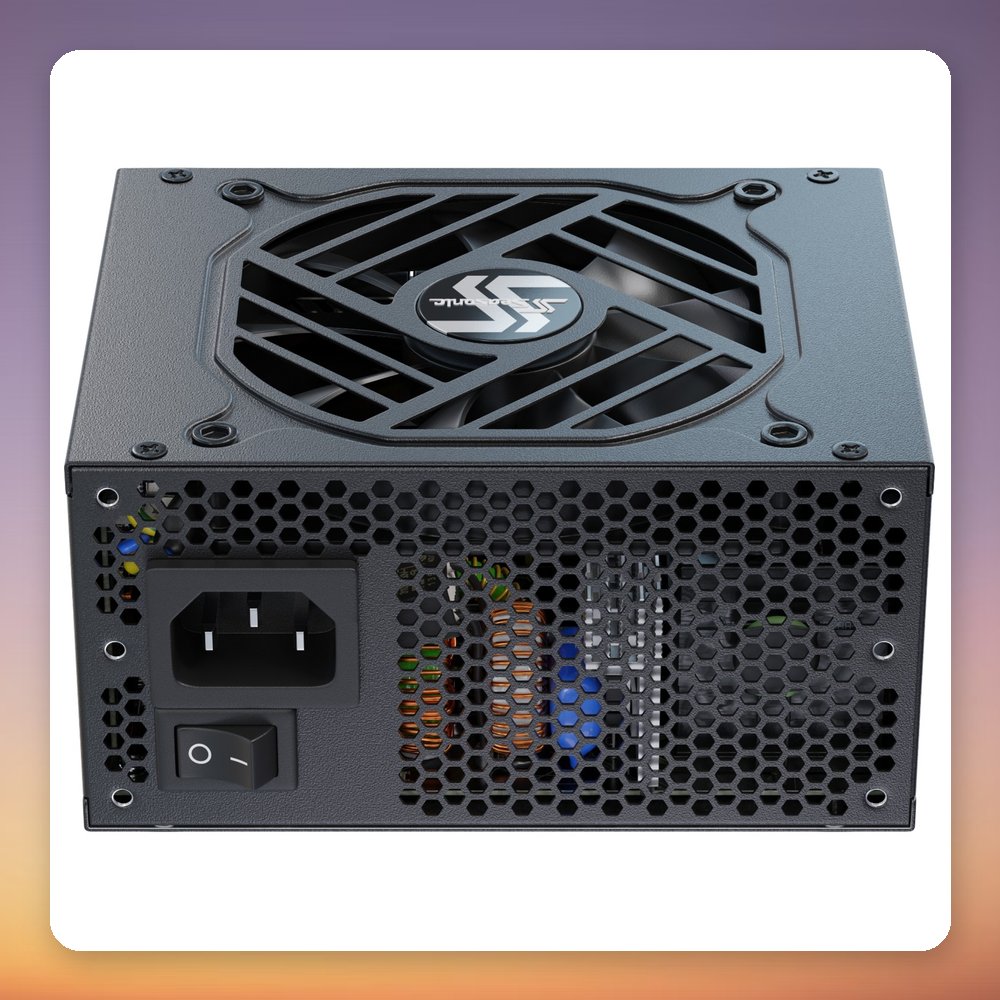

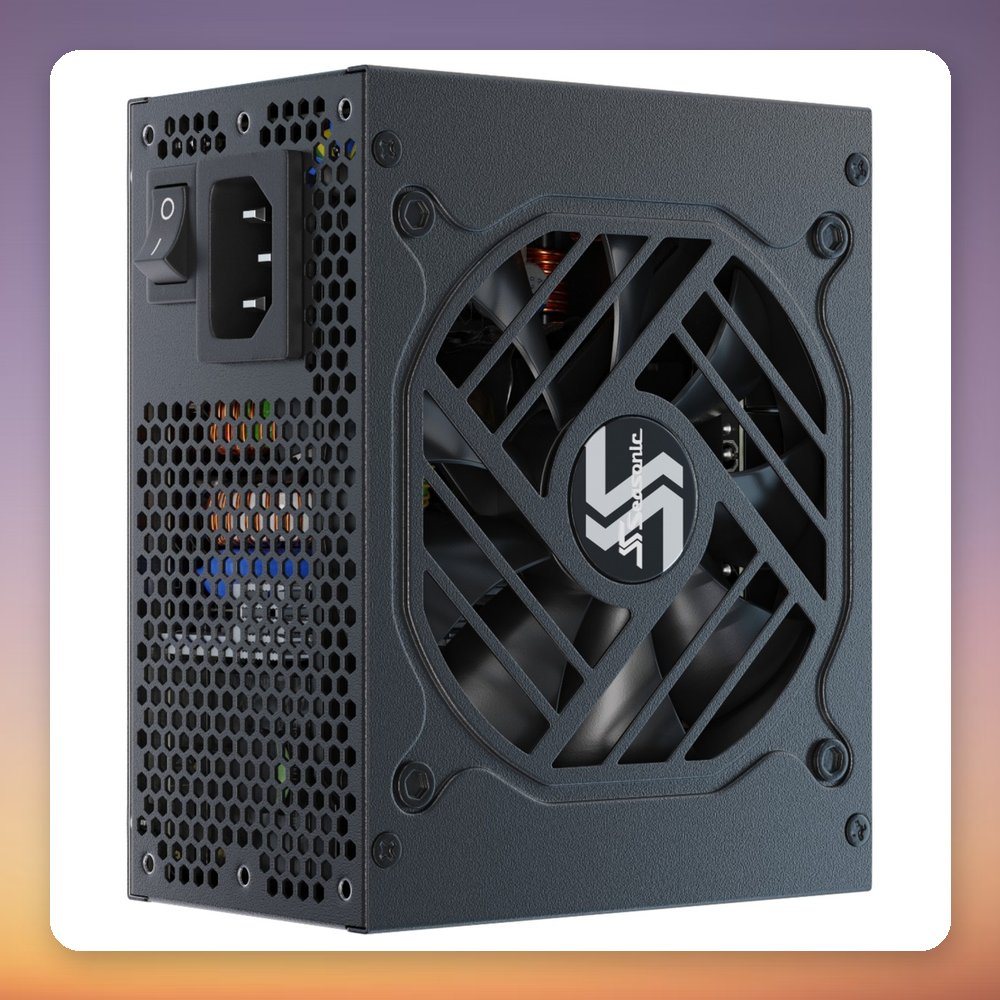

The Seasonic FOCUS SPX-650 is a 650 W SFX power supply with 80 PLUS Platinum certification, which is a high efficiency rating for a unit this compact. It measures just 125 x 63.5 x 100 mm, yet delivers 648 W on the single +12 V rail (54 A) and carries four 6+2-pin PCIe connectors for graphics cards. Cable management is included, so you only fit the leads you need.

This PSU suits small form factor gaming and compact builds where space is tight. It also ships with an SFX-to-ATX adapter bracket, so it can be mounted in a standard ATX case if you want more airflow room. A single 92 mm temperature-controlled fan uses Seasonic’s hybrid fan control, which is always active. Protections include OCP, OVP, UVP, OPP, SCP and OTP, and the unit has active PFC with a 100-240 V input range.

Specification

• Manufacturer: Seasonic
• Model: FOCUS SPX-650
• MPN: FOCUS-SPX-650
• EAN: 47111738771030
• Wattage: 650 W
• Form factor: SFX (with SFX-to-ATX adapter bracket)
• Efficiency certification: 80 PLUS Platinum
• Cable management: Yes
• +12 V output: 648 W (54 A, single rail)
• PCIe connectors: 4x 6+2-pin
• SATA connectors: 6x 15-pin
• Molex (5.25″) connectors: 3x 4-pin
• Motherboard / CPU power: 1x 24-pin ATX, 1x 4+4-pin 12 V
• Cooling: 1x 92 mm fan, temperature-controlled
• Input voltage: 100-240 V, active PFC
• Protections: OCP, OVP, UVP, OLP/OPP, SCP, OTP
• Standard: ATX12V 2.3
• Dimensions (W x H x D): 125 x 63.5 x 100 mm
