Product Overview

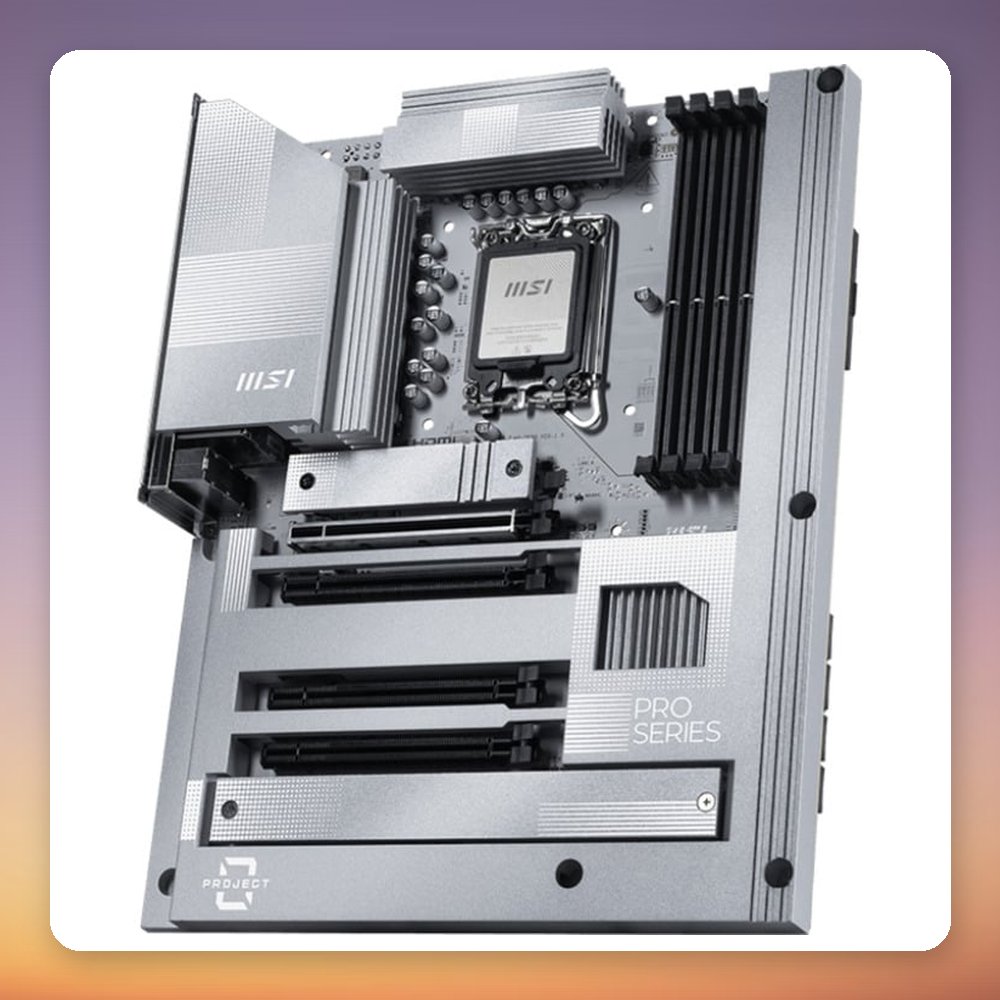

The MSI PRO Z890-S WIFI PZ is an ATX motherboard built on the Intel Z890 chipset for LGA 1851 processors, supporting Intel Core Ultra (Series 2) CPUs. What sets it apart is its white and silver finish, Wi-Fi 7 with Bluetooth 5.4, 2.5 GbE LAN and a front-facing Thunderbolt 4 USB-C port with DisplayPort video output, plus a BTF layout with rear-side power connectors.

With four DDR5 slots supporting up to 256 GB at speeds up to DDR5-8600 (O.C.), a PCIe 5.0 x16 slot, three M.2 slots and four SATA ports, it suits a light-coloured gaming or workstation-style build around a Core Ultra K-series chip. Six fan headers and addressable RGB headers (Mystic Light) help with cooling and lighting, and a BIOS update may be needed for the newest processors.

Specification

• Manufacturer: MSI
• Model: PRO Z890-S WIFI PZ
• MPN: 7E58-001R
• EAN: 4711377288996
• Socket: LGA 1851
• Chipset: Intel Z890
• Form factor: ATX
• Memory: 4x DDR5 DIMM, up to 256 GB, dual-channel, up to DDR5-8600 (O.C.)
• Expansion slots: 1x PCIe x16 (Gen 5), 2x PCIe x16 (x4 lanes, Gen 4), 1x PCIe x16 (x1 lane, Gen 3)
• M.2 slots: 3x M.2 (M key, PCIe, 42–80 mm)
• SATA: 4x SATA III, RAID 0/1/5/10
• Networking: Realtek 8125D 2.5 GbE LAN, Intel Wi-Fi 7, Bluetooth 5.4
• Rear I/O: 1x Thunderbolt 4, 1x USB-C 3.2 Gen 2×2 (20 Gbps), 6x USB-A 3.2 Gen 1, HDMI, DisplayPort, PS/2 combo
• Audio: Realtek ALC897, 7.1 channels
• Fan and RGB headers: 6x 4-pin PWM fan, 3x addressable RGB, 1x RGB (Mystic Light)
• Power connectors: 24-pin ATX + 2x 8-pin CPU, BTF layout (rear-side connectors)
• Colour: White/Silver
• Dimensions (W x H): 243.84 x 304.8 mm
• Included accessories: EZ-WiFi antenna, 2x SATA cables, EZ M.2 Clips II, EZ M.2 Clip Remover, quick guide
