Product Overview

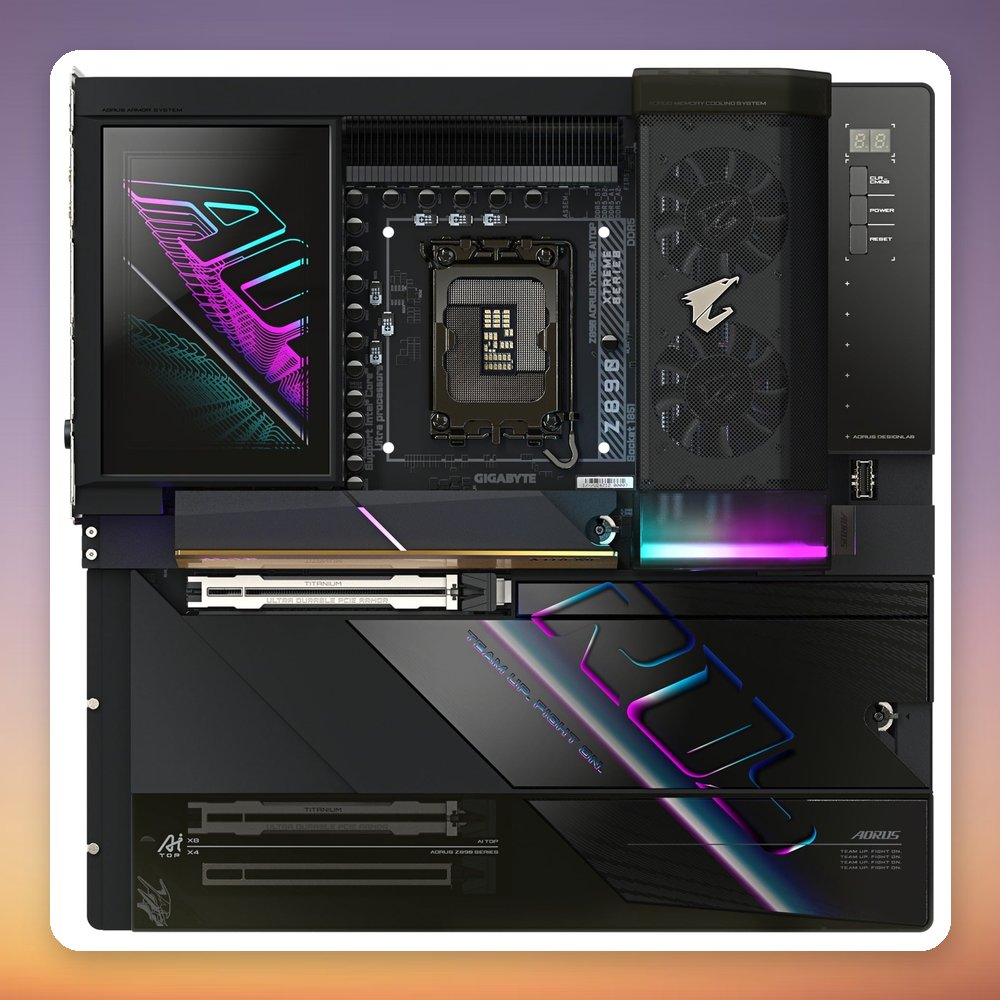

The GigaByte Z890 AORUS XTREME AI TOP is an Extended ATX motherboard built on the Intel Z890 chipset for LGA 1851 Intel Core Ultra (Series 2) processors. It stands out with two 10 Gigabit Ethernet ports, Wi-Fi 7 with Bluetooth 5.4, two Thunderbolt 5 ports on the rear panel and four M.2 slots, one of them running at PCIe 5.0.

With four DDR5 DIMM slots supporting up to 256 GB and speeds up to 9500 MT/s (overclocked), this board suits high-end Intel Core Ultra builds that need a lot of fast storage and connectivity. Ten USB 3.2 Gen 2 Type-A ports, three PCIe x16 slots, four SATA ports and RAID 0, 1, 5 and 10 support give plenty of room for expansion. A BIOS update may be needed for the newest processors.

Specification

• Manufacturer: GigaByte
• Model: Z890 AORUS XTREME AI TOP
• MPN: Z890 A XTREME AI TOP
• EAN: 47193318661740
• Socket: LGA 1851
• Chipset: Intel Z890
• Form factor: Extended ATX (E-ATX)
• Supported processors: Intel Core Ultra 5/7/9 (Series 2, Arrow Lake)
• Memory: 4x DDR5 DIMM, dual-channel, up to 256 GB
• Memory speed: Up to DDR5-9500 (O.C.)
• PCIe x16 slots: 3 (x16, x8, x4)
• M.2 slots: 4 (1x PCIe 5.0, 3x PCIe 4.0)
• SATA ports: 4x SATA III, RAID 0/1/5/10
• LAN: 2x 10 GbE (Marvell AQtion AQC113C)
• Wireless: Intel Wi-Fi 7 BE200 + Bluetooth 5.4
• Rear USB / Thunderbolt: 10x USB 3.2 Gen 2 Type-A, 2x Thunderbolt 5
• Audio: ESS ES9280AC DAC + ESS ES9080
• RGB headers: 4x addressable RGB, 1x RGB (RGB Fusion)
• Dimensions (W x H): 304.8 x 305 mm
