Product Overview

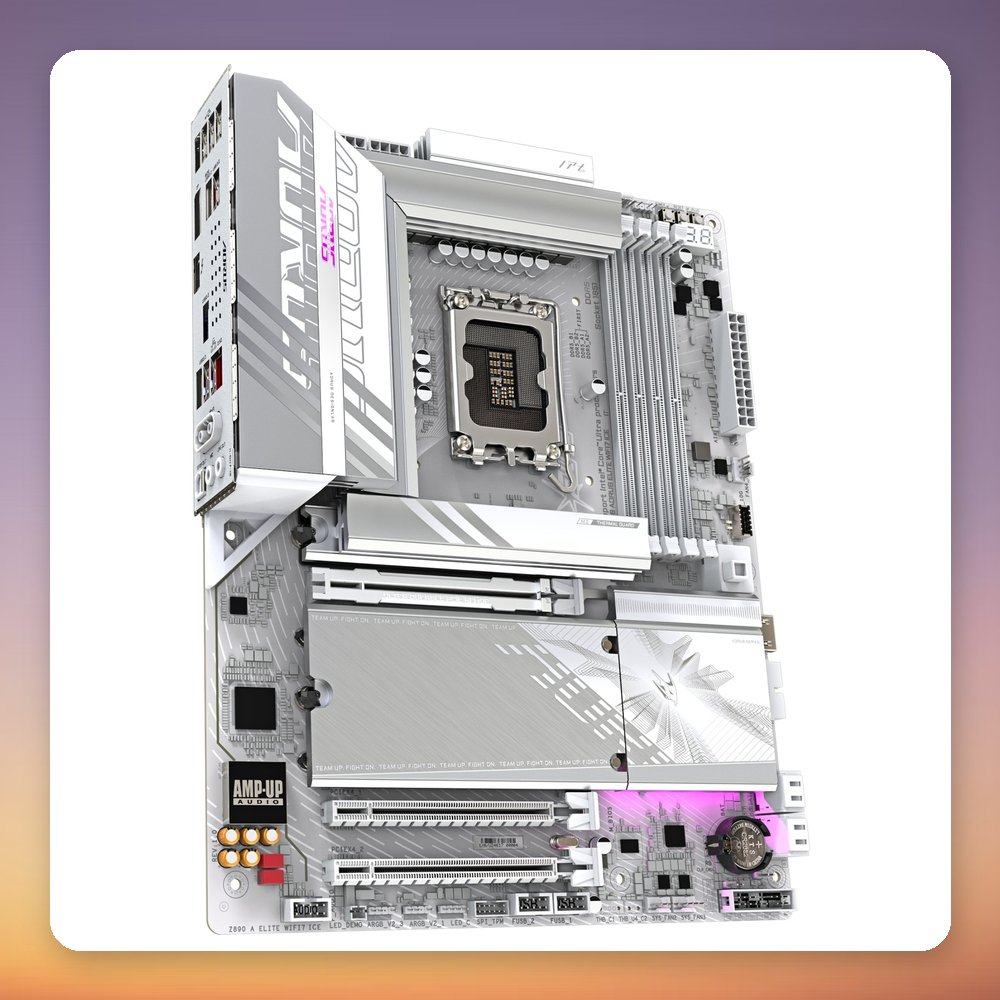

The GIGABYTE Z890 AORUS ELITE WIFI7 ICE is an ATX motherboard built on the Intel Z890 chipset for LGA 1851 Core Ultra (Series 2) processors. It has four DDR5 slots supporting up to 256 GB at speeds up to 8800 MT/s (overclocked), a PCIe 5.0 x16 slot, and four M.2 slots, one of them PCIe 5.0. Wi-Fi 7, Bluetooth 5.4 and 2.5 Gb Ethernet are built in.

This board suits a high-end Intel gaming or enthusiast build where fast storage and modern connectivity matter. A Thunderbolt 4 port, five USB-A ports at 5 or 10 Gbit/s, an internal USB Type-C header and four SATA ports cover most peripheral and storage needs. Six 4-pin PWM fan headers and RGB Fusion headers help with cooling and lighting, and a BIOS update may be needed for the newest CPUs.

Specification

• Manufacturer: GigaByte
• Model: Z890 AORUS ELITE WIFI7 ICE
• MPN: Z890 A ELITE WF7 ICE
• EAN: 4719331865221
• Chipset: Intel Z890
• CPU socket: LGA 1851
• Supported CPUs: Intel Core Ultra 5/7/9 (Series 2, Arrow Lake)
• Form factor: ATX
• Memory: 4x DDR5 DIMM, dual-channel, up to 256 GB, up to 8800 MT/s (O.C.), non-ECC
• M.2 slots: 4x M.2 (M key): 1x PCIe 5.0, 3x PCIe 4.0
• Expansion slots: 1x PCIe 5.0 x16, 2x PCIe 4.0 x16 (x4 lanes)
• SATA: 4x SATA III, RAID 0/1/5/10
• Networking: 2.5 Gb Ethernet (Realtek), Wi-Fi 7 (MediaTek MT7925), Bluetooth 5.4
• Rear USB and video: 1x Thunderbolt 4, 2x USB-A 10 Gbit/s, 3x USB-A 5 Gbit/s, 4x USB 2.0, DisplayPort
• Audio: Realtek ALC1220, 7.1 channels, optical S/PDIF out
• Fan and RGB headers: 6x 4-pin PWM fan, 3x addressable RGB, 1x RGB
• Power connectors: 24-pin ATX + 2x 8-pin EPS
• Dimensions (W x H x D): 244 x 305 mm
• Weight: 2.87 kg
• Manufacturer warranty: 3 years
