Name: Gigabyte B760M D3HP Micro-ATX Motherboard, LGA 1700, Intel B760, DDR5
Brand: GigaByte
SKU: 100117385
Price: 118.74 EUR
Availability: InStock

Gigabyte B760M D3HP Micro-ATX Motherboard, LGA 1700, Intel B760, DDR5

€118.74

Delivery: 7-12 business days
Gigabyte B760M D3HP Micro-ATX Motherboard, LGA 1700, Intel B760, DDR5

Two PCIe 4.0 M.2 slots plus four SATA III ports
Four DDR5 slots, up to 256 GB at 5600 MT/s
PCIe 4.0 x16 slot for the graphics card
HDMI 2.1, DisplayPort 1.2 and VGA outputs

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100117385 Category: Intel Motherboards Tags: B760M, D3HP,, GigaByte,, INTEL, motherboard, Brand: GigaByte

Description
Additional information

✅

Product Overview

The Gigabyte B760M D3HP is a micro-ATX motherboard built on the Intel B760 chipset for LGA 1700 processors. It takes four DDR5 DIMMs in dual-channel for up to 256 GB at speeds up to 5600 MT/s, and offers two M.2 slots (both PCIe 4.0, up to 2280) alongside four SATA III ports, so it covers both fast NVMe storage and conventional drives.

With a PCIe 4.0 x16 slot for the graphics card and two PCIe 3.0 x1 slots, this board suits a compact gaming or home PC around a 12th, 13th or 14th Gen Intel Core CPU. Video outputs (HDMI, DisplayPort and VGA) work when the CPU has integrated graphics. It also includes Gigabit LAN, 7.1-channel audio and 128 Mbit UEFI BIOS. A BIOS update may be needed for the newest processors.

Specification

Manufacturer: GigaByte
Model: B760M D3HP
MPN: B760M D3HP
EAN: 47193318643470
Socket: LGA 1700
Chipset: Intel B760
Form factor: micro ATX (244 x 244 mm)
Memory: 4x DDR5 DIMM, dual-channel, up to 256 GB
Supported memory speeds: DDR5-4400 / 4800 / 5200 / 5600
M.2 slots: 2x M.2 (M key), PCIe 4.0, up to 2280
SATA: 4x SATA III, RAID 0/1/5/10
Expansion slots: 1x PCIe 4.0 x16, 2x PCIe 3.0 x1
Rear USB: 3x USB 3.2 Gen 1 Type-A, 2x USB 2.0
Video outputs: HDMI 2.1, DisplayPort 1.2, VGA
Networking: Gigabit Ethernet (Realtek RTL8111H), no Wi-Fi
Audio: Realtek codec, 7.1 channels
Power connectors: 24-pin ATX + 8-pin EPS
BIOS: 128 Mbit UEFI AMI

return to the shop
see our fanpage

delivery time 7-12 business days

Weight	1.2 kg

Sergio Miranda Tsunematsu

Excellent seller and a great price for the Ryzen 7 9800X3D. Since the product is shipped from Poland, delivery takes a little longer compared to local stores, but my order arrived within the estimated timeframe. Everything was as expected. Highly recommended!

victor de castro

All the process of building the config designed for my needs was handled very smoothly and rapidly by Jola. The desktop came with one day of delay due to DHL issues, not their fault. The computer came very well packed however, the cooler fan was loose inside the case. I managed to fix watching some youtube videos, not a big deal. In general, I am very happy with the purchase and all the customer service.

Paul Byrne

Ordered a pc, came with no issue set up was super easy, very smooth transaction would recommend

Eugene Slabbert

Very happy with my order. PC is working great and arrived in time and well packed. Definitely worth the purchase. Nowadays it's difficult for most people to spend a lot of money on one item, so I was pleased when I noticed they offered purchase options through Humm.

Mike Halpin

Great product, very helpful and friendly service.

vinicius tanganelli

Great service !

Brian “Bri” O'Donnell

Found Jola very helpful and gave good advice. Went out of his way to help choose the right PC for my needs. Xcellent PC have good products and very good quality prices, went out of their way. Good straight talking which is rear these days. plus could pay through humm . would highly recommend and would buy from again.

Nei Fidelis

Irish online stores in general have a common practice of selling something they don't have - claiming they do - and then ordering from their source, leading to long shipping times and frustated customers. That was not the case here! I've asked them to let me know when they had the graphics card I wanted back in stock as it was out of stock. On the next day I had a positive from them and in about a week the card was installed on my pc ! On top of that they work with Humm so I could split the payments. Great customer service, they will be my guys for all my pc things!

Ovidiu Cimpoeru

Brilliant! No issues, the GPU arrived in about a weeks time

Verified by Trustindex

Trustindex verified badge is the Universal Symbol of Trust. Only the greatest companies can get the verified badge who has a review score above 4.5, based on customer reviews over the past 12 months. Read more

Gigabyte B760M D3HP Micro-ATX Motherboard, LGA 1700, Intel B760, DDR5

✅

Product Overview

Specification

delivery time 7-12 business days

Related products

Asus PRO H610M-C D4-CSM LGA 1700 Intel H610 Micro ATX Motherboard, DDR4

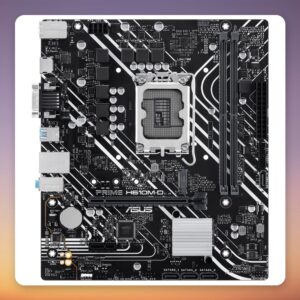

Asus PRIME H610M-D Intel H610 LGA 1700 DDR5 mATX Motherboard
