Product Overview

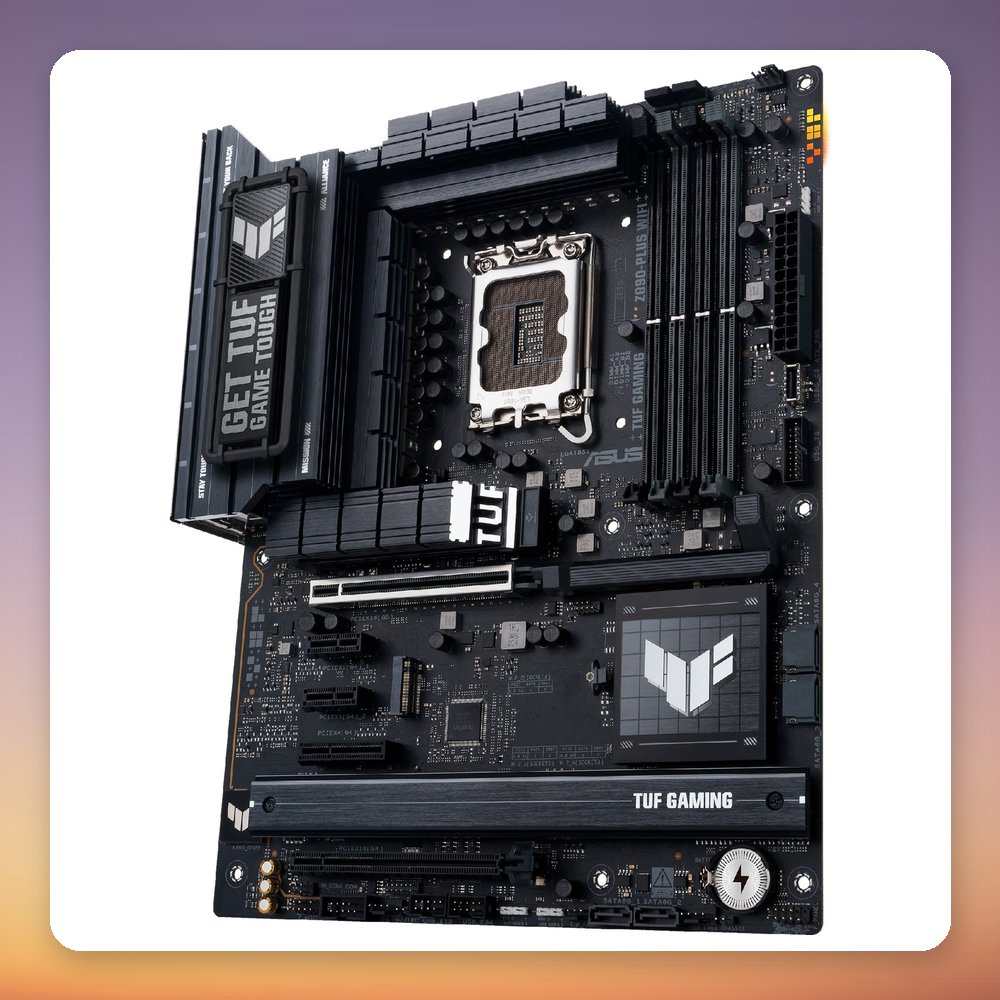

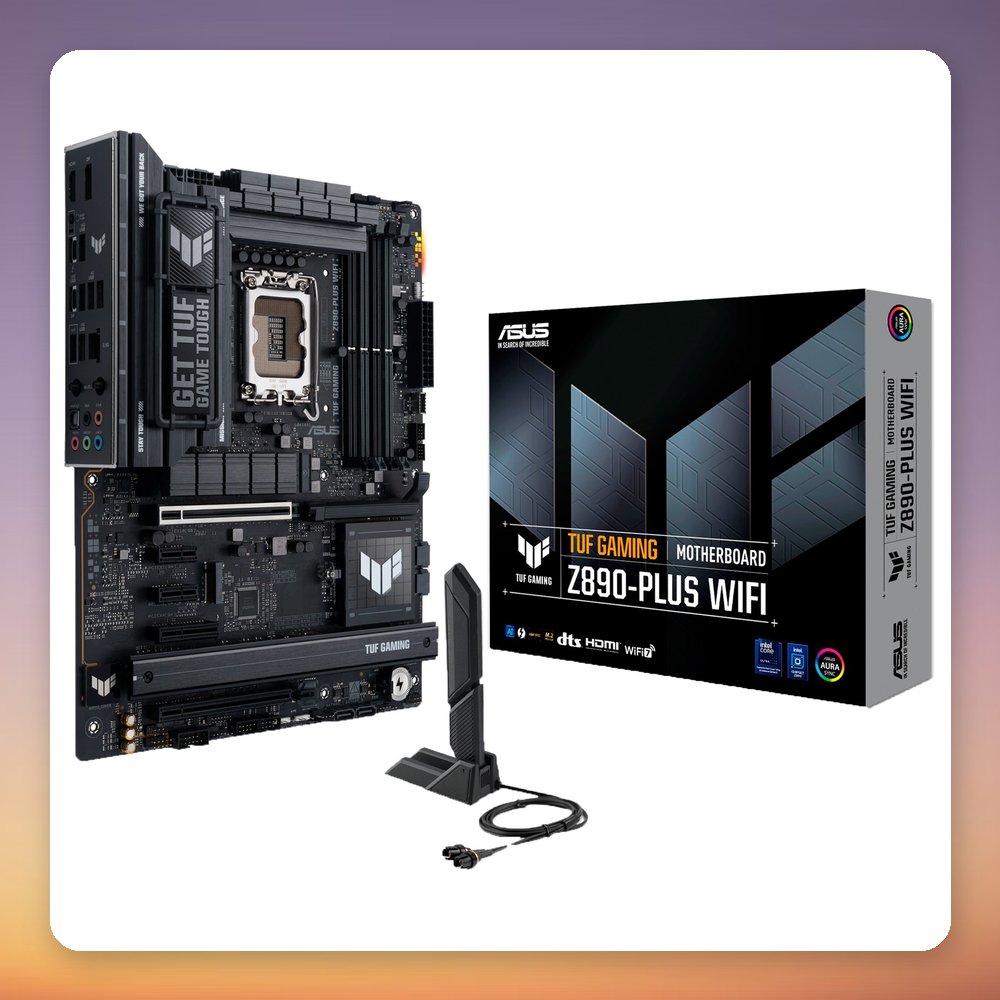

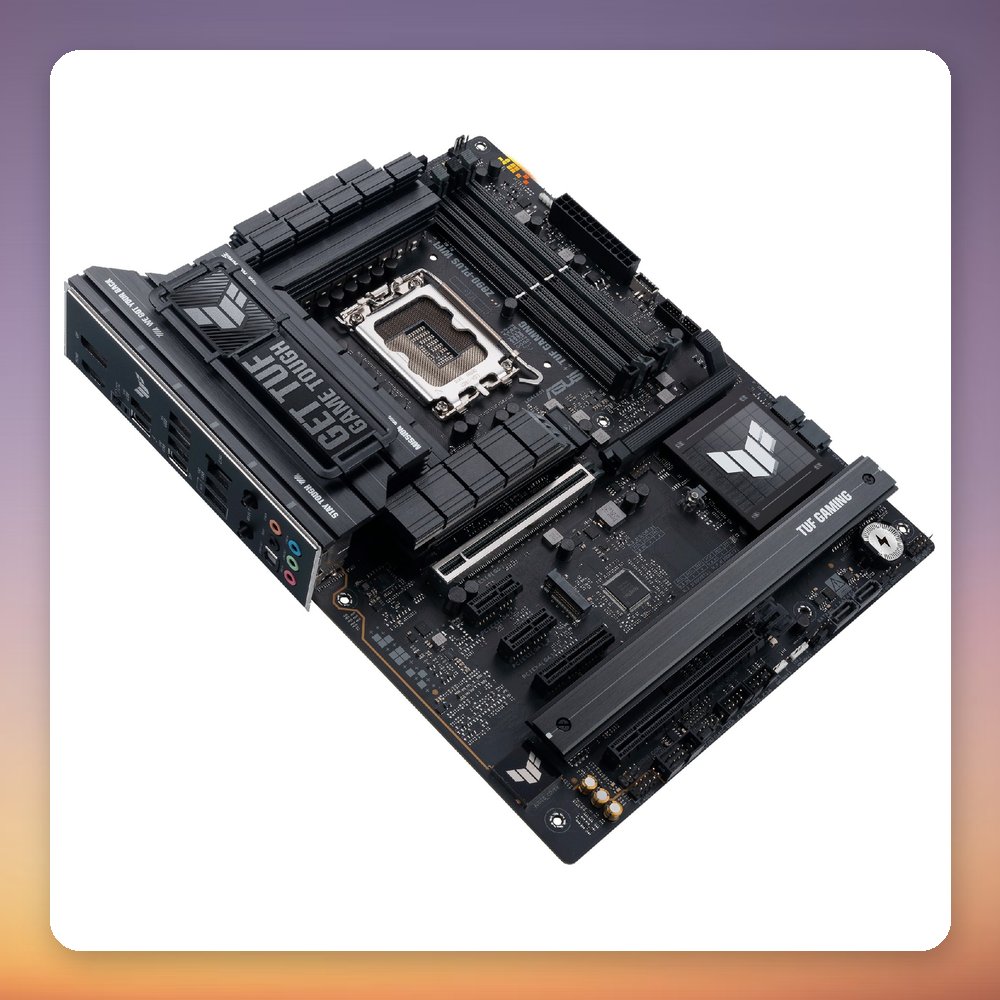

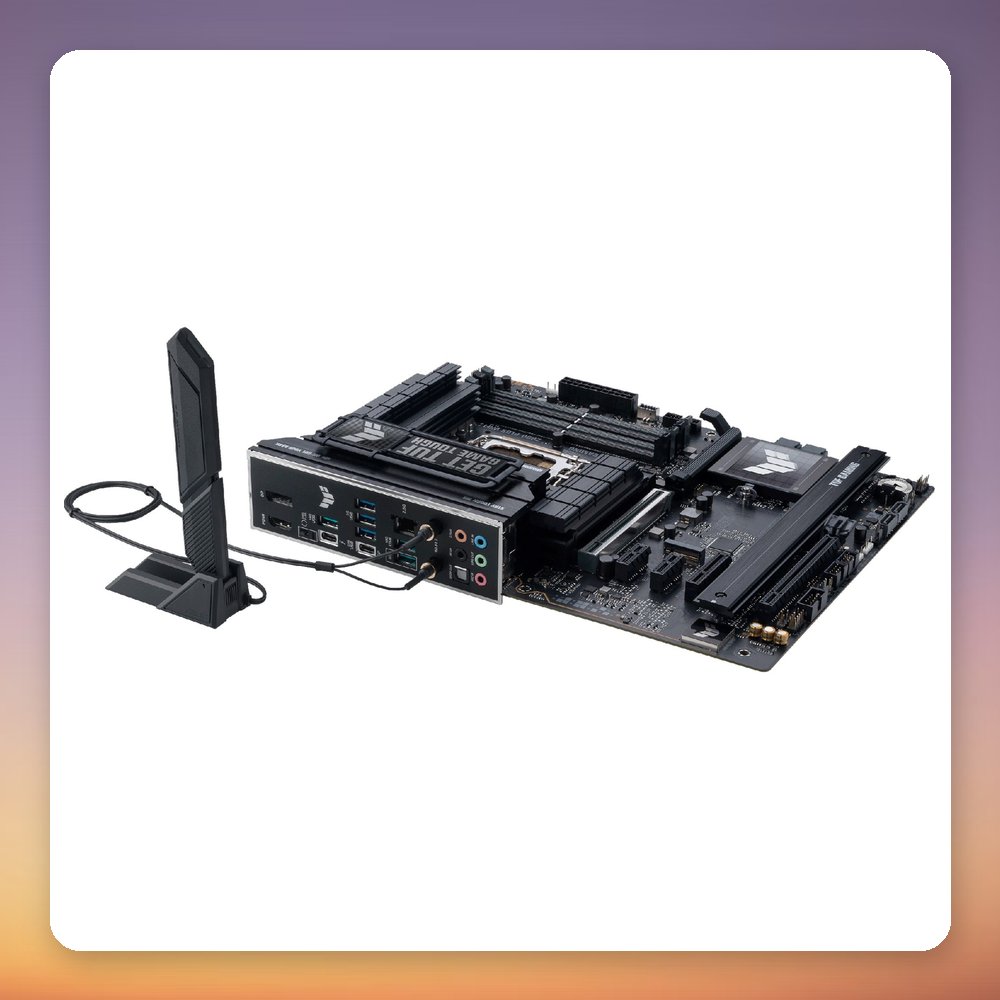

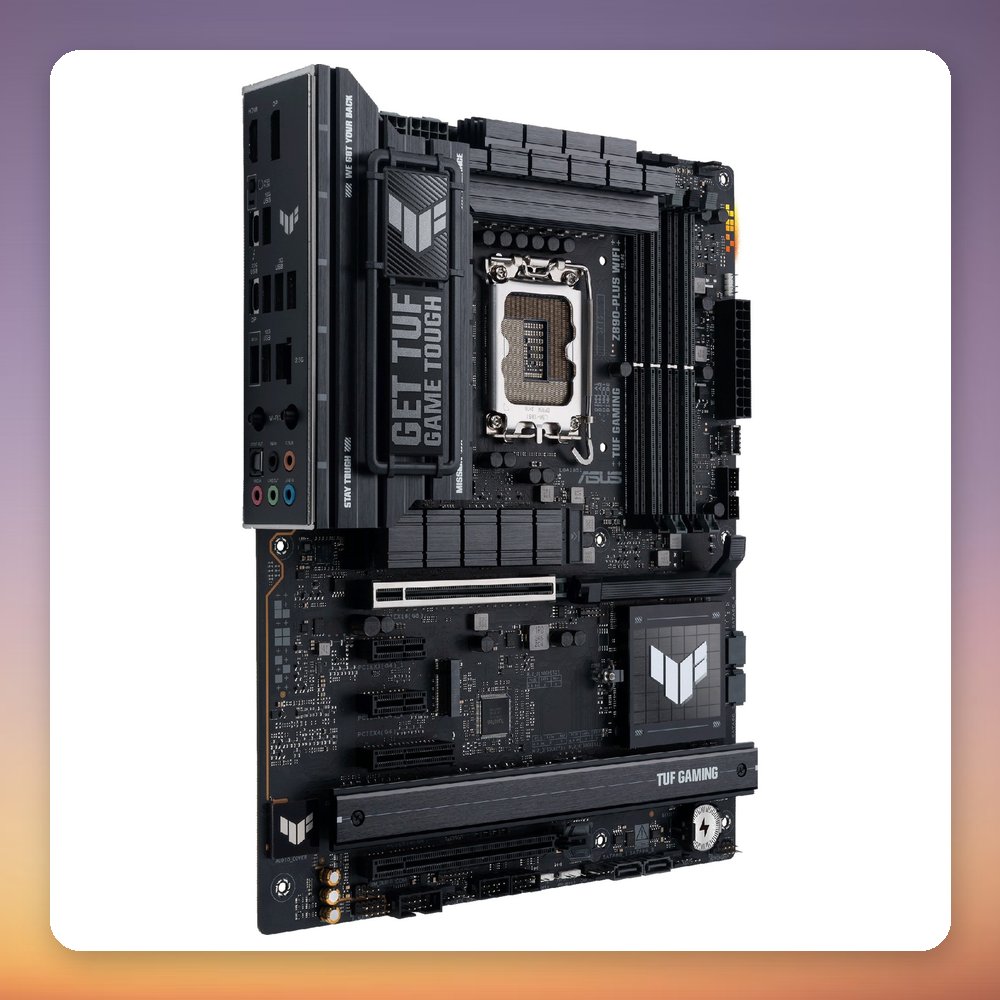

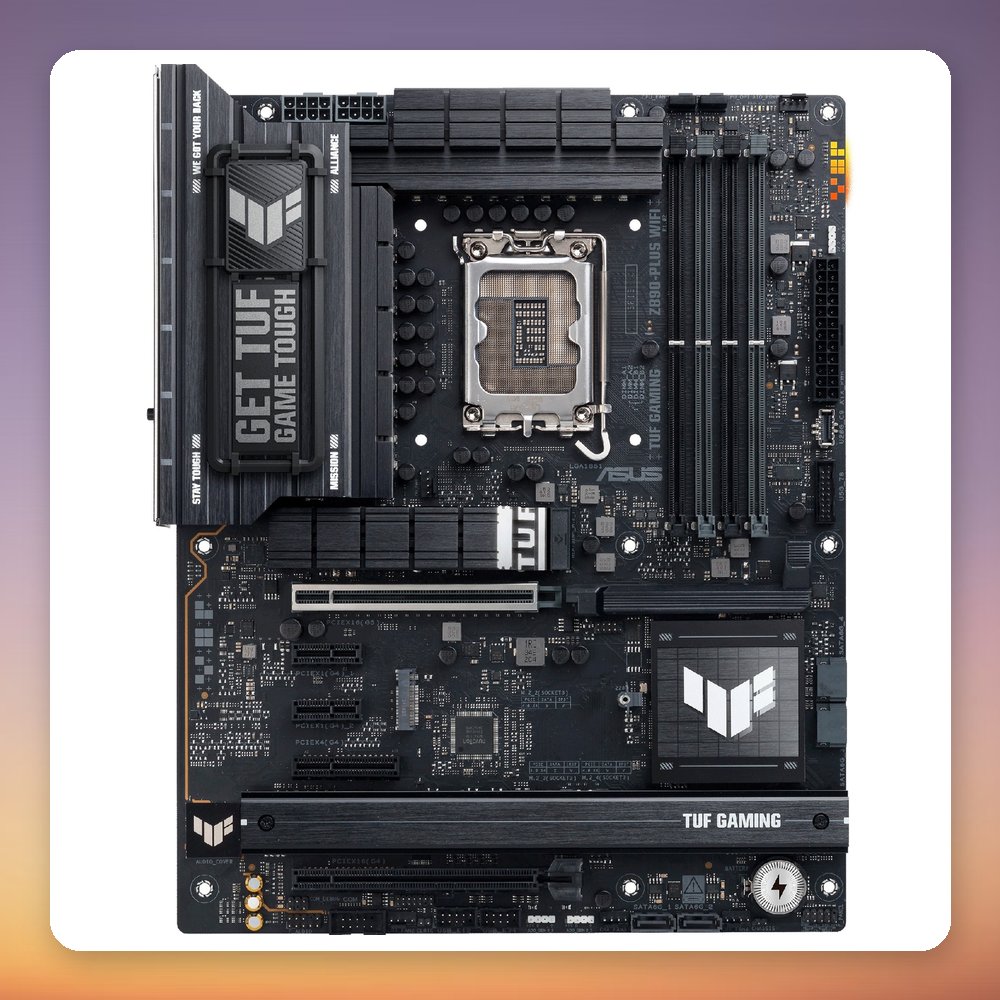

The Asus TUF Gaming Z890-Plus WiFi is an ATX motherboard built on the Intel Z890 chipset for LGA 1851 processors from the Core Ultra (Series 2) range. It offers four DDR5 slots, four M.2 slots (one PCIe 5.0, three PCIe 4.0), 2.5 Gb Ethernet and WiFi 7 with Bluetooth 5.4, and it includes a Thunderbolt 4 USB-C port plus a USB 3.2 Gen 2×2 (20 Gbit/s) port on the rear I/O.

This board suits a gaming or general-purpose Intel Arrow Lake build where you want fast storage options and modern wireless connectivity without moving to a premium-priced model. Asus builds the TUF Gaming series with military-grade components and a cooling-focused design. Seven 4-pin PWM fan headers and three addressable RGB headers (AURA Sync) cover case cooling and lighting, and a BIOS update may be needed for the newest processors.

Specification

• Manufacturer: Asus
• Model: TUF Gaming Z890-Plus WiFi
• MPN: 90MB1IQ0-M0EAY0
• EAN: 4711387763926
• Chipset: Intel Z890
• CPU socket: LGA 1851
• Supported processors: Intel Core Ultra 5/7/9 (Series 2, Arrow Lake)
• Form factor: ATX
• Memory: 4x DDR5 DIMM, dual-channel, up to DDR5-8600 (up to 9066 OC)
• Maximum memory: 256 GB
• M.2 slots: 4x M.2 (M key): 1x PCIe 5.0, 3x PCIe 4.0
• SATA: 4x SATA 6 Gb/s, RAID 0/1/5/10
• Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 lanes), 1x PCIe 4.0 x4, 2x PCIe x1
• Networking: Intel 2.5 Gb Ethernet, WiFi 7, Bluetooth 5.4
• Rear USB and video: 1x Thunderbolt 4, 1x USB-C 20 Gbit/s, 3x USB-A 10 Gbit/s, 3x USB-A 5 Gbit/s, HDMI, DisplayPort
• Audio: Realtek ALC1220P, 7.1 channels, optical S/PDIF out
• Fan and RGB headers: 7x 4-pin PWM fan, 3x addressable RGB (AURA Sync)
• Dimensions (W x H): 244 mm x 305 mm
