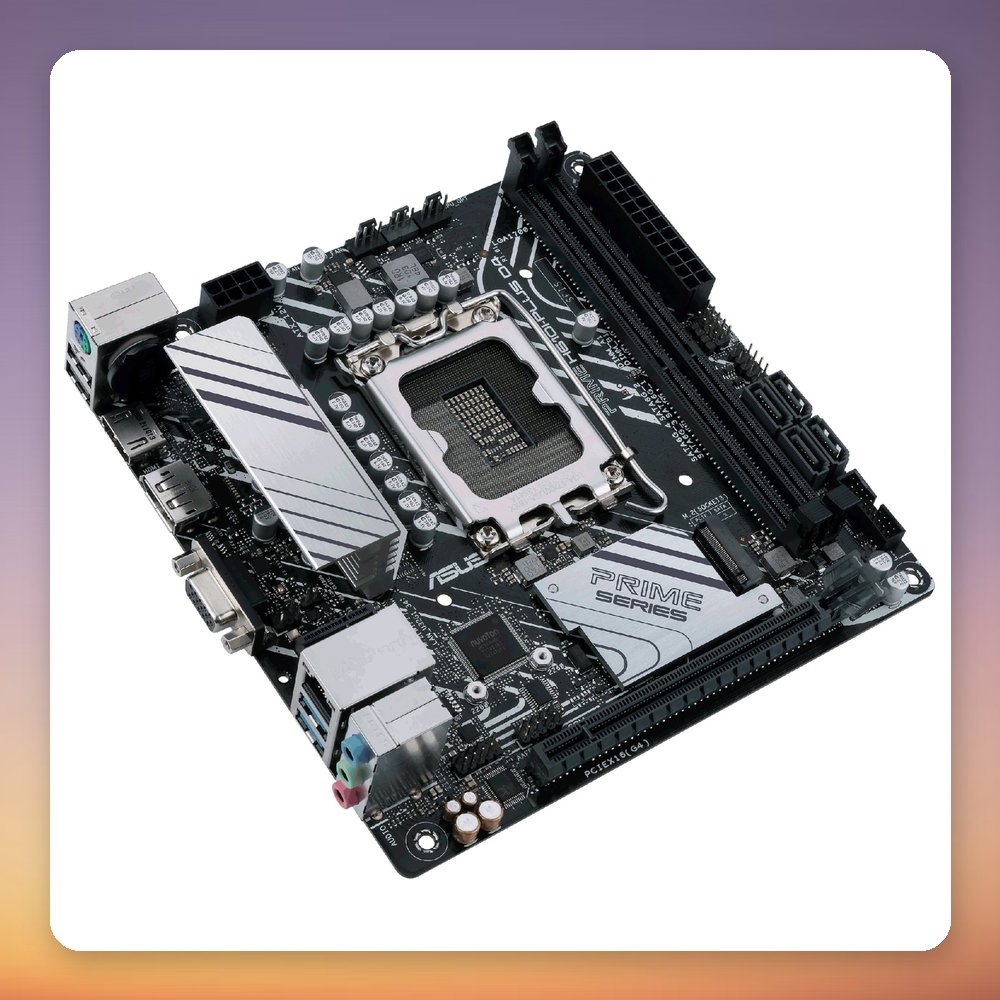

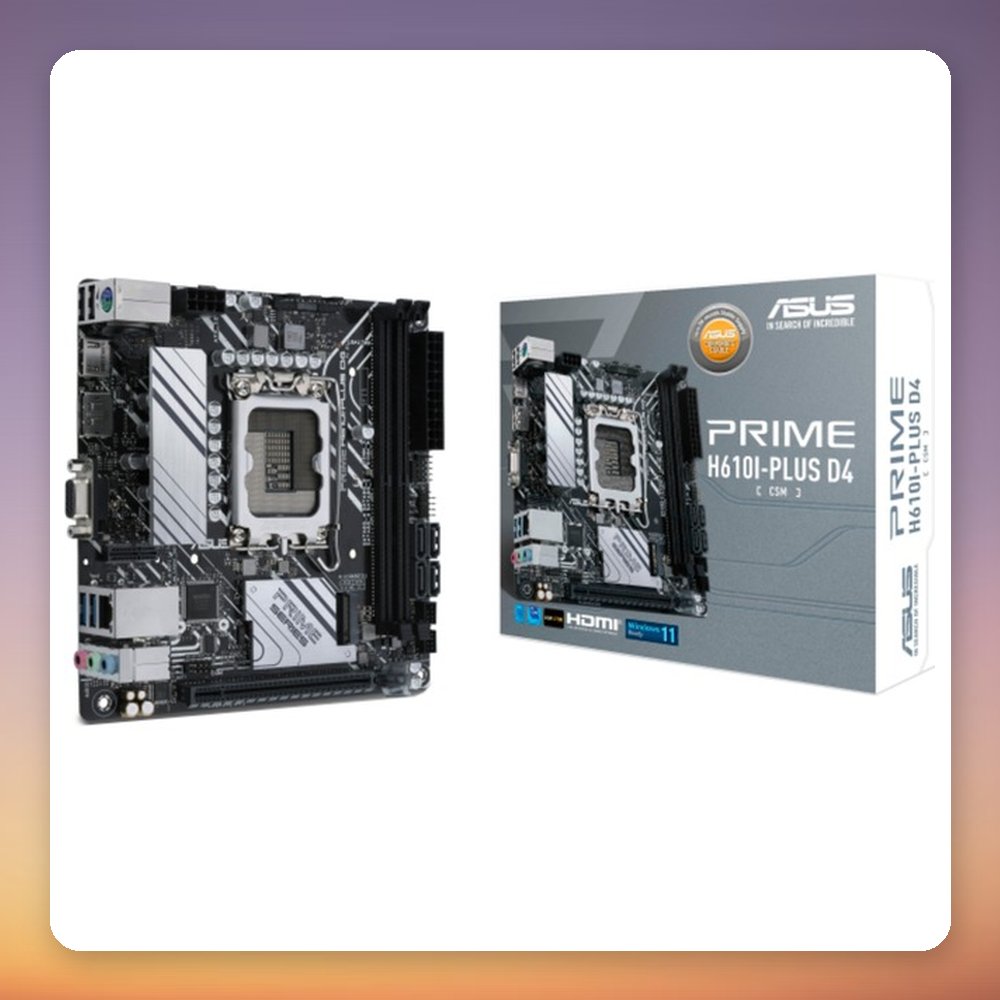

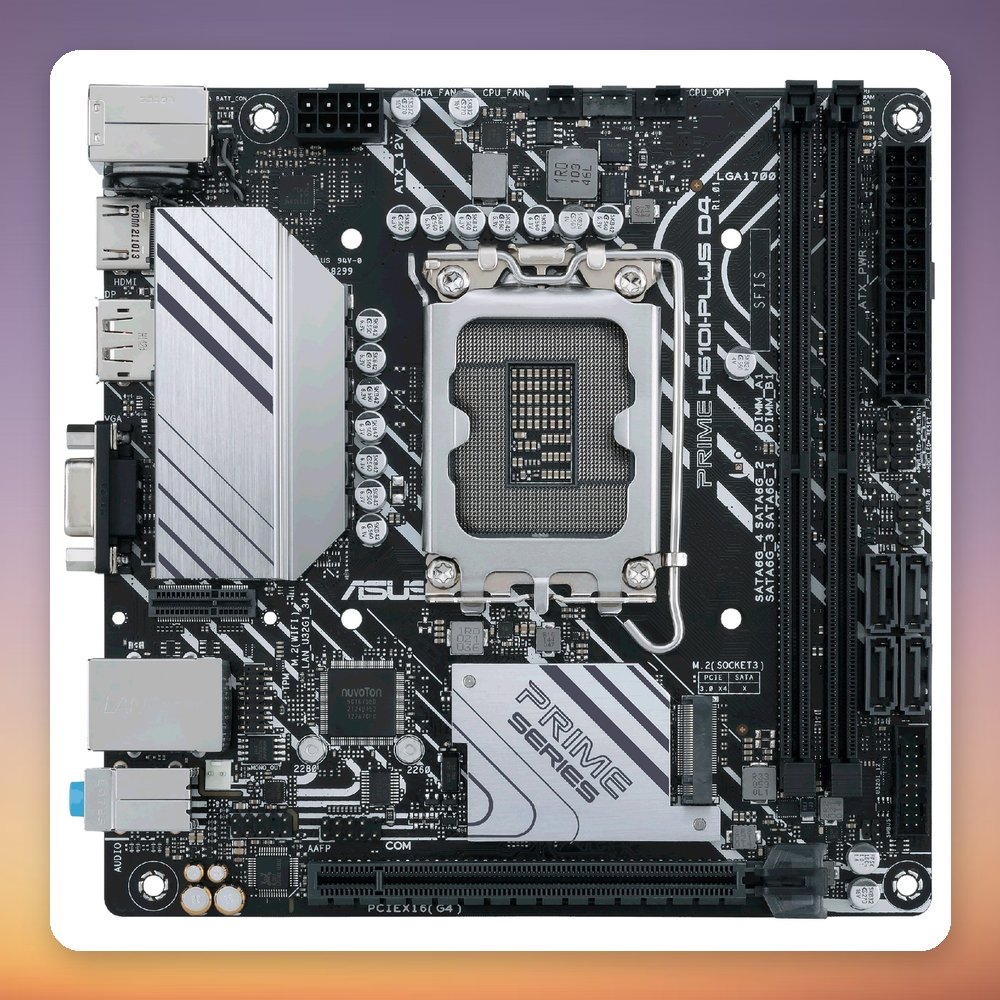

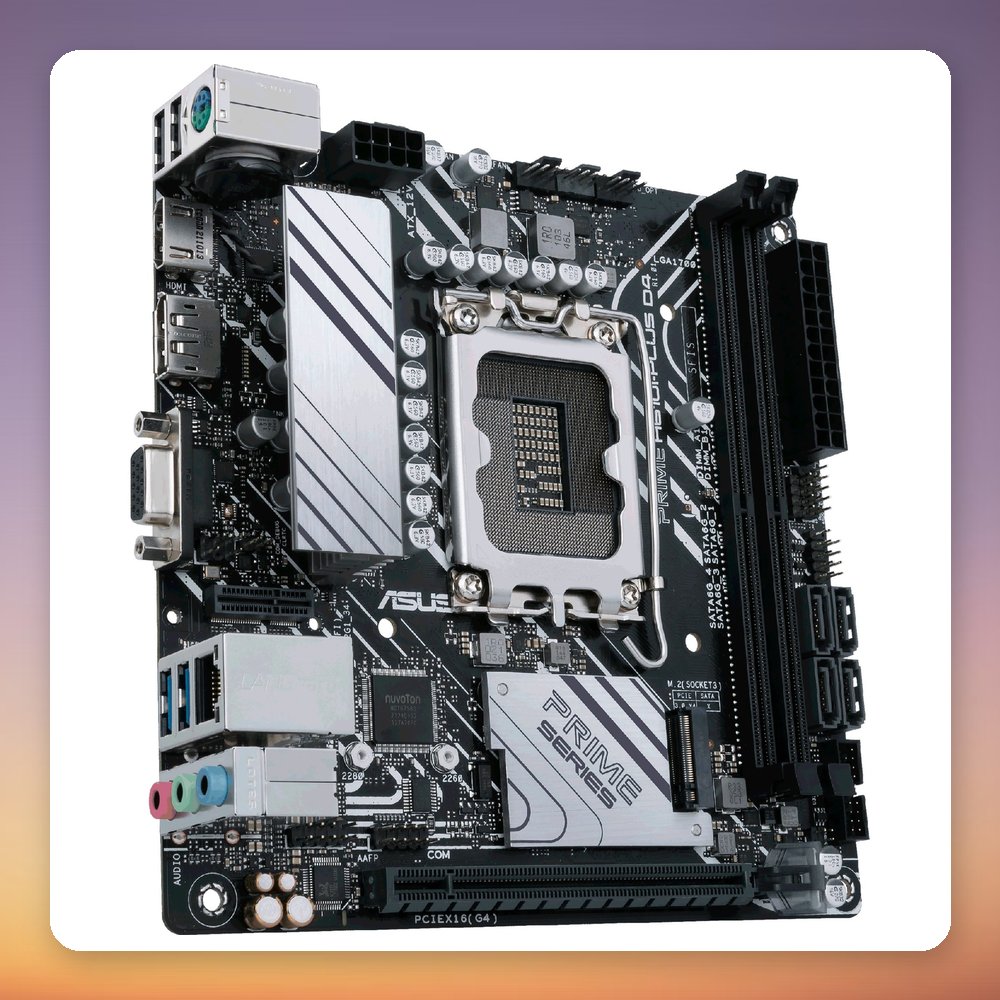

Name: Asus PRIME H610I-PLUS D4-CSM Mini-ITX Motherboard, Intel H610, LGA 1700, DDR4
Brand: Asus
SKU: 100019992
Price: 135.23 EUR
Availability: InStock

Asus PRIME H610I-PLUS D4-CSM Mini-ITX Motherboard, Intel H610, LGA 1700, DDR4

€135.23

Delivery: 7-12 business days
Asus PRIME H610I-PLUS D4-CSM Mini-ITX Motherboard, Intel H610, LGA 1700, DDR4

Compact Mini-ITX board for LGA 1700 CPUs
One PCIe 4.0 x16 slot and one M.2 slot
HDMI 2.1, DisplayPort 1.4 and VGA outputs
Asus CSM model with Control Center Express software

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100019992 Category: Intel Motherboards Tags: 12th, Asus,, Gen, INTEL, Mini-ITX,, motherboard, Brand: Asus

Description
Additional information

✅

Product Overview

The Asus PRIME H610I-PLUS D4-CSM Motherboard is a Mini-ITX board built on the Intel H610 chipset for LGA 1700 processors. It has two DDR4 DIMM slots running in dual-channel for up to 64 GB at speeds up to DDR4-3200, one PCIe 4.0 x16 slot and one M.2 slot, plus four SATA III ports for additional drives. The CSM variant is part of Asus’s Corporate Stable Model programme.

With a 170 x 170 mm footprint, this board suits compact office and home PCs, small-form-factor builds and budget systems with an Intel Celeron, Pentium, Core i3, i5, i7 or i9 processor. Video outputs are HDMI 2.1, DisplayPort 1.4 and VGA, which work with a CPU that has integrated graphics. Gigabit Ethernet and 7.1-channel audio are onboard, and an M.2 WLAN slot is available. A BIOS update may be needed for the newest processors.

Specification

Manufacturer: Asus
Model: PRIME H610I-PLUS D4-CSM
MPN: 90MB1B20-M0EAYC
EAN: 4711081755753
Socket: LGA 1700
Chipset: Intel H610
Form Factor: Mini-ITX
Memory: 2x DDR4 DIMM, dual-channel, max. 64 GB (non-ECC, unbuffered)
Supported Memory Speeds: DDR4-2133 to DDR4-3200
Expansion Slots: 1x PCIe 4.0 x16
Storage: 1x M.2, 4x SATA III

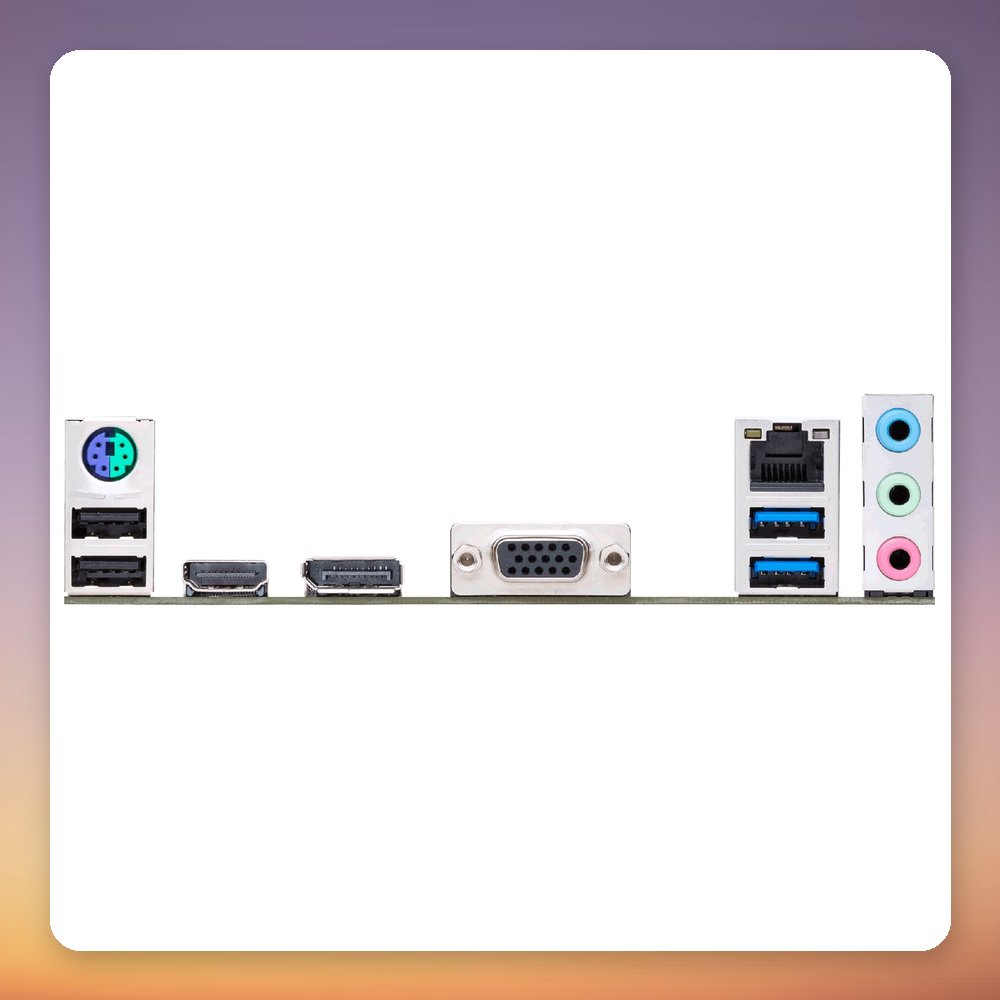

Video Outputs: HDMI 2.1, DisplayPort 1.4, VGA
Rear USB: 2x USB 3.2 Gen 1 Type-A, 2x USB 2.0, PS/2 combo port
Networking: Realtek Gigabit Ethernet (no onboard Wi-Fi, M.2 WLAN slot)
Audio: Realtek 7.1-channel HD Audio
Power Connectors: 24-pin ATX + 8-pin EPS
Fan Headers: 3x 4-pin PWM
BIOS: 128 Mbit UEFI AMI
Dimensions (W x H x D): 170.2 x 71 x 170.2 mm
Weight: 382 g
