Product Overview

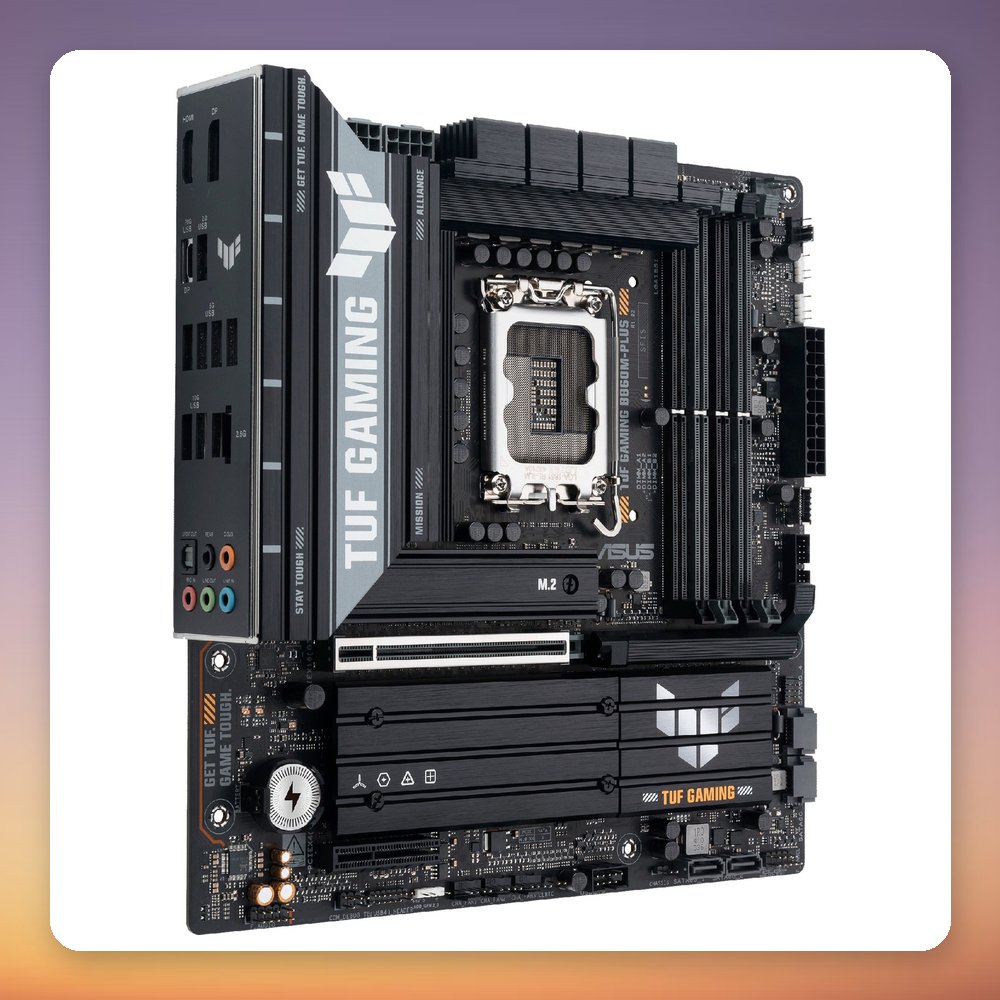

The Asus TUF Gaming B860M-Plus is a micro ATX motherboard built on the Intel B860 chipset for LGA 1851 processors from the Intel Core Ultra (Series 2) range. It offers four DDR5 slots for up to 256 GB of memory, a PCIe 5.0 x16 slot for the graphics card, and three M.2 slots, the first running at PCIe 5.0 speed.

This board suits compact and mid-size gaming builds that still need plenty of storage and connectivity. You get 2.5 Gigabit Ethernet, 7.1-channel audio, HDMI and DisplayPort outputs, a 20 Gbit/s USB-C port and four SATA connectors with RAID 0, 1, 5 and 10 support. Asus notes the board uses military-grade components and an upgraded power solution. A BIOS update may be needed for the newest processors.

Specification

• Manufacturer: Asus
• Model: TUF Gaming B860M-Plus
• MPN: 90MB1JW0-M0EAY0
• EAN: 47113877851260
• CPU socket: LGA 1851
• Chipset: Intel B860
• Form factor: micro ATX
• Memory: 4x DDR5 DIMM, up to 256 GB, dual-channel, up to DDR5-8800+ (OC)
• Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x4
• M.2 slots: 3x M.2 (M key), 1st slot PCIe 5.0, 2nd and 3rd PCIe 4.0, up to 2280
• SATA: 4x SATA III, RAID 0/1/5/10
• Rear USB: 1x USB-C 3.2 Gen 2×2 (20 Gbit/s), 2x USB-A 3.2 Gen 2, 4x USB-A 3.2 Gen 1, 2x USB 2.0
• Video outputs: 1x HDMI, 1x DisplayPort
• Networking: Realtek 2.5 Gb Ethernet (no Wi-Fi)
• Audio: Realtek 7.1 surround sound, optical S/PDIF out
• Fan headers: 6x 4-pin PWM, 3x addressable RGB headers
• Power connectors: 24-pin ATX + 2x 8-pin
• Dimensions (W x D): 244 x 244 mm
