Product Overview

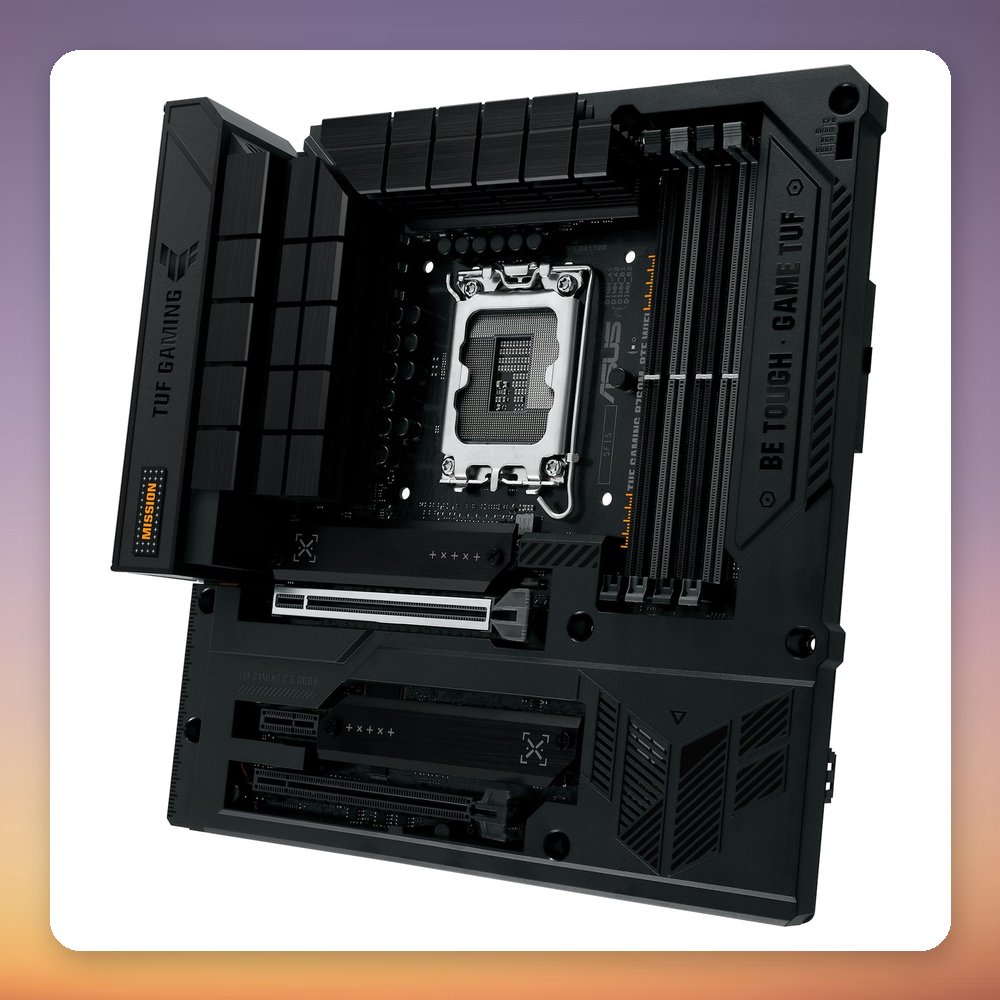

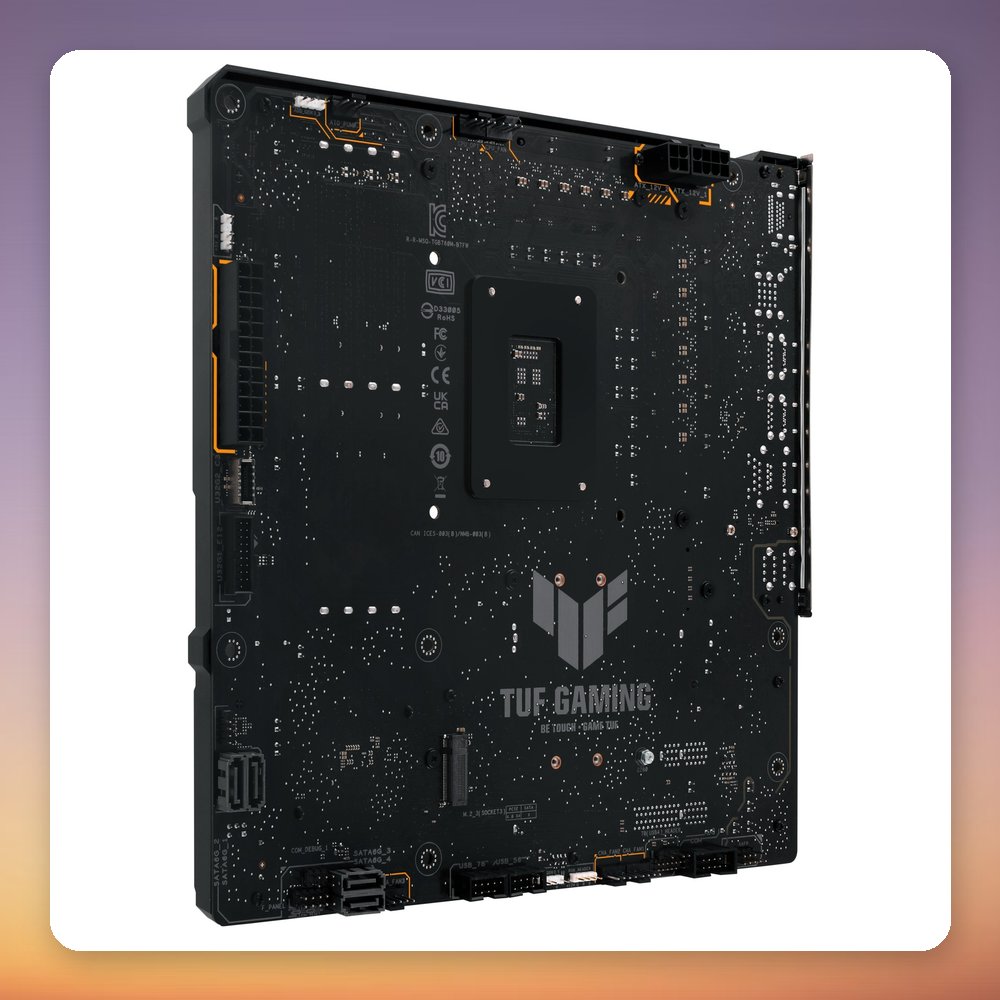

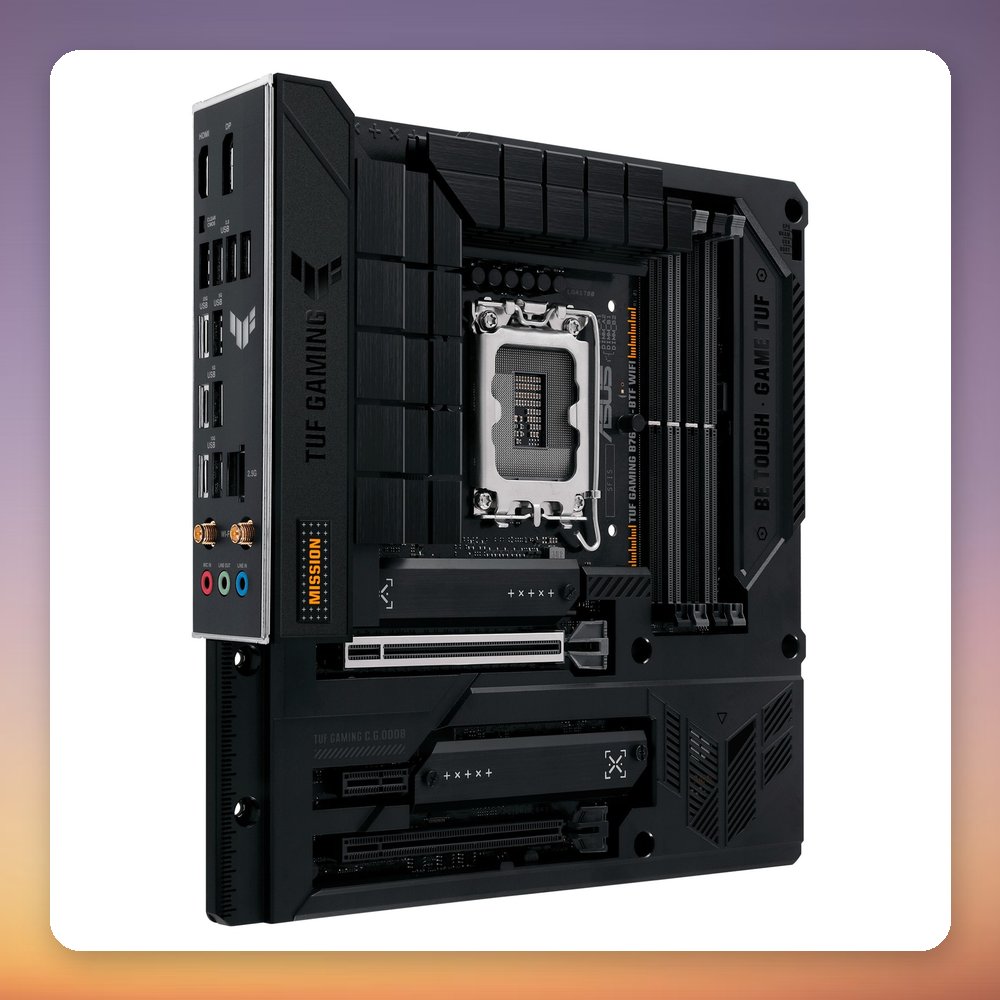

The Asus TUF Gaming B760M-BTF WiFi is a micro ATX motherboard built on the Intel B760 chipset for LGA 1700 processors. Its BTF (Back To the Future) layout hides the connectors on the underside of the board for cleaner cable management. It has four DDR5 slots supporting up to 192 GB at speeds up to DDR5-7200 (OC), a PCIe 5.0 x16 slot, three M.2 slots with PCIe 4.0 x4 support, 2.5 Gb Ethernet and Wi-Fi 6 with Bluetooth 5.2.

This board suits a compact gaming or everyday PC built around a 12th, 13th or 14th Gen Intel Core processor. Power delivery uses 12+1 DrMOS power stages on a six-layer PCB with 8+4 pin power connectors. Connectivity includes a 20 Gbit/s USB-C 3.2 Gen 2×2 port, HDMI 2.1 and DisplayPort 1.4 outputs (when used with a CPU with integrated graphics), four SATA ports, and Aura Sync RGB headers. A BIOS update may be needed for the newest processors. SATA cables and Wi-Fi antennas are included.

Specification

• Manufacturer: Asus
• Model: TUF Gaming B760M-BTF WiFi
• MPN: 90MB1G50-M0EAY0
• EAN: 4711387324547
• Chipset: Intel B760
• CPU socket: LGA 1700
• Form factor: micro ATX (244 x 244 mm)
• Memory: 4x DDR5 DIMM, dual-channel, max. 192 GB, up to DDR5-7200 (OC), non-ECC, XMP
• Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 4.0 x1
• M.2 slots: 3x M.2 (Key M), PCIe 4.0 x4
• SATA: 4x SATA 6Gb/s, RAID 0/1/5/10
• Networking: Realtek 2.5 Gb Ethernet, Wi-Fi 6 (802.11ax), Bluetooth 5.2
• Rear USB: 1x USB-C 3.2 Gen 2×2, 1x USB-C 3.2 Gen 2, 1x USB-A 3.2 Gen 2, 1x USB-C 3.2 Gen 1, 2x USB-A 3.2 Gen 1, 4x USB-A 2.0
• Video outputs: 1x HDMI 2.1, 1x DisplayPort 1.4
• Audio: Realtek 7.1 Surround Sound HD Audio CODEC
• RGB: 1x RGB header, 3x addressable RGB headers, Aura Sync
• Power connectors: 24-pin ATX, 8-pin + 4-pin EPS
• Colour: Black
