Product Overview

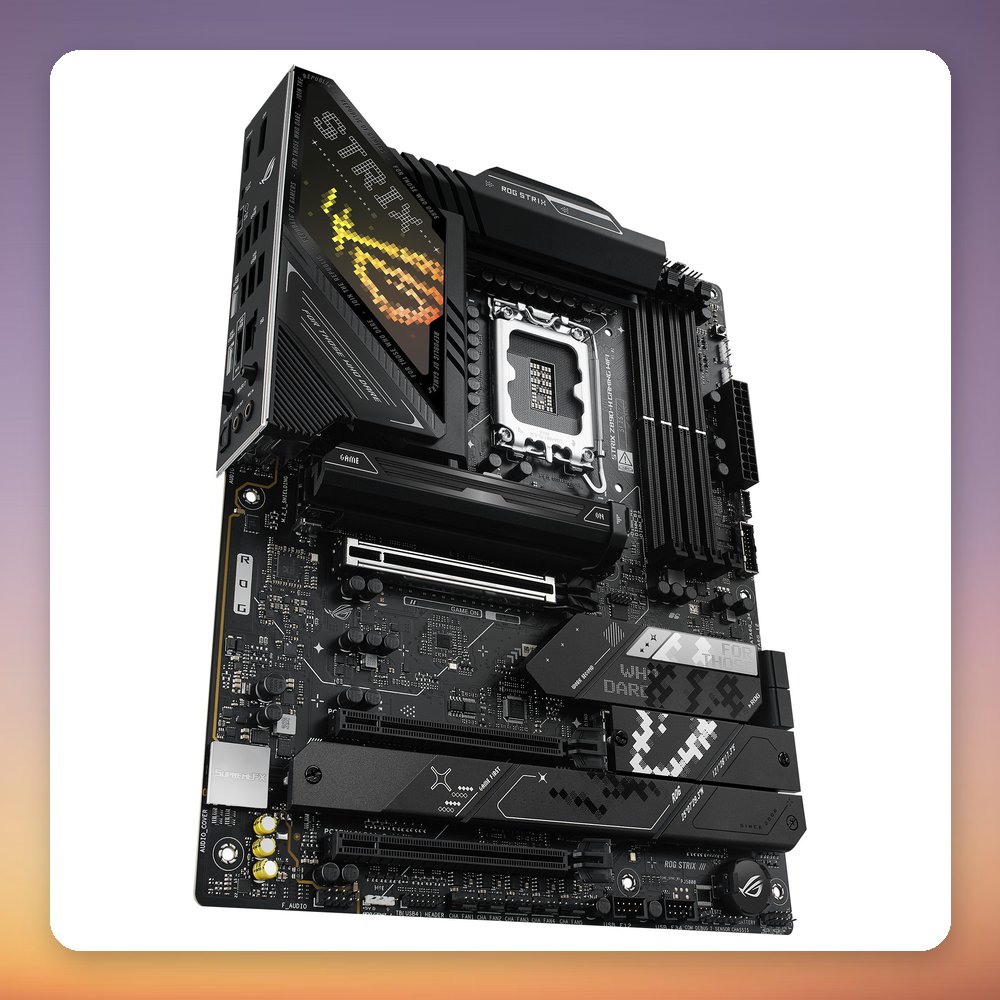

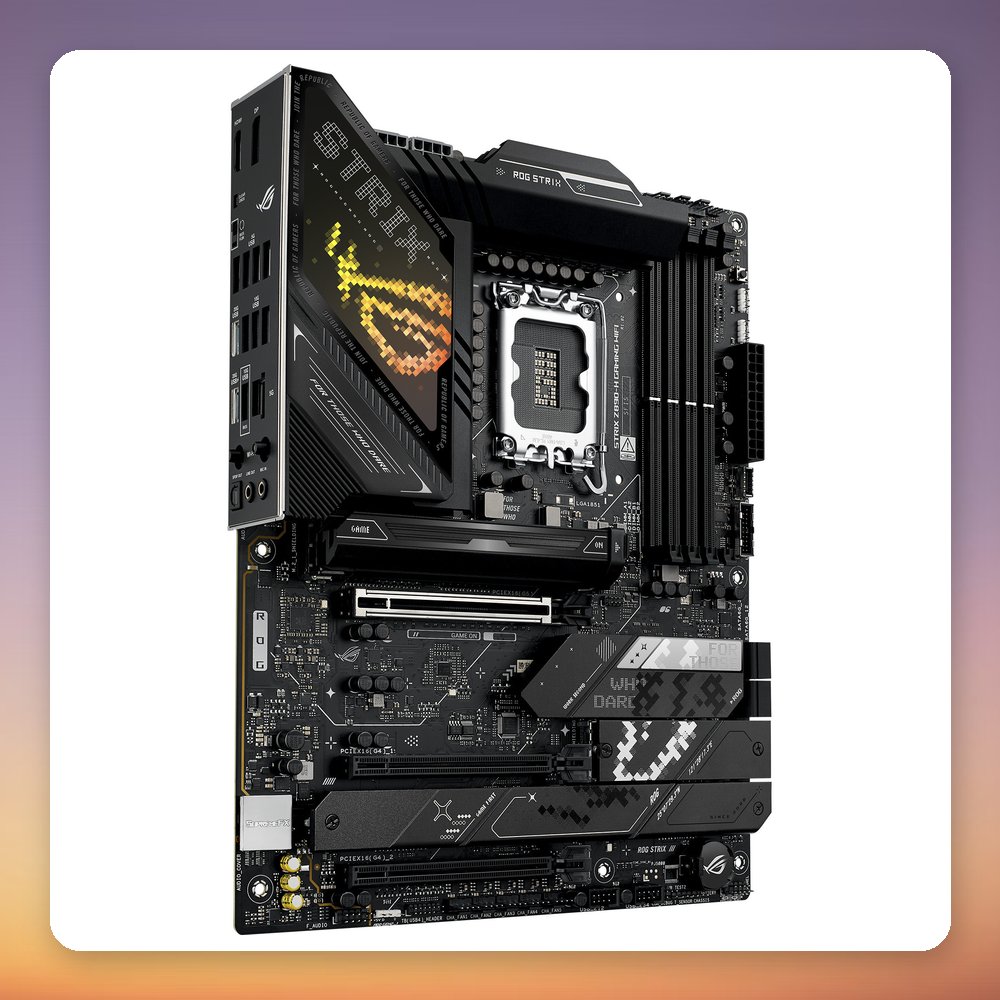

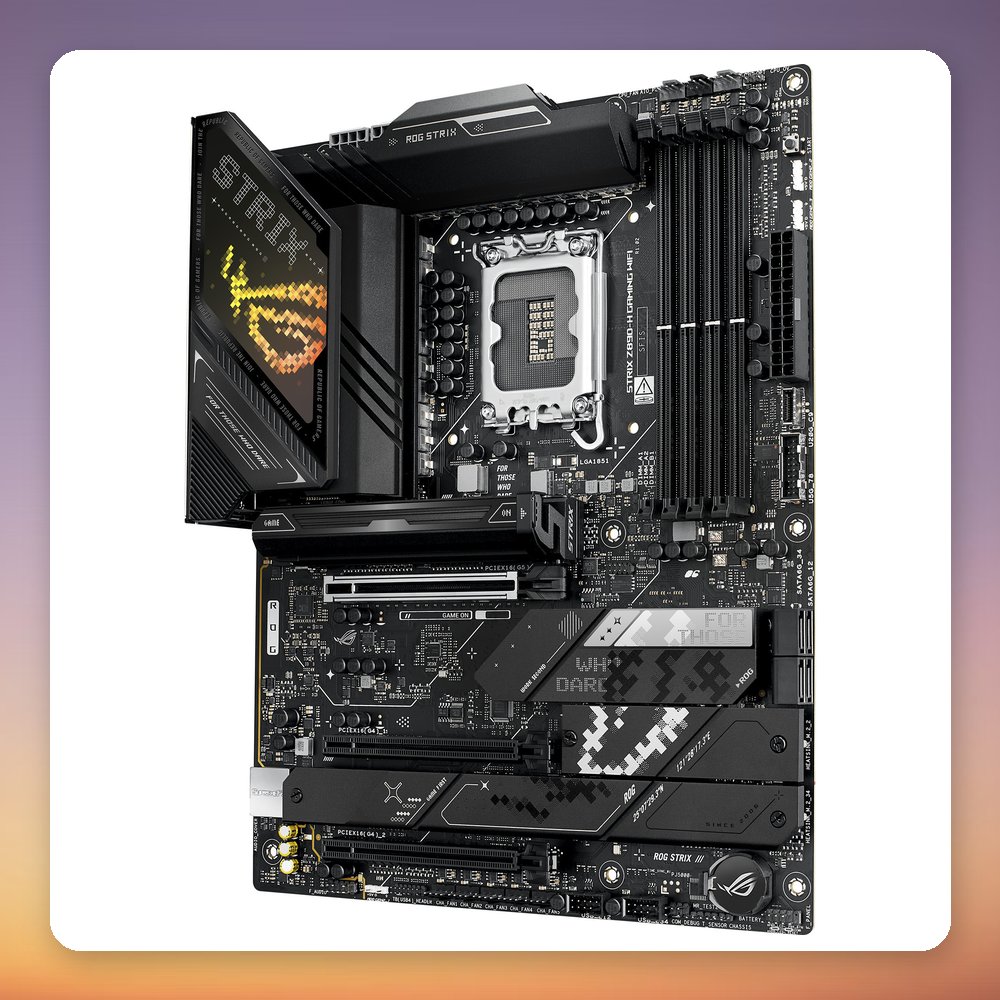

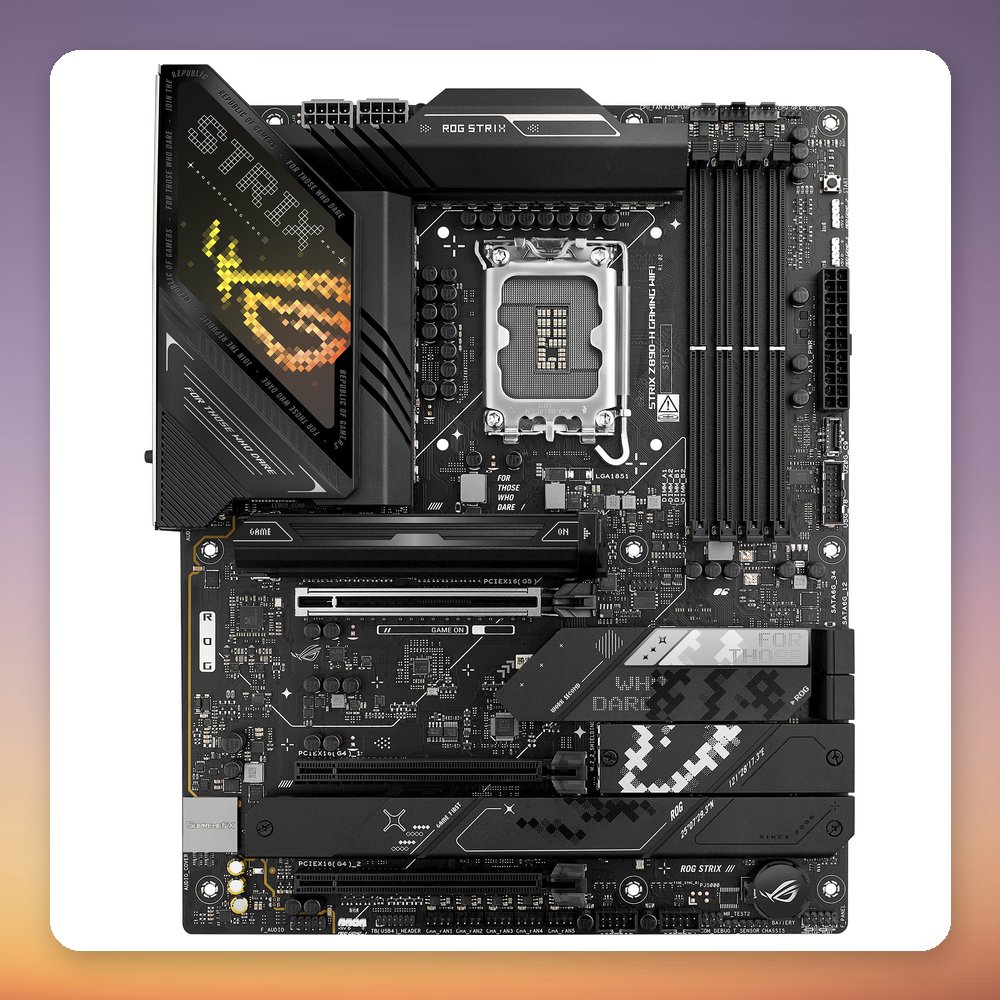

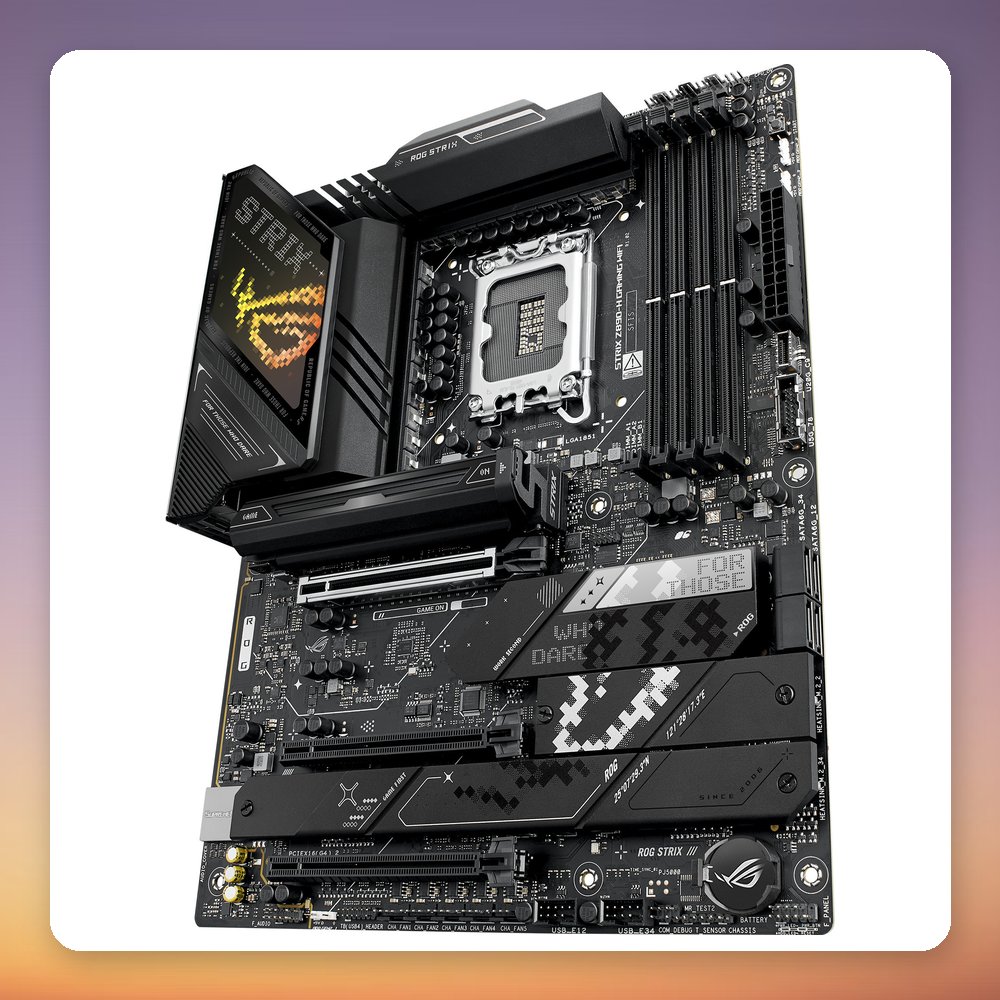

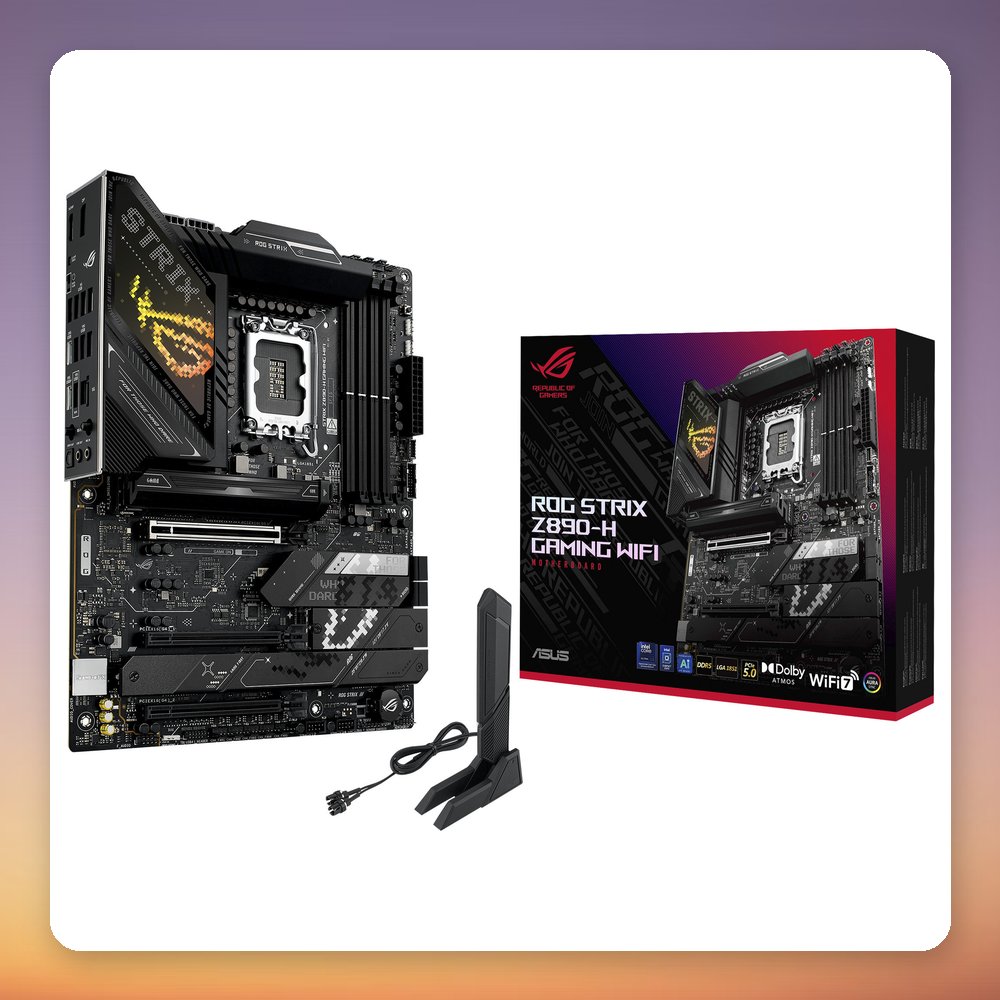

The Asus ROG STRIX Z890-H GAMING WIFI is an ATX motherboard built on the Intel Z890 chipset for LGA 1851 processors, covering the Core Ultra 5, 7 and 9 (Series 2, Arrow Lake) range. It has four DDR5 DIMM slots for up to 256 GB, supports memory speeds up to DDR5-9066, and offers four M.2 slots, one of them PCIe 5.0, plus a PCIe 5.0 x16 graphics slot.

This board suits a gaming or enthusiast Intel build that needs fast storage and modern connectivity without extra add-in cards. You get 5 Gb Ethernet, Wi-Fi 7 with Bluetooth 5.4, two rear USB-C 20 Gbps ports and eight 4-pin PWM fan headers. It also has Aura Sync RGB headers and supports RAID 0, 1, 5 and 10. A BIOS update may be needed to support the newest processors.

Specification

• Manufacturer: Asus
• Model: ROG STRIX Z890-H GAMING WIFI
• MPN: 90MB1K20-M0EAY0
• EAN: 4711387880678
• Chipset: Intel Z890
• CPU socket: LGA 1851
• Form factor: ATX
• Memory: 4x DDR5 DIMM, dual-channel, up to 256 GB (non-ECC)
• Memory speed: DDR5-9066 / 5600 / 5200 / 4800 / 4400 MT/s
• M.2 slots: 4x M.2 (M key): 1x PCIe 5.0, 3x PCIe 4.0
• SATA ports: 4x SATA III
• Expansion slots: 1x PCIe 5.0 x16, 2x PCIe 4.0 x16 (one runs at x4)
• Networking: Realtek 5 Gb Ethernet, Wi-Fi 7, Bluetooth 5.4
• Rear USB: 2x USB-C 20 Gbps, 4x USB-A 10 Gbps, 4x USB-A 5 Gbps
• Video outputs: 1x HDMI, 1x DisplayPort (require CPU with integrated graphics)
• Audio: Realtek ALC1220P, 7.1 channels
• Fan headers: 8x 4-pin PWM
• RGB: 3x addressable RGB headers, 1x RGB header, Aura Sync
• RAID: 0, 1, 5, 10
• Dimensions (W x D): 305 x 244 mm
