Product Overview

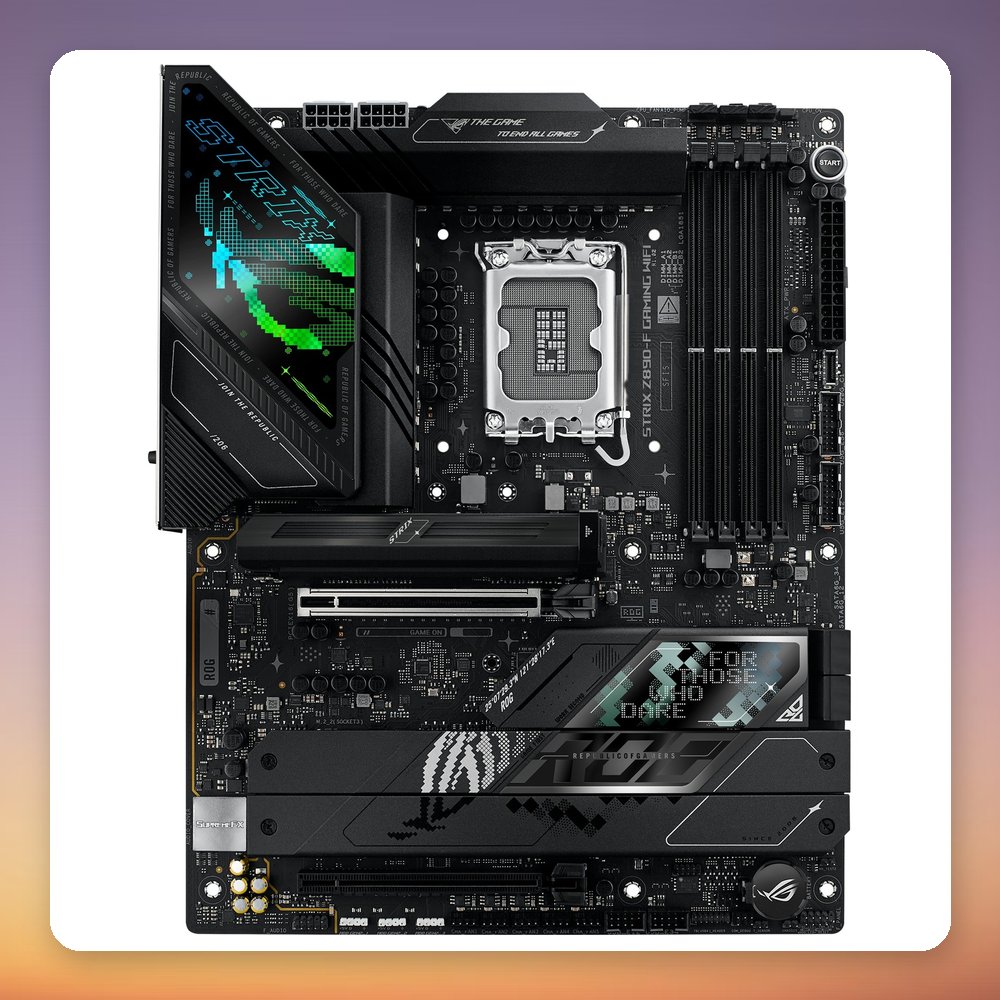

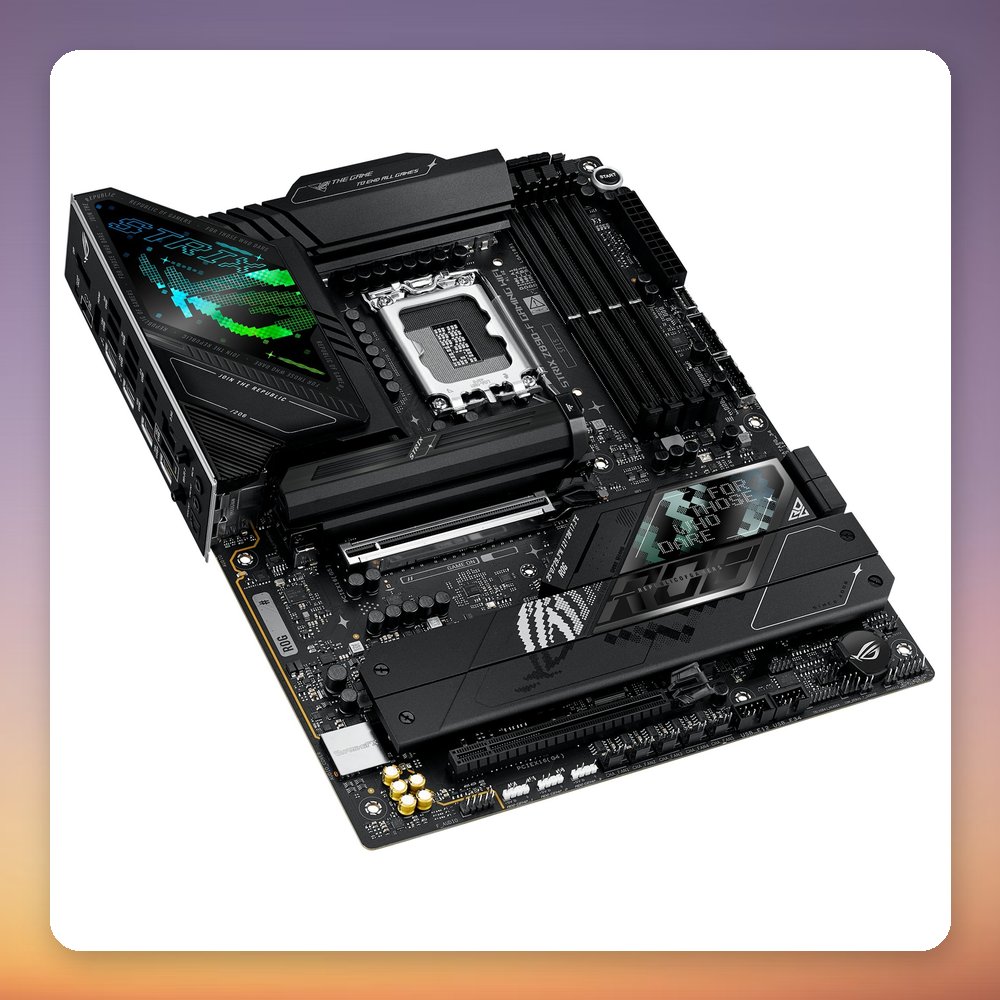

The Asus ROG Strix Z890-F Gaming WiFi is an ATX motherboard built on the Intel Z890 chipset for LGA 1851 processors, supporting Intel Core Ultra (Series 2) CPUs. It stands out with five M.2 slots, including one PCIe Gen 5.0 slot, an additional PCIe 5.0 x16 slot for the graphics card, and two Thunderbolt 4 ports on the rear panel. Connectivity includes Wi-Fi 7, Bluetooth 5.4 and Intel 2.5 Gb Ethernet.

This board suits enthusiast gaming builds around a Core Ultra K-series chip, where fast storage and plenty of ports matter. It has four DDR5 DIMM slots, with support listed up to DDR5-9066 (OC) and up to 256 GB, four SATA ports for extra drives, and eight 4-pin PWM fan headers for cooling. Realtek ALC4080 audio, AURA Sync RGB headers and a 256 Mbit UEFI BIOS are included. Note that a BIOS update may be needed for the newest processors.

Specification

• Manufacturer: Asus
• Model: ROG Strix Z890-F Gaming WiFi
• MPN: 90MB1I40-M0EAY0
• EAN: 47113877559210
• Socket: LGA 1851
• Chipset: Intel Z890
• Form Factor: ATX
• Supported Processors: Intel Core Ultra 5/7/9 (Series 2, Arrow Lake)
• Memory: 4x DDR5 DIMM, dual-channel, up to DDR5-9066 (OC)
• Maximum Memory: 256 GB (Wave data; Icecat lists 192 GB)
• PCIe x16 Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 lanes)
• M.2 Slots: 5x M.2 (M key), slot 1 PCIe 5.0, slots 2-4 PCIe 4.0
• SATA Ports: 4x SATA 6 Gb/s, RAID 0, 1, 5, 10
• Networking: Intel 2.5 Gb Ethernet, Wi-Fi 7, Bluetooth 5.4
• Rear USB / Thunderbolt: 2x Thunderbolt 4, 2x USB-C 10 Gbit/s, 4x USB-A 10 Gbit/s, 4x USB-A 5 Gbit/s, 2x USB 2.0
• Video Outputs: 1x HDMI, 1x DisplayPort, 2x Thunderbolt 4 DisplayPort output
• Audio: Realtek ALC4080
• RGB: AURA Sync, 3x addressable RGB headers, 1x RGB header
• Fan Headers: 8x 4-pin PWM
• Colour: Black
• Dimensions (W x H x D): 244 x 305 mm
